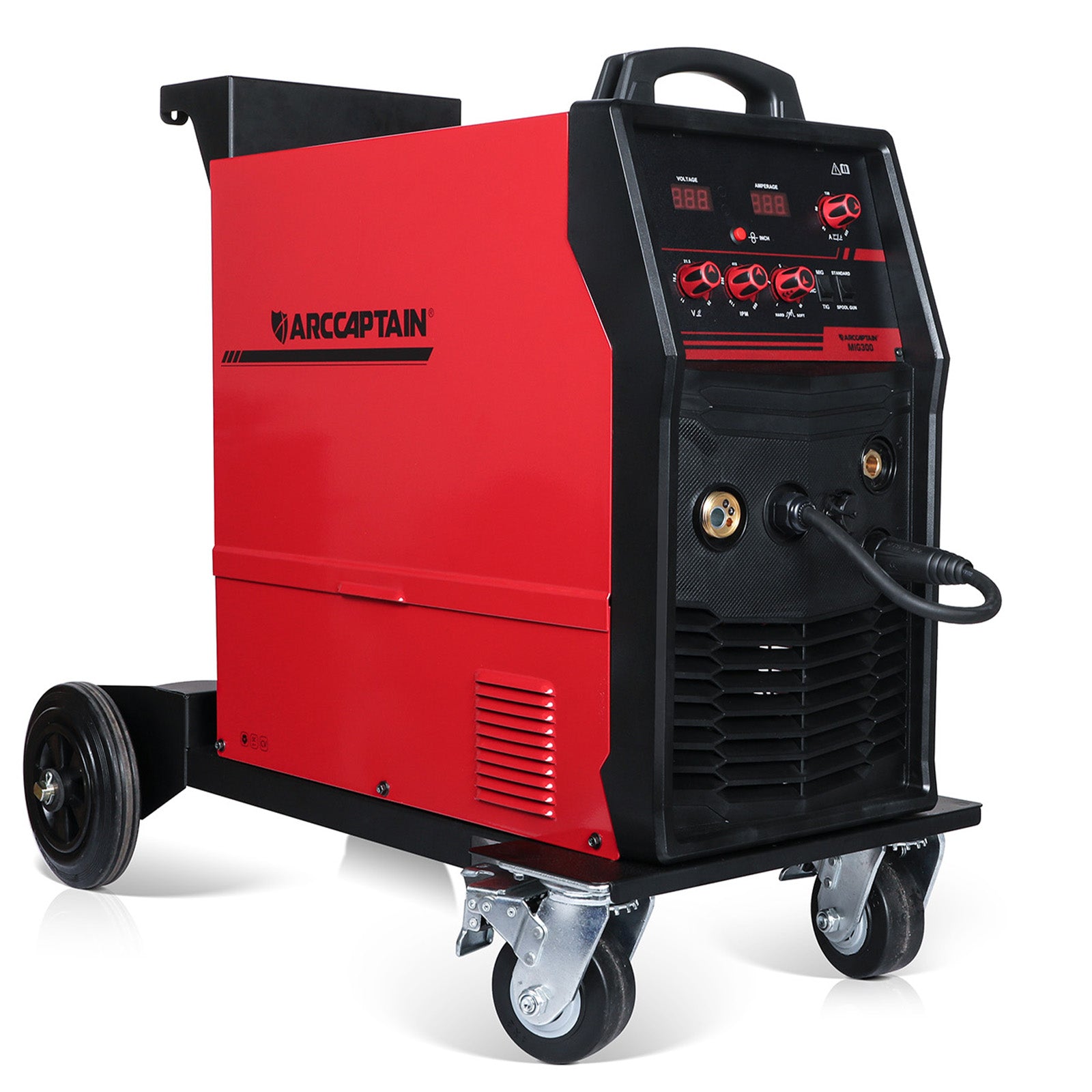

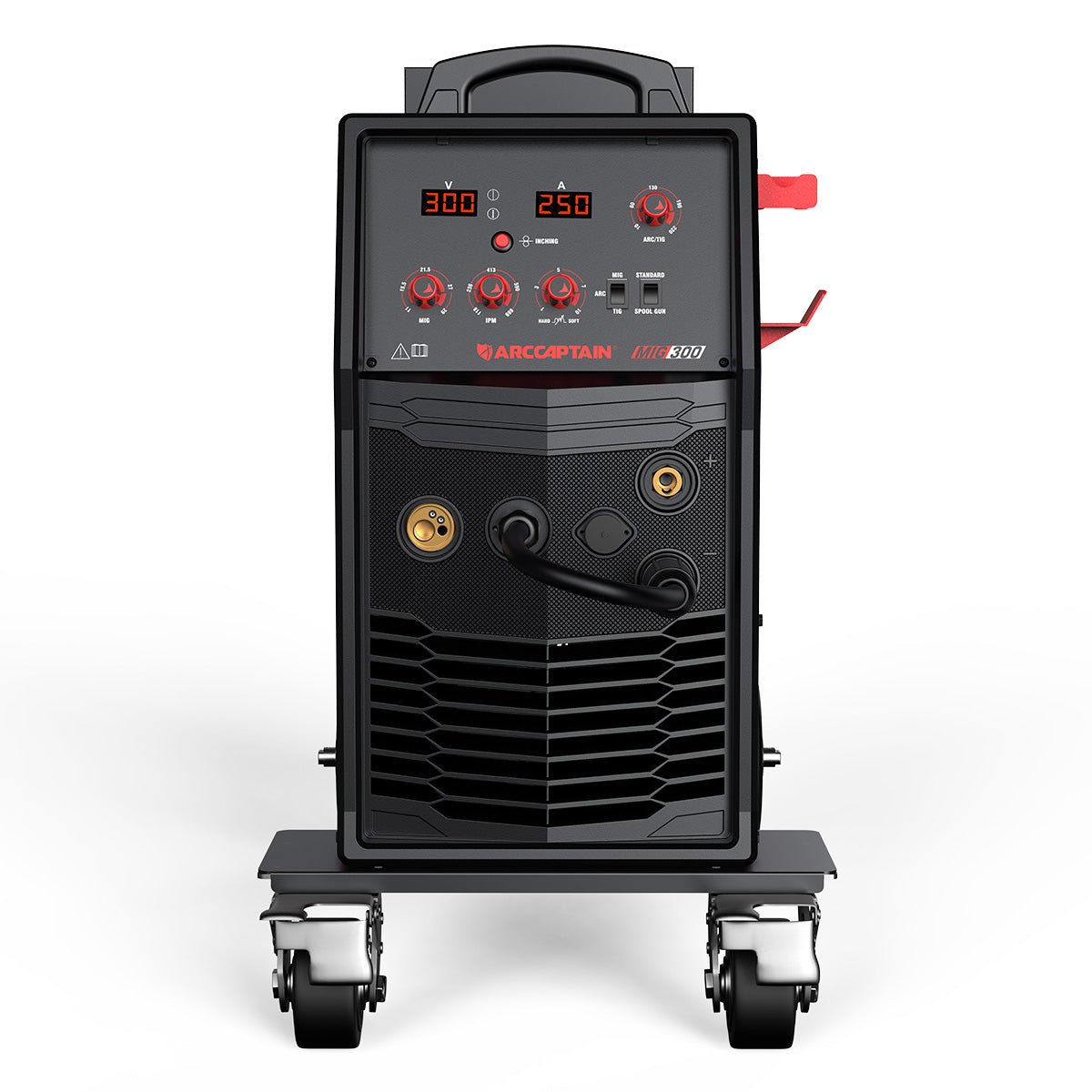

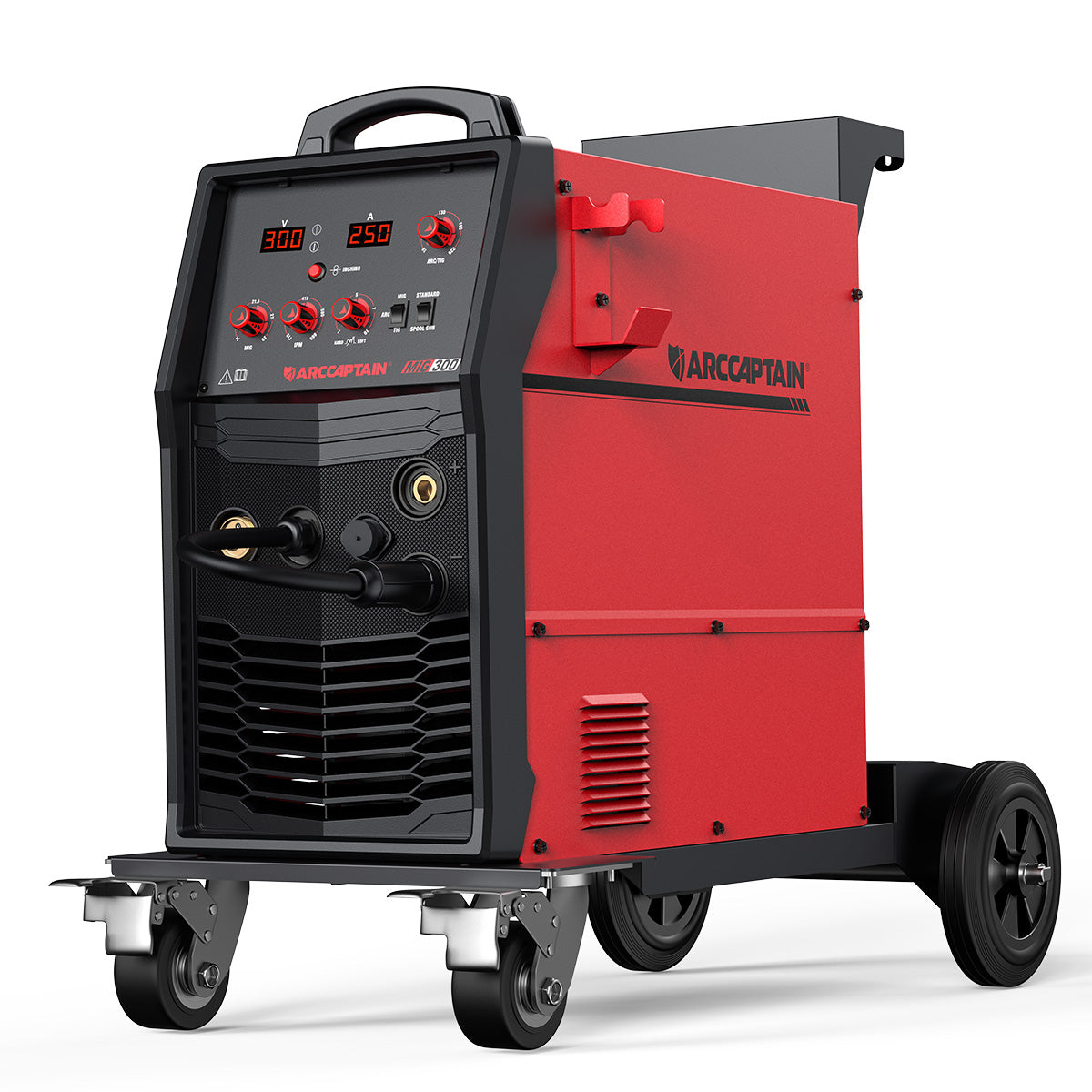

Arccaptain 250A Industrial Heavy-Duty MIG Welder
1. 250A Industrial Output
Delivers strong penetration and stable performance, welding steel plates up to 1/2" (13mm) for demanding fabrication and repair work.
2. Multi-Process Capability
Supports MIG, Flux-Cored, Stick, Lift TIG, and Spool Gun welding, allowing one machine to handle multiple metals and applications.
3. Dual-Drive Wire Feeding
Provides smooth and consistent wire delivery with adjustable 118–669 IPM speed for stable arc performance and cleaner welds.
4. Precision Arc Control

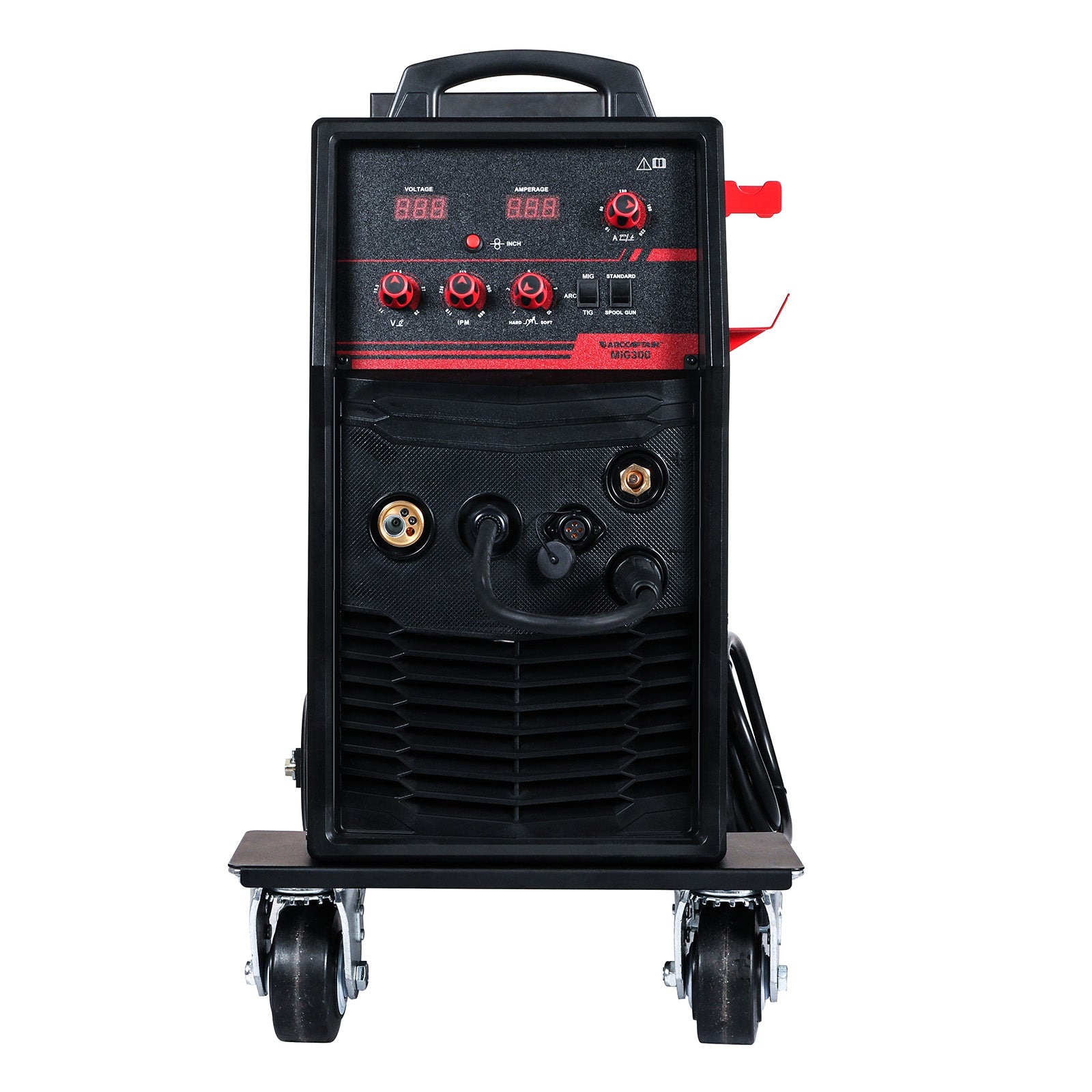

Adjustable inductance, burn-back control, and digital display optimize arc stability, reduce spatter, and improve weld appearance.
5. Continuous Duty Design

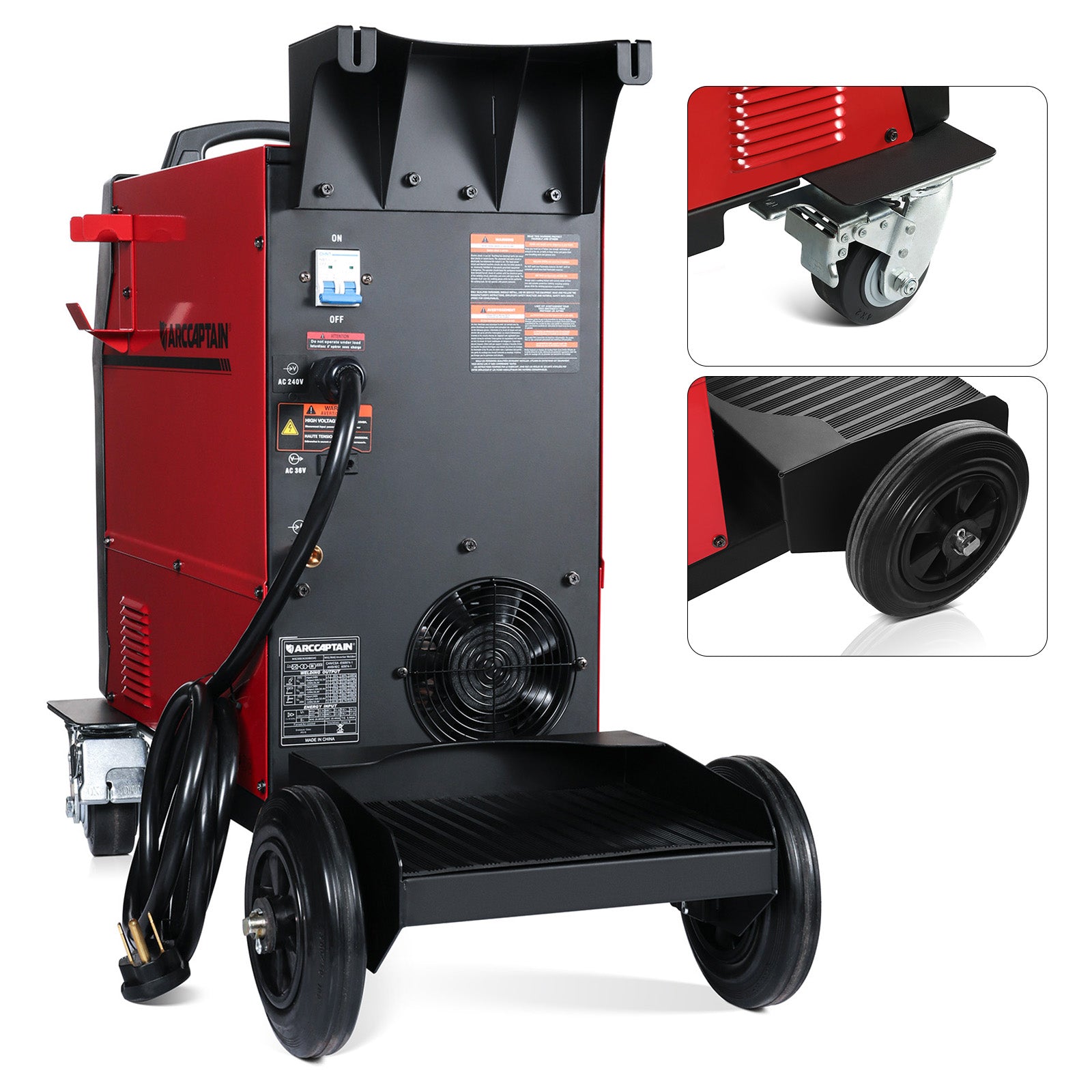

Supports 15kg / 20kg wire spools with integrated mobility, enabling efficient long-hour operation in workshops and jobsite environments.

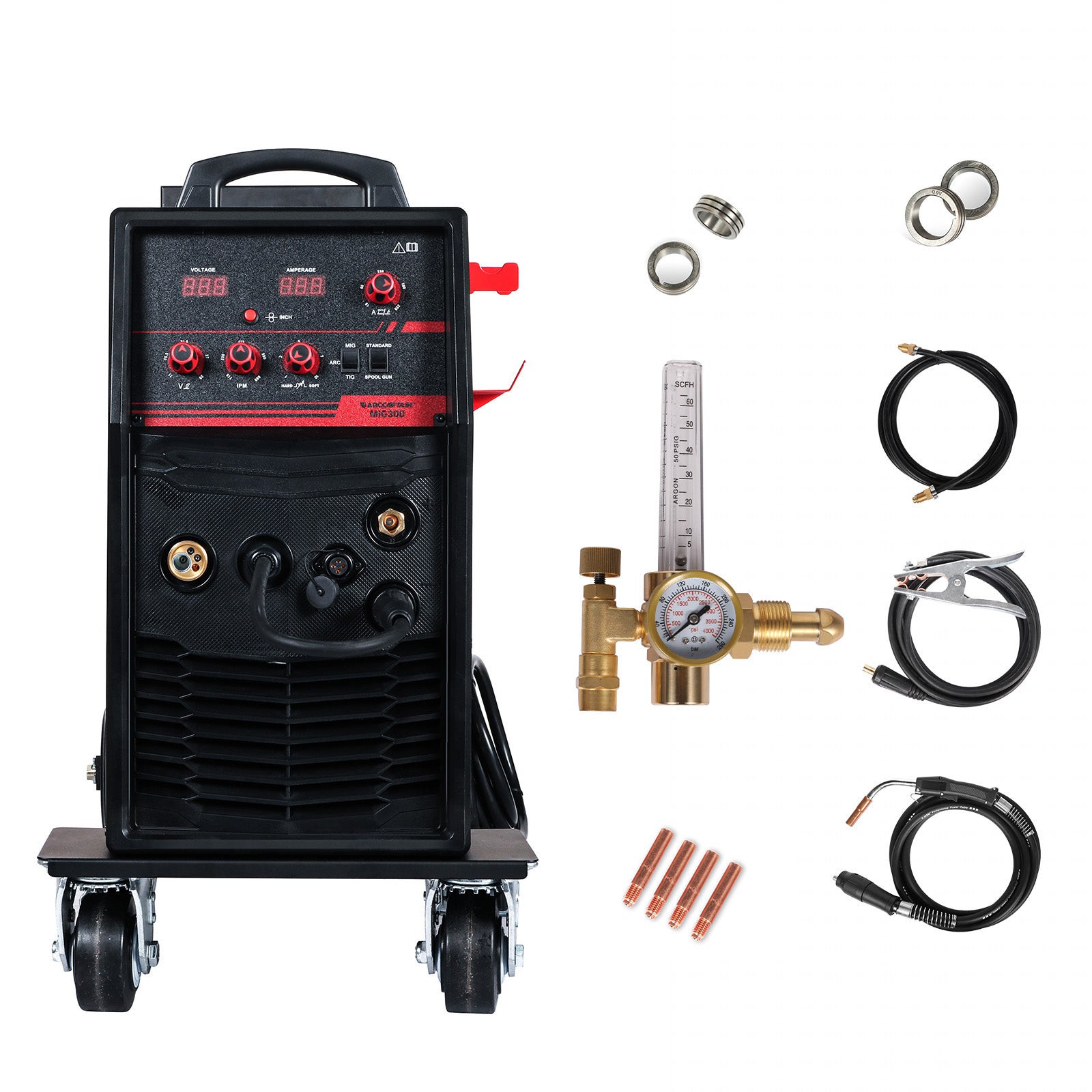

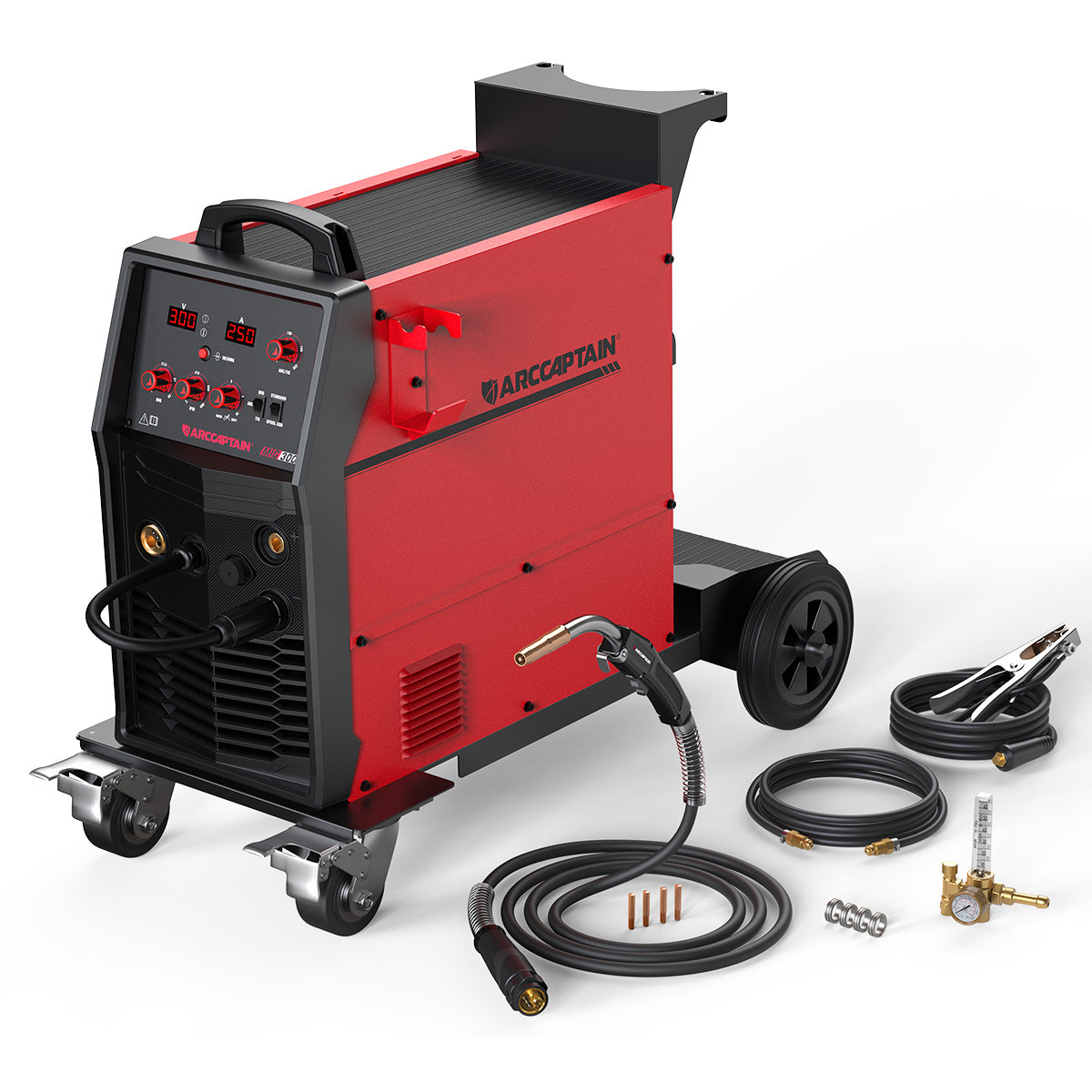

MIG Welder Machine
MIG Tweco Welding Torch (15.2ft)
Welding Ground Clamp(15.2ft)
Welding Gas Hose (10ft)
2PCS contact tip Փ0.035"
2PCS contact tip Փ0.040"
2PCS 0.035"/0.040"Knurled Rollers
Gas Regulator
-
Estimated Delivery:May 02 - May 06
-
- Free Fast Shipping On orders over $100
- Experience peace of mind with our trusted logistics services.
Arccaptain 250A Industrial Heavy-Duty MIG Welder
Arccaptain 250A Industrial Heavy-Duty MIG Welder
A 250A industrial multi-process welder engineered for continuous work and consistent performance. This industrial-grade machine delivers stable, continuous welding power with smooth dual-drive wire feeding, supports multiple welding processes and metals, and is designed for long-duty cycles with large wire spools and jobsite-ready mobility—making it a reliable solution for workshops, repair bays, and industrial job sites.
Features:
- 250A Industrial Output - Strong penetration and stable performance, welding steel plates up to 1/2" (13mm)
- Multi-Process Capability - Supports MIG, Flux-Cored, Stick, Lift TIG, and Spool Gun welding
- Dual-Drive Wire Feeding - Smooth and consistent wire delivery with adjustable 118-669 IPM speed
- Precision Arc Control - Adjustable inductance, burn-back control, and digital display
- Continuous Duty Design - Supports 15kg/20kg wire spools with integrated mobility
Technical Specifications
What's in the Box
Compatibility & Tips

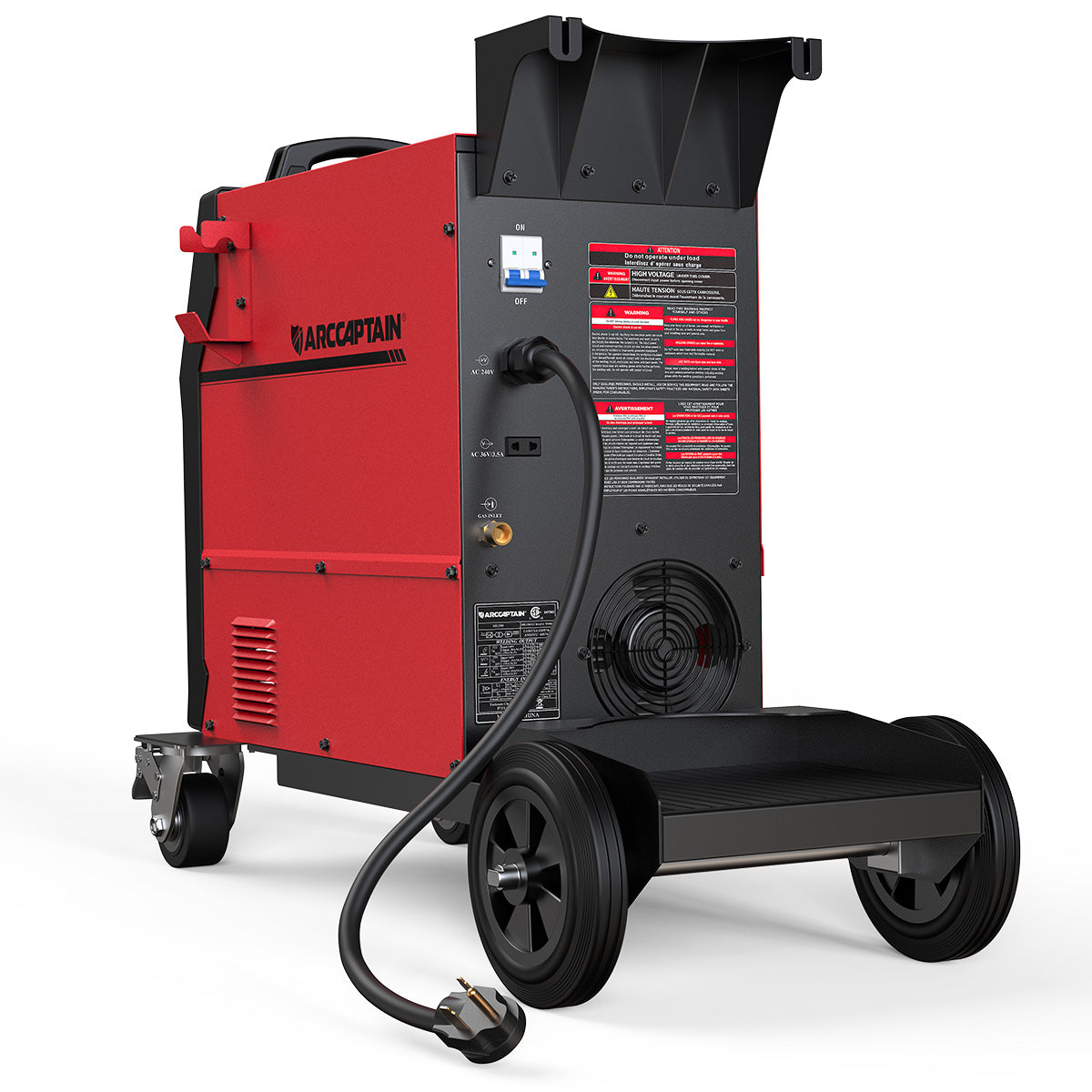

Power Requirements

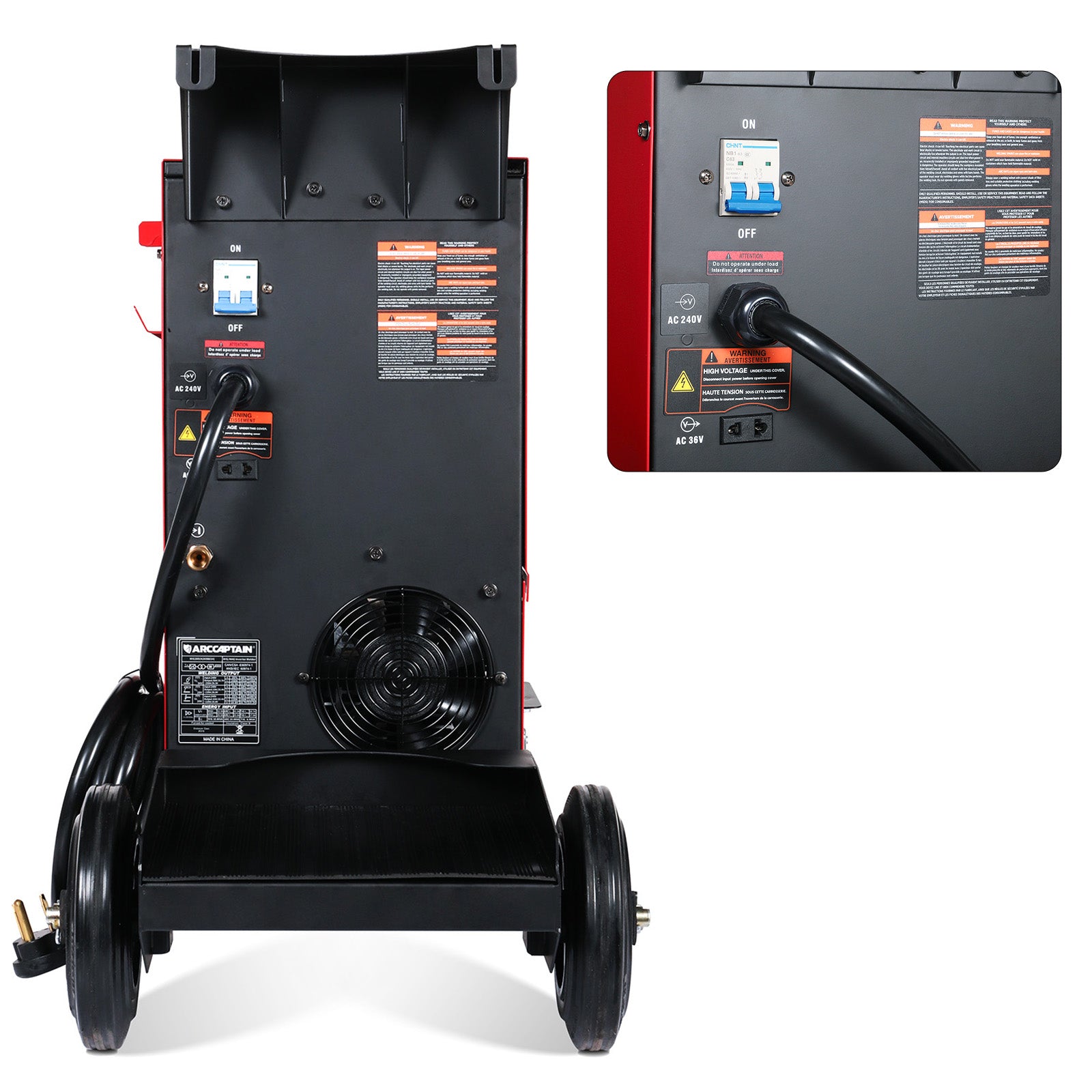

Requires 240V single-phase input (high-power industrial machine)
Supported Welding Processes
Gas MIG (solid wire), Gasless MIG (flux-cored wire), Lift TIG, MMA/Stick welding
Wire Spool Compatibility
Large internal wire bay accommodates 5kg, 15kg, and 20kg wire spools. Supports switching between small portable rolls and heavy-duty industrial spools.
Spool Gun for Aluminum
Machine features dedicated connector and switch for Spool Gun compatibility. Spool Gun is not included and must be purchased separately.
Maximum Welding Thickness (Single Pass)
| Material | Thickness |
|---|---|
| Stainless Steel | 10mm |
| Cast Iron | 12mm |
| Aluminum (with spool gun) | 8mm |
| Copper & Brass | 6mm |
| Steel Plates | Up to 10mm (3/8") |
Versatile Applications
Metal Fabrication
For 2-10mm steel plates, heavy-duty frames, equipment bases, industrial cabinets
Automotive Repair
For 3-6mm carbon steel, frame reinforcement, exhaust brackets, bumpers
On-Site Construction
For thin sheets to 10mm plates, outdoor environments
Vessel Repair
For 3-8mm marine-grade steel, hull repairs
Shipping: Currently ships to USA only
Free Fast Shipping on orders over $100
Welding Parameter Recommendation Table
| Mode | Wire Type | Shielding Gas | Wire Dia. | 24ga 0.6mm |
22ga 0.8mm |
20ga 0.9mm |
18ga 1.2mm |
16ga 1.5mm |
14ga 2.0mm |
12ga 2.5mm |
10ga 3.5mm |
0.187" 4.8mm |
0.250" 6.3mm |
0.375" 9.5mm |
0.50" 12.7mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIG - Solid Wire (ER70S-X) | |||||||||||||||
| MIG | Solid Wire ER70S-X |
80%Ar 20%CO2 |
0.030" | — | 120/15 | 140/15.5 | 180/16.5 | 220/17.0 | 280/17.5 | 360/18.5 | 480/22.5 | 560/25.0 | 669/28.0 | — | — |
| 0.035" | — | — | 140/16.5 | 160/17.0 | 200/17.5 | 260/18.0 | 340/19.0 | 460/23.0 | 520/25.5 | 580/26.5 | 669/28.5 | — | |||
| 0.040" | — | — | — | 120/16.2 | 165/16.8 | 200/18.0 | 240/19.5 | 280/21.5 | 360/22.0 | 400/23.5 | 480/26.5 | 600/28.5 | |||
| 0.045" | — | — | — | — | — | 118/17.0 | 140/19.0 | 180/21.0 | 220/22.0 | 300/24.0 | 380/26.0 | 400/28.5 | |||
| MIG | Solid Wire ER70S-X |
100%CO2 | 0.030" | — | 140/16.0 | 180/17.5 | 200/18.5 | 240/19.0 | 280/20.0 | 360/21.0 | 460/23.0 | 580/26.0 | 660/28.5 | — | — |
| 0.035" | — | — | 140/17.0 | 160/17.5 | 200/18.0 | 260/18.5 | 340/19.5 | 460/23.5 | 520/26.0 | 580/27.0 | 640/28.5 | — | |||
| 0.040" | — | — | — | 120/16.7 | 165/17.5 | 200/18.5 | 240/20.0 | 280/22.0 | 360/22.5 | 400/24.0 | 480/27.0 | 600/28.5 | |||
| 0.045" | — | — | — | — | — | 118/17.5 | 140/19.5 | 180/21.5 | 220/22.5 | 300/24.5 | 380/26.5 | 400/28.5 | |||
| MIG - Flux-Cored (E71T-GS) | |||||||||||||||
| MIG | Flux-Cored E71T-GS |
No-GAS | 0.030" | — | — | — | 118/13.5 | 140/14.0 | 160/15.5 | 200/16.0 | 220/17.5 | 260/18.0 | 300/19.5 | 400/24.0 | 600/28.0 |
| 0.035" | — | — | — | 118/14.5 | 140/15.0 | 160/16.5 | 200/17.0 | 220/18.5 | 260/19.0 | 300/20.5 | 380/26.0 | 560/28.0 | |||
| 0.040" | — | — | — | — | 118/13.0 | 140/14.5 | 160/16.5 | 200/17.5 | 280/20.0 | 380/23.0 | 480/25.0 | 480/28.0 | |||
| 0.045" | — | — | — | — | — | 120/15.8 | 140/16.5 | 160/18.5 | 200/22.0 | 240/23.5 | 320/26.5 | 380/28.5 | |||
| MIG - Stainless Steel (ER308/ER316) | |||||||||||||||
| MIG | ER308 ER316 |
Ar98% CO2 2% |
0.030" | — | 140/15.0 | 180/16.0 | 220/17.0 | 280/17.5 | 360/19.0 | 440/19.5 | 520/22.5 | 560/23.0 | 660/25.0 | — | — |
| 0.035" | — | — | 120/16.0 | 140/17.0 | 220/17.5 | 260/18.5 | 300/19.6 | 340/24.5 | 380/25.0 | 420/26.0 | — | — | |||
| 0.040" | — | — | — | 120/15.5 | 152/16.5 | 172/17.0 | 192/17.0 | 260/24.0 | 300/24.0 | 340/24.5 | 420/28.0 | — | |||
| 0.045" | — | — | — | — | 120/17.0 | 145/17.5 | 160/20.0 | 190/23.0 | 240/24.0 | 300/25.5 | 380/28.0 | — | |||
| Spool Gun - Aluminum | |||||||||||||||
| Spool Gun | ER4043 | Ar(99.9%) 15-20 L/min |
0.035" | — | — | 120/12.5 | 190/12.8 | 230/13.0 | 300/14.5 | 360/16.0 | 460/17.5 | 500/18.5 | 580/20.0 | — | — |
| 0.040" | — | — | 130/11.8 | 160/12.3 | 200/13.5 | 260/15.0 | 300/16.0 | 380/17.5 | 440/21.0 | 500/23.0 | 550/25.5 | — | |||
| 0.045" | 140/15.0 | 200/16.0 | 280/17.5 | 360/21.5 | 440/23.0 | 520/25.5 | 660/28.0 | ||||||||
| Spool Gun | ER5356 | Ar(99.9%) 15-20 L/min |
0.035" | — | — | 140/13.0 | 210/13.2 | 250/13.5 | 320/15.0 | 400/16.5 | 500/18.5 | 540/19.5 | 580/20.5 | — | — |
| 0.040" | — | — | — | 180/12.5 | 220/14.0 | 280/15.5 | 340/16.5 | 420/18.0 | 480/22.0 | 540/23.5 | 600/26.0 | — | |||
| 0.045" | — | — | — | — | — | 140/15.5 | 200/16.5 | 280/18.0 | 360/22.0 | 480/23.5 | 560/26.0 | 669/28.5 | |||
| Stick (MMA) | |||||||||||||||
| Stick | E6013 | DCEN | 3/32" | — | — | — | 50-60 | 60-70 | 70-80 | 80-90 | 90-100 | — | — | — | — |
| 1/8" | — | — | — | — | — | 80-90 | 90-100 | 100-110 | 130-145 | 150-165 | — | — | |||
| 5/32" | — | — | — | — | — | — | — | — | 150-160 | 160-180 | 180-200 | — | |||
| 3/16" | — | — | — | — | — | — | — | — | — | — | 180-200 | 200-220 | |||
| Stick | E7018 | DCEP | 3/32" | — | — | — | 60-70 | 70-80 | 80-90 | 90-100 | 100-110 | 130-145 | 150-165 | — | — |
| 1/8" | — | — | — | — | — | 80-90 | 90-100 | 100-110 | 130-145 | 150-165 | — | — | |||
| 5/32" | — | — | — | — | — | — | — | — | 150-160 | 160-180 | 180-200 | — | |||
| 3/16" | — | — | — | — | — | — | — | — | — | — | 180-200 | 200-220 | |||
| Lift TIG | |||||||||||||||
| Lift TIG | — | Ar(99.9%) DCEN |
1/16" | 10-50 | 30-55 | 40-60 | 50-60 | 60-70 | 60-90 | 100-120 | 120-140 | 130-150 | 150-160 | — | — |
| 3/32" | — | — | 40-60 | 50-60 | 60-70 | 60-90 | 100-120 | 120-140 | 130-150 | 150-160 | 180-200 | — | |||
| 1/8" | — | — | — | — | 60-70 | 60-90 | 100-120 | 120-140 | 130-150 | 150-160 | 180-200 | 20-220 | |||
Legend:
Solid Wire Flux-Cored Stainless Steel Spool Gun (Aluminum) Stick (MMA) Lift TIGStatement of Limited Liability
ARCCAPTAIN Welder expressly warrants to all purchasers (“Buyer”) of all new welding and cutting equipment, helmet, and replacement parts (“Goods”) that Goods shall be free from manufacturing defects in materials and workmanship which are discovered within the warranty period, subject to the disclaimers and limitations of the Statement. This warranty is void if the equipment has been subjected to improper installation and testing, improper care, unauthorized repair and modification, or abnormal operations.
Warranty Period
We will assume both the parts replacement and repair expense of correcting defects during the warranty period. All warranty periods start from the date of delivery and are as follows:
Warranty Statement for Welder:
Seller will assume both the parts replacement and repair expense of correcting defects during the warranty period. All warranty periods start from the date of delivery and are as follows:
| MACHINE MODEL | Warranty Time |
| ARC200 | 2 Years |
| ARC160 | 2 Years |
| MIG130 | 2 Years |
| MIG135 | 2 Years |
| MIG145 Pro | 3 Years |
| MIG160 | 2 Years |
| MIG165 | 2 Years |
| MIG165 Pro | 3 Years |
| MIG200 | 2 Years |
| MIG250 | 2 Years |
| MIG200 FIT | 2 Years |
| MIG205MP | 3 Years |
| CUT50 | 2 Years |
| CUT55 LED | 2 Years |
| CUT55 NON-HF | 2 Years |
| CUT55 Pro | 3 Years |
| CUT55 MP | 3 Years |
| MIG205 Pro | 2 Years |
| DC TIG200 | 2 Years |
| AC/DC TIG200P | 3 Years |
| TIG200P | 3 Years |
| TIG205 Pro | 3 Years |
| TIG205P Pro | 3 Years |
| ARC205 Pro | 3 Years |
| ARC165 Pro | 3 Years |
| Used Welding Equipment | 1 Year |
If the items purchased within the scale above become defective due to faulty materials or workmanship within a period of 2 years from the date of purchase, we guarantee to do one of the following, though you may be required to pay shipping costs for the return of the product to us and shipment of the repaired/replaced product to you:
- Replace or repair all defective parts,
- Repair a defective unit
- Replace the unit with a new or reconditioned unit.
Warranty for Welding Helmet
180 days standard warranty
Welding Helmet
Warranty Statement for Weld Parts
90 days standard warranty
- Replacement Parts
- Torch accessories/ consumables /Welding Gauges
- Tungsten
Buyer must contact Seller requesting warranty coverage within thirty (30) days from the date the defect is made known to the Buyer at www.arccaptain.com.
This Limited Warranty is subject to the following conditions:
- Require proof of purchase including order number and place of purchase.
- The item has not been misused, abused, neglected, altered, modified, or repaired by anyone other than the ARCCAPTAIN’s authorized service center.
- Defect or damage to the item has not resulted from the use of accessories or parts that are inappropriate for normal operation of the tool, or that are not designed for use with the item.
- The item has not been subjected to fair wear and tear.
- The item has not been used for trade purposes.
- The item has not been used for rental purposes.
- The item has not sustained damage through foreign objects, substances, or accidents.
Limitation and Disclaimer
Goods are intended for commercial and industrial users who are trained and experienced in the use and maintenance of welding equipment. Buyer's remedies shall be limited exclusively to those provided in this Statement. There are no express warranties other than those contained herein. Seller does not warrant any portion of the Goods not manufactured by Seller or its associates (whether or not specified by Buyer), but Seller shall assign to Buyer upon request all assignable warranties on product of Seller's suppliers related to such Goods. Seller does not warrant that it or the Goods are in compliance with any entity, organization or industry standards, guidelines, or procedures unless specifically contained in a writing signed by Seller.
Warranty Email:support@arccaptain.com
Freight Cost
Buyer is responsible for shipment to and from the Seller’s warehouse, or a service facility authorized by Seller. More detail about return policy.
REFUND POLICY
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.
Please Read The Return Policy Here.
Once we have approved your return request, we will start the refund process.
If your return is accepted, we’ll send you a return shipping label, as well as instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted. You can always contact us for any return question at support@arccaptain.com.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like perishable goods (such as food, flowers, or plants), custom products (such as special orders or personalized items), and personal care goods (such as beauty products). We also do not accept returns for hazardous materials, flammable liquids, or gases. Please get in touch if you have questions or concerns about your specific item. Unfortunately, we cannot accept returns on sale items or gift cards.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
European Union 14 day cooling off period
Notwithstanding the above, if the merchandise is being shipped into the European Union, you have the right to cancel or return your order within 14 days, for any reason and without a justification. As above, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund too.
If more than 15 business days have passed since we’ve approved your return, please contact us at support@arccaptain.com.
Versatile Applications
1. Metal Fabrication
Engineered for high-output fabrication shops and structural production, this 250A industrial welder delivers a rock-solid arc for 2–10mm steel plates. It is the go-to solution for building heavy-duty frames, equipment bases, industrial cabinets, and custom metal components.
2. Automotive Repair
Designed for busy repair bays and aftermarket workshops, the MIG-300 handles 3–6mm carbon steel with professional confidence. It is ideal for heavy-duty frame reinforcement, custom exhaust brackets, bumpers, trailers, and RV structural modifications.
3. On-Site Construction
From structural steel touch-ups to rugged agricultural equipment repair, this machine thrives in unpredictable jobsite conditions. Supporting everything from thin sheets to 10mm plates, it ensures reliable, high-duty performance in outdoor environments.
4. Vessel Repair
Provides the reliable penetration required for 3–8mm marine-grade steel used in hull repairs and structural reinforcement. The mobile, space-saving design allows for flexible operation in crowded docks, shipyards, and confined maritime workspaces.
