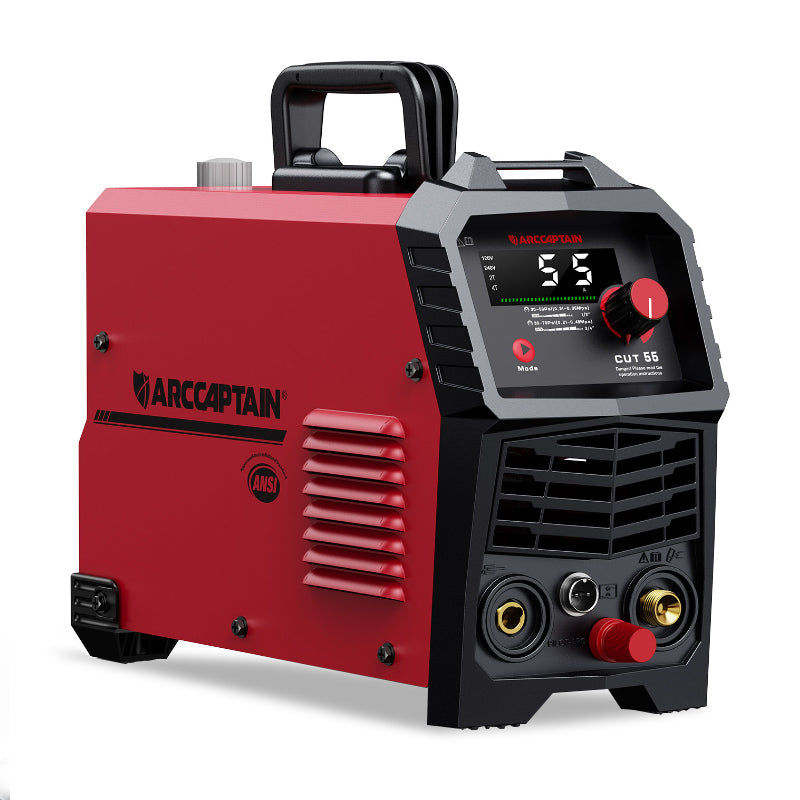

Arccaptain CUT55 Pilot Arc Plasma Cutter Pre-sale

Translation missing: en.products.product.price.regular_price $259.99
Translation missing: en.products.product.price.sale_price $259.99 Translation missing: en.products.product.price.regular_price $259.99
Save 0

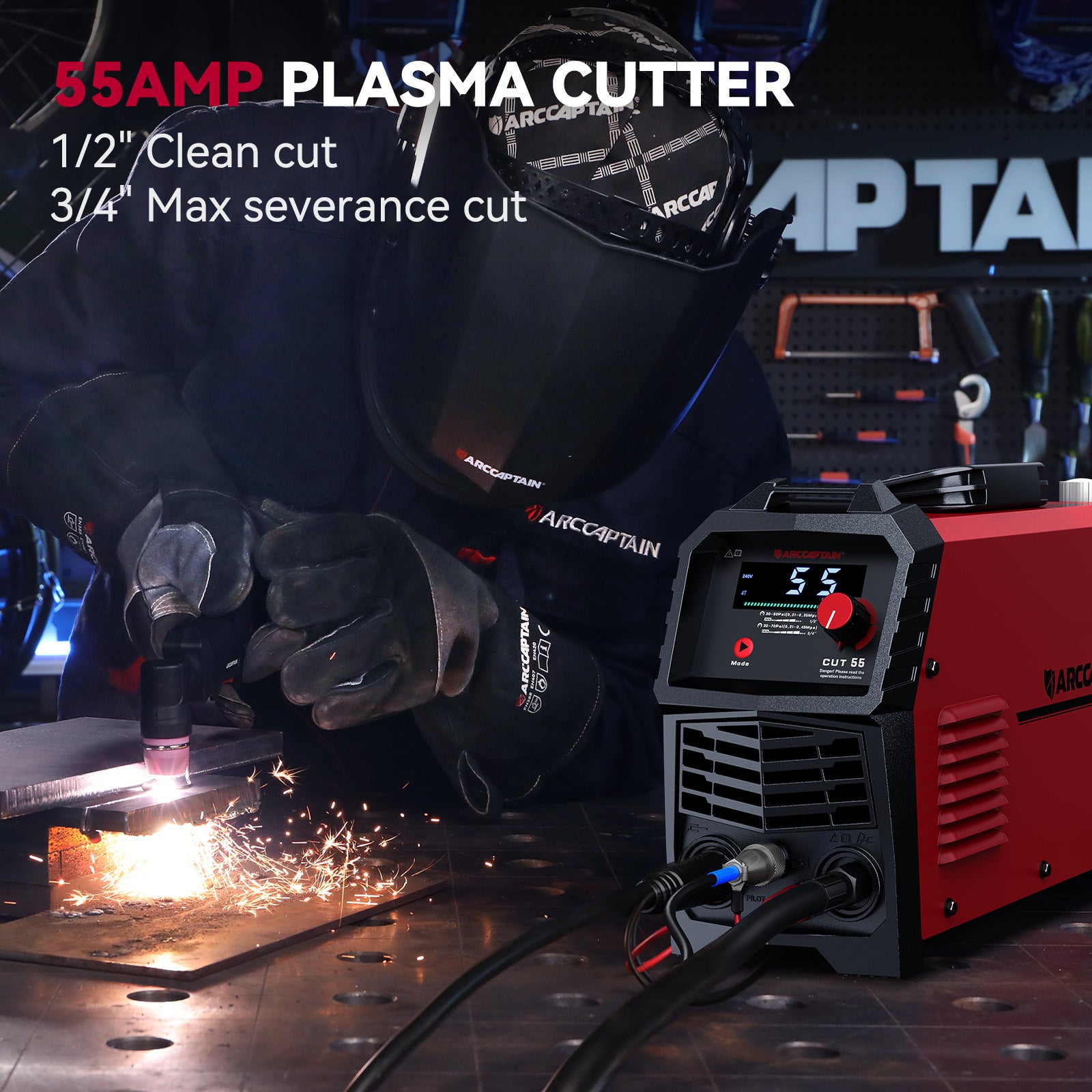

1.Powerful Cutting: CUT 55 Plasma cutter delivers clean cuts up to 12mm thickness and maximum cutting thickness of 15mm.

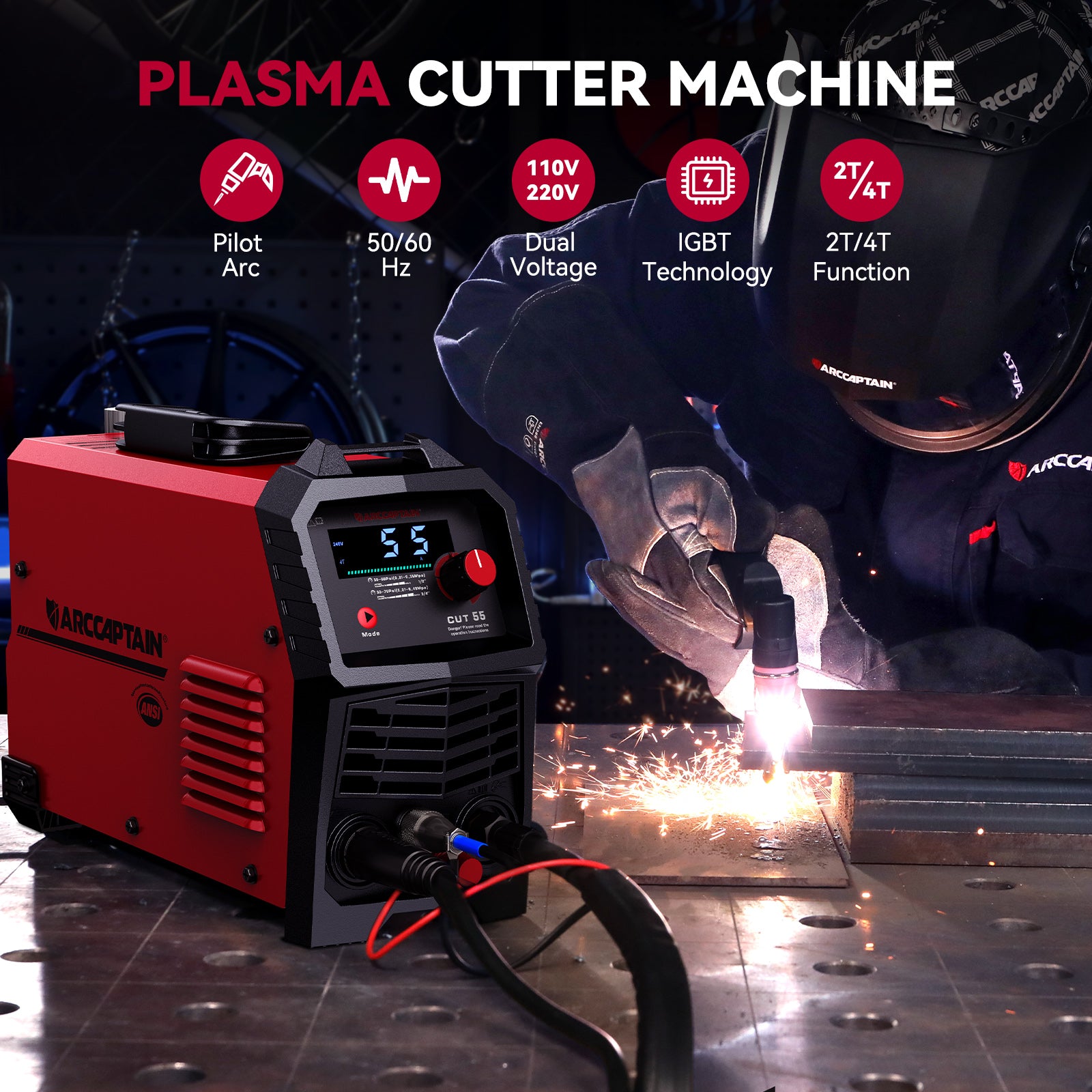

2.Pilot Arc: The CUT 55 Plasma cutter's Pilot Arc Function ensures seamless cutting with high-frequency non-touch arc starting, minimizing damage and enhancing convenience.



3.Easy Operation: Featuring a 2T/4T design for different trigger modes, adjustable input pressure, and a fixed 5-second post-flow time, this cutter simplifies operation for novice users.



4.Versatile Metal Cutting: Suitable for cutting carbon steel, stainless steel, aluminum, and copper.



5.Safety Features: This portable plasma cutter includes protections against overcurrent, overheating, and undervoltage, ensuring safe use. Weighing only 19.8 lbs for added convenience.

payment icon

Join our FB Group ! Connect, share, and grow with like-minded Welders!

Arccaptain CUT55 Pilot Arc Plasma Cutter Pre-sale

Translation missing: en.products.product.price.regular_price $259.99
Translation missing: en.products.product.price.sale_price $259.99 Translation missing: en.products.product.price.regular_price $259.99
Description

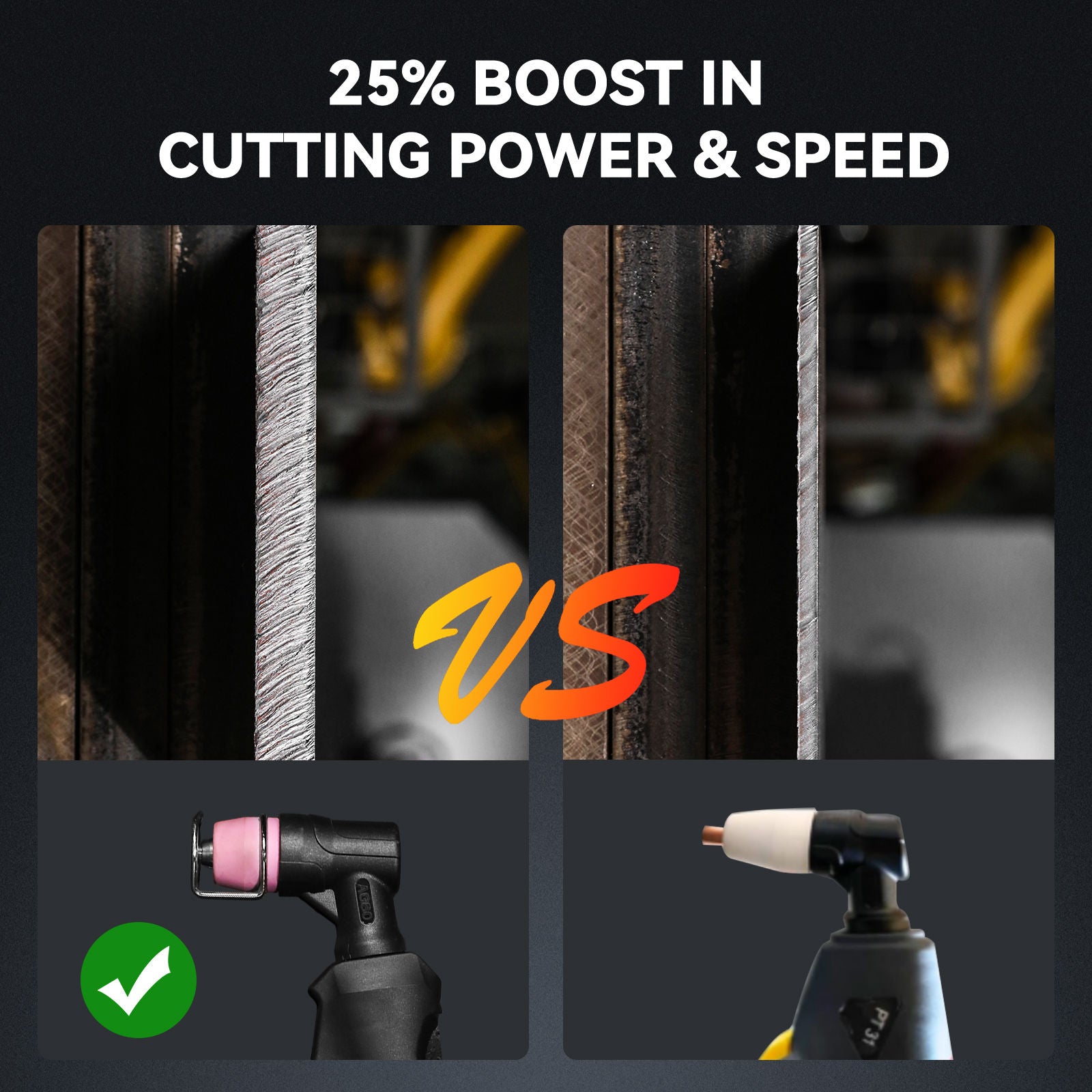

Enhanced Cutting Power:
The CUT55 Plasma cutter is engineered for powerful cutting performance, effortlessly delivering clean cuts up to 12mm thickness. With a maximum cutting thickness of 15mm, this cutter provides exceptional cutting power and versatility for a wide range of applications.

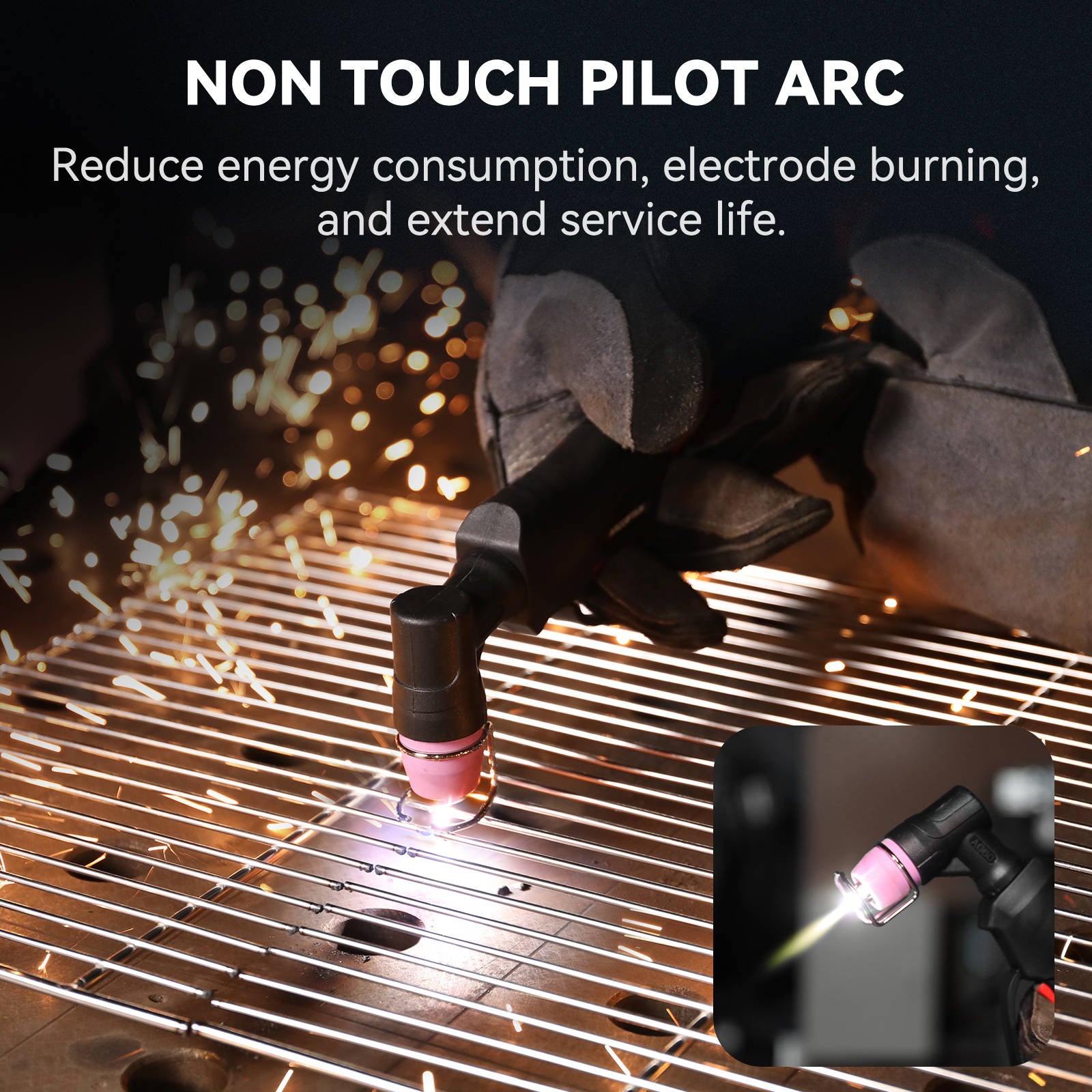

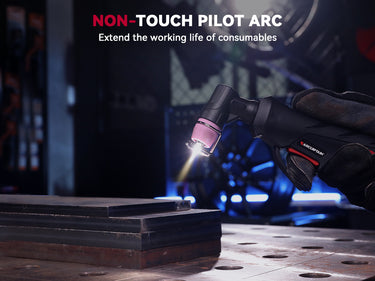

Pilot Arc Function:
The CUT55 Plasma cutter's Pilot Arc Function utilizes a high-frequency non-touch arc starting mode, enhancing user convenience and minimizing material damage, with added PA adjustable function and extended pilot arc maintenance time to reduce energy consumption and electrode burning, ensuring seamless cutting performance and efficiency.

User-Friendly Operation:
Designed for ease of use, the CUT55 Plasma cutter features a 2T/4T design for different trigger modes, providing flexibility and control over the cutting process. Adjustable input pressure allows users to fine-tune settings according to specific cutting requirements, while the fixed 5-second post-flow time enhances cutting quality and efficiency.

Versatile Metal Cutting Abilities:
The cutter is designed to handle a variety of metals, including carbon steel, stainless steel, aluminum, and copper, offering versatility and reliability in metal cutting applications. Whether fabricating structural components, creating intricate designs, or conducting repairs, users can rely on the cutter to deliver exceptional results across different materials and thicknesses.

Safety and Convenience Features:
Safety is paramount, and the CUT 55 Plasma cutter prioritizes user safety with built-in protections against overcurrent, overheating, and undervoltage. These safety features ensure reliable operation and protect both the user and the equipment from potential hazards. Additionally, its lightweight design, weighing only 19.8 lbs, enhances portability and convenience, allowing users to transport and use the cutter with ease, whether in the workshop or on-site.

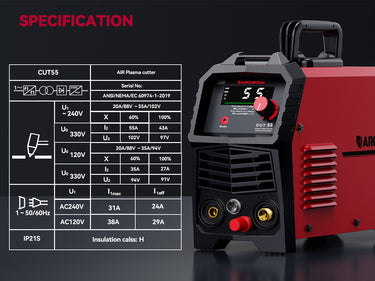

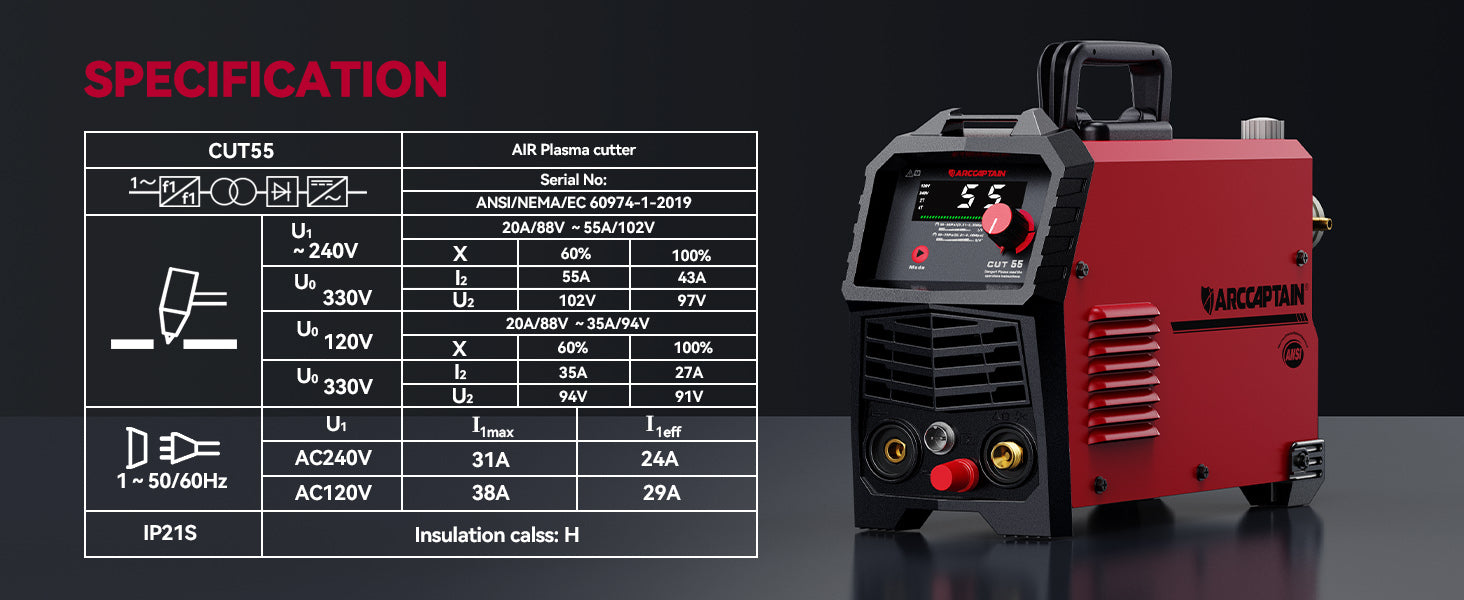

Specifications

Technical parameters

Items

Models



CUT55

Rated input power supply

Single-phase AC240V 50/60Hz

Single-phase AC120V 50/60Hz

Rated input capacity (kVA)

7.4

5.5

Power factor

0.7

Rated output (A/V)

45/98

35/94

Rated duty cycle (%)

60

60

No-load voltage (V)

270V

Output current range (A)

20~35

20~25

Arc ignition mode

HF Non-Contact

Post-flow time (s)

5

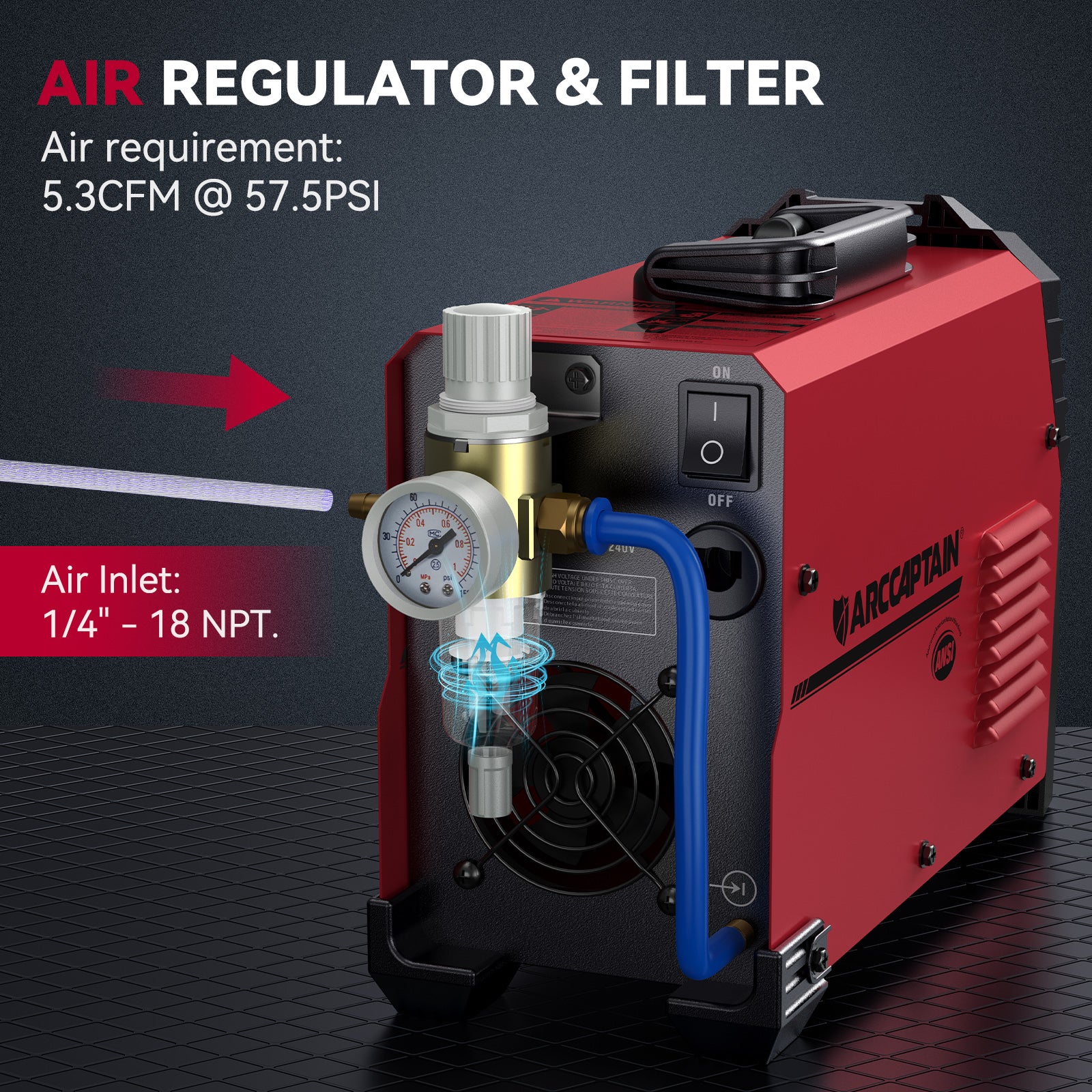

Gas pressure range (Mpa)

0.3~0.5

Insulation grade

H

Cooling mode

Air cooling

Enclosure ingress protection

IP21S

Efficiency (%)

85

Cutting Thickness

3/4" maximum severance cut

1/2" ideal clean cut

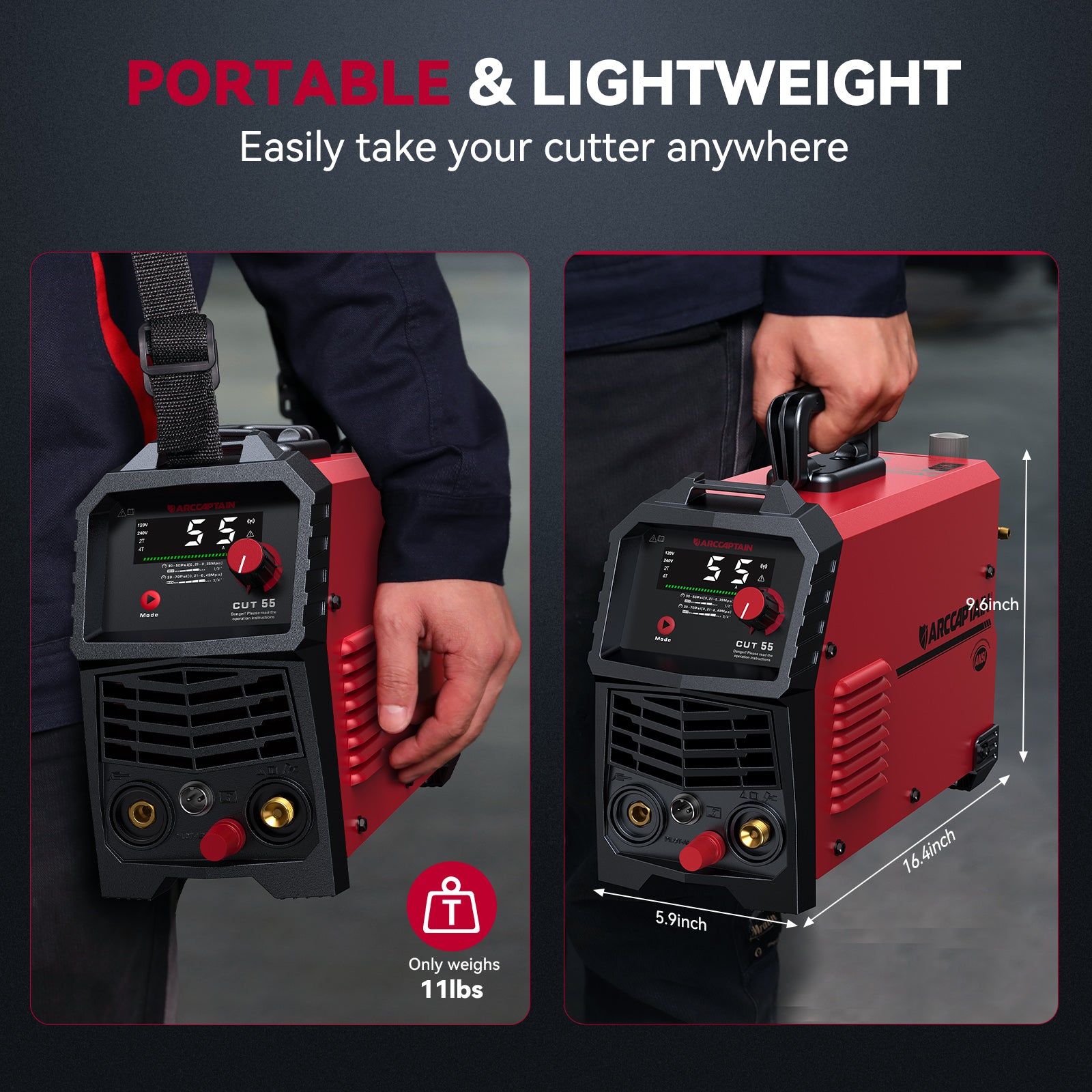

Overall size (L*W*H)

16.4*5.9*9.6 inch

Weight (kg) 19.8lb

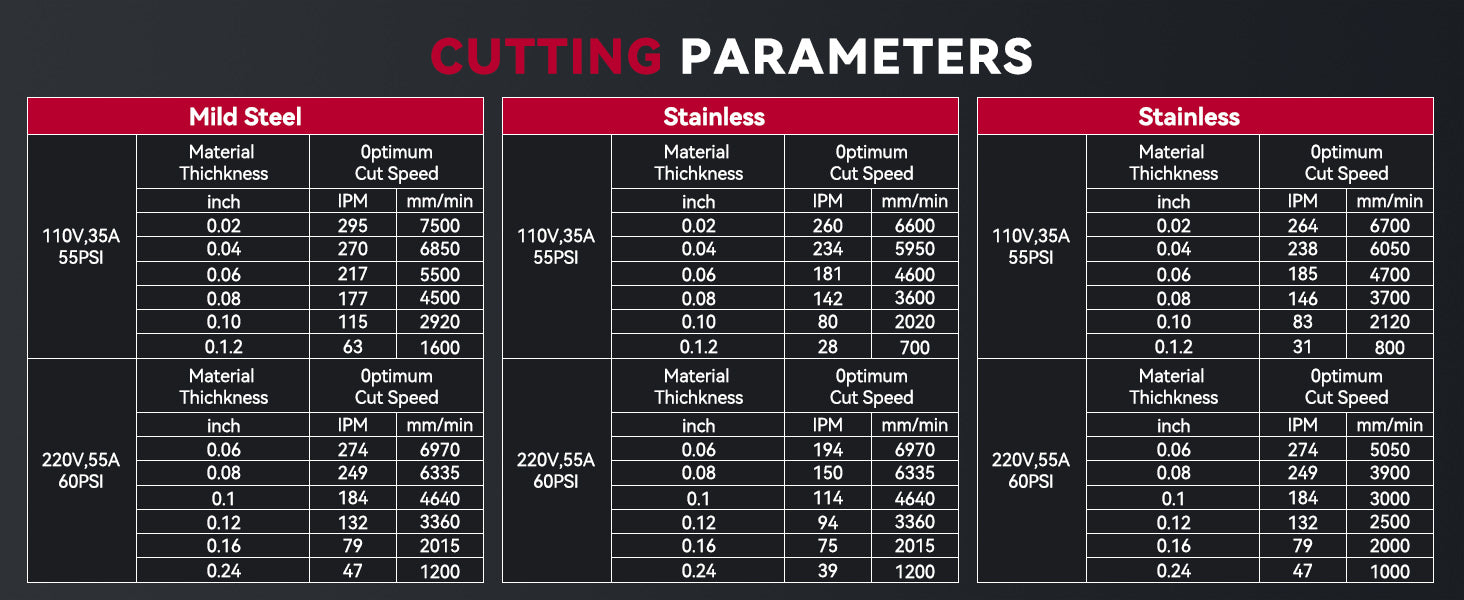

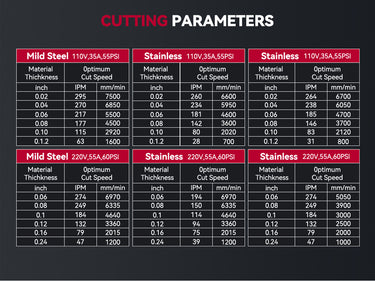

Cutting parameters table

Select proper current according to the cutting parameters table, workpiece material, cutting thickness and cutting speed, etc. (The figure in the below table is an approximation.)

Cutting speed (inch/min) when cutting current is 55A

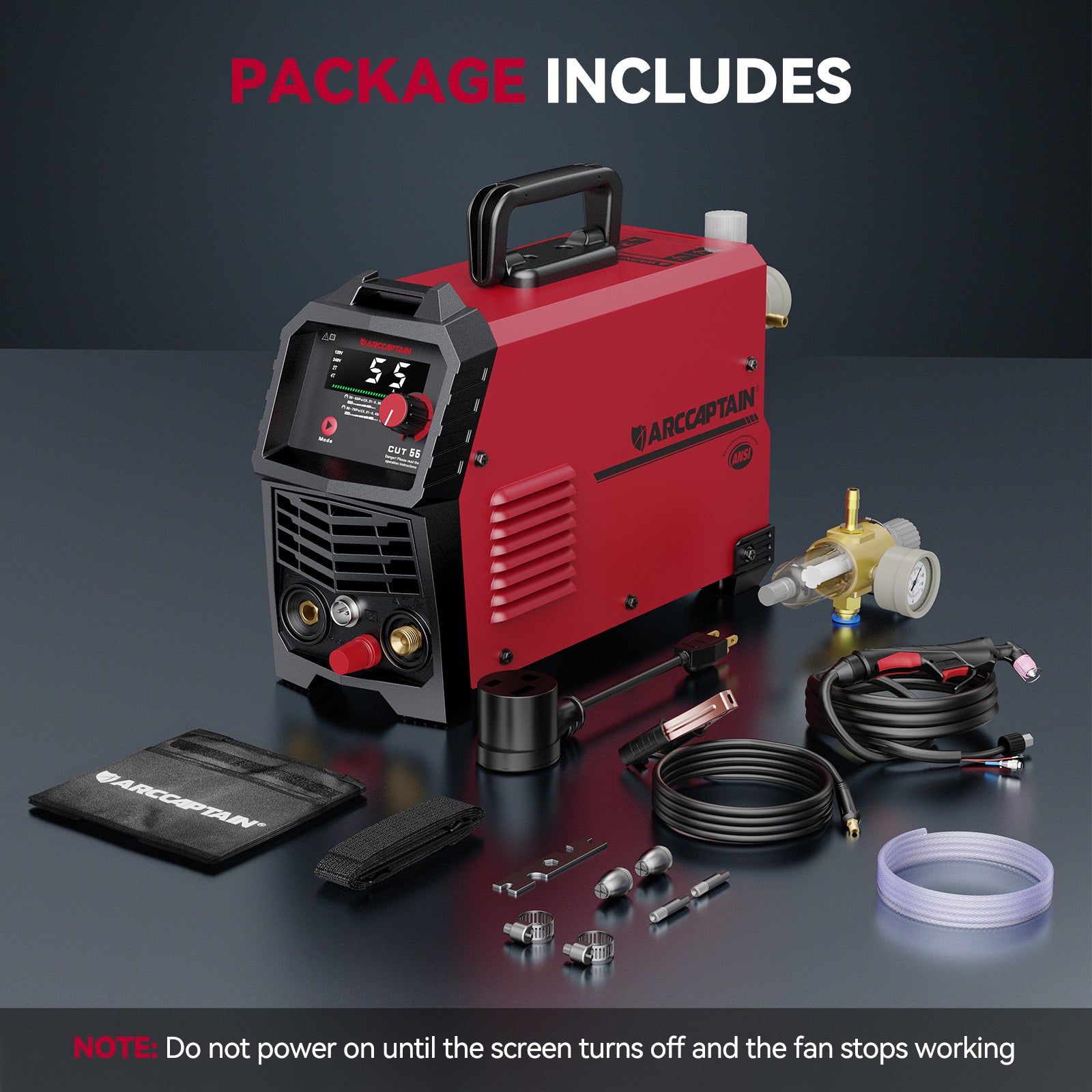

What's In The Box
  • 1 * CUT55 Cutting Machine
  • 1 * AG-60 Cutting Torch (10 ft)
  • 1 * 200A-0.025 inch2 Earth Clamp (10 ft)
  • 1 * User Manual of CUT55
  • 1 * Gas Hose (0.31*0.47 inch, 10 ft)
  • 1 * 120V/240V Power Adapter
  • 1 * Shoulder Strap
