Portable Plasma Cutter CUT50

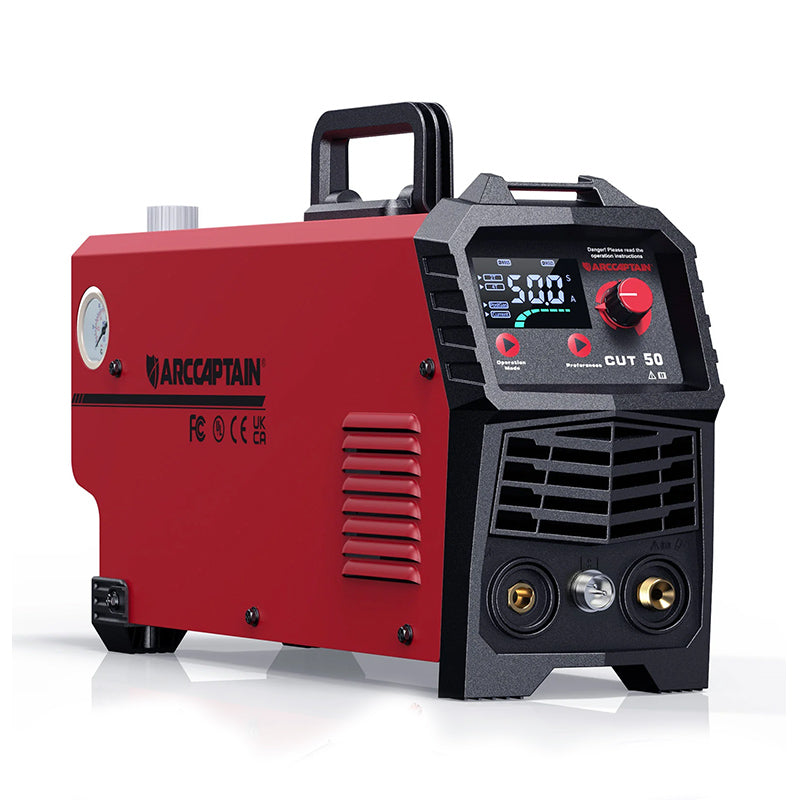

ARCCAPTAIN Cut 50 Amp Dual Voltage Portable AIR HF Plasma Cutter CUT50

translation missing: en.products.product.price.regular_price $289.99
translation missing: en.products.product.price.sale_price $289.99 translation missing: en.products.product.price.regular_price $299.99
Save 3%

The ARCCAPTAIN 50A plasma cutter delivers excellent performance on cutting alloy steel, stainless steel, mild steel, copper, aluminum, etc. Equipped with a large LED display, you can read all data and functions clearly and easily without taking off your helmet. The post-time function can be adjusted(5-15 seconds), extending consumable life.



This plasma cutter machine is very easy to operate and features 110/220V dual voltage, you can see the input voltage clearly on the LED display. It's super lightweight and portable, take it anywhere you want with the sturdy handle or shoulder strap(Package included).It's perfect for both demanding industries and home project.

Features:

  • Portable and Super Lightweight
  • Easy to set up
  • Large LED display
  • Max Rated Clean Cut Thickness: 1/2"
  • Max Severance Thickness: 3/4"
  • FREE FAST SHIPPING
  • Affordable Price

ARCCAPTAIN Cut 50 Amp Dual Voltage Portable AIR HF Plasma Cutter CUT50

translation missing: en.products.product.price.regular_price $289.99
translation missing: en.products.product.price.sale_price $289.99 translation missing: en.products.product.price.regular_price $299.99
Product Description
This plasma cutter CUT50 is very portable and easy to carry to the work. And it works very well at cutting 1/2in sheet metals. For such a small machine, this device can cut clean through the 1/2in and be easy used for multiple applications. The large LED display is great while in operation so you don't need to take off your helmet to read the power output. The device is very easy to use and setup and even comes with a handle for portability.

The Portable Plasma Cutter CUT50 is equipped with over-heat, over-current, over-load and over-voltage protection. It also has an automatic cooling fan and vents to discharge the heat generated effectively.

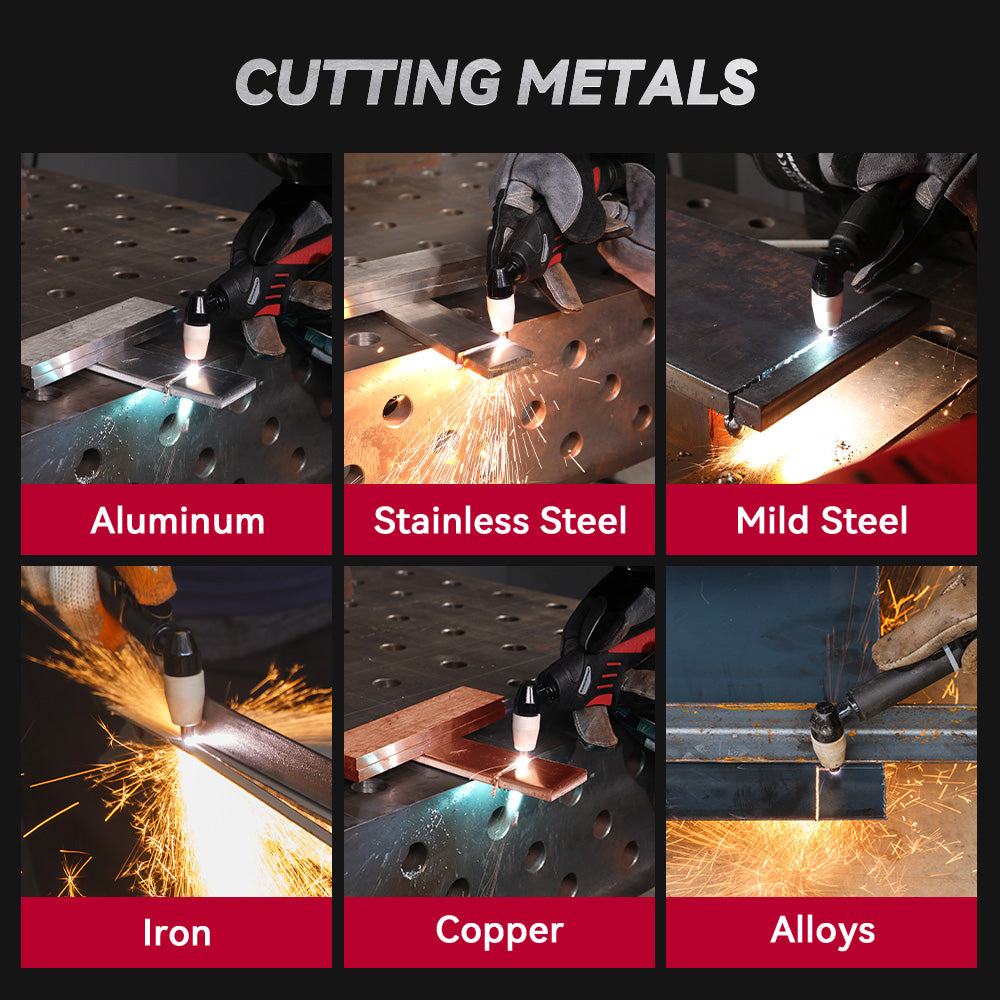

This plasma cutter is widely used for cutting alloy steel, stainless steel, copper, mild steel And Other Color Metal Materials.

Air Plasma Cutter

With high speed and precision cuts combined with low cost, air plasma cutter is suitable for stainless steel, alloy steel, mild steel, copper, aluminum and other metal materials.

Compare with oxyhydrogen cutting, plasma cutting is much more safefy, quick, low cost and easy to use.

plasma cutter Cutting thickness

Technical Details

Portable Plasma Cutter CUT50 panel
  • LARGE DIGITAL LED DISPLAY: Exclusive Large LED design, provides you with accurate data display and helps you read all data easier and more clearly without taking off your helmet.

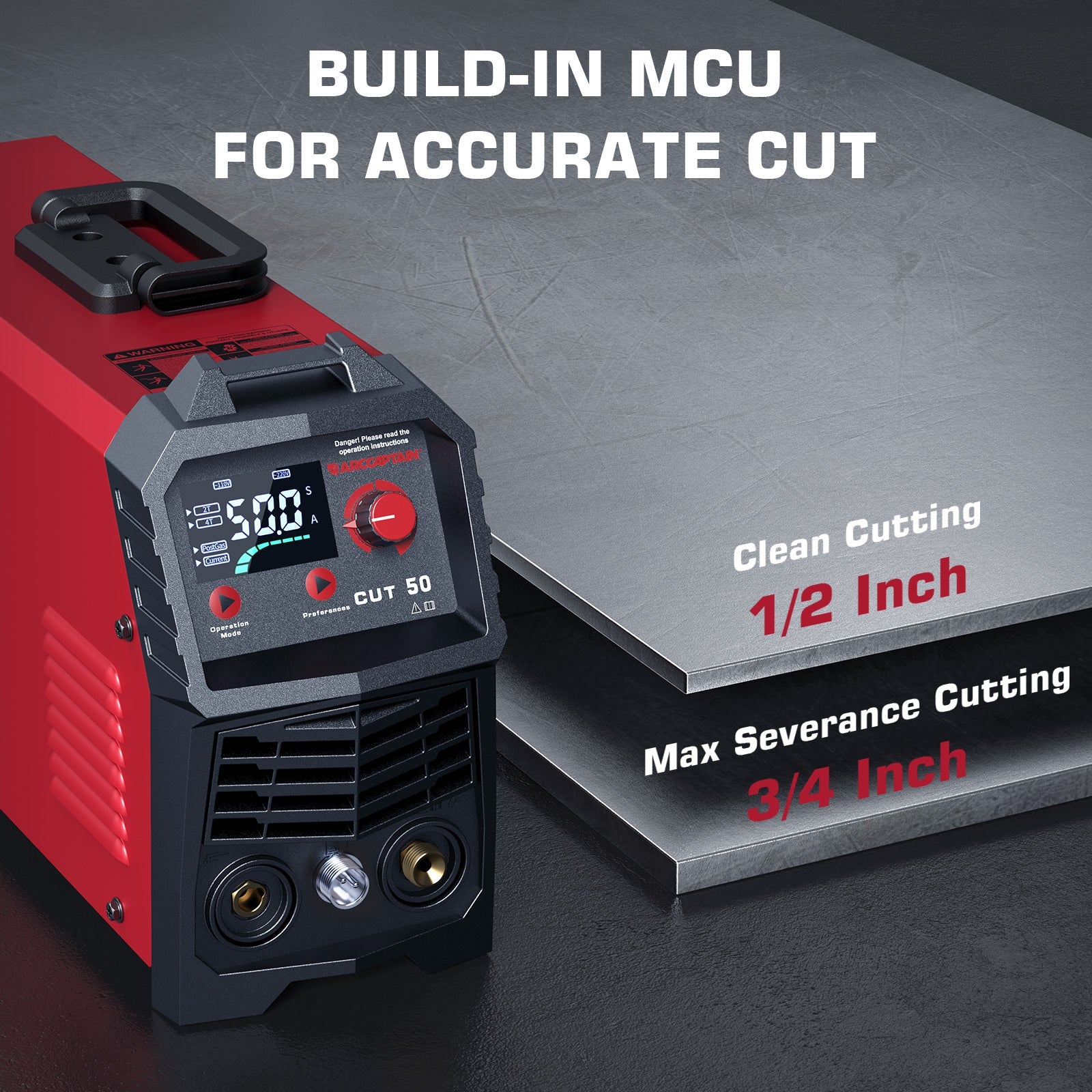

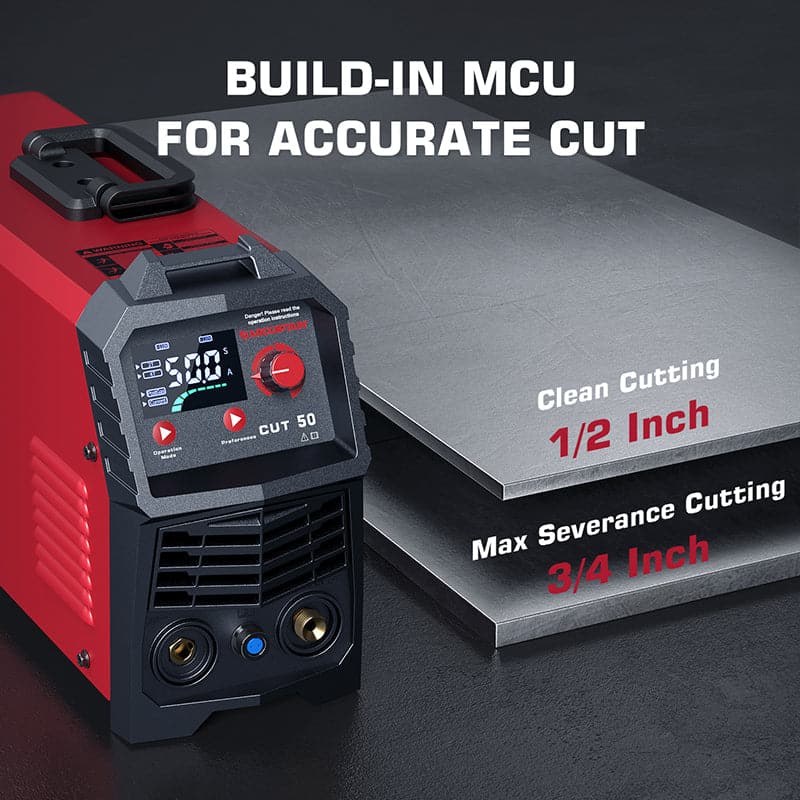

  • POWERFUL CUTTING: Automatic dual-voltage 110/220V. This plasma cutter features high-frequency arc starting mode, efficiently cuts through rough, painted, and rusty surfaces and produces minimal slag. With advanced IGBT inverter technology, the maximum severance cut can reach up to 3/4" (20 mm), 1/2" (10mm) ideal clean cut, 60% duty cycle. Suitable for alloy steel, stainless steel, mild steel, copper, aluminum, etc.

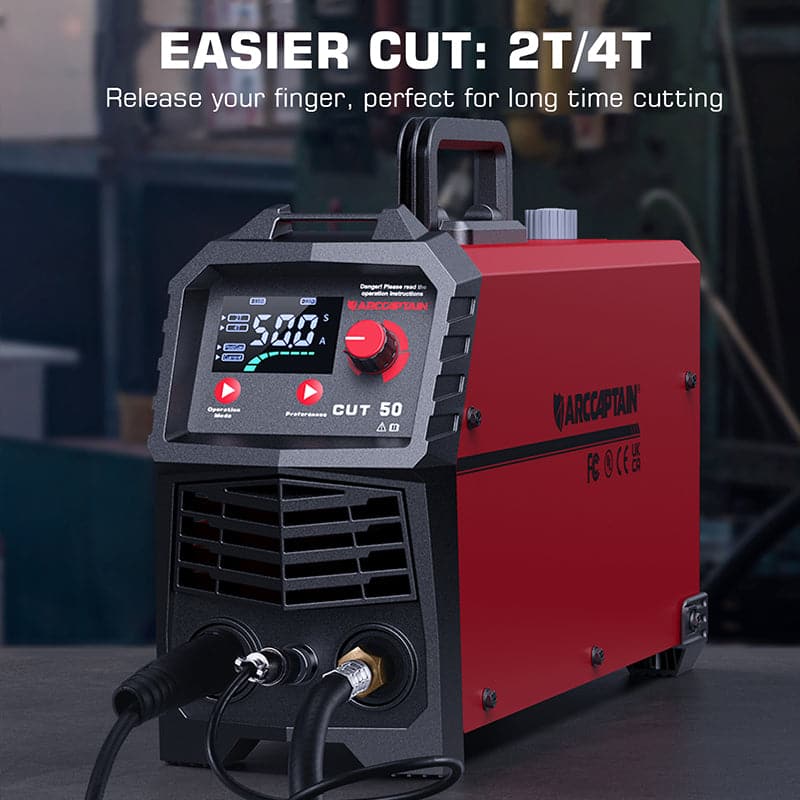

  • POST FLOW TIME & 2T/4T: When you stop cutting, the air runs on for a minute to cool the consumable of the plasma cutter torch, the adjustment range is 5-15 seconds, which can greatly extend the working life of consumables. 2T/4T function meets your different needs, suitable for continuous long-term cutting.
  • SETUP WITHIN 30s: Built-in regulator and gauge help you to get rid of tedious installation anymore. Only takes 30 seconds and you can start cutting. You can also read the air pressure value through the air gauge, the recommended air pressure value is 40-70 PSI.

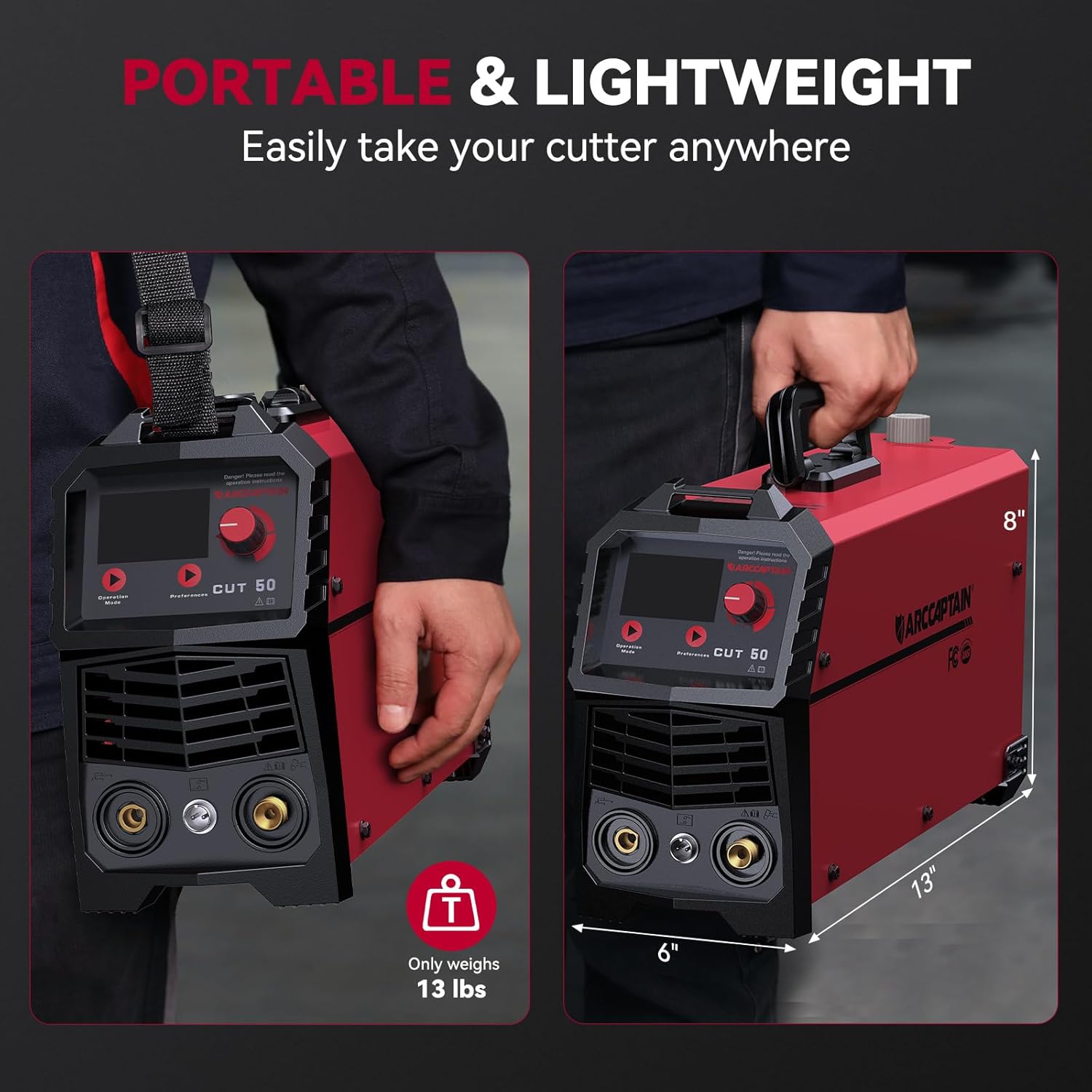

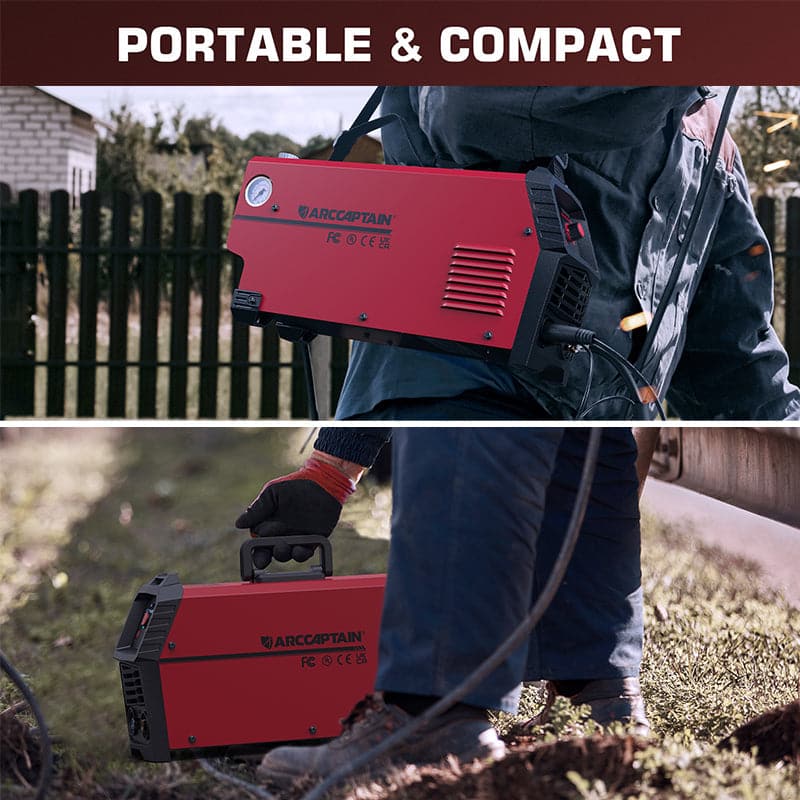

  • PORTABLE & LIGHTWEIGHT: This plasma cutter machine only weighs 13 pounds, easy to carry with handle or shoulder strap (strap included).

Plasma Cutter CUT50

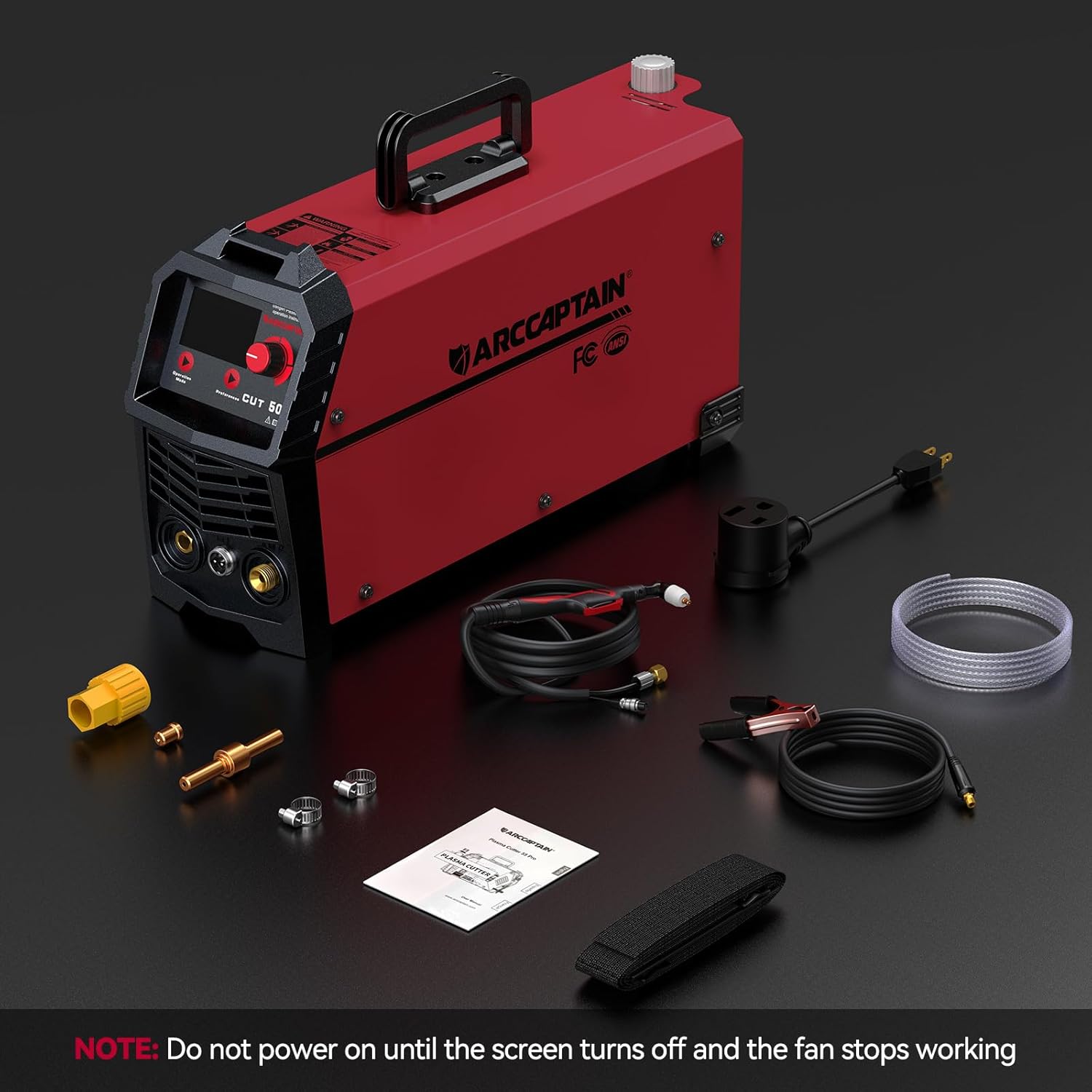

What's in the box:

  • 1 * ARCCAPTAIN Plasma Cutter
  • 1 * 16FT PT-31 Cutting Torch
  • 1 * 10FT Earth Clamp
  • 1 * 10FT Air Hose
  • 1 * 110/220V Power Adapter
  • 1 * User Manual
  • 1 * Shoulder Strap
  • 1 * Electrode Nozzle, 1 * Diverter, 1 * Ceramic Cup

Where do I get electrodes and air caps

the electrodes and air caps for cut 50 are universal, you can easily find replacement parts online. You just need to find the parts for PT-31 cut torch online

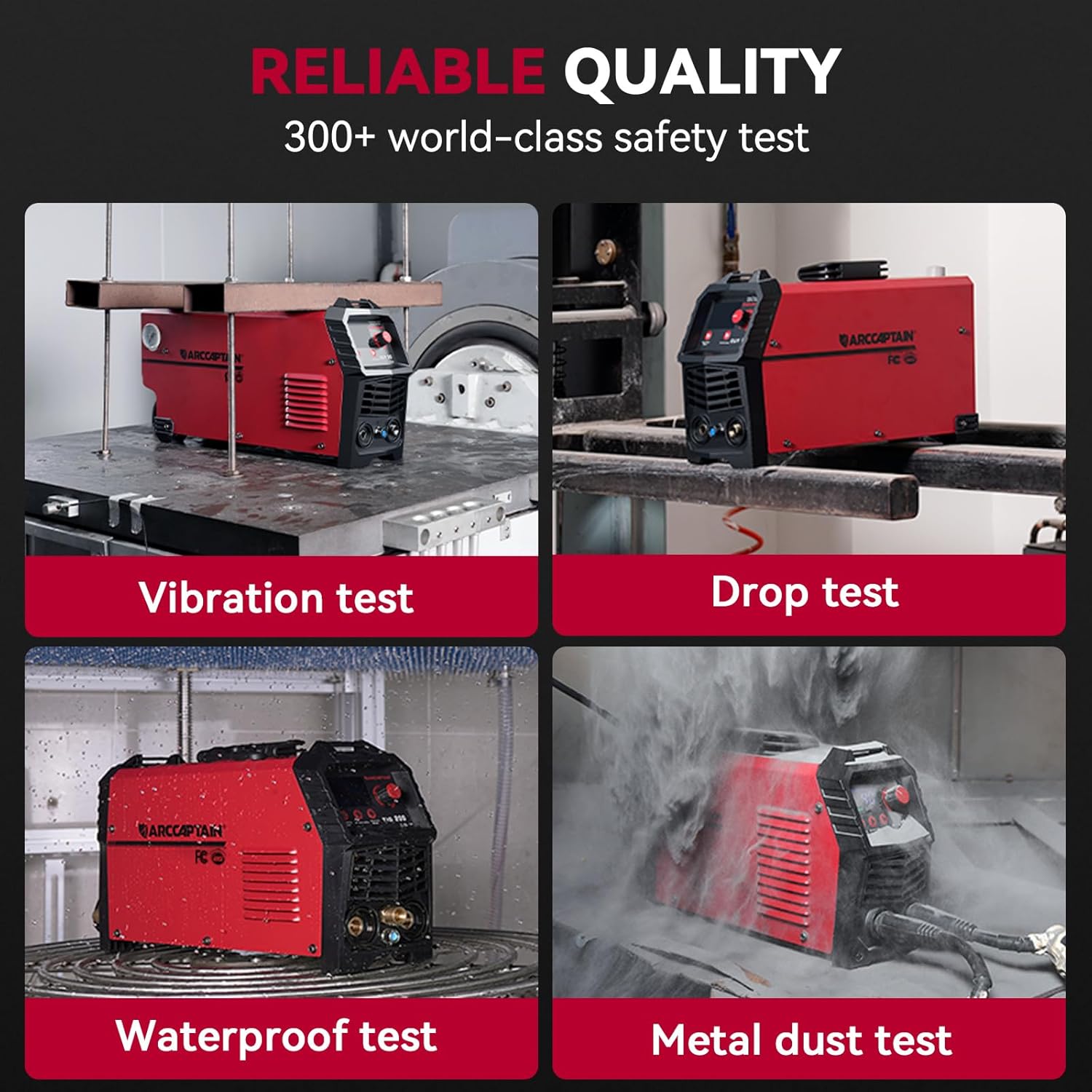

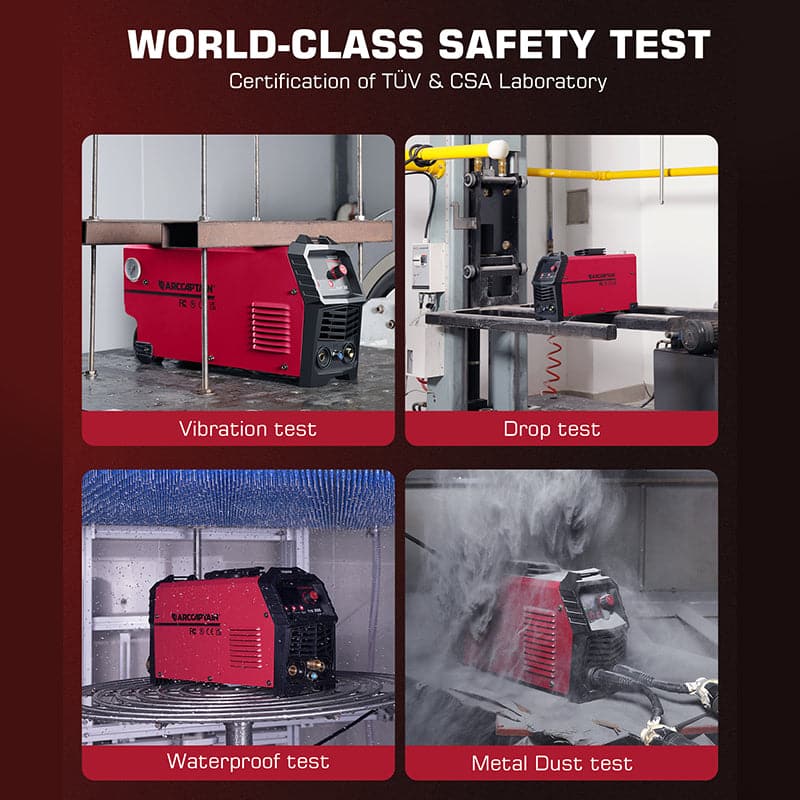

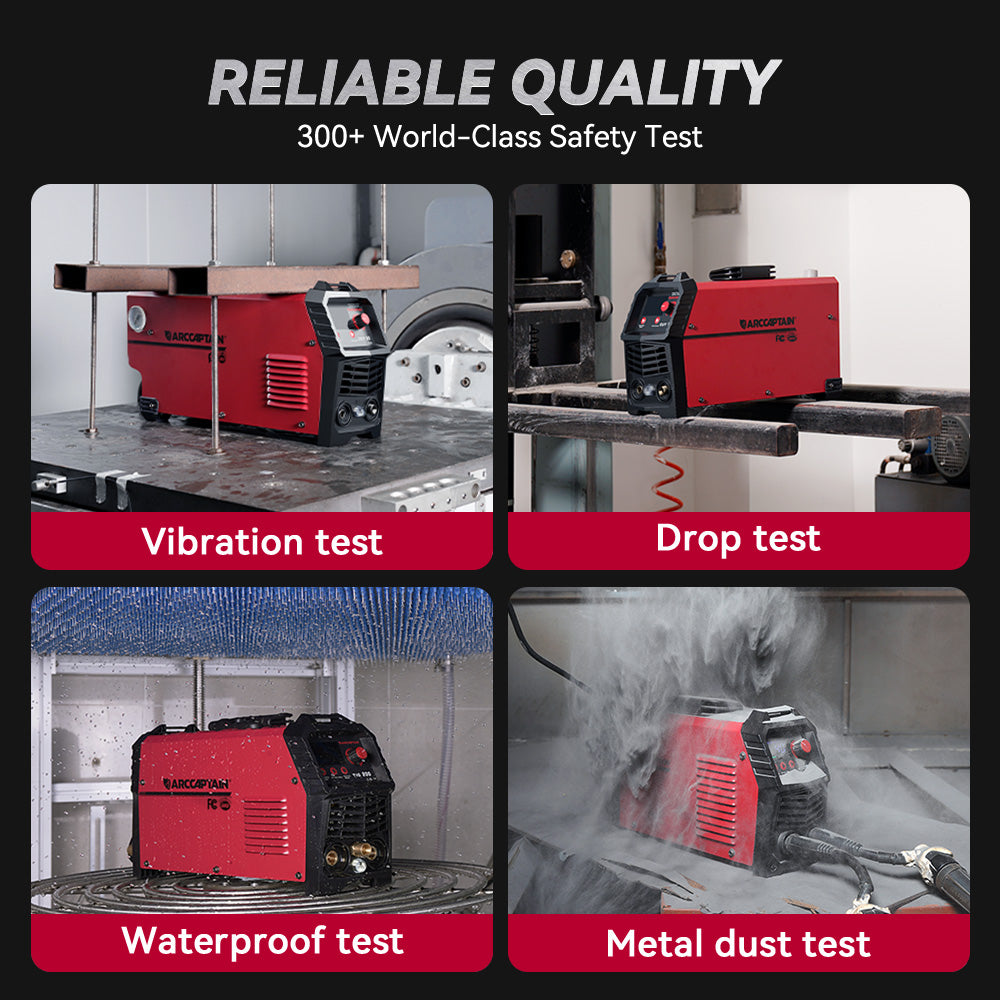

The plasma cutter CUT50 from the ARCCAPTAIN factory passed 300+ Authoritative Laboratory tests in simulating extremely harsh environments including

  • Vibration Test
  • Drop Test
  • Waterproof Test
  • Metal Dust Test
  • Prolonged Load Test
  • Conducted Interference Test
  • High-low Temperature Test
  • Power Switch Durability Test
  • Water Spray Test
  • Transportation Simulation Test

If you meet the problems in the process of using machine, please contact us for help.

Cutting Thickness Chart :

Need to adjust the current and air pressure properly under metal thickness to get
best cutting surface.


CUT50 -220V

20Amps

35Amps

40Amps

45Amps

50Amps

Thickness (mm)

5mm

8mm

10mm

12mm

15mm

Air Pressure (psi)

40-50psi

40-50psi

50-60psi

60-70psi

60-70psi

CUT50 -110V

20Amps

30Amps

35Amps





Thickness (mm)

5mm

6mm

8mm





Air Pressure (psi)

40-50psi

40-50psi

50-60psi



Notice:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Due to the different personal measuring techniques, there might be 1-3cm error of the physical.
FAQs

Can I weld Aluminum with the ARCCAPTAIN welding machine

We do not recommend that you use a ARC, MIG welding machine to weld aluminum, which will did not perform well.It's better to weld aluminum with the AC tig welder or pulse mig welder.Of course you can weld aluminum by the mig welder with spool gun.

Where can i download the user manual

You can download user manuals for all product models here.

What type of spool gun do i need for MIG200

1.Your spool gun will  need to be the Euro Connection to suit the MIG200.

Euro Connection

2.Be sure your spool gun have the 4 pin aviation male plug.Otherwise, you need to buy the 4 pin plug yourself. Recommended 4 pin plug type: SP21 Series

4 pin aviation male plug

EURO socket, 4 pin aviation male plug

Hole 1 connect to spool gun "+", hole 2 connect to spool gun "-".
PLUG NEED TO MATCH SOCKET. Need to change torch's plug to 4-pin.

Can you provide a graphite liner to weld aluminum instead of using separate spool gun?

Currently our mig200 mig welder does support the graphite liner.You need to find suitable size graphite and replace the drive roller.
You can also connect the spool gun to weld aluminium .But if you want get a better welding performance.It is better to use AC/DC tig machine to weld aluminium.

If I need the parts of products. Where I can find It?

Arccaptain will sell most of the parts for our product, like tig torch, welding wire, welding backpack, etc., you can buy directly from the official website at an affordable price.

What type of tig torch suitable for Arccaptain machine

 Mig200 supports WP-17V 35-50 style tig torch.

MIG130 support WP-17V 10-25 style tig torch.

ARC200 support WP-17V 35-50 style tig torch.

ARC160 support WP-17V 10-25 style tig torch.

What is the recommended amperages for electrodes by type and diameter

You can read the guide chart here

What's the thinnest to thickest of steel and aluminium can the MIG200 do

The MIG200 can weld 1mm-6mm steel.

The MIG200 can weld 1mm-5mm aluminium.

What Is The Standard MIG Contact Tip Sizing Chart

You can read the guide here.
