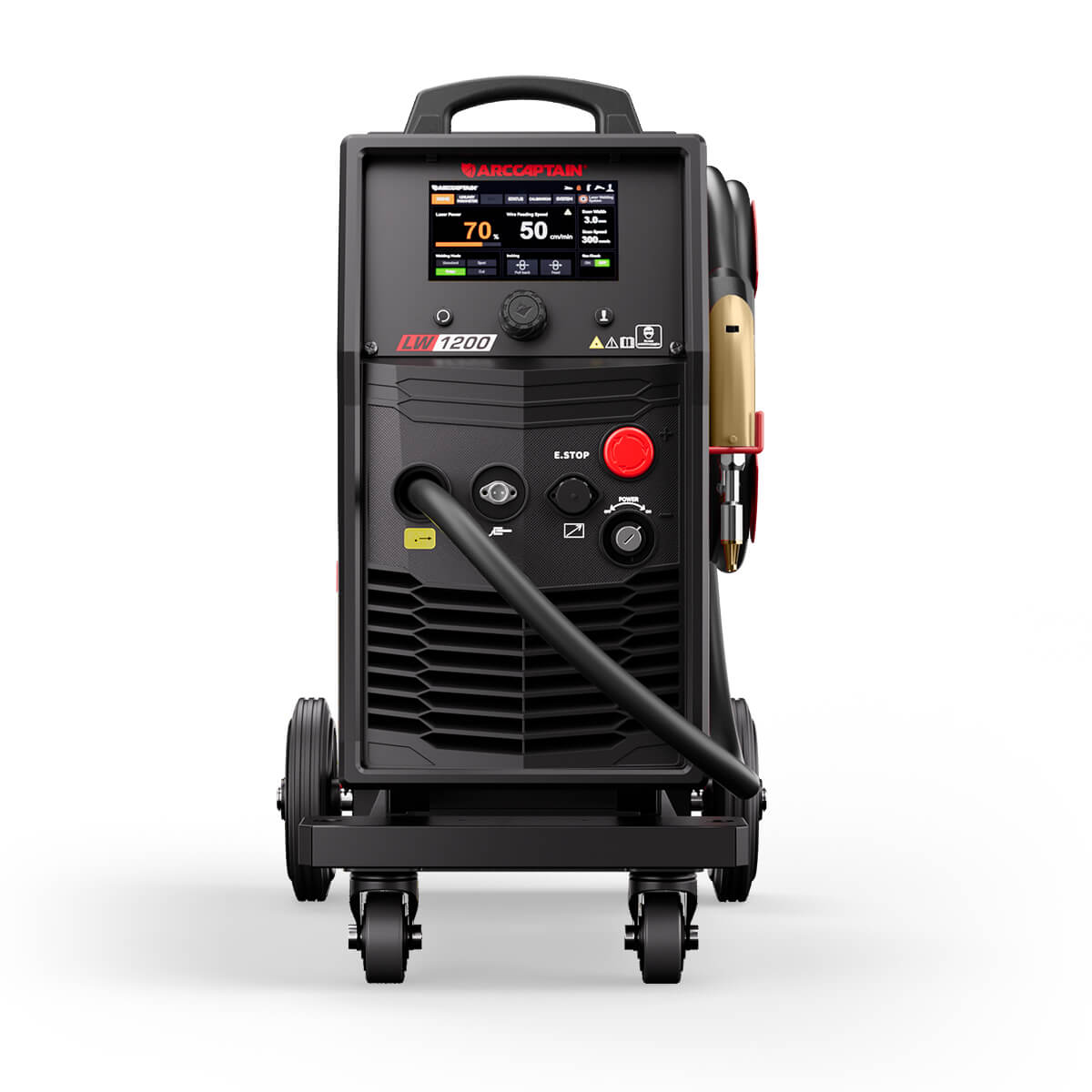

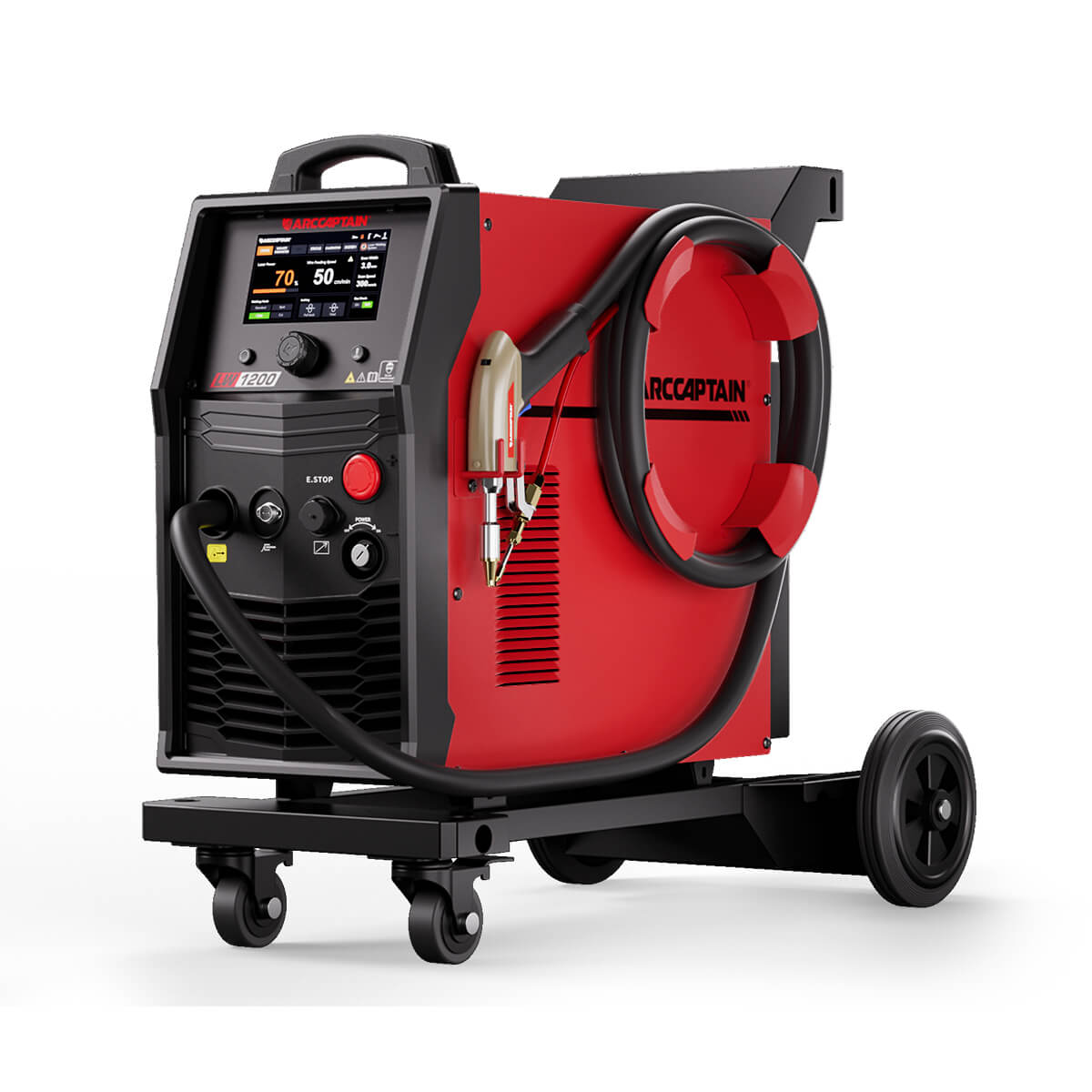

Arccaptain LW1200 1200W Handheld Laser Welder
1. 1200W Industrial Output
Industrial-grade laser welding with clean, precise results and minimal heat distortion on a wide range of metals.
2. 3-in-1 Handheld Laser Welder
Weld, clean, and cut with one machine. Save space, reduce costs, and handle more jobs.
3. Air-Cooled Mobile Workstation
No external chiller required. Easy to move, quick to set up, and ready to work anywhere.
4. Industrial-Grade Safety
Emergency stop, grounding protection, safety interlocks, contact-activated laser output, and included laser safety glasses for safer operation.
5. APP Control
- LW1200 Laser welder Machine
- Laser Safety Glasses (OD6+)
- ER4043 Aluminum Wire (10 lb)
- Ground Clamp & Cable
- Gas Hose
- Wire Feed Liners
- 5kg Spool Adapter
- Drive Rollers Set
- Contact Tips Set
- Protective Lenses ×10
- Laser Torch Accessory Kit
- Hex Wrenches
- User Manual
Arccaptain LW1200 1200W Handheld Laser Welder
1200W 3-in-1 Handheld Laser Welder LW1200
Weld, cut, and clean with one air-cooled workstation. No external chiller required. Simply plug in, set up, and start working in minutes.
Industrial-Grade Welding Performance — SPOT, PULSE, and Continuous
The LW1200 delivers industrial laser welding in a handheld portable machine. Three dedicated modes cover every application — from precision spot repairs to high-speed production runs — on a wider range of metals than any conventional arc process.
Perfect Welds in All Positions and Metals.
1,000+ Built-in Parameters
1,000+ built-in welding parameters for fabrication, automotive repair, and industrial maintenance. Simply select the material and thickness to get started.
Reduce setup time, minimize trial-and-error adjustments, and achieve more consistent welding results.
Welding speed 5–10× faster than TIG
Complete more jobs in less time while reducing labor hours and post-weld cleanup.
| Capability | TIG Welding | MIG Welding | LW1200 Laser |
|---|---|---|---|
| Travel Speed | Slow — 1–3 in/min | Moderate — 6–15 in/min | Up to 5–10× faster than TIG |
| Heat-Affected Zone | Wide | Moderate | Minimal — ultra-narrow HAZ |
| Thin Sheet Distortion | High risk | Moderate risk | Near zero |
| Post-Weld Cleanup | Usually required | Usually required | Minimal to none |
| Setup Time per Job | High — manual tuning | Moderate | Seconds — preset auto-load |
Safety Protection. Emergency stop, grounding protection, safety interlocks, contact-activated laser output, and included laser safety glasses for safer operation.
3-in-1 Laser Welder — Weld, Cut, and Clean
Air-Cooled Mobile Workstation
This portable laser welding machine combines an integrated air-cooled design with plug-and-play convenience. No external chiller required.
LW1200 Specifications
A 3-year warranty applies to the core components of the unit, effective from the date of purchase by the consumer. Wear parts and structural components are not covered under the warranty.
1. Core components covered by the warranty include:
1.1. Laser unit: Complete assembly.
1.2. Chiller: Water pump, compressor, fan, heater, control mainboard & display, start capacitor, water tank.
1.3. Welding gun control system: Control box, gun head motor, display screen, switching power supply unit, gun trigger/switch.
1.4. Wire feeder: Switching power supply unit, wire feed mainboard, motor, display screen, wire feed motor.
1.5. Main unit electrical system: Power switch, solenoid valve, air pressure switch, relay.
2. Components not covered by the warranty include:
Optical fibers, QBH connectors and crystals, lenses, seals, water/gas hoses, wiring harnesses, ground clamps, structural components, and consumables/wear parts (such as copper nozzles, wire guide tubes, wire feed rollers, wire guide tips).
3. Additional exclusions from warranty service:
3.1. Product quality issues resulting from repairs using non-original parts;
3.2. Damage caused by improper operation or failure to follow the user manual instructions;
3.3. Damage caused by improper use, maintenance, or storage;
3.4. Damage caused by unauthorized repairs.
4. ARCCAPTAIN reserves the right of final interpretation.
Laser Welder | MIG Welder | TIG Welder | |
|---|---|---|---|
Welding Speed | Up to 10× Faster | Fast | Slow |
Weld Appearance | Clean, Spatter-Free | Spatter, Post-Cleaning Required | Clean but Wider Bead |
Heat Distortion | Minimal Distortion | Higher Distortion | Low Distortion |
Thin Metal Performance | Excellent | Moderate | Good |
Productivity | Very High | High | Low |
Overall Efficiency | ★★★★★ | ★★★★☆ | ★★☆☆☆ |
FAQ
-
It supports high-precision, low-distortion welding on a wide range of materials, including Carbon Steel, Stainless Steel, Aluminum & Aluminum Alloy, Brass, Galvanized Steel, Magnesium Alloy, Titanium, and Cast Iron. The effective welding thickness range is 0.3mm to 4mm (0.012" to 0.16").
-
The LW1200 delivers travel speeds up to 5 to 10 times faster than traditional TIG welding. Because of its ultra-low heat input, it minimizes thermal distortion on thin sheets, virtually eliminating post-weld straightening and saving massive fabrication hours.
-
Not at all. The machine features a smart touchscreen pre-programmed with 1000+ verified expert parameter sets for different materials and thicknesses. Beginners can load the optimal settings with a single tap and achieve flawless, certified welds on their first day, significantly reducing reliance on veteran welders.
-
The handheld torch supports three versatile operating modes: SPOT (for precise tacking), PULSE (for strict heat control on ultra-thin sections), and Continuous welding (for high-speed, deep-penetration seams).
-
Absolutely. The LW1200 is engineered to be fully compatible with external automatic wire feeders. This allows for smooth, continuous wire delivery during heavy-duty fabrication tasks where gap bridging is required.
-
Highly mobile. Designed as a self-contained fabrication workstation, it features an ergonomic push handle, heavy-duty industrial casters (with brakes), and a dedicated fiber cable storage rack. You can effortlessly wheel it to any corner of your shop or transport it directly to a job site for immediate plug-and-play operation.
-
Safety is our top priority. The LW-1200 features a multi-tier safety interlock system. The laser will only fire when the torch nozzle is in direct contact with the workpiece (grounded metal). It also features a prominent, front-mounted Emergency Stop (E-STOP) button for instant shutdown, alongside built-in sensors protecting against voltage and temperature fluctuations.
-
Out of the box, the LW-1200 provides three distinct functions controlled by a single handheld torch:
- Laser Welding: High-speed joining of metals from 0.3mm to 4mm.
- Laser Cleaning: Stripping away rust, laser oxides, paint, and oil from metal surfaces.
- Laser Cutting: Executing clean, straight cuts on thin sheet metal.
- Note: Switching functions requires only a quick swap of the torch nozzle and selecting the corresponding mode on the screen.
