Arccaptain MIG200 Multi Process MIG Welder User-Friendly

This is literally the first 5 minute's I've had this setup. I got it today. I Tried to hit duty cycle and it did not. Oddly. BUT! I Have 2 projects for this welder. I will find the limits and report back. Quick background I am Union Boilermaker. I'll have 15 years this year. Certified in all processes tig mig stick stainless carbon and inconel all positions unlimited and restricted. These are my results in five minutes having it. It works, I will post more pictures this weekend when I use it for the projects i have.

Performs excellent, really solid MiG welds. However def need an upgraded ground clamp/one better quality.

I was really impressed with this little welder, from its size and weight i thought it had no power compared to my miller or General Electric models. But it brings a punch to mig welding and stick welding. Would recommend to a beginner or a professional who is just trying to use something less bulky and more accessible

I just opened the box and started welding with it. So far so good.

https://youtu.be/WPUqjnCi39Y?si=cYmUFq7_jkqPzEMZ

Been around welding for a while but have never done it myself. Bought this machine to start learning and after playing with the settings for a few minutes and about 6 coupons later, I was laying some decent welds for the first time/first day ever welding. No issues at all with it.

I have been really impressed with the ArcCaptain MIG200 multi-process welder. I bought this welder as an upgrade and replacement for my old Millermatic 140 welder. This ArcCaptain welder has so much more versatility, adjustment, and power compared to the old basic transformer MIG welder I'm coming from. The build quality is excellent, although it may not be as durable as a big name brand, but for DIY hobby use in the garage it will be more than tough enough.

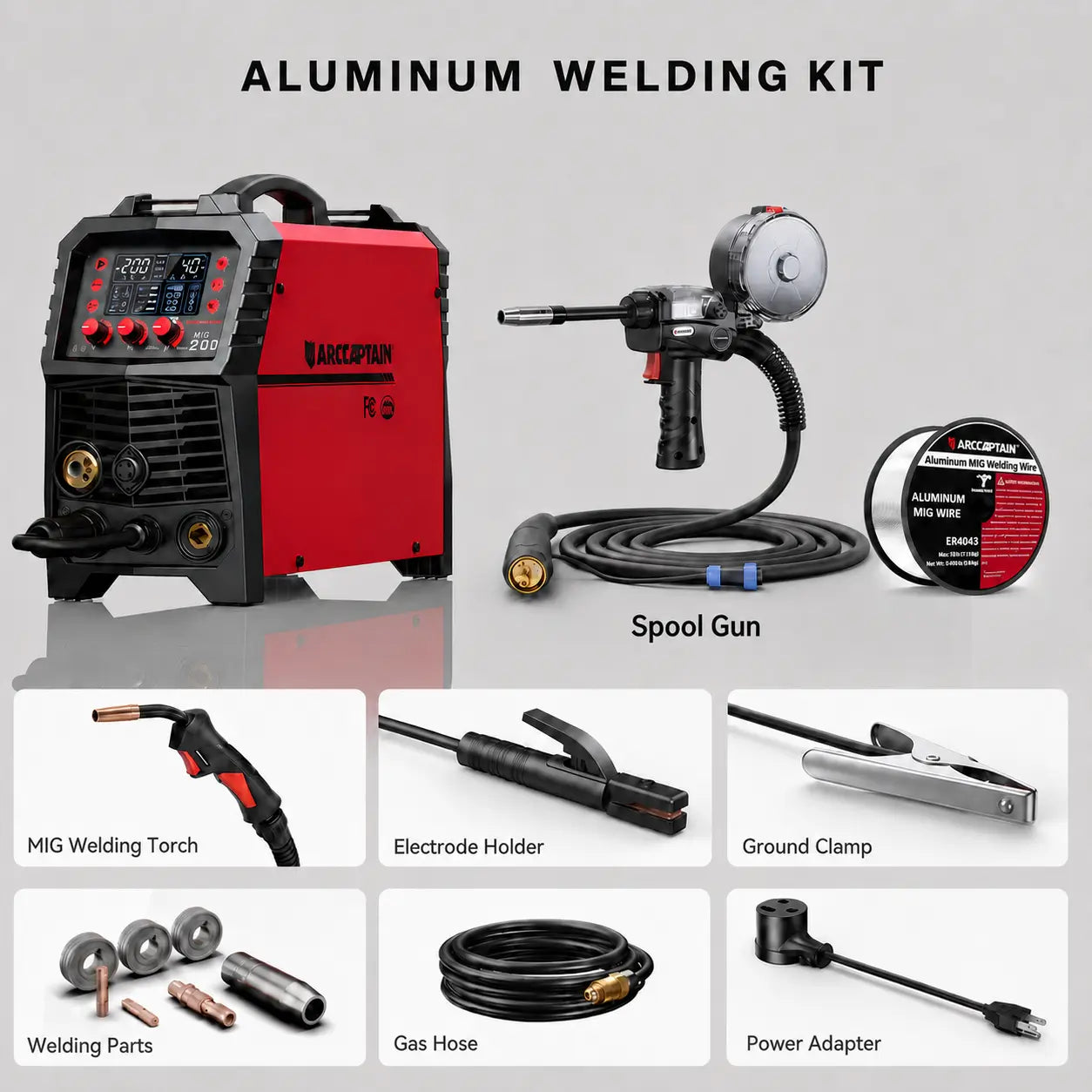

The welder comes with almost everything you need to MIG or stick weld out of the box. The only items you'll need to pick up are your MIG wire, shielding gas (unless you run flux-core wire), a gas regulator, or your stick welding electrodes. The welder comes with extra MIG consumables and uses standard tweco style contact tips readily available. 3 different styles of wire drive rolls are provided; V-groove for solid wire, knurled groove for flux wire, and U-groove for aluminum wire. Unfortunately ArcCaptain appears to have a packaging issue though because even with 7 drive rolls included in the kit none of them have a groove sized for running 0.035" (0.9mm) wire of any type. Hopefully they correct this issue in the future.

This welder welds nicely and creates an easy to control weld bead. I'm a little rusty with my handwork so the inconsistencies in my test welds were the result of my own travel speed issues and not the welder. The Synergistic MIG functionality is really nice and provides a really good starting point for MIG weld settings. The one thing that ArcCaptain completely fails to mention in their user manual though is that when your in Synergistic mode you MUST set the AMPERAGE level appropriate for the material thickness being welded and then the machine will adjust the voltage and wire feed speed accordingly. For any beginner, just follow this rule of thumb and use 1 Amp for ever 0.001" of material thickness (ex. for welding 1/8" thick steel start with the welder set to 125A in synergistic mode and adjust the voltage from there if the weld is too hot/cold for your liking).

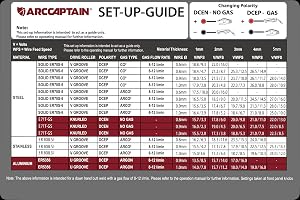

My only minor complaints about the welder, aside from the missing 0.035" drive rolls, are that ArcCaptain didn't include a MIG setup chart sticker inside the door cover (which is standard practice on all MIG machines), and that the unit comes wired for 110V input and they provide a 110V to 220V adapter cable. I think this practice of passing 220V through a 110V plug is poor design and may even be a violation of certain electrical safety codes. The better design would've been to have a 220V cable wired to the unit and adapt down to a 110V plug when needed.

Overall this ArcCaptain MIG200 welder is a great value for all of the functionality it provides. It provides many more advanced features typically reserved for welders 2-3X the price of this unit. ArcCaptains support team has also been very helpful and responsive to my emails and the customer support is excellent for an international company. I'd highly recommend this welder to anyone looking for an excellent value multi-process MIG welder.

Excellente achat qualité/prix

I was a little sceptical at first since I’ve alway been a Lincoln fan but I’ll tell you that I’m not a sceptical anymore! I love the ArcCaptain machine so far and am excited about welding again.
My Lincoln SP-140 was too small
Amp. Thank you!

Really loved my 200 right out of the box! It is a lot more substantial then I anticipated but still fits on my cart. I really like the pre sets for getting less experienced people going on it and I love the range of freedom it provides for an old time welder like me. Next is the Cut50 for me :)

The welder and plasma cuter are fantastic. However my 1 complaint is with the spool holder on the welder, I think there should be some sort of drag or tension to keep the spools from free spinning and virtually bird nesting.

As consumables go, I think the .035” contact tip is a bit under sized.

Other that that decent welder.

Got themig 200 and the cut 50 setup took no time at all and ended up using it the next day on the job!

I had trouble getting started . My probable was not attaching the Ground to positive . The Negative normally gos to ground . I received information from service showing how it should be set up .I attached the negative to the positive and made a few weld runs . It appears the welder is working fine at this point . As soon as I get my welding tables, I will be able to run some practice welds . So far so good . Service did respond quickly to my request for help .

Great Welder!! Straight out the box. I would be very interested in trying more of Arccaptain's Equipment

Prompt shipping and great customer service

I was pleasantly surprised by the power this little machine has. I ran three 1/8”7018 rods back to back with no interruption. I got plenty of penetration and the bead looked great. I was using the 220v pigtail hooked to a 30 amp RV plug on my generator. I then ran two 6” welds using .035 flux core. Again I had good results. I’m a millwright by trade so I know a good weld when I see one. This machine will not disappoint.

Love the welder will be ordering tig torch and foot pedal soon ty

I read on the packing list that there should have been a brush and hammer included. I didn't recieve those items.
