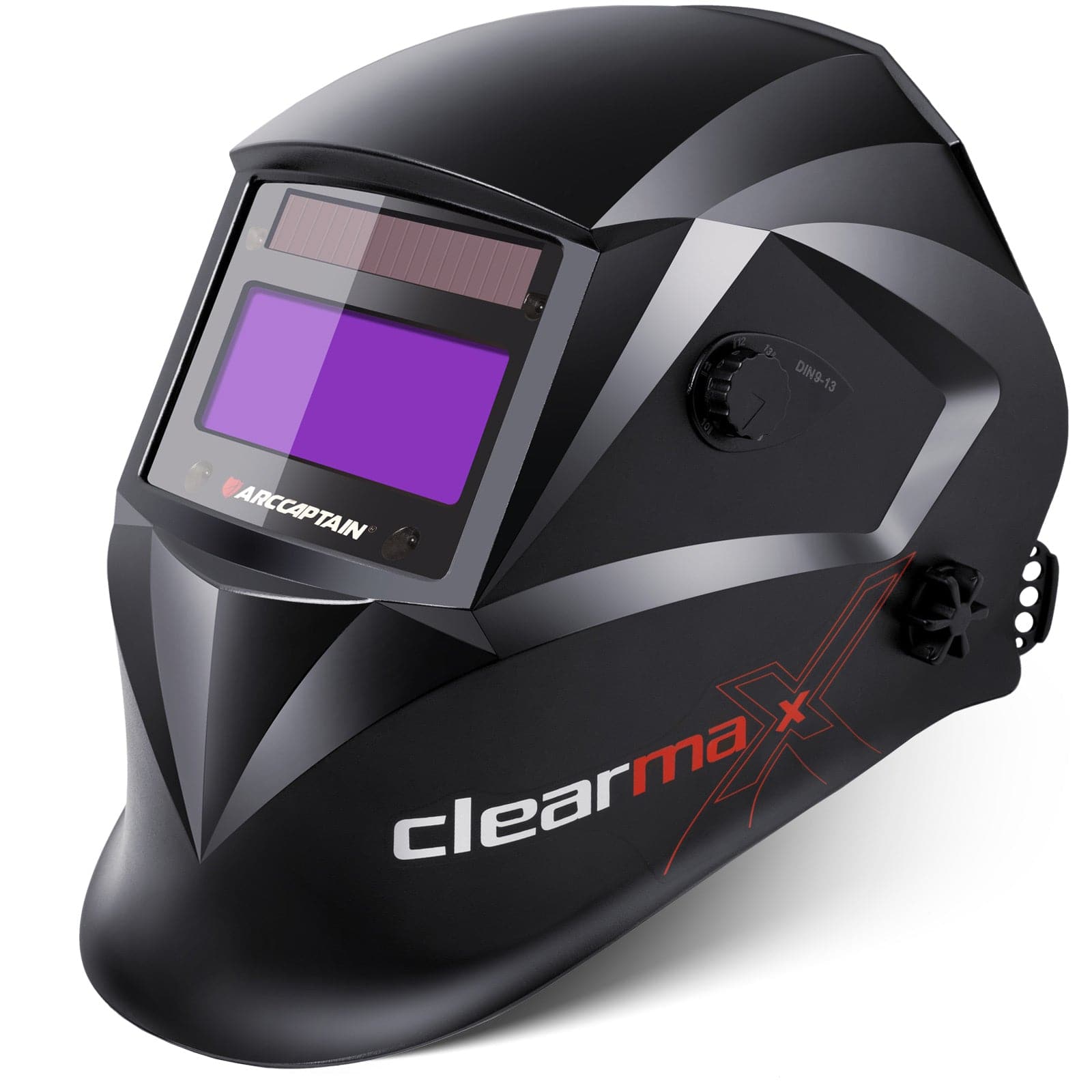

ARC/MIG/TIG Digital Auto Darkening Welding Helmet

translation missing: en.products.product.price.regular_price $33.00
translation missing: en.products.product.price.sale_price $33.00 translation missing: en.products.product.price.regular_price $49.00
Save 32%

The ARCCAPTAIN welding helmet is well made and come in at only 1 pounds, which is 60% lighter than similar products, which can reduce the load on the cervical spine obviously during working, so it remains comfortable even for extended use. The dynamically adjustable headgear with breathable padding to provide you with the perfect fit , comfort and adaptability that you might need.



True Color Lens

Reducing the lime green tint, like looking through the clear window glass, which allows a realistic color perception, also with 1/1/1/1 optical clarity, so you have a much clearer view of what you are welding.

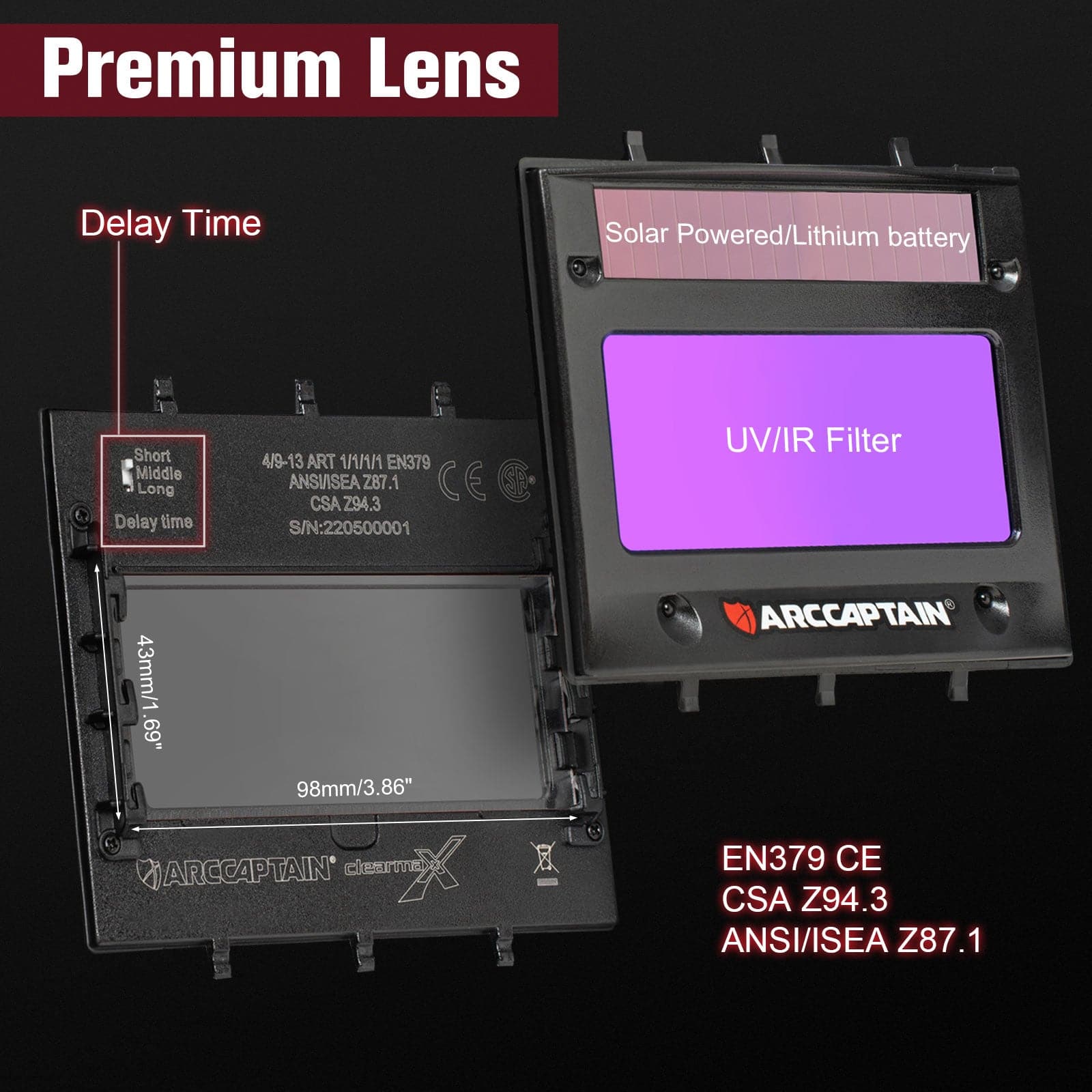

SUPERIOR CLARITY: The welding helmet features top 1/1/1/1 optical clarity lens with advanced true-color technology and large viewing screen 3.86”×1.69”, it will vastly improve your vision experience then you can work efficiently and with precision.



Consistent Protection

The shade DIN 16 UV/IR filter works continuously and independently, which can effectively block the ultraviolet radiation and infrared ray from get through, then effectively protect the eyes of the workers against the dama-ges ofultraviolet radiation and infrared ray.



Cheater Lens Compatible

Magnifying lens / cheater lens(sold separately) can be installed easily, great convenience for people who needs vision correction.

ARC/MIG/TIG Digital Auto Darkening Welding Helmet

translation missing: en.products.product.price.regular_price $33.00
translation missing: en.products.product.price.sale_price $33.00 translation missing: en.products.product.price.regular_price $49.00
Product Description
Cheater lens will fit this digital auto darkening welding helmet. It is compatible.The size of cheater lens for this helmet is 4.25x1.97x0.16 inch.
ARC/MIG/TIG Digital Auto Darkening Welding Helmet
Features:
  • Superior Clarity: The welding helmet features top 1/1/1/1 optical clarity lens with advanced true-color technology and large viewing screen 3.86”×1.69”, it will vastly improve your vision experience then you can work efficiently and with precision.

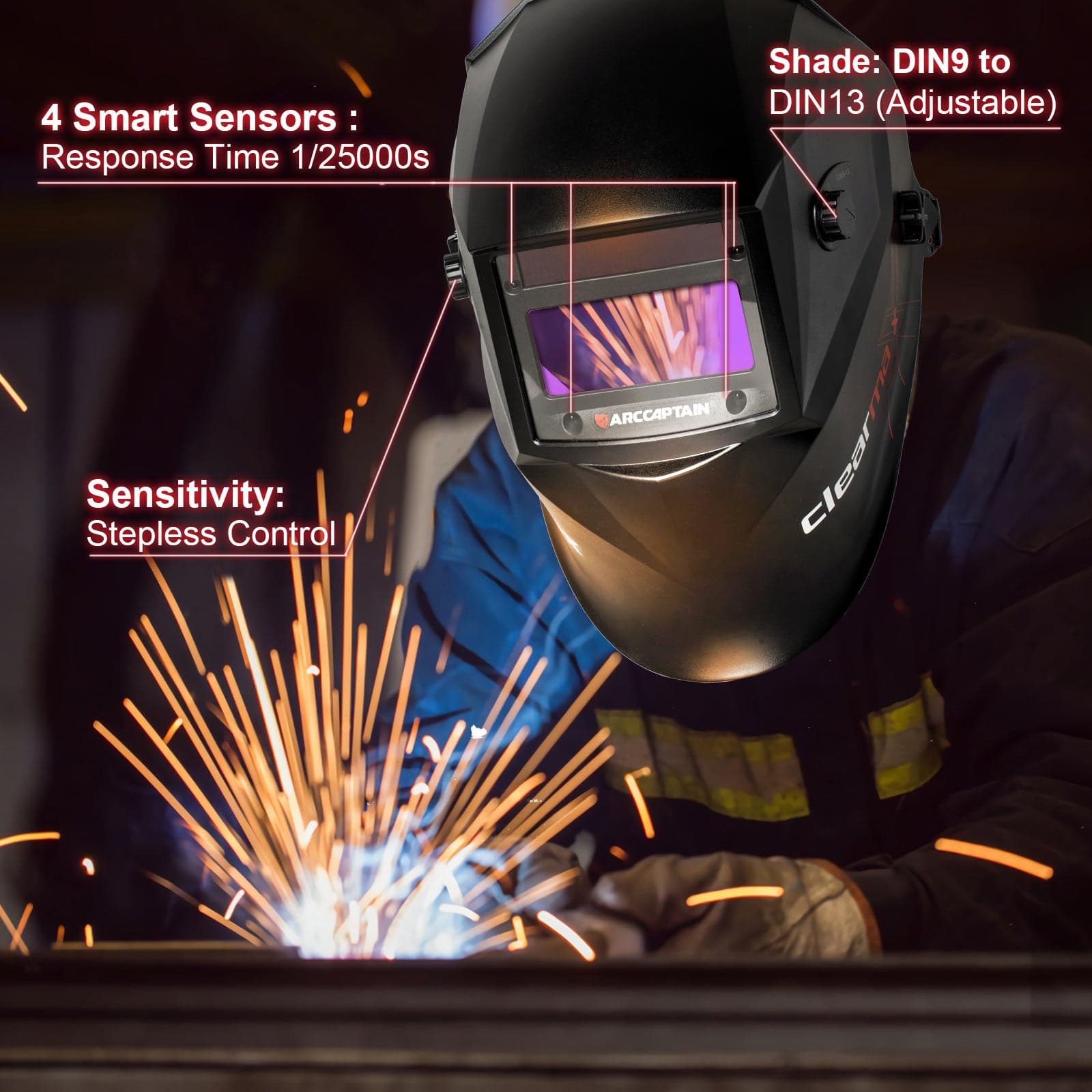

  • Digital Auto Darkening Filter: Helmet comes with high-end auto-darkening lens with 4 arc sensors, that switches from light to dark in 1/25000 sec, which let you adapt to different working environments by adjusting the lens's shade and sensitivity while you are operating ARC/MIG/TIG Welding.
  • Optimal Eye Protection: The welding hood achieves safety and efficiency with its smart filters that protect your eyes from intense welding glare. Fully automatic up to DIN 16 at all time UV/IR protection, it reduces the risk of exposure to harmful light generated by the welding process and allows greater adaptability to various environment.
  • Superior Comfort: ARCCAPTAIN welding helmet is well made and come in at only 1 pounds, which is 60% lighter than similar products, which can reduce the load on the cervical spine obviously during working, so it remains comfortable even for extended use. The dynamically adjustable headgear with breathable padding to provide you with the perfect fit , comfort and adaptability that you might need.

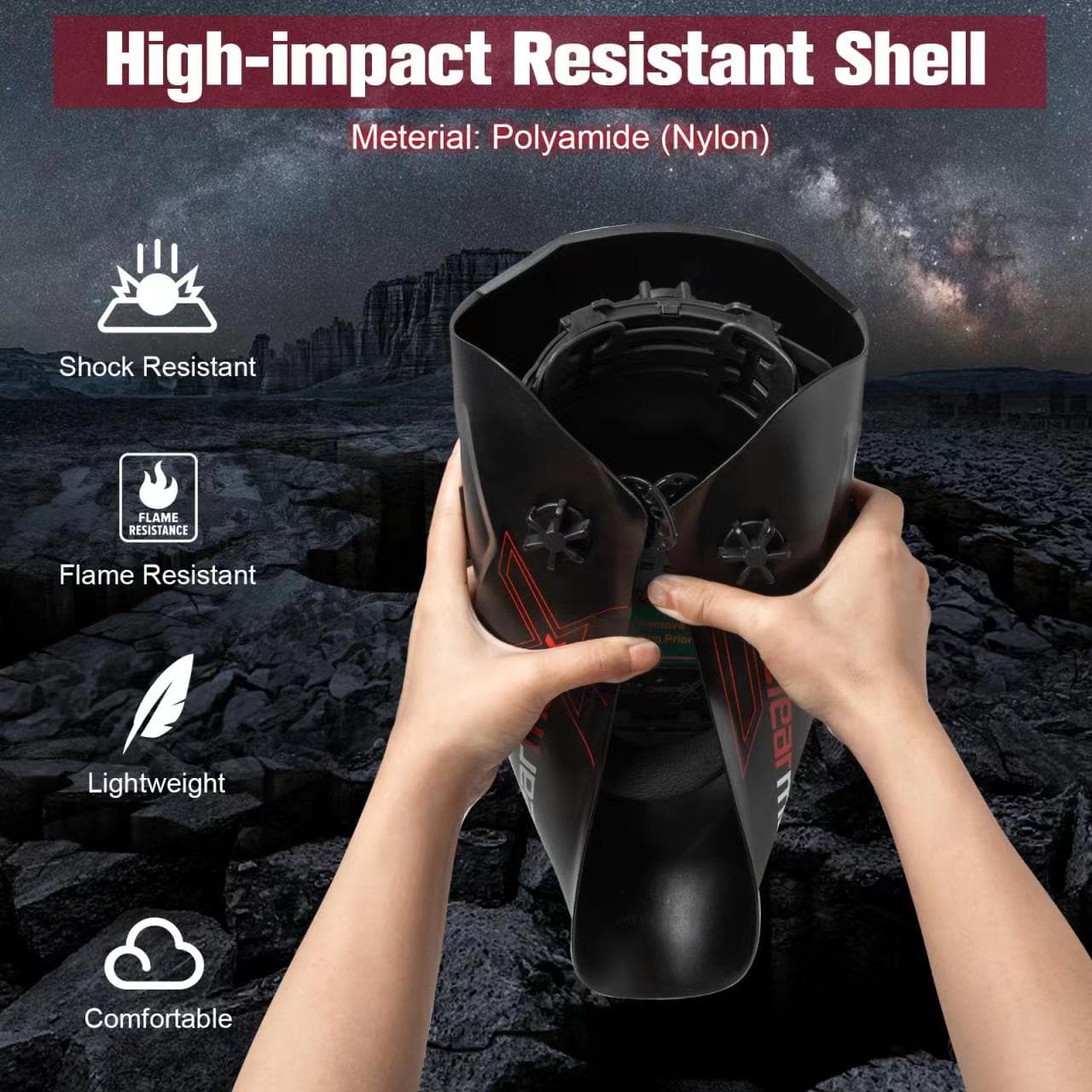

  • Long-lasting Durability: The auto darkening welding mask was made of high-impact resistant material PA, it features shock resistant and flame Resistant. The helmet meet ANSI Z87.1 / EN379 CE / CSA Z94.3 compliant. Power by solar cell and CR2450 replacement lithium battery supports long-lasting working time and is quite eco-friendly.

ARCCAPTAIN Auto Darkening Welding Helmet Solar Powered Welding Hood

Whether you're a professional or a DlY enthusiast, a reliable and sturdy welding helmet is a must-have in your closet. Not only is it essential for your safety, but having the right helmet also makes your work easier.

  • Eye protection: 13-in-1 Optical coating welding filter, avoid harmful ultraviolet and infrared radiation generated by arc, as well as welding strong light damage to the eyes, prevent suffering from electro-optic ophthalmitis.
  • Face protection: Effectively prevent spatter and harmful substances from harming the face and neck during operation, and reduce the probability of skin burns.
  • Respiratory protection: Effectively reduce and block off the harmful gas and dust released by welding to harm the body.
ARC/MIG/TIG Digital Auto Darkening Welding Helmet

High Performance for ARCCAPTAIN Welding Helmet

  • 1/1/1/1 Optical Clarity
  • Real True Color Technology
  • Fast Auto Darkening with 4 Arc Sensors
  • 1/25000s Switching Time
  • 3.86‘’x1.69‘’ Optimal Viewing
  • Updated Headgear with Durable Ratcheting
  • Stepless Control for Sensitivity, Shade and Delay
  • Rated Capacity of Li-battery: 600mAH (Replaceable)
  • Multi-working Modes:TIG/MIG/MMA/CUTTING/GRINDING
  • Lightweight allows for more freedom of movement

Easy to Adjust while Weld Working

  • External Sensitivity and Shade button can be adjusted without taking off the helmet while welding,then you can work efficiently and with precision.
  • External Weld/Grind button allows you to quickly switch between weld and grind modes without having to remove the helmet or your gloves.

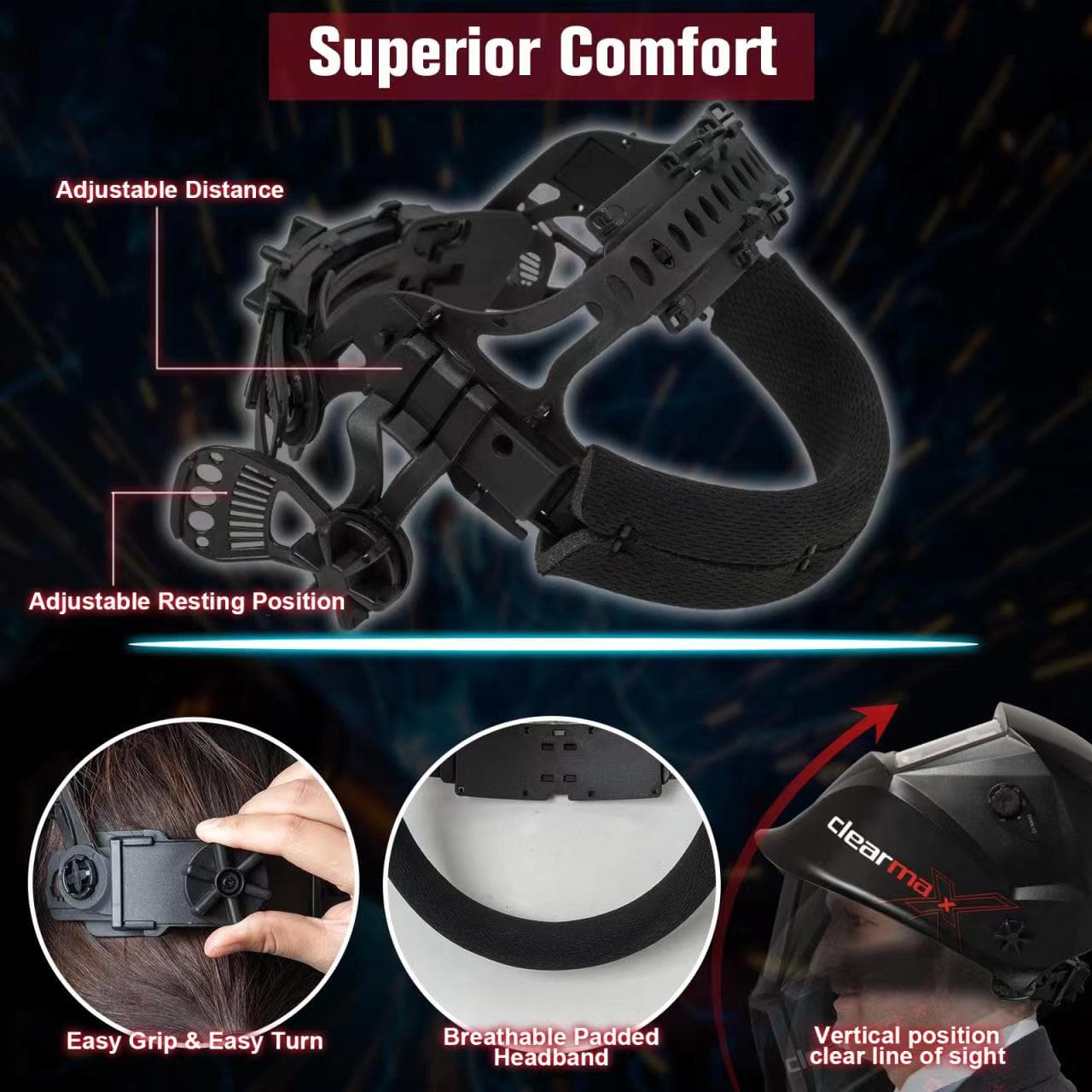

  • Designed for comfort, headgear is built with three-position slider to adjust distance from eye to lens; Locks into a detent when lifted and maintains upward position until manually lowered.
  • The width, depth and angle of the headgear can be adjusted, please follow your own head to adjust to the appropriate range.

Perfect for Various Working Environments

  • WELDING/GRINDING can be selective.
  • Suitable for SMAW, MIG, TIG, GTAW, etc.

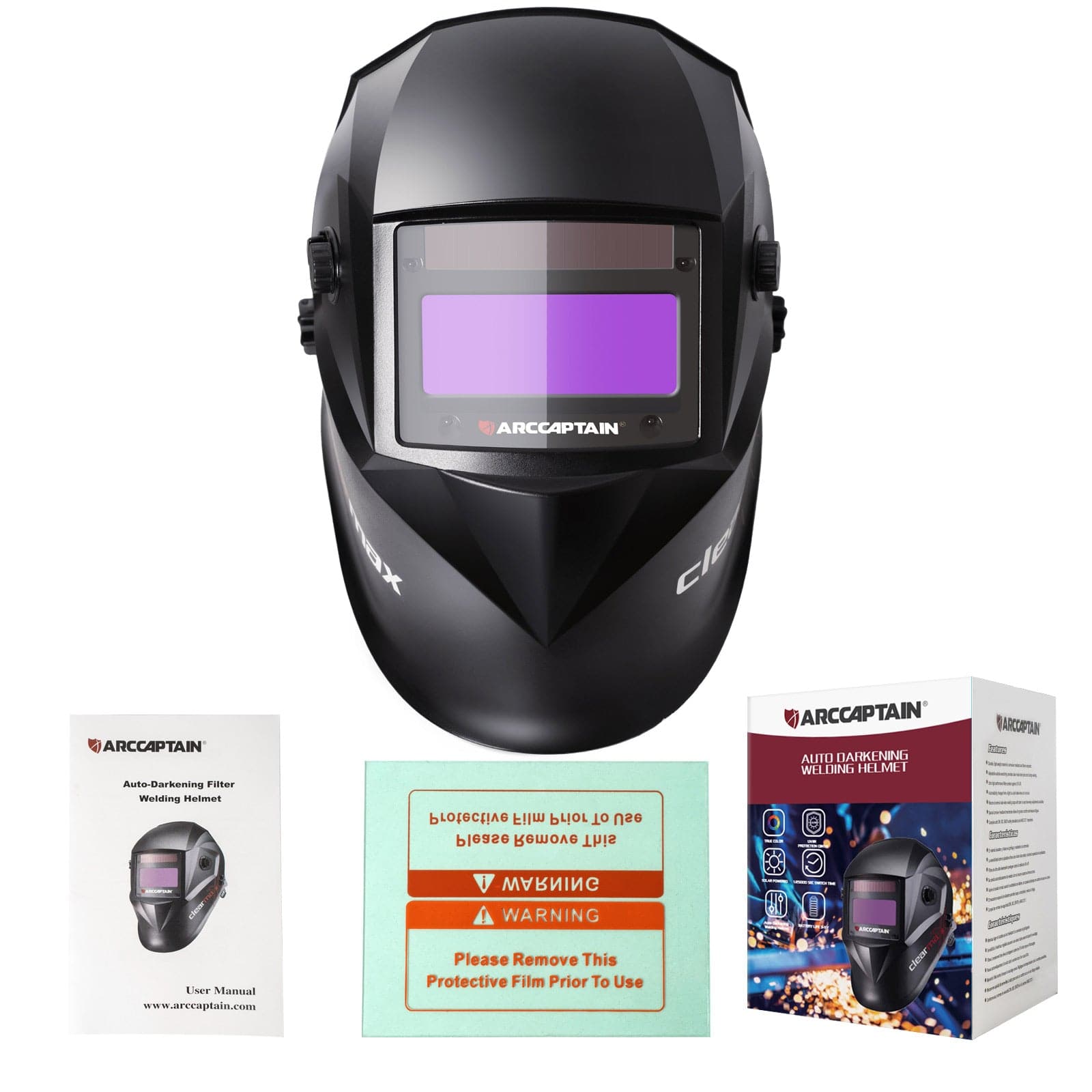

Package List:

ARCCAPTAIN welding hood x 1

Replacement lens x 1

Manual x 1

​​​​​​​

ARC/MIG/TIG Digital Auto Darkening Welding Helmet
ARC/MIG/TIG Digital Auto Darkening Welding Helmet

FAQs

Can I weld Aluminum with the ARCCAPTAIN welding machine

We do not recommend that you use a ARC, MIG welding machine to weld aluminum, which will did not perform well.It's better to weld aluminum with the AC tig welder or pulse mig welder.Of course you can weld aluminum by the mig welder with spool gun.

Where can i download the user manual

You can download user manuals for all product models here.

What type of spool gun do i need for MIG200

1.Your spool gun will  need to be the Euro Connection to suit the MIG200.

Euro Connection

2.Be sure your spool gun have the 4 pin aviation male plug.Otherwise, you need to buy the 4 pin plug yourself. Recommended 4 pin plug type: SP21 Series

4 pin aviation male plug

EURO socket, 4 pin aviation male plug

Hole 1 connect to spool gun "+", hole 2 connect to spool gun "-".
PLUG NEED TO MATCH SOCKET. Need to change torch's plug to 4-pin.

Can you provide a graphite liner to weld aluminum instead of using separate spool gun?

Currently our mig200 mig welder does support the graphite liner.You need to find suitable size graphite and replace the drive roller.
You can also connect the spool gun to weld aluminium .But if you want get a better welding performance.It is better to use AC/DC tig machine to weld aluminium.

If I need the parts of products. Where I can find It?

Arccaptain will sell most of the parts for our product, like tig torch, welding wire, welding backpack, etc., you can buy directly from the official website at an affordable price.

What type of tig torch suitable for Arccaptain machine

 Mig200 supports WP-17V 35-50 style tig torch.

MIG130 support WP-17V 10-25 style tig torch.

ARC200 support WP-17V 35-50 style tig torch.

ARC160 support WP-17V 10-25 style tig torch.

What is the recommended amperages for electrodes by type and diameter

You can read the guide chart here

What's the thinnest to thickest of steel and aluminium can the MIG200 do?

The MIG200 can weld 1mm-6mm steel.

The MIG200 can weld 1mm-5mm aluminium.

What Is The Standard MIG Contact Tip Sizing Chart

You can read the guide here.
