5-Pin Remote Amp Control with Strap Foot Pedal for TIG Welder
- Wide Compatibility – Designed for ARCCAPTAIN TIG welders including TIG200, TIG200P, TIG200P ACDC, TIG205 Pro, and TIG205P Pro. (Not compatible with MIG205MP.)
- Upgraded 2025 Design – Larger 15 cm pedal surface with adjustable anti-slip foot strap for improved comfort and stability.
- Precise Amperage Control – Smooth 0–200A current adjustment with a 12-tooth alloy gear and full-range potentiometer for accurate arc control.
- Dual 10 ft Cables Included – Comes with two plug-and-play cables for seamless connection to compatible ARCCAPTAIN TIG welders.
- Hands-Free Welding Operation – Control start/stop and amperage directly by foot, improving efficiency and keeping both hands focused on welding.
-
Estimated Delivery:May 28 - Jun 01
-
- Free Fast Shipping On orders over $100
- Experience peace of mind with our trusted logistics services.

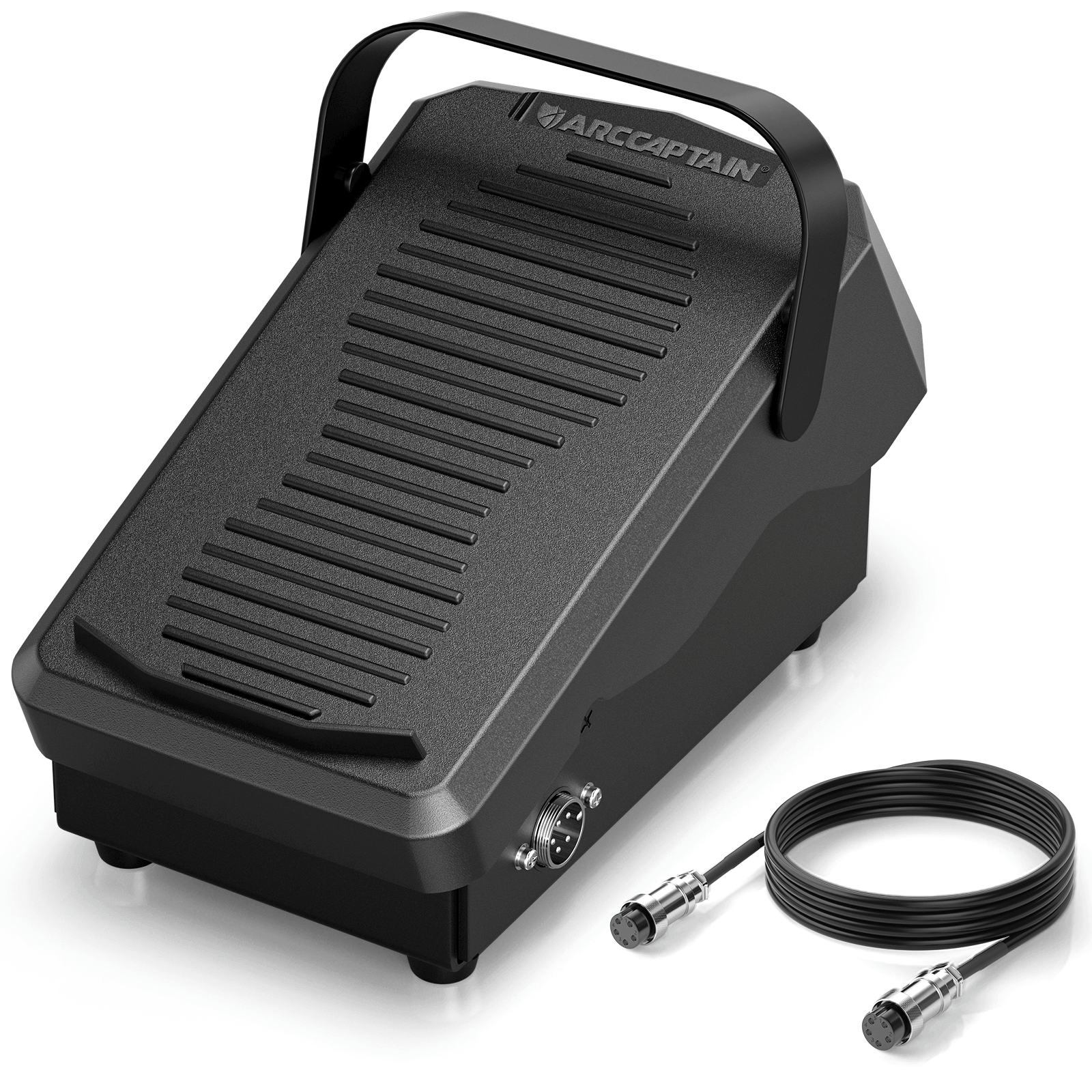

5-Pin Remote Amp Control with Strap Foot Pedal for TIG Welder
ARCCAPTAIN TIG Welding Foot Pedal - 2025 Upgraded Amperage Control with Adjustable Strap
Take command of your TIG welds without ever lifting a hand off the torch. This 2025 upgraded ARCCAPTAIN foot pedal gives you smooth, real-time amperage control from 0 to 200 amps, so you can dial in the exact heat your weld puddle needs - on aluminum, stainless, or mild steel. Built for serious hobbyists, fabricators, and shop pros who want clean starts, controlled fills, and crater-free finishes every time.
Engineered specifically for ARCCAPTAIN TIG200, TIG200P, TIG200P ACDC, TIG205 Pro, and TIG205P Pro welders. Plug it in, strap it on, and weld.

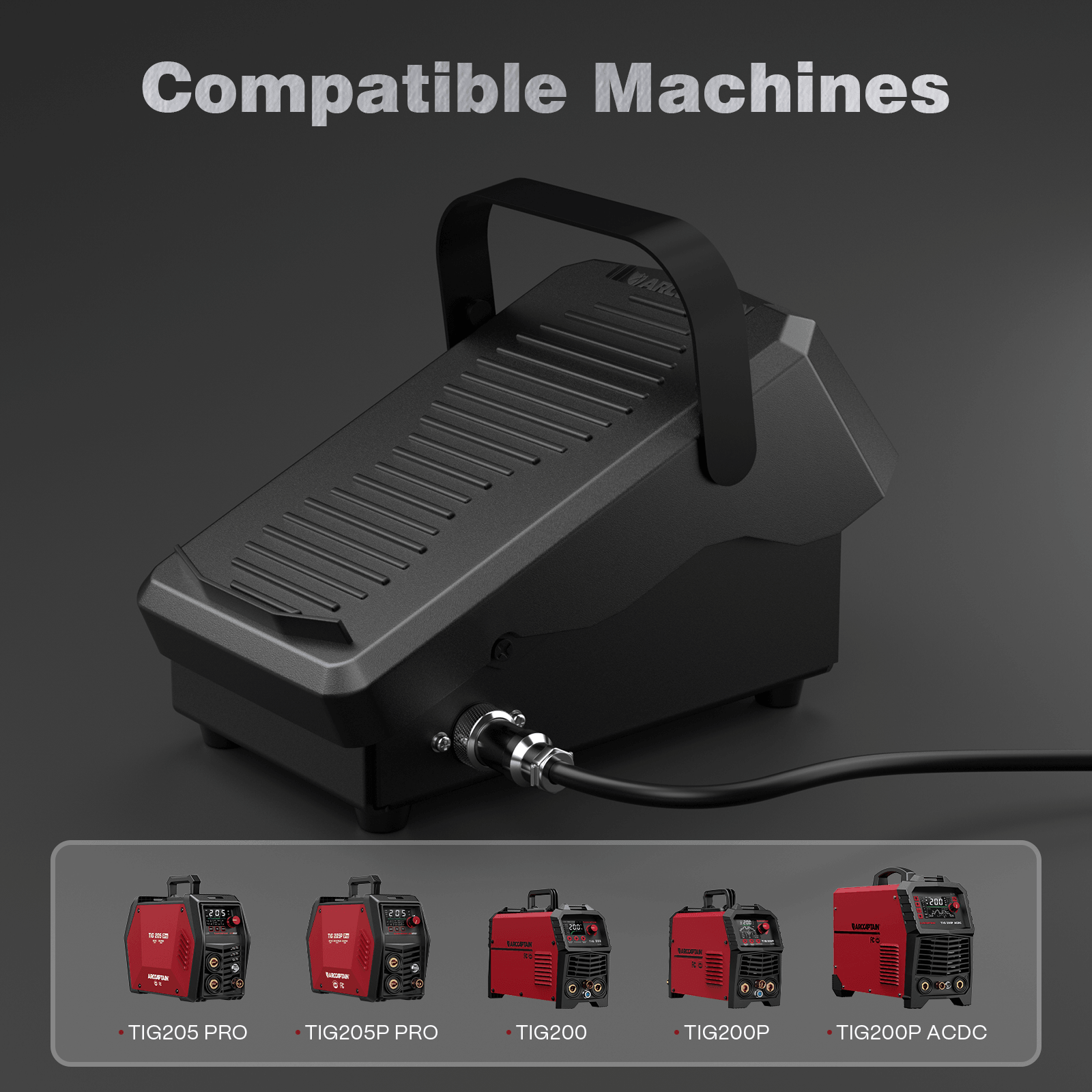

Will It Fit My Welder?
Designed and tested to plug directly into the following ARCCAPTAIN TIG welders - no adapters, no guesswork:
- ARCCAPTAIN TIG200
- ARCCAPTAIN TIG200P
- ARCCAPTAIN TIG200P ACDC
- ARCCAPTAIN TIG205 Pro
- ARCCAPTAIN TIG205P Pro
2025 Upgraded Design - Built for Real Welders
We listened to feedback from welders across the country and rebuilt this pedal from the ground up. The new 2025 version is wider, more stable, and engineered to stay put even during long sessions in the shop or out in the field.
Wider 15 cm Contact Area
The footplate jumped from 10 cm to 15 cm wide, giving your boot more room to land comfortably. Less foot fatigue, better balance, and more consistent pressure on long bead runs.
Adjustable Non-Slip Foot Strap
The new top-mounted strap holds your work boot in place so the pedal doesn't slide out from under you mid-weld. Adjusts to fit everything from sneakers to steel-toe boots.
12-Tooth Alloy Gear Drive
A precision 12-tooth alloy gear transmits pedal motion smoothly to a full-range potentiometer, eliminating jumpy or laggy amperage response.
Heavy-Duty Build
Solid housing and reinforced cable strain relief stand up to daily shop use, sparks, slag, and the kind of abuse welders actually put gear through.

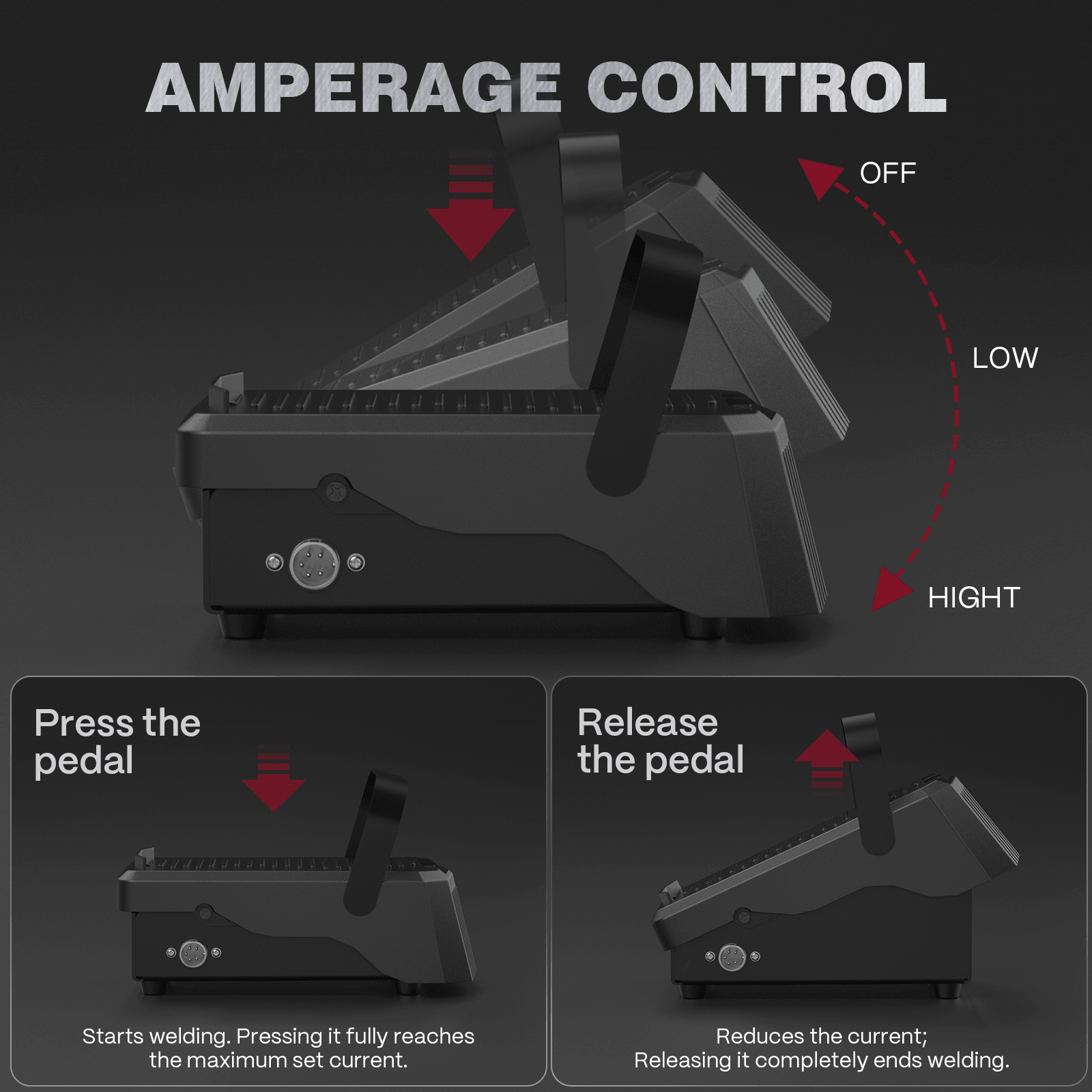

Precise 0-200 Amp Control at Your Foot
This is where the pedal earns its keep. Whether you are tacking thin sheet metal or laying a hot root pass on thicker stock, the full-range potentiometer gives you a clean, linear sweep from zero all the way to your machine's max output.
Press to Heat Up
Push the pedal down to start the arc and ramp up amperage smoothly. Perfect for controlled puddle starts without blowing through thin material.
Release to Cool Down
Ease off the pedal to taper the amperage and fill your crater clean, then release fully to stop the output. No more keyhole cracks or pinholes at the end of a bead.
Full-Range Potentiometer
Linear sweep from 0 amps to your welder's full 200 amp output. No dead spots, no jumpy zones - just smooth, predictable heat control.

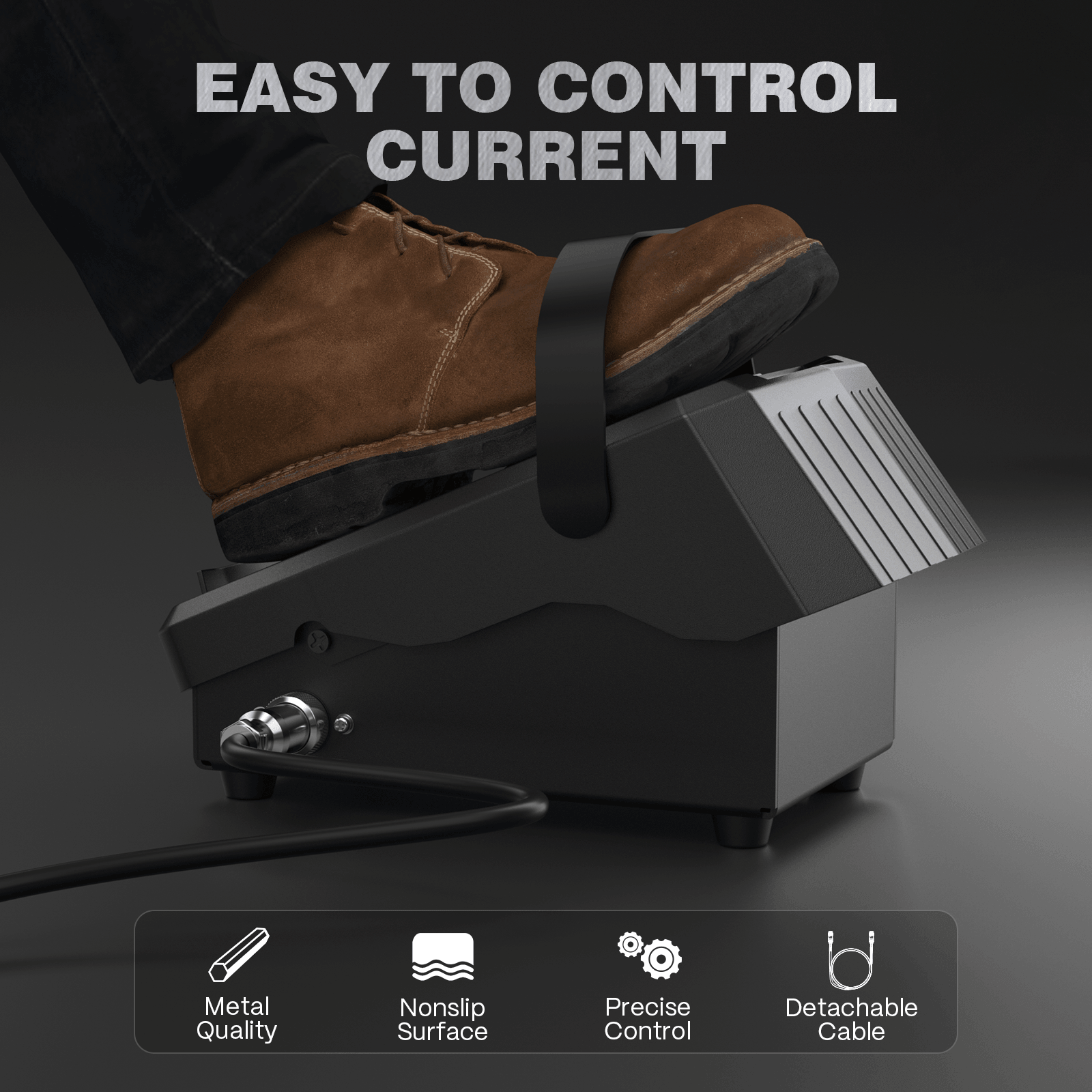

True Hands-Free Welding
Stop reaching for the panel mid-weld. Keep both hands on the torch and filler rod where they belong, and adjust heat with your foot in real time.

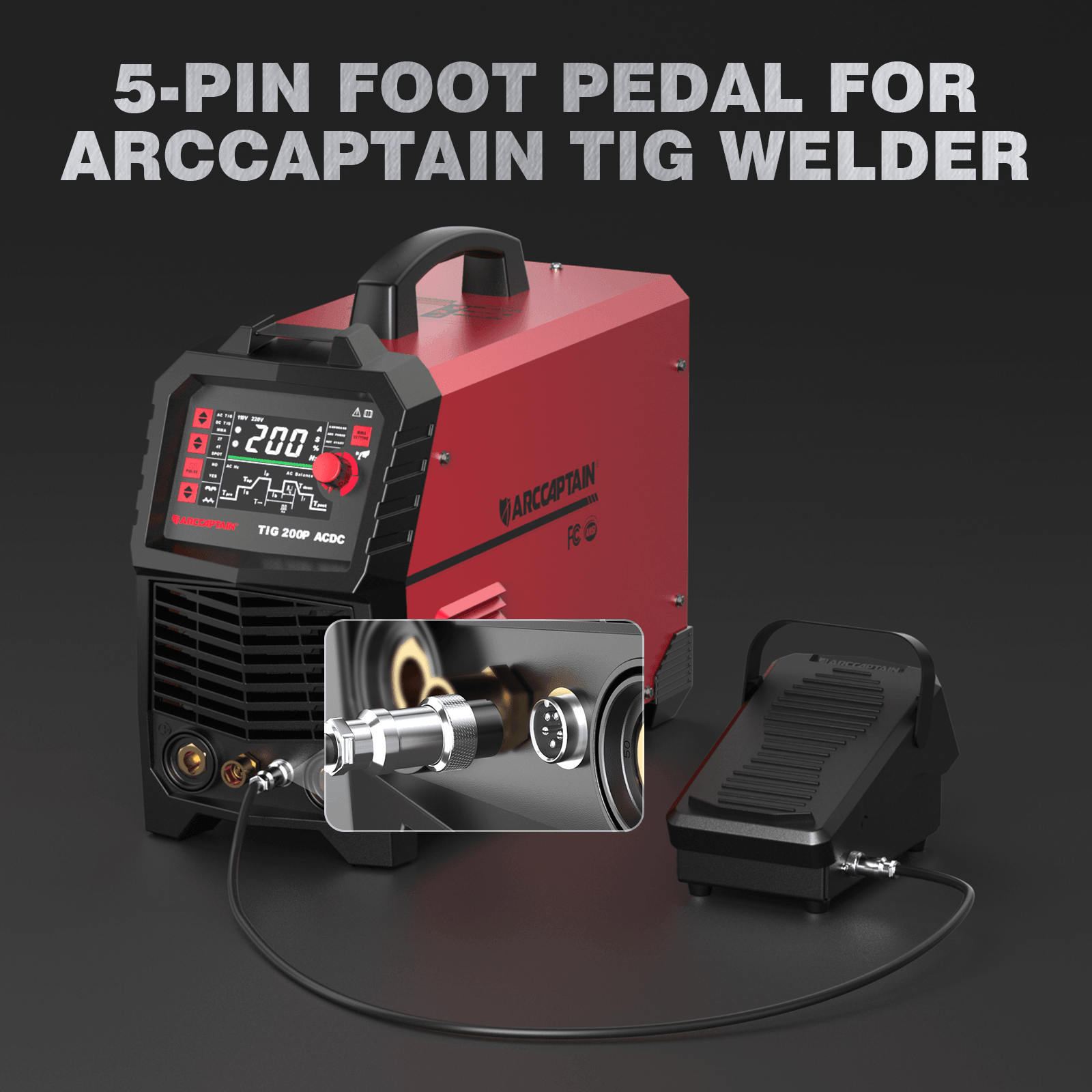

Dual Cable Setup - Plug and Play

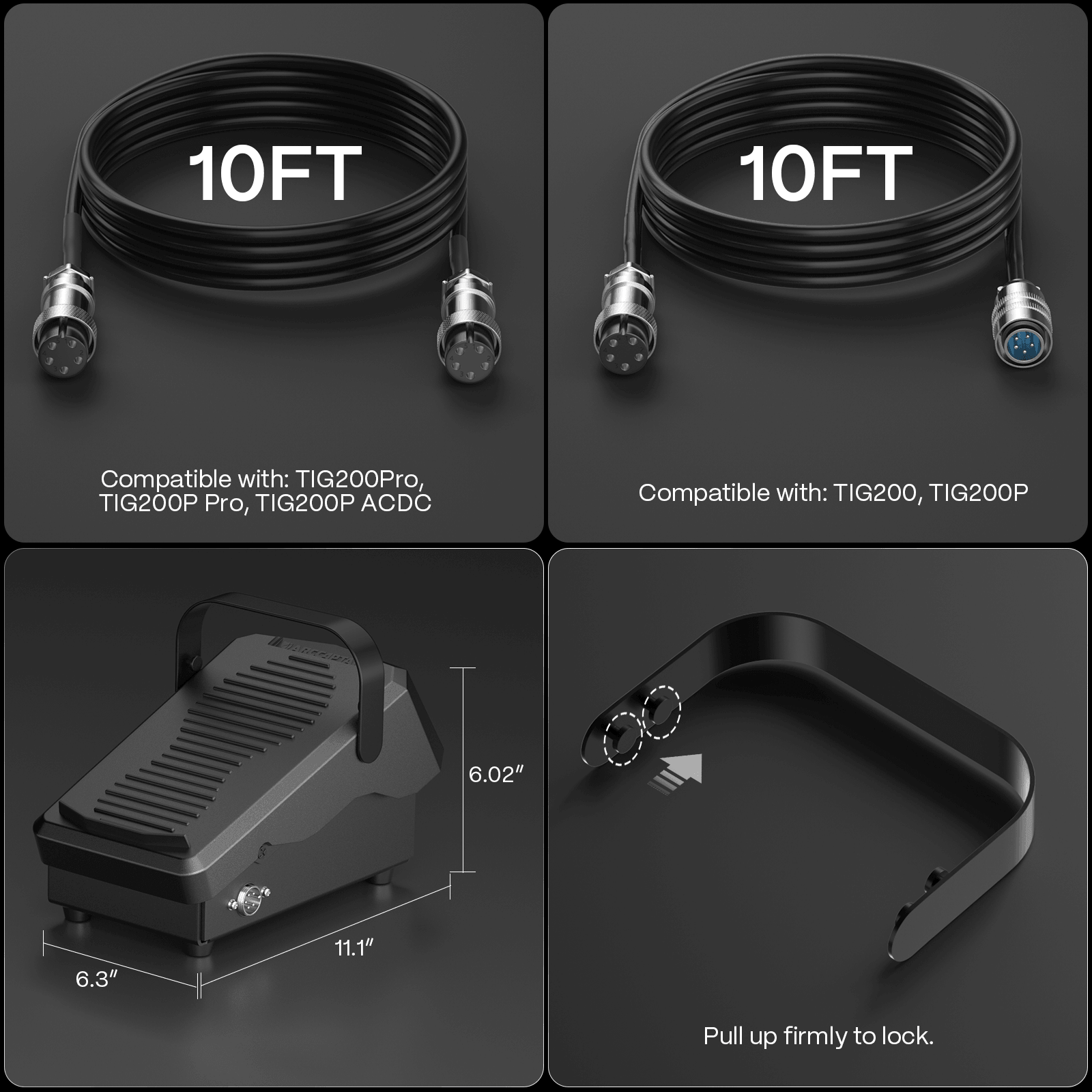

Each pedal ships with two 10 ft (3 meter) cables so you get the right connector for your specific ARCCAPTAIN TIG welder right out of the box. No fishing for adapters, no second order needed.
Built for the Way You Weld
Home Shop and Hobbyist Welders
Get the same kind of foot control the pros use without spending a fortune. Ideal for garage projects, restoration work, motorcycle frames, and weekend fabrication.
Professional Fabricators
A reliable backup pedal or upgrade for your daily driver welder. The wider footplate and strap reduce fatigue on full shift days.
Trade School and Training
Teaches proper amperage control habits from day one. Smooth pedal feel helps new welders learn puddle control faster.
Aluminum and Stainless Specialists
When you are running AC TIG on aluminum or thin stainless, heat control is everything. This pedal gives you the fine adjustment those jobs demand.
Technical Specifications
| Product Type | TIG Welding Foot Pedal Switch |
| Brand | ARCCAPTAIN |
| Version | 2025 Upgraded |
| Amperage Range | 0 to 200 Amps |
| Contact Area Width | 15 cm (upgraded from 10 cm) |
| Internal Gear | 12-Tooth Alloy Gear |
| Control Element | Full-Range Potentiometer |
| Foot Strap | Adjustable Non-Slip |
| Cable Length | 10 ft / 3 m (each cable) |
| Cables Included | 2 cables (covers all compatible models) |
| Compatible Welders | ARCCAPTAIN TIG200, TIG200P, TIG200P ACDC, TIG205 Pro, TIG205P Pro |
| Not Compatible | ARCCAPTAIN MIG205MP |
What is in the Box
Weld Smarter, Not Harder
A good foot pedal is the difference between fighting your welder and flowing with it. This 2025 upgraded ARCCAPTAIN TIG foot pedal gives you the smooth, precise amperage control you need to lay down clean beads on aluminum, stainless, and steel - all while keeping both hands free for the torch and filler.
If you own an ARCCAPTAIN TIG200, TIG200P, TIG200P ACDC, TIG205 Pro, or TIG205P Pro, this is the pedal that was made for your machine. Add it to your cart and take real control of your next weld.
