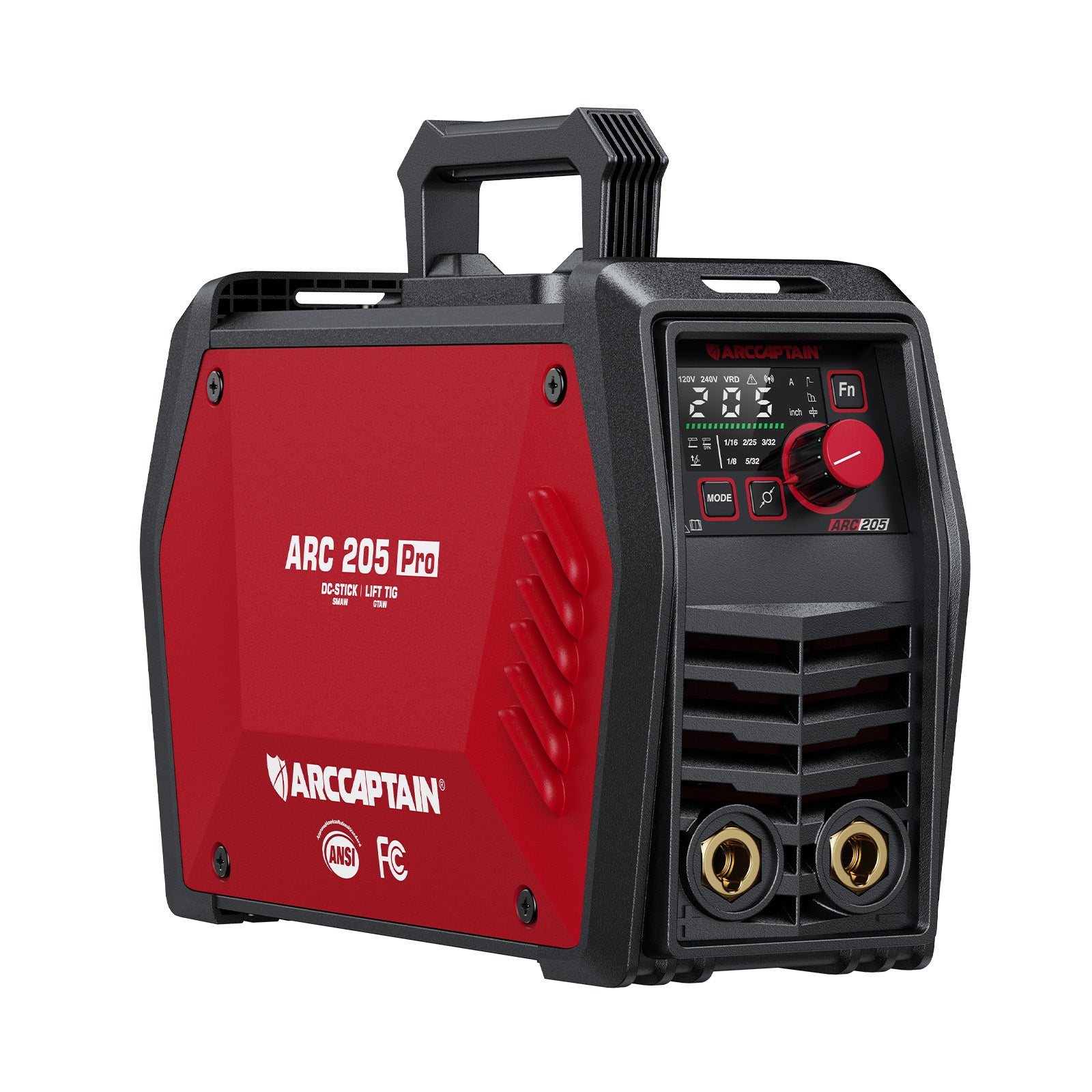

Arccaptain ARC205 Pro iControl Dual Voltage SYN Stick Welder
- Industry-First Design: Diamond-cut, uniquely compact, and lightweight exterior.
- Enhanced Features: Integrates optimized functions including hot start, arc force, and anti-stick, improving welding efficiency by 30%.
- Upgraded Unified Functionality: Equipped with an MCU chip for easier operation, suitable for both beginners and experienced users.
- Localized Parameter Setup: Ready to use out of the box with complete accessories, offering excellent cost-performance ratio.
- Enhanced Safety: Features overcurrent, overheating, and undervoltage protection, and has passed dust, water, and drop tests.
- Industry-First App Support: Connects to an app, setting a new trend in welding machines, appealing to younger users.
Applicable Electrode Sizes: 1/16"-5/32", available for cellulose electorde
-
Estimated Delivery:Dec 20 - Dec 24
-
- Free Fast Shipping On orders over $100
- Experience peace of mind with our trusted logistics services.
The ARC205 PRO Stick Welder is equipped with cutting-edge features that make welding effortless and efficient. With the SYN Simplification feature, simply select the welding rod diameter, and the machine automatically adjusts the current for optimal performance. This user-friendly function is ideal for both beginners and experienced welders, delivering consistent, high-quality results every time.
Powered by MCU Control and IGBT Inverter Technology, this welder ensures precise control over welding parameters, optimizing efficiency and providing stable output even in demanding conditions. The MCU allows for fine-tuning to meet specific welding needs, while the IGBT inverter guarantees reliable performance.
For added convenience, the welder offers Bluetooth App Connectivity, allowing users to adjust parameters directly from their smartphone. Whether in the workshop or on-site, the mobile app enhances productivity and flexibility by enabling real-time control from anywhere.
Designed for versatility, the ARC205 PRO supports both MMA and LIFT TIG welding methods, making it perfect for a variety of applications, from heavy-duty construction to detailed metalwork. Its intelligent cooling system, complete with customized air ducts, reduces noise and energy consumption, while ensuring efficient heat dissipation. The machine also features a triple protection design, reducing the risk of malfunctions by 70%, along with VRD, overcurrent, overvoltage, overload, and overheat protections for maximum safety.
Weighing only 8.30 lbs, the ARC205 PRO is highly portable and ergonomically designed for easy transport, making it an excellent choice for both home use and remote job sites.
Technical Parameters
|
TECHNICAL PARAMETERS |
Units |
Model |
|
|
|
|
ARC205 Pro |
|
|
Rated input voltage |
V |
AC 120V ±15% 50/60HZ |
AC 240V ±15% 50/60HZ |
|
Rated input power |
kVA |
6 |
9.4 |
|
Welding current range（MMA) |
A |
20-150 |
20-205 |
|
|
V |
20.8-26.0 |
20.8-28.2 |
|
Welding current range（TIG) |
A |
20-150 |
20-205 |
|
|
V |
10.8-16.0 |
10.8-18.2 |
|
Hot start current range |
A |
0~60A |
|
|
ARC force current range |
A |
0~100A |
|
|
Rated duty cycle |
- |
60% |
|
|
No-load voltage |
V |
85 |
|
|
VRD voltage |
V |
12 |
|
|
Overall efficiency |
- |
80% |
|
|
Protection grade |
- |
IP21S |
|
|
Power factor |
- |
COSφ=0.7 |
|
|
Insulation grade |
- |
H |
|
|
Standard |
- |
ANSI/NEMA/IEC 60974-1 |
|
|
Dimensions L*W*H |
Inch |
12.88*5.05*8.4 |
|
|
|
mm |
327*128*213mm |
|
|
Net weight |
Lb |
8.30 |
|
|
|
KG |
3.76 |
|
|
Applicable electrode |
Inch/ mm |
1/16"-1/8" 1.6-3.2 |
1/16"-5/32" 1.6-4.0 |
Welding Parameters
|
Electrode Diameter mm(inch) |
Plate thickness mm (inch) |
Recommended Welding Current(A) |
Recommended welding voltage(V) |
|
1.6mm 1/16 |
1~2.5mm 0.04~0.11 |
30~65 |
21.2~22.8 |
|
2mm 2/25 |
2.3~4mm 0.9~0.16 |
49~94 |
21.6~23.6 |
|
2.4mm 3/32 |
3.5~4.5mm 0.14~0.18 |
78~123 |
22~24 |
|
3.2mm 1/8 |
4.8~8.3mm 0.19~0.33 |
99~177 |
22.8~26 |
|
4.0mm 5/32 |
8.6~10mm 0.34~0.39 |
178~205 |
25.6~27.2 |
LIFT TIG Welding Parameters
|
Electrode diameter mm (inch) |
Plate thickness mm (inch) |
Welding current(A) |
Gas flow(L/min) |
|
1mm 1/32 |
1mm 0.04” |
20~50 |
5 |
|
1mm 1/32 |
2mm 0.08” |
51~80 |
6 |
|
1.6mm 1/16 |
3mm 0.12” |
81~120 |
7 |
|
1.6mm 1/16 |
4mm 0.16” |
121~165 |
8 |
|
2.4mm 3/32 |
5mm 0.20” |
166~205 |
9 |
1 * Welding machine
1 * User Manual of ARC Pro
1 * Electrode Holder (10 ft)
1 * Ground Clamp (10 ft)
1 * Adapter 240V to 120V
1 * Shoulder Strap
1 * Wire Brush
1 * Welding Rod E6013
