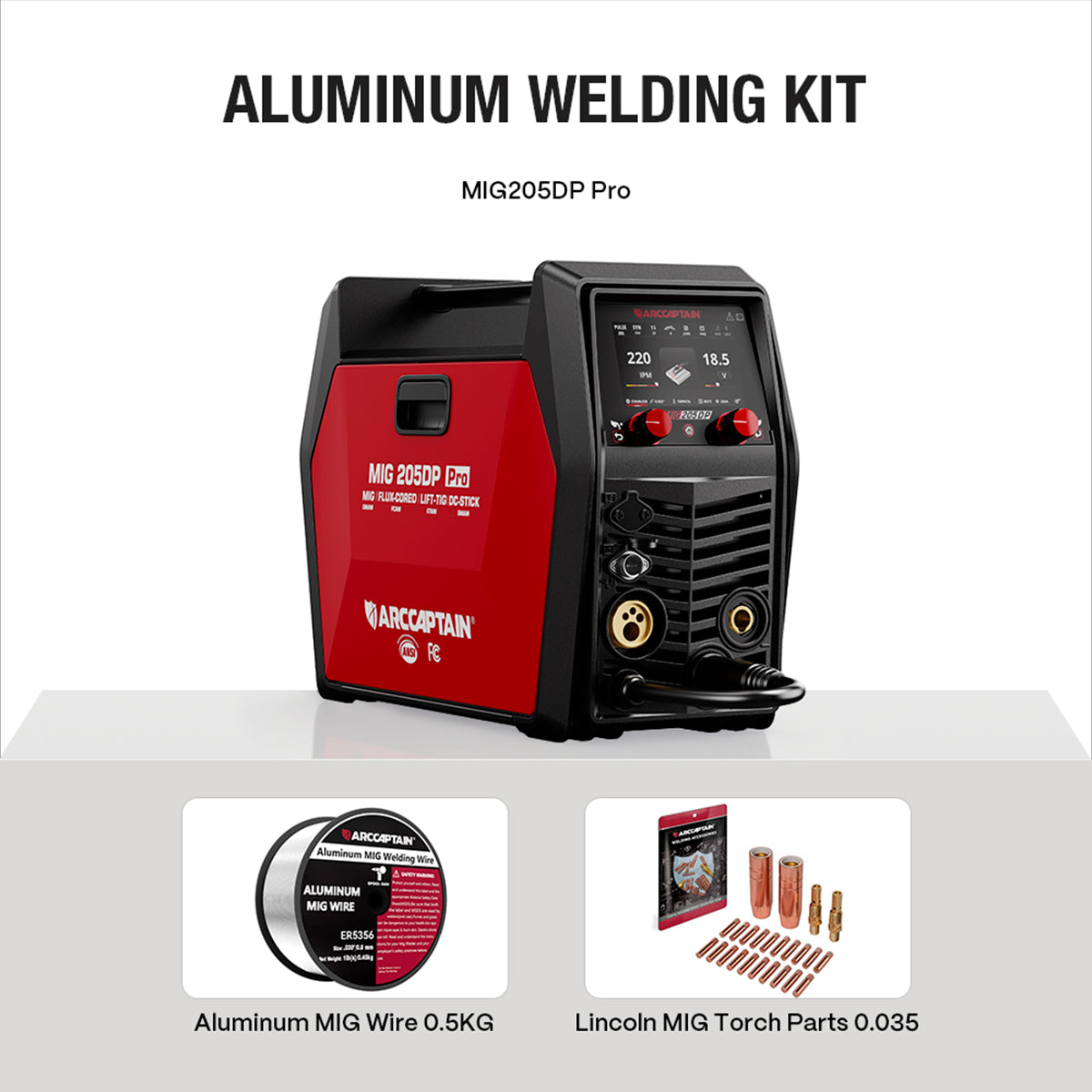

Double Pulse MIG205DP Pro Aluminum Welding Kit

Arccaptain MIG205DP Pro Double Pulse MIG Welder For Aluminum

Double Pulse | Multi-Process | Aluminum Welder
$549.99 USD
$549.99 USD $899.99 USD
Sauvegarder 38%
A Smart Precision Welder with Dual Pulse for Aluminum and Automotive Applications
Early Bird Rewards — Ends in 00:00:00

Bonus Giveaways

  • Top 100 Buyers – Chance to win a Full Refund (3 winners)
  • Top 200 Buyers – Chance to get 50% OFF your order

Subscribe with your email to join the giveaway
payment icon
    • Free Fast Shipping On orders over $100
    • Experience peace of mind with our trusted logistics services.
poser une question

Early Bird Rewards

Subscribe with your email to Win Your Order FREE
Join Now >>

Why Choose MIG205DP Pro?

Double Pulse MIG for Aluminum Welding

Multi-Process Welding
Thickness Range by Process

Built For Auto Repair

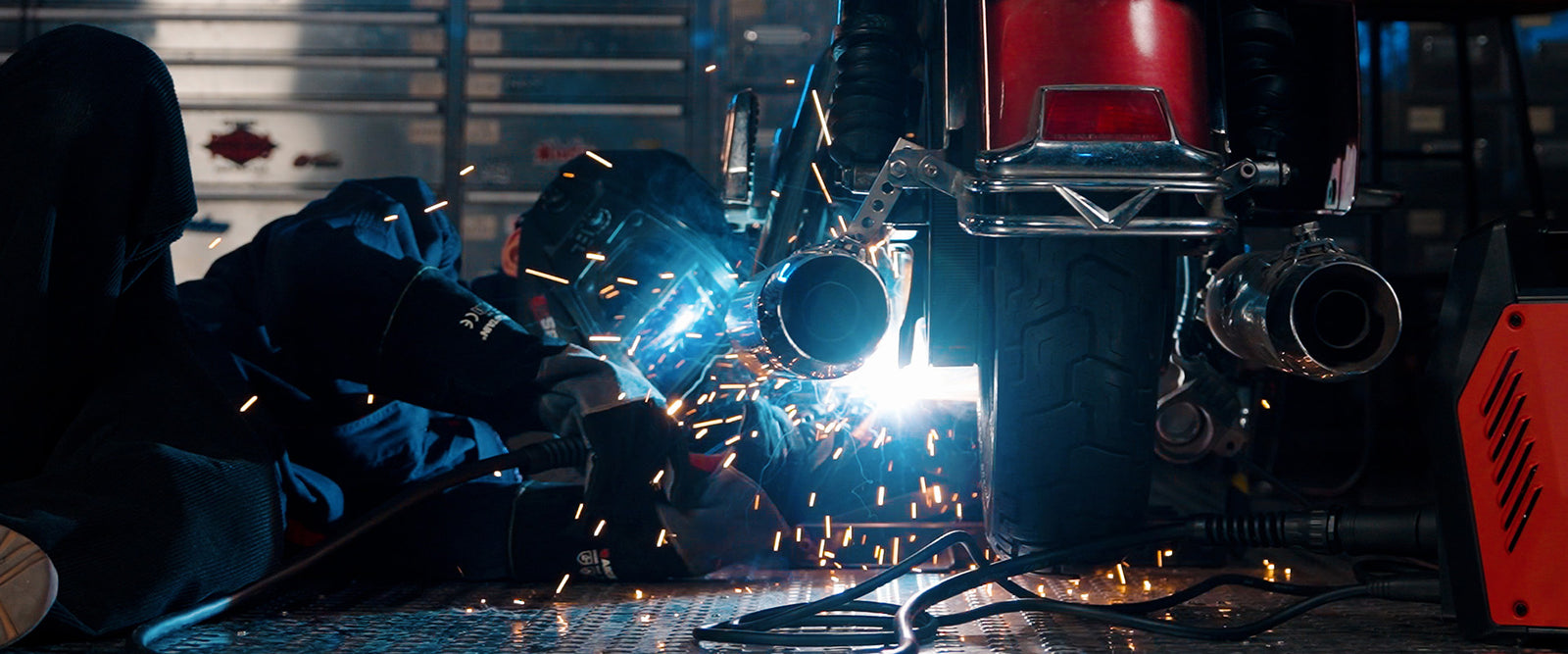

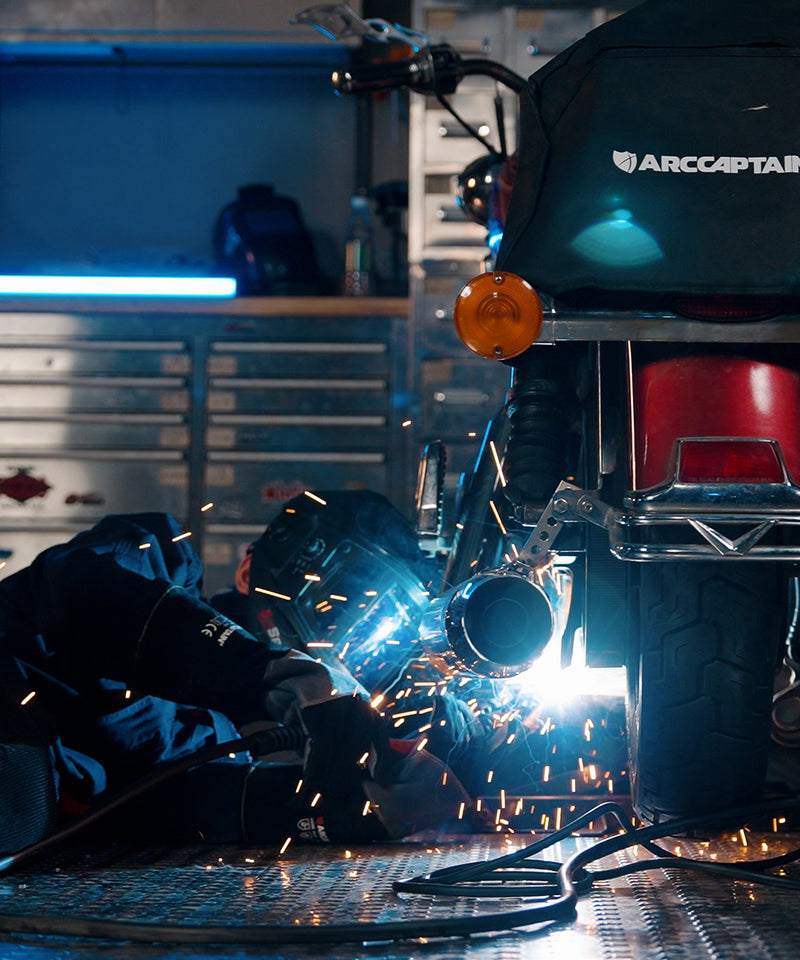

Stainless Exhaust

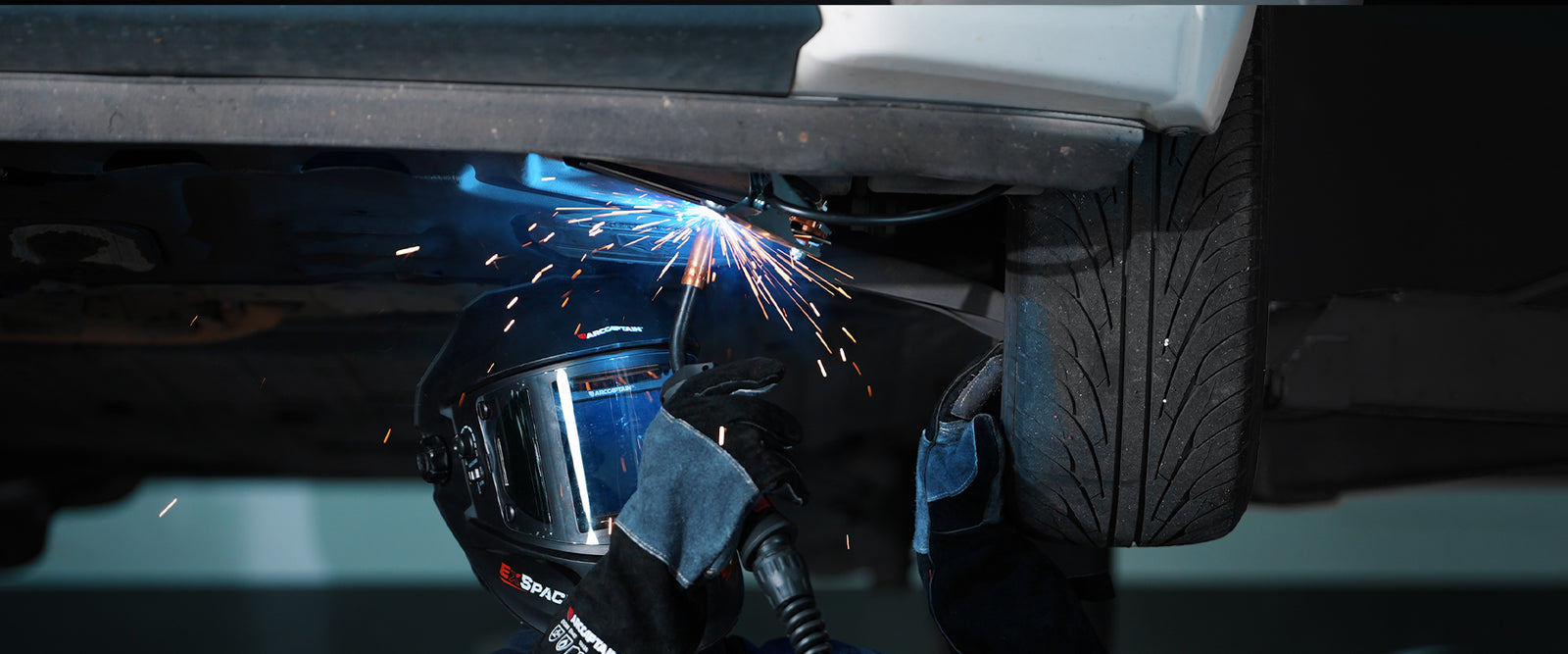

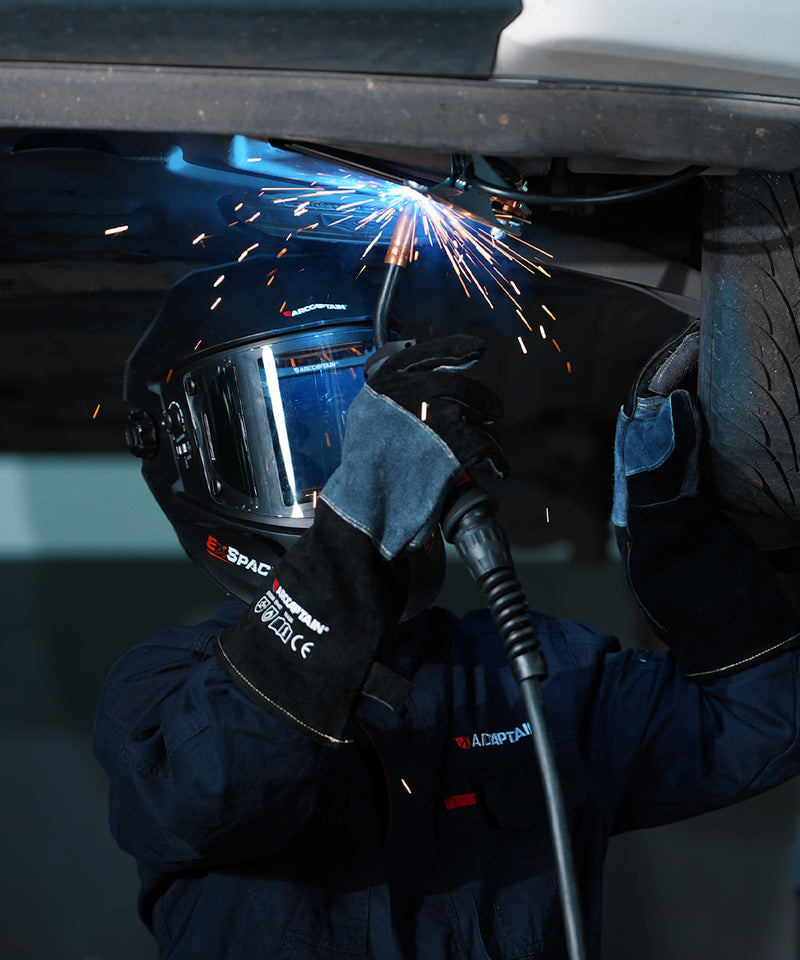

Underbody Repair

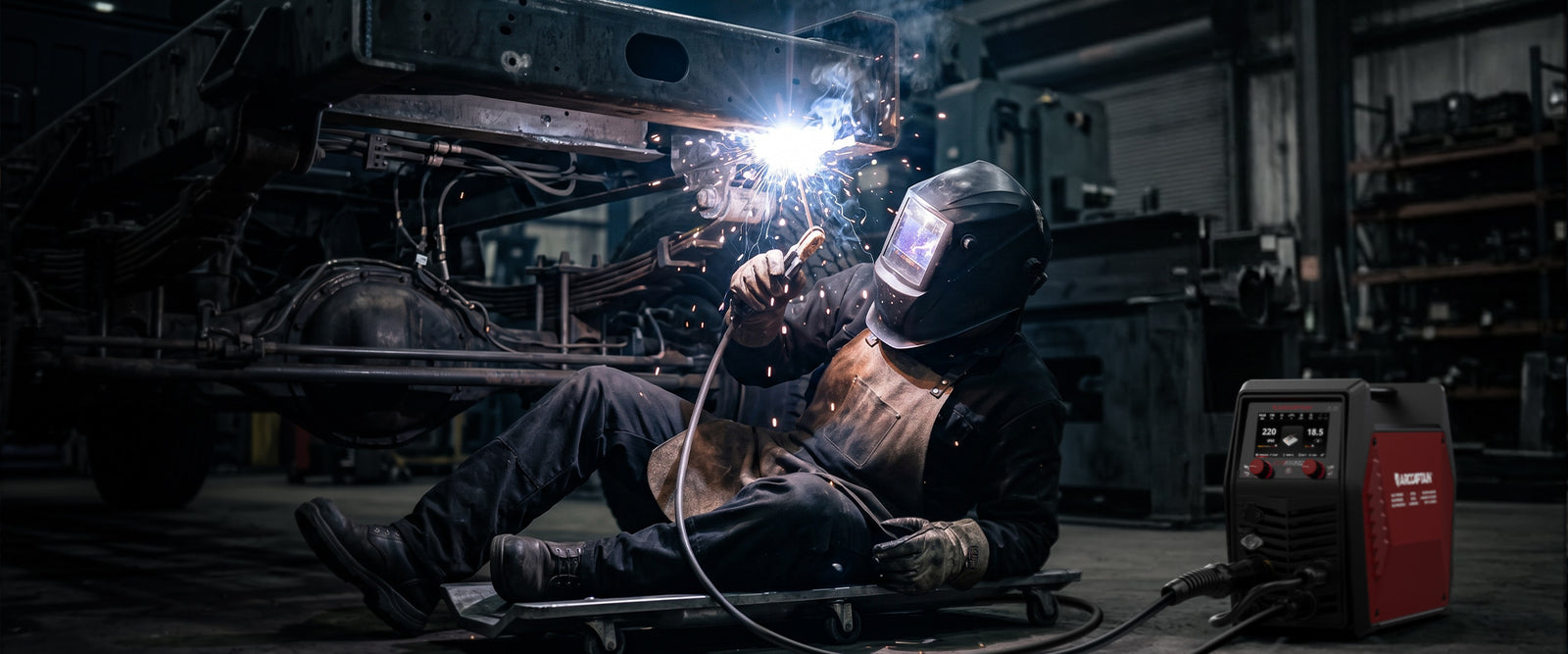

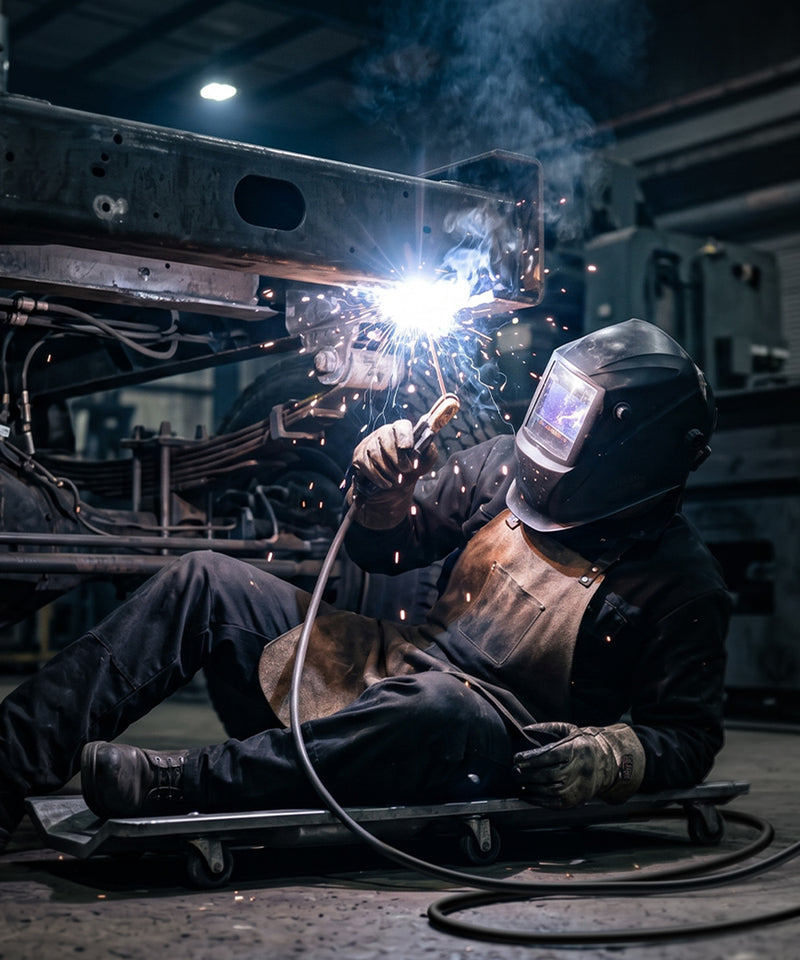

Heavy Repairs

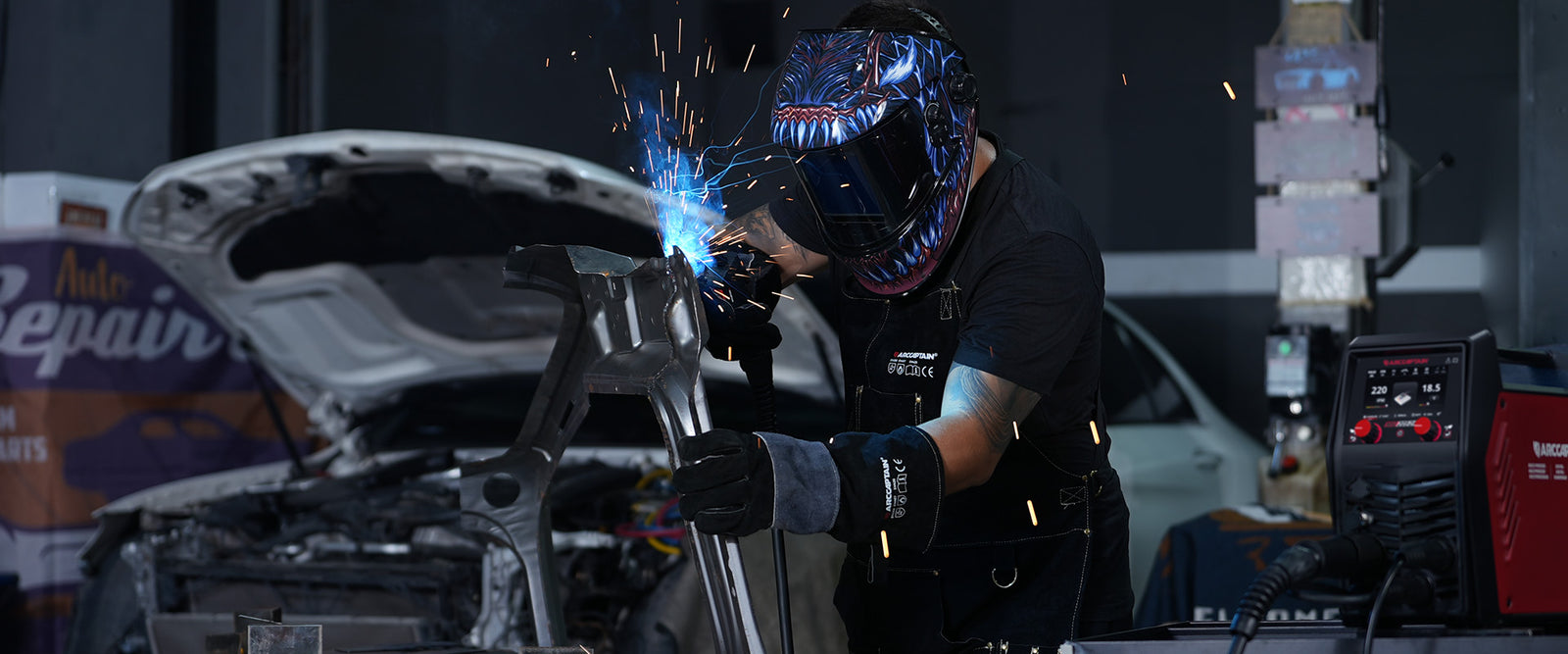

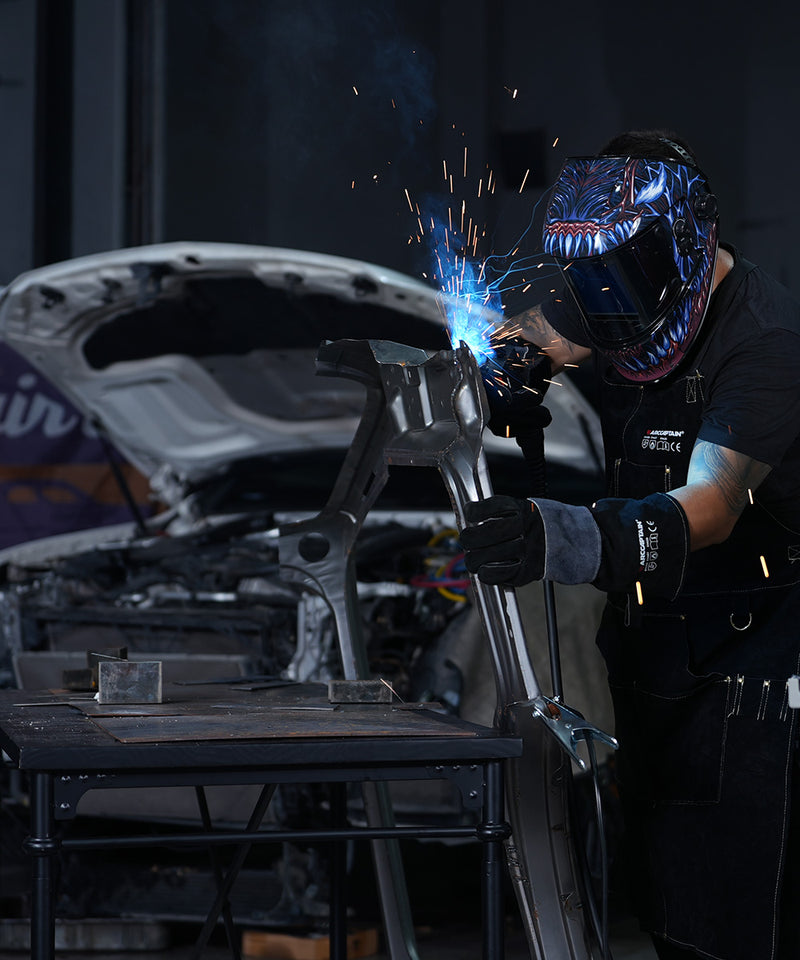

Sheet Metal Repair
Stainless Exhaust
Underbody Repair
Heavy Repairs
Sheet Metal Repair
Specifications

MIG205DP Pro User Manual: Link

MIG205DP Pro Technical Specifications

Swipe left to view all columns

Parameter Unit AC120V ±15% 50/60Hz AC240V ±15% 50/60Hz
Rated Input Voltage V AC120V ±15% AC240V ±15%
Rated Input Power KVA 4.9 6.9
Rated Input Current A 46 35.6
Welding Current Range (MMA) A 20–140 20–205
Welding Current Range (TIG) A 20–140 20–205
Welding Voltage Range (MIG) V 11–22 11–28
Wire Feed Speed Range m/min 1.5–12 (60–480 IPM) 1.5–16 (60–640 IPM)
Rated Duty Cycle % 60
Open Circuit Voltage V Uo: 83  /  Ur: 11
Overall Efficiency % 85
Ingress Protection Rating IP 21S
Power Factor COSφ 0.72
Insulation Class — H
Standard — IEC60974-1 / EN60974-1 / ANSI/NEMA/IEC 60974-1
Dimensions inch 17.3 × 12.7 × 7.9
Weight lb 21.6
Applicable Electrode / Wire inch 1/16, 3/32, 1/8, 5/32  /  0.023–0.040
Description

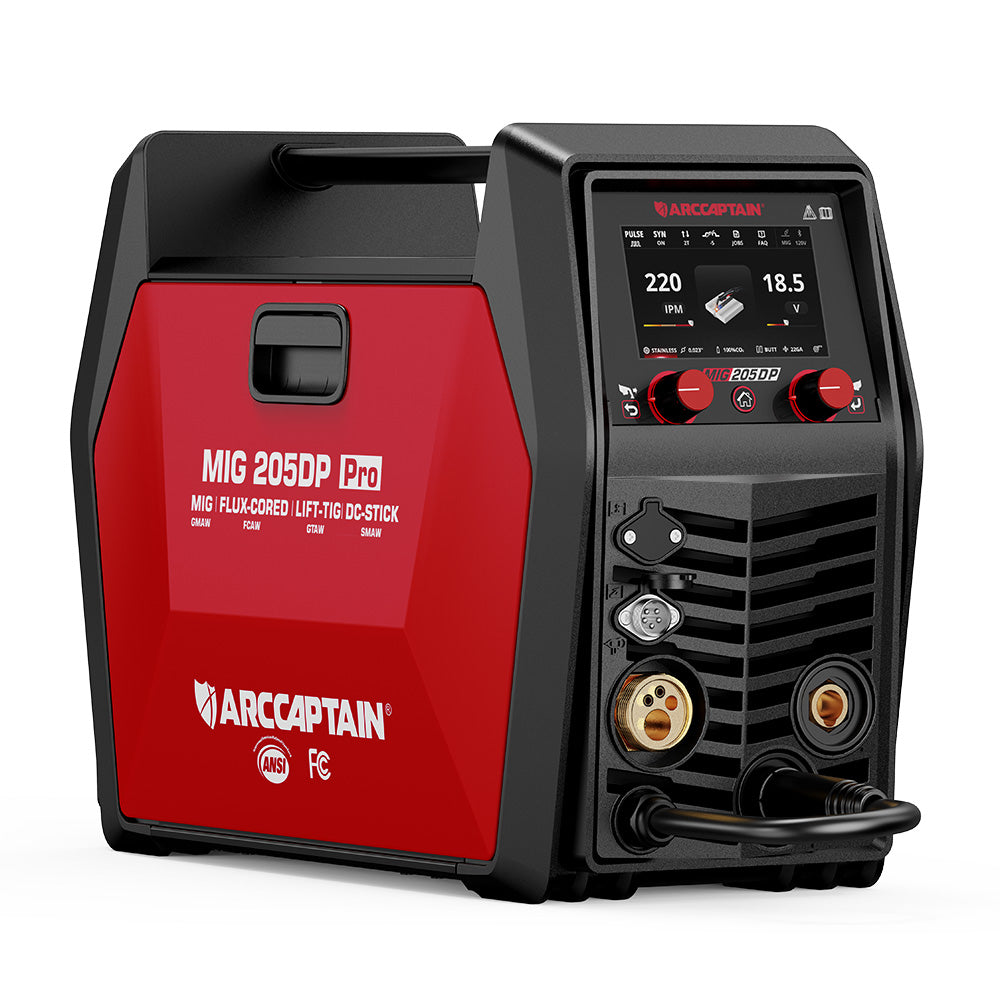

MIG205DP Pro Double Pulse MIG Welder

$549.99 USD （Early Bird Price）$899.99 Save $350

The double pulse MIG welding machine built for high-quality aluminum welding and versatile performance. The MIG205DP Pro delivers TIG-like weld appearance with controlled heat input, features smart synergic programs for faster setup, supports multiple welding processes and materials, and handles everything from thin sheet metal to structural work—making it ideal for automotive repair, fabrication, and daily workshop use.

Features:

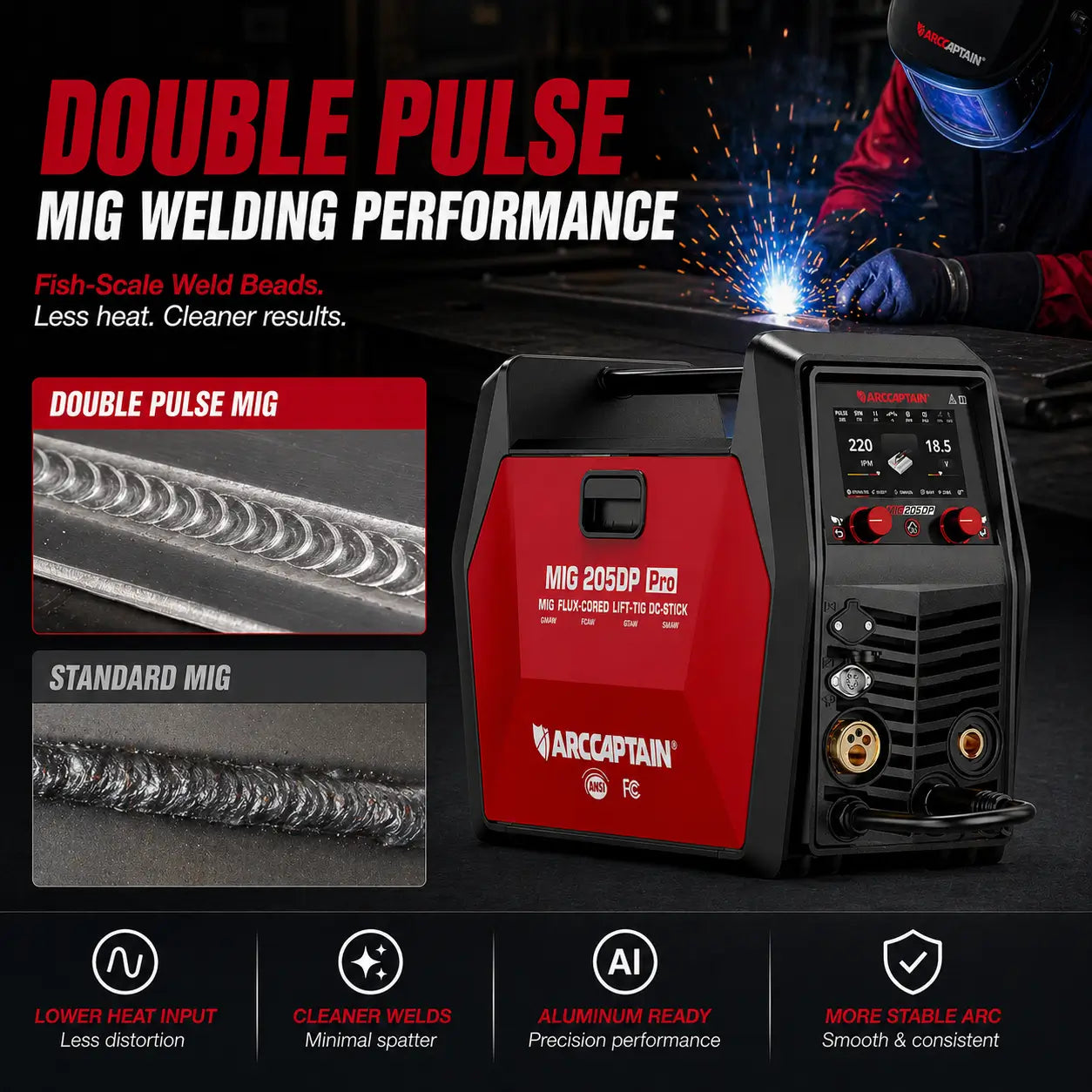

Double Pulse MIG Welding Performance: Expert-tuned synergic settings automatically match wire speed and voltage, delivering smooth fish-scale welds with no weaving needed. A stable arc with low heat input ensures clean, consistent welds, ideal for aluminum and thin materials.

Multi-Process Welder with 200A Output: Supports double pulse MIG, single pulse MIG, flux-cored, stick, lift TIG, and spool gun welding. Ready for fabrication, auto body repair, and structural work.

Designed for Aluminum Welding: Alternating peak and base current creates smooth fish-scale welds automatically—no weaving needed. Achieve TIG-like results with MIG speed and less heat distortion.

Advanced LCD Display Control: Save and recall up to 12 presets for fast setup, with intuitive on-screen controls and real-time adjustment to match your welding needs

APP Remote Control: Adjust and monitor settings remotely, save parameters, and recall them anytime for faster, more efficient welding

Built for Auto Body Repair: Designed for real shop work—from aluminum panels and car doors to exhaust and frame repair. Double pulse MIG ensures clean welds on thin materials, while MIG and stick handle structural and heavy-duty jobs.

Warranty 3 Years
Safety Over-load/heat/current

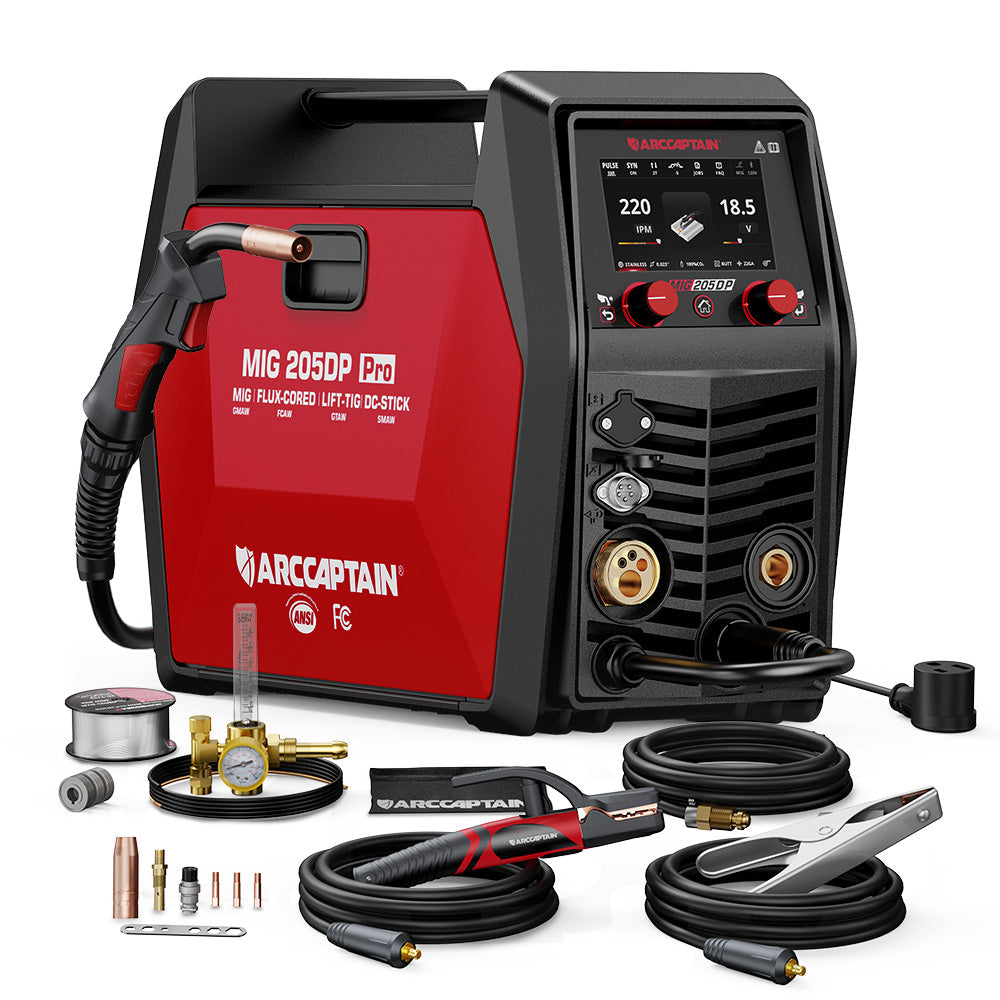

What's in the Box

MIG Welder Machine
MIG Torch
Ground Clamp
Gas Hose
Contact Tips
Power Adapter
3× Rollers
Gas Regulator
Graphite Liner
Solid Welding Wire
Dust Cover
Electrode Holder

Supported Welding Processes

Gas MIG (solid wire), Gasless MIG (flux-cored wire), Single Pulse MIG, Dual Pulse MIG, Spool Gun, Lift TIG (With Foot Pedal), MMA/Stick Welding

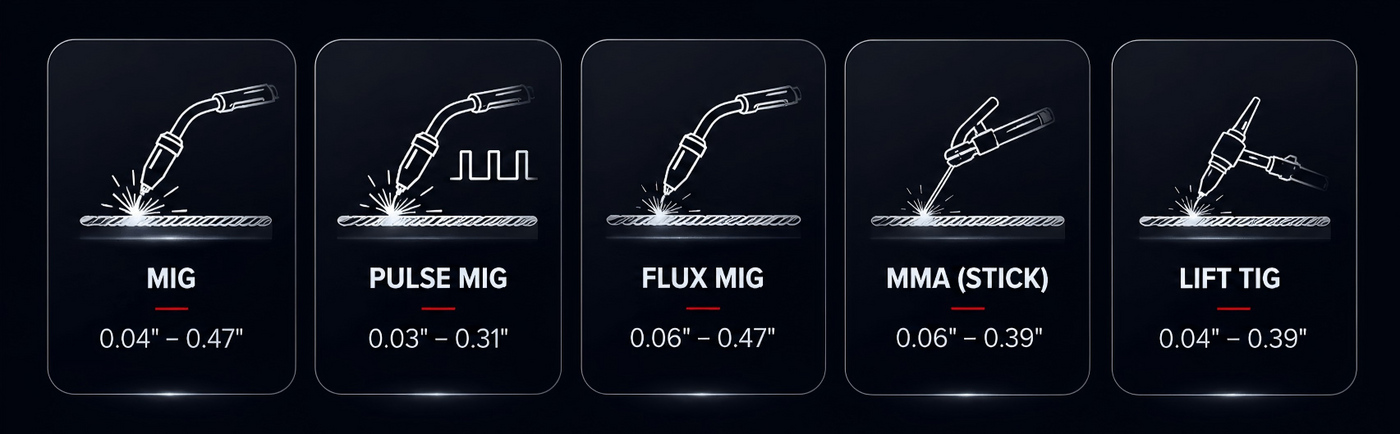

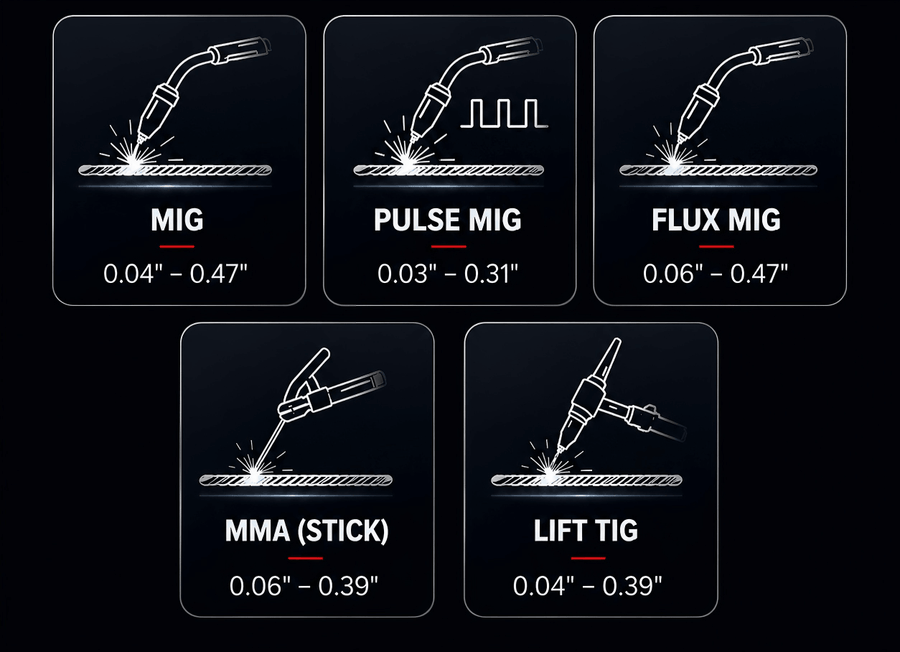

Welding Thickness

Mode Thickness
MIG
0.04" – 0.47"
Pulse MIG
0.03" – 0.31"
Flux MIG
0.06" – 0.47"
MMA 0.06" – 0.39"
Lift TIG
 0.04" – 0.39"

Shipping: Currently ships to USA only

Free Fast Shipping

What's in the Box

1* MIG205DP Pro

1* MIG Welding Torch

1* Ground Clamp

3* Drive Rollers

1* Power Adapter

1* Gas Hose

1* Gas Regulator

1* Electrode Holder

1* Solid Welding Wire

1* Graphite Liner for Aluminum MIG Welding

1* Dust Cover

3* MIG Torch Parts

FAQs

This welder comes with a 3-year warranty, giving you long-term reliability and peace of mind.

Pre-orders will begin shipping on June 15. You’ll receive a tracking number once your order is dispatched.

Pulse MIG uses controlled current pulses to reduce heat and improve weld stability, resulting in cleaner welds with less spatter and better control

The double pulse MIG Welder includes 159 built-in Smart-Set synergic programs that automatically match voltage and wire feed speed based on material and thickness, making setup faster and more consistent for different welding jobs.

This multi-process welder supports Dual Pulse MIG, Single Pulse MIG, standard MIG, Flux Core, Stick (MMA), Lift TIG, and Spool Gun welding, covering a wide range of materials and applications. (Lift TIG torch, foot pedal, and spool gun need to be purchased separately.)

Synergic MIG automatically matches voltage and wire feed speed based on the material and thickness you select. This makes setup faster and easier, especially for beginners, while still allowing experienced users to fine-tune settings for better control.

This dual pulse mig welder supports 1kg and 5kg wire spools, making it suitable for both light and extended welding tasks.

It is ideal for automotive repair, aluminum fabrication, sheet metal work, and structural welding, covering a wide range of everyday and professional applications.

Standard MIG: Higher spatter, requires post-cleaning, suitable for general welding
Single Pulse MIG: Lower spatter, allows manual control of weld appearance, ideal for precision welding
Double Pulse MIG: Lower heat input with automatically formed fish-scale welds, combining high efficiency with premium appearance

Pulse welding (single and double) is only available in gas MIG mode and works in synergic mode only.

Single Pulse / Double Pulse MIG: Carbon steel, stainless steel, aluminum
Standard MIG: Carbon steel and stainless steel

Yes. It supports aluminum welding using:

  • Double Pulse MIG for better appearance and control
  • Spool Gun for improved wire feeding stability

Recommended aluminum wires: ER4043 / ER5356

Double Pulse MIG: Aluminum 1mm, Stainless 0.8mm, Carbon steel 1mm
Single Pulse MIG: Aluminum 2mm, Stainless 0.8mm, Carbon steel 1mm

USA Only

No. The spool gun does not support single or double pulse modes.

No. Flux-cored (gasless) welding does not support pulse functions and cannot weld aluminum.
