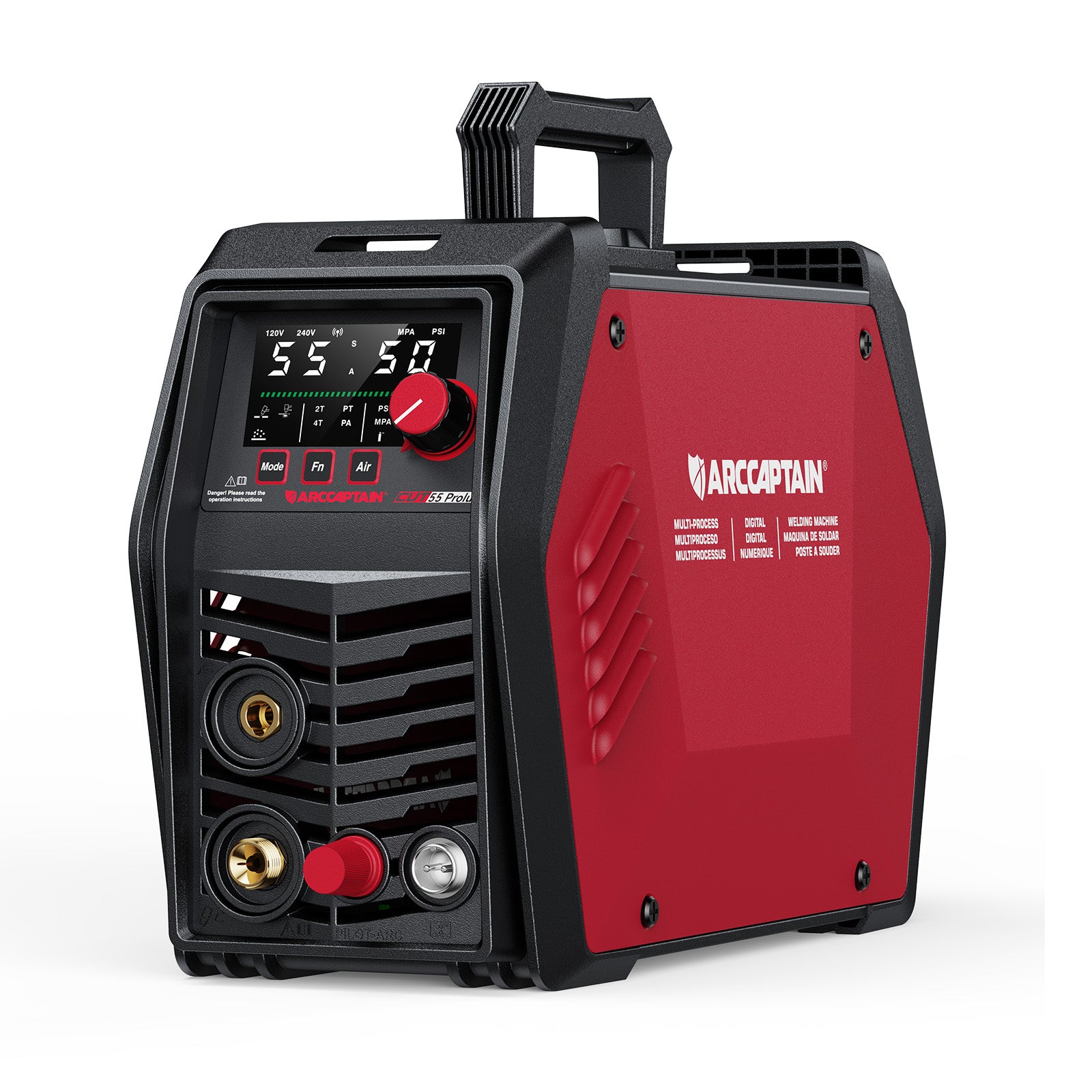

Arccaptain CUT55 Prolux Non-Touch Plasma Cutter High Performance

$299.99
$299.99 $399.99
Guardar $100.00
A high-performance plasma cutter with up to 7/8" cutting capacity and built-in rust removal function.
Anniversary Celebration Savings
Save $100 Before Prices Increase.
payment icon

  • Estimated Delivery:Sep 02 - Sep 06

    • Free Fast Shipping On orders over $100
    • Experience peace of mind with our trusted logistics services.

Join our FB Group ! Connect, share, and grow with like-minded Welders!

Hacer una pregunta
Description

The Arccaptain CUT55 Prolux is a pro-grade plasma cutter with a 7/8'' clean cut capacity, real-time air pressure monitoring, and smart modes like mesh cutting—all wrapped in a rugged, portable body backed by 3 years of protection.

Specifications



Technical Parameters

→ Swipe to view all columns
Items CUT55 Prolux
AC240V 50/60Hz		 CUT55 Prolux
AC120V 50/60Hz
Rated Input Capacity (kVA) 9.2 5.5
Power Factor 0.7 0.7
Rated Output (A/V) 55 / 104 35 / 94
Rated Duty Cycle (%) 60 60
No-load Voltage (V) 330 330
Output Current Range (A) 20 – 55 20 – 35
Arc Ignition Mode HF Non-Contact HF Non-Contact
Post-flow Time (s) 5 – 15 5 – 15
Gas Pressure Range 75 PSI 55 PSI
Insulation Grade H H
Cooling Mode Air Cooling Air Cooling
Enclosure Ingress Protection IP21S IP21S
Efficiency (%) 85 85
Maximum Cutting Thickness 7/8" 1/2"
Ideal Clean Cut Thickness 9/16" 3/8"
Weight 11.88 lb / 5.4 kg 11.88 lb / 5.4 kg
Warranty & Return

Declaración de responsabilidad limitada

ARCCAPTAIN Welder garantiza expresamente a todos los compradores ("Comprador") de todos los equipos nuevos de soldadura y corte, casco y piezas de repuesto ("Bienes") que los Productos estarán libres de defectos de fabricación en materiales y mano de obra que se descubran dentro del período de garantía. sujeto a las exenciones de responsabilidad y limitaciones de la Declaración. Esta garantía queda anulada si el equipo ha sido sometido a instalación y pruebas inadecuadas, cuidado inadecuado, reparación y modificación no autorizadas u operaciones anormales.

Período de garantía

Asumiremos tanto el reemplazo de piezas como los gastos de reparación para corregir defectos durante el período de garantía. Todos los períodos de garantía comienzan a partir de la fecha de entrega y son los siguientes:

Declaración de garantía para soldador:

El Vendedor asumirá tanto el reemplazo de piezas como los gastos de reparación para corregir los defectos durante el período de garantía.  Todos los períodos de garantía comienzan a partir de la fecha de entrega y son los siguientes:

La garantía de la máquina Arccaptain
MODELO DE MÁQUINA Tiempo de garantia
ARCO200 2 años
ARCO160 2 años
MIG130 2 años
MIG200 2 años
CORTAR50 2 años
CC TIG200 2 años
TIG200P CA/CC 5 años

    Si los artículos comprados dentro de la escala anterior se vuelven defectuosos debido a materiales o mano de obra defectuosos dentro de un período de 2 años a partir de la fecha de compra, garantizamos realizar una de las siguientes acciones, aunque es posible que deba pagar los costos de envío por la devolución de el producto a nosotros y el envío del producto reparado/reemplazado a usted:

    • Reemplace o repare todas las piezas defectuosas,
    • Reparar una unidad defectuosa
    • Reemplace la unidad con una unidad nueva o reacondicionada.

    Garantía para casco de soldadura

    Garantía estándar de 180 días

    Casco de soldadura

    Declaración de garantía para piezas soldadas

    Garantía estándar de 90 días

    • Piezas de repuesto
    • Accesorios de antorcha/consumibles/medidores de soldadura
    • Tungsteno

    El Comprador debe comunicarse con el Vendedor solicitando cobertura de garantía dentro de los treinta (30) días a partir de la fecha en que el Comprador tuvo conocimiento del defecto en www.arccaptain.com.

    Esta Garantía Limitada está sujeta a las siguientes condiciones:

    • Requerir comprobante de compra que incluya el número de pedido y el lugar de compra.
    • El artículo no ha sido mal utilizado, abusado, descuidado, alterado, modificado o reparado por nadie que no sea el centro de servicio autorizado de ARCCAPTAIN.
    • El defecto o daño al artículo no ha resultado del uso de accesorios o piezas que sean inapropiadas para el funcionamiento normal de la herramienta, o que no estén diseñadas para usarse con el artículo.
    • El artículo no ha sido sometido a desgaste normal.
    • El artículo no se ha utilizado con fines comerciales.
    • El artículo no se ha utilizado con fines de alquiler.
    • El artículo no ha sufrido daños por objetos extraños, sustancias o accidentes.

    Limitación y descargo de responsabilidad

    Los productos están destinados a usuarios comerciales e industriales que estén capacitados y tengan experiencia en el uso y mantenimiento de equipos de soldadura. Los recursos del Comprador se limitarán exclusivamente a los previstos en esta Declaración. No existen garantías expresas distintas a las aquí contenidas. El Vendedor no garantiza ninguna parte de los Bienes no fabricados por el Vendedor o sus asociados (ya sean especificados o no por el Comprador), pero el Vendedor cederá al Comprador, previa solicitud, todas las garantías asignables sobre los productos de los proveedores del Vendedor relacionados con dichos Bienes. El Vendedor no garantiza que él o los Bienes cumplan con los estándares, pautas o procedimientos de cualquier entidad, organización o industria, a menos que estén específicamente contenidos en un escrito firmado por el Vendedor.

    Correo electrónico de garantía: support@arccaptain.com

    Costo del flete

    El Comprador es responsable del envío hacia y desde el almacén del Vendedor o un centro de servicio autorizado por el Vendedor. Más detalles sobre la política de devoluciones .

    POLITICA DE REEMBOLSO

    Para ser elegible para una devolución, su artículo debe estar en las mismas condiciones en que lo recibió, sin usar o sin usar, con etiquetas y en su embalaje original. También necesitarás el recibo o comprobante de compra.

    Lea la política de devoluciones aquí.

    Una vez que hayamos aprobado su solicitud de devolución, comenzaremos el proceso de reembolso.

    Si se acepta su devolución, le enviaremos una etiqueta de envío de devolución, así como instrucciones sobre cómo y dónde enviar su paquete. No se aceptarán los artículos que nos devuelvan sin solicitar primero una devolución. Siempre puede contactarnos para cualquier pregunta sobre devolución en soporte@arccaptain.com .

    Daños y problemas
    Inspeccione su pedido al recibirlo y contáctenos de inmediato si el artículo está defectuoso, dañado o si recibe el artículo incorrecto, para que podamos evaluar el problema y solucionarlo.

    Excepciones / artículos no retornables
    Ciertos tipos de artículos no se pueden devolver, como productos perecederos (como alimentos, flores o plantas), productos personalizados (como pedidos especiales o artículos personalizados) y artículos de cuidado personal (como productos de belleza). Tampoco aceptamos devoluciones de materiales peligrosos, líquidos o gases inflamables. Póngase en contacto con nosotros si tiene preguntas o inquietudes sobre su artículo específico. Desafortunadamente, no podemos aceptar devoluciones de artículos en oferta o tarjetas de regalo.

    Intercambios
    La forma más rápida de asegurarse de obtener lo que desea es devolver el artículo que tiene y, una vez aceptada la devolución, realizar una compra por separado para el artículo nuevo.

    Unión Europea Período de reflexión de 14 días
    Sin perjuicio de lo anterior, si la mercancía se envía a la Unión Europea, tienes derecho a cancelar o devolver tu pedido en un plazo de 14 días, por cualquier motivo y sin justificación. Como se indicó anteriormente, su artículo debe estar en las mismas condiciones en que lo recibió, sin usar o sin usar, con etiquetas y en su embalaje original. También necesitarás el recibo o comprobante de compra.

    Reembolsos
    Le notificaremos una vez que hayamos recibido e inspeccionado su devolución y le informaremos si el reembolso fue aprobado o no. Si se aprueba, se le reembolsará automáticamente en su método de pago original dentro de los 10 días hábiles. Recuerde que su banco o compañía de tarjeta de crédito puede tardar algún tiempo en procesar y publicar el reembolso también.
    Si han pasado más de 15 días hábiles desde que aprobamos su devolución, contáctenos en support@arccaptain.com .

    Review Videos

    FAQs

    On 240V, it delivers a clean cut up to 14mm (9/16") and a maximum severance cut up to 22mm (7/8") on conductive metals. On 110V, cutting capacity is reduced — clean cut drops to approximately 8mm (5/16"). For cutting steel thicker than 1/2", always use a 240V outlet to get full power and the cleanest edge quality.

    The CUT55 Prolux cuts any electrically conductive metal, including carbon steel, stainless steel, aluminum, copper, galvanized steel, and cast iron. It cannot cut non-conductive materials such as wood, plastic, or stone.

    Yes. The non-contact Pilot Arc technology establishes a stable arc before touching the workpiece, allowing you to start cutting directly on rusty, painted, coated, or dirty surfaces without grinding or cleaning first. The built-in Rust Removal mode further stabilizes arc performance on heavily oxidized metal.

    The CUT55 Prolux requires a minimum of 60 PSI with at least 4–5 CFM of clean, dry air. A compressor with a 20-gallon or larger tank running at 90 PSI is recommended for sustained cutting sessions. Always use the included air compressor filter — oil or moisture in the air line will damage the torch nozzle and shorten consumable life significantly.

    Yes. The CUT55 Prolux is dual voltage and includes a 240V-to-120V power adapter. On 110V it runs on a standard 20-amp circuit. However, maximum cutting capacity is reduced on 110V. For cutting steel thicker than 3/8" or for production work, a dedicated 240V outlet (such as a dryer or welder outlet) will give you full 55A output and noticeably better results.

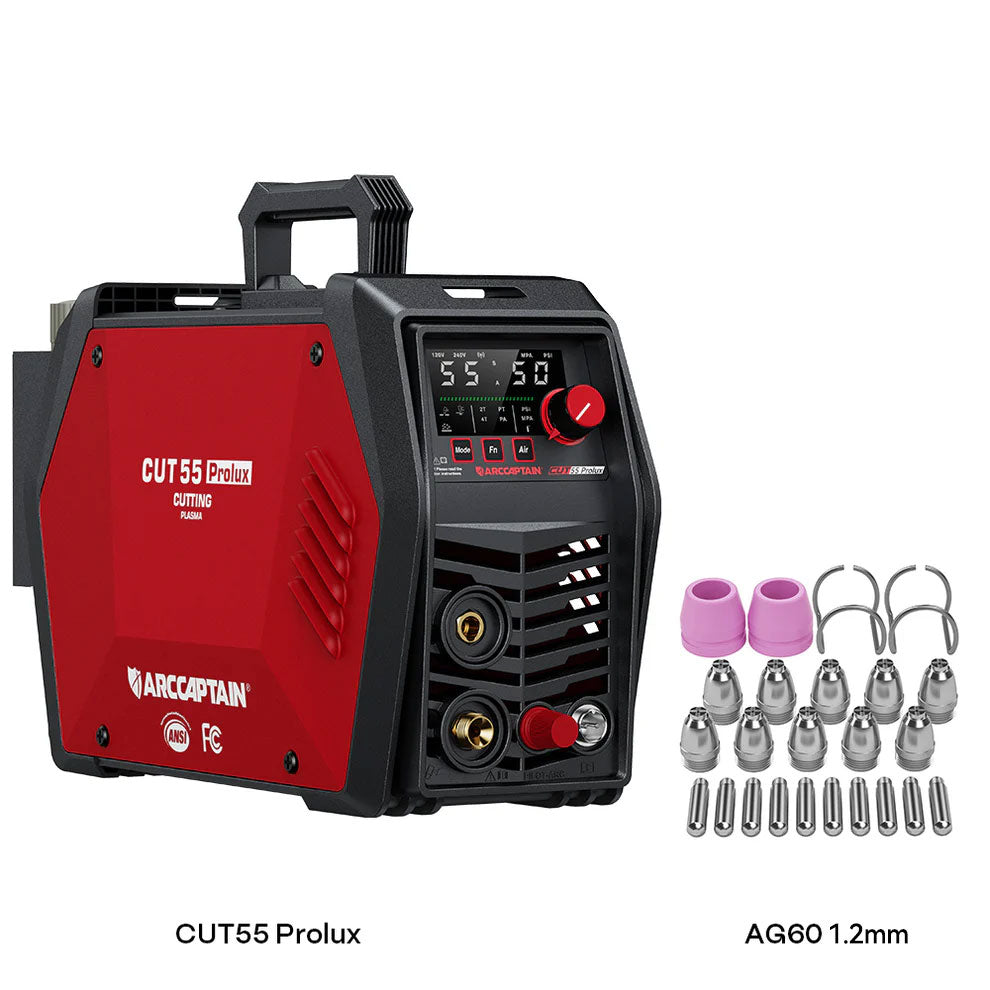

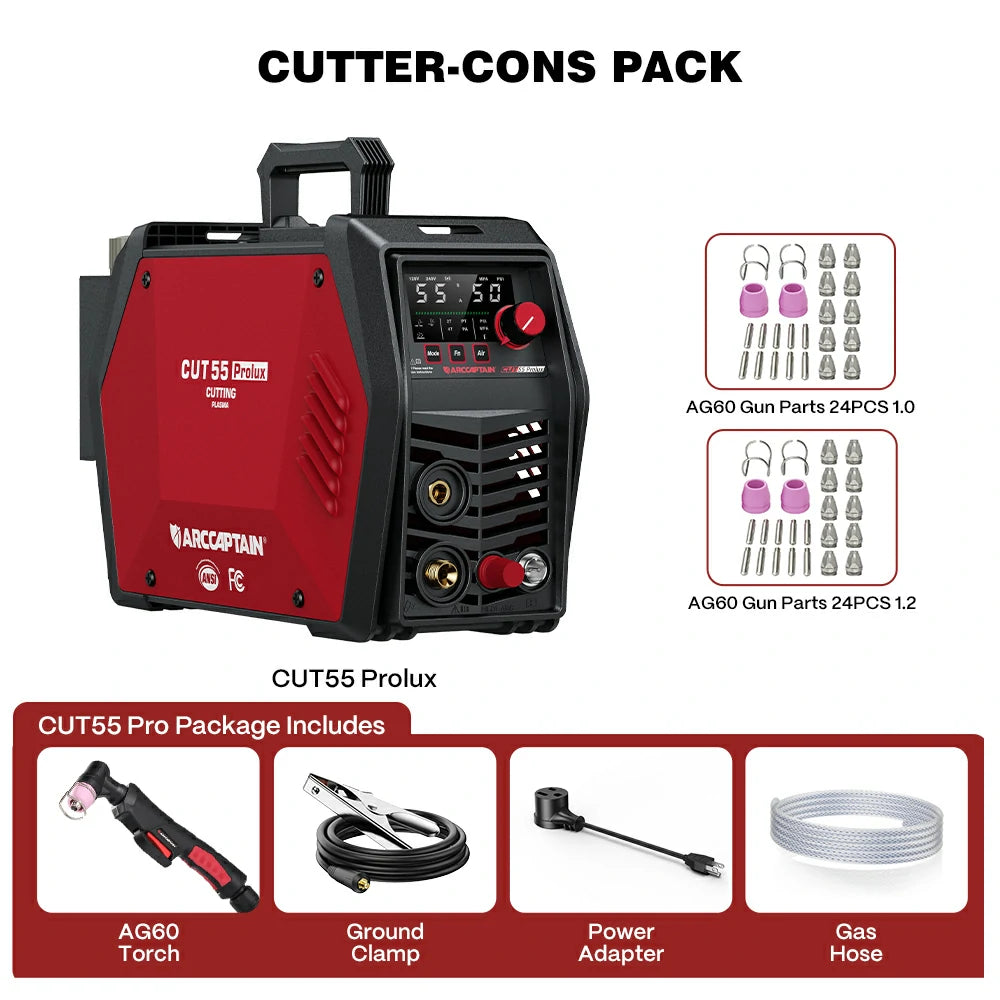

    The CUT55 Prolux uses AG60 torch consumables — electrodes, nozzles, swirl rings, and shields. These are not compatible with IPT60 consumables used by the CUT55 MP and CUT55 NON-HF models, so do not mix them. Replacement AG60 consumables are available directly at [link to AG60 consumables page]. We recommend keeping a spare set on hand, as consumables wear faster when cutting thick or heavily coated metal.

    Yes. The built-in Mesh Cutting mode is specifically designed for cutting perforated or expanded metal. In standard mode, the arc extinguishes every time it crosses a gap in the mesh, causing repeated restarts and faster consumable wear. Mesh mode keeps the pilot arc active across gaps, so cutting is continuous, efficient, and easier on your tips and electrodes.

    PA (Pilot Arc Delay) sets how long the pilot arc stays active before the main cutting arc transfers to the workpiece — adjustable from 2 to 10 seconds. Use a longer PA setting on rusty, painted, or multi-layer materials to let the arc burn through surface contamination before full cutting begins. PT (Post-Arc Time) is the post-flow cooling period after you release the trigger — the machine continues blowing air to cool the nozzle and electrode. Setting PT to 1–3 seconds meaningfully extends consumable life and prevents nozzle tip burnback.

    The CUT55 Prolux is built for home metal shop hobbyists, auto body and restoration shops, metal artists and fabricators, small and mid-size repair facilities, and farm and ranch maintenance work. It's particularly well suited for anyone who needs clean, reliable cuts on a variety of metals without the setup complexity of industrial-grade equipment — and for environments with sensitive electronics nearby, where the non-HF design eliminates radio-frequency interference concerns.

    Customers praise this plasma cutter for cutting "like butter" through steel up to 3/4". The non-touch pilot arc feature and ease of setup impressed shoppers, with many noting it "works amazingly" on both 110V and 220V. Some concerns about construction feeling "flimsy" and compatibility issues with CNC tables. Excellent value for DIY and home shop use.

    • Cut through ⅝ iron like a hot knife through butter. Highly recommend this unit!
    • I bought it to cut stainless and it cut it like butter! Very nice and affordable.
    • I literally had it set up and cutting in less than 15 minutes.
    Steel (positive)Shop (positive)Quality (positive)Setup (positive)Machine (positive)
    • 5 stars: 39 (95%)
    • 4 stars: 2 (5%)
    • 3 stars: 0 (0%)
    • 2 stars: 0 (0%)
    • 1 star: 0 (0%)
    S
    Stan H.
    Out of the box

    Out of the box, the electrode was slightly loose however, not a big issue simply tightened it up took a little bit of reading to figure that out parentheses I am new.)thing works excellent cuts like a hot knife and butter. My only additional want would be for more of the spring things that go on the gun or the standoff piece otherwise excellent product would definitely order again.

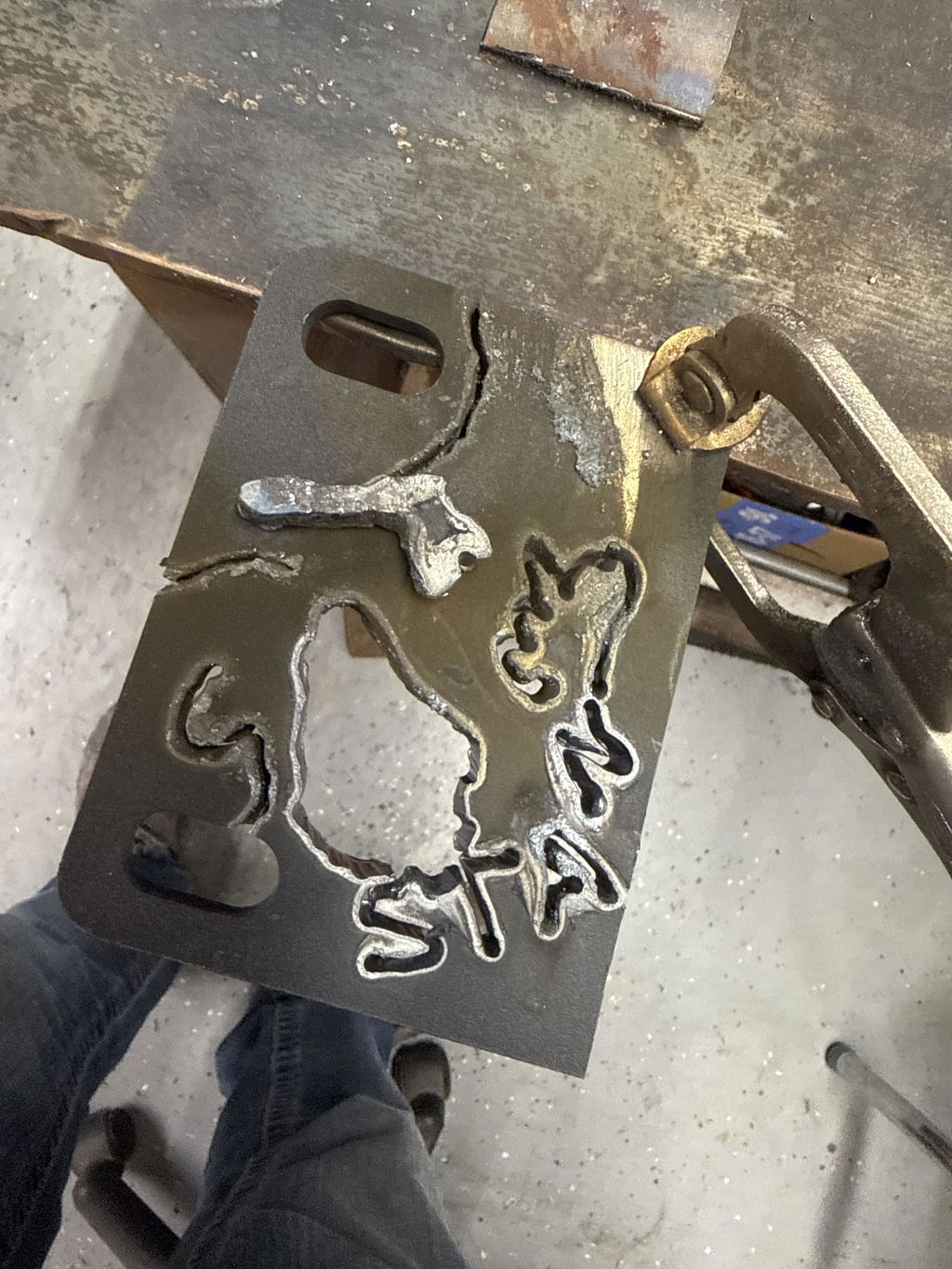

    Stan H. review photo
    G
    Gys S.

    Have only used it a few time so far. But works as advertised.
    And with it price next to its cheapest competition,how can you complain

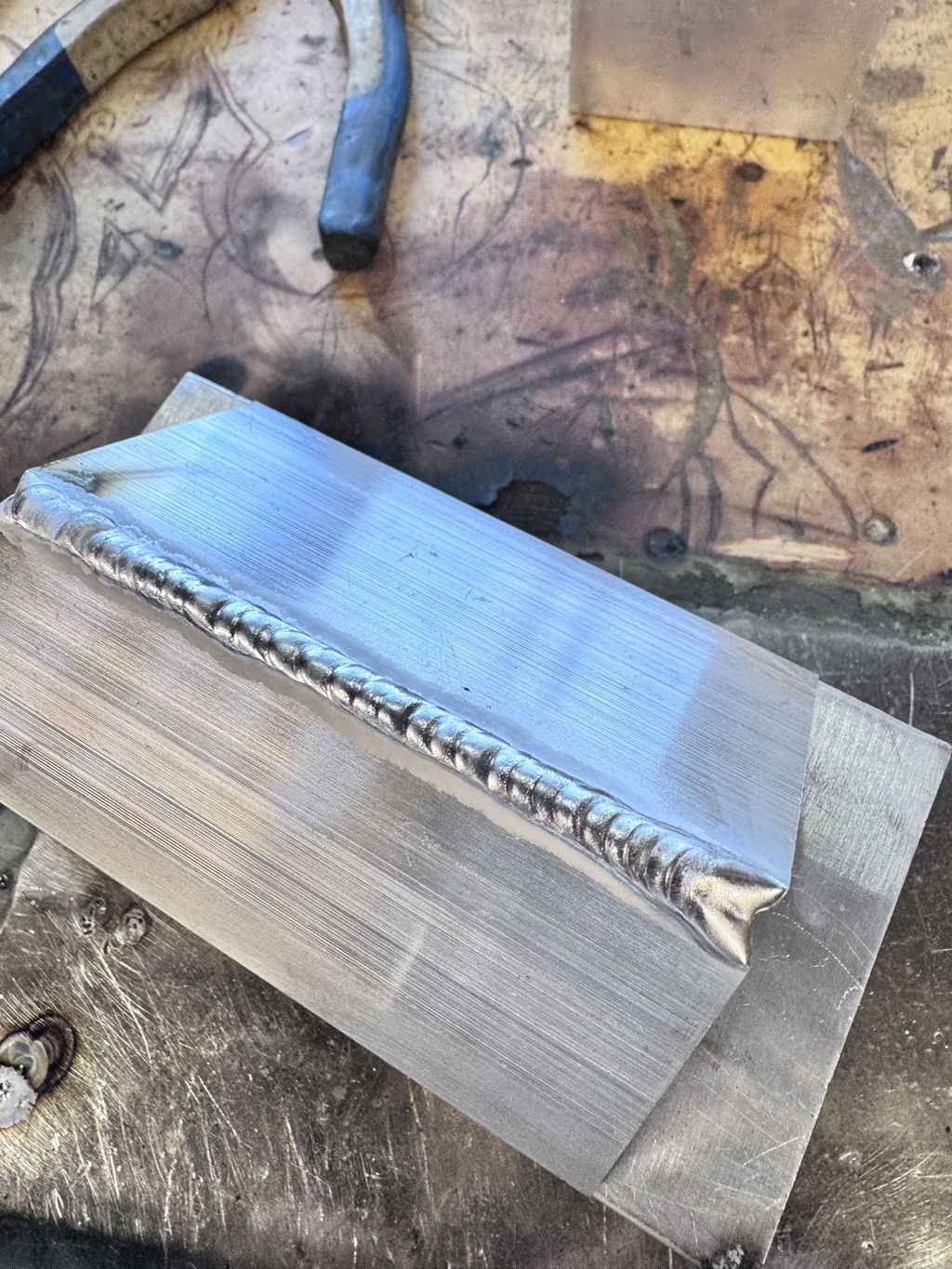

    Gys S. review photo
    D
    Daniel L.

    Works better than expected.

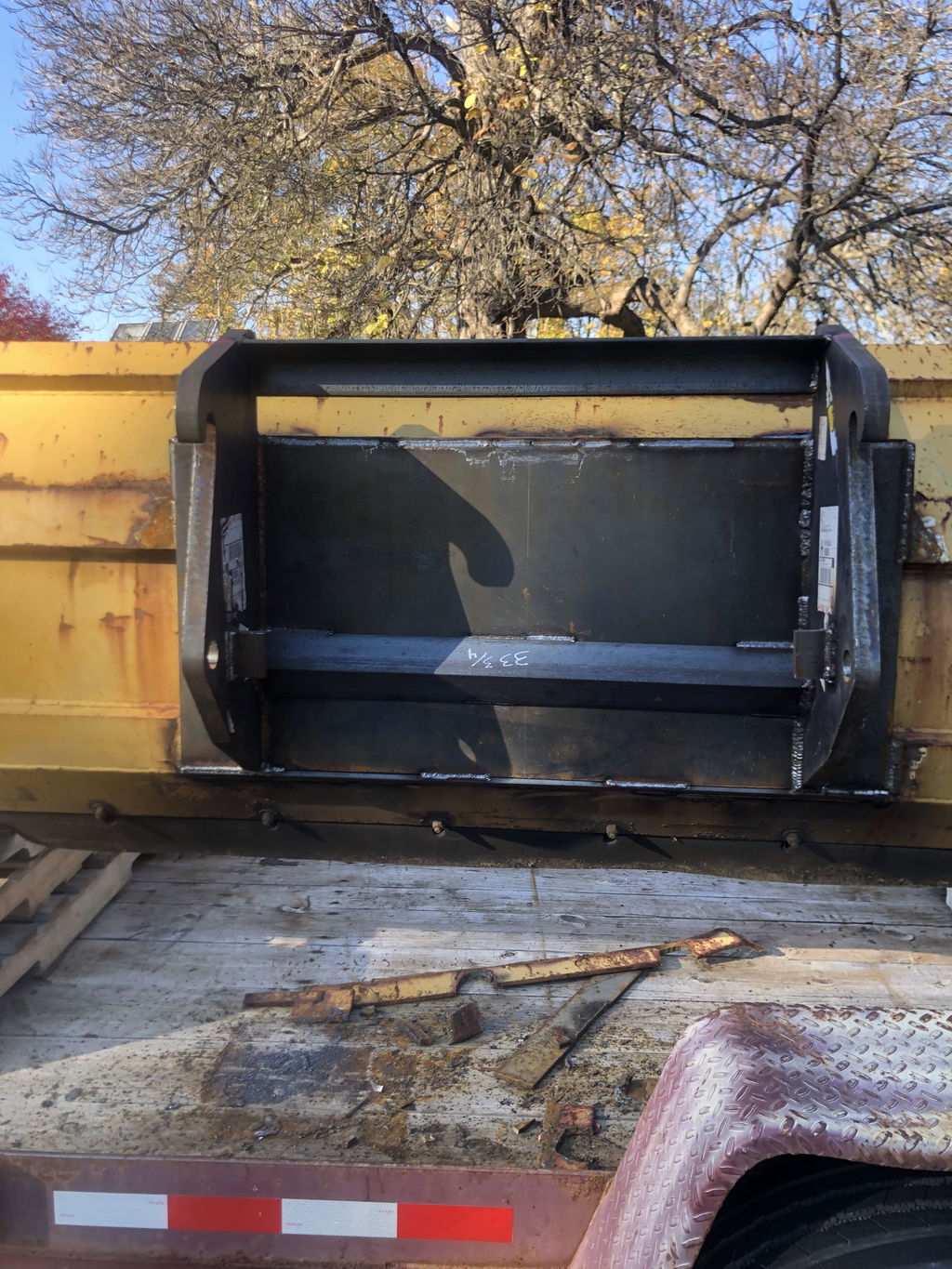

    Daniel L. review photo Daniel L. review photo
    L
    Larry H.s.

    It does what it says thank you

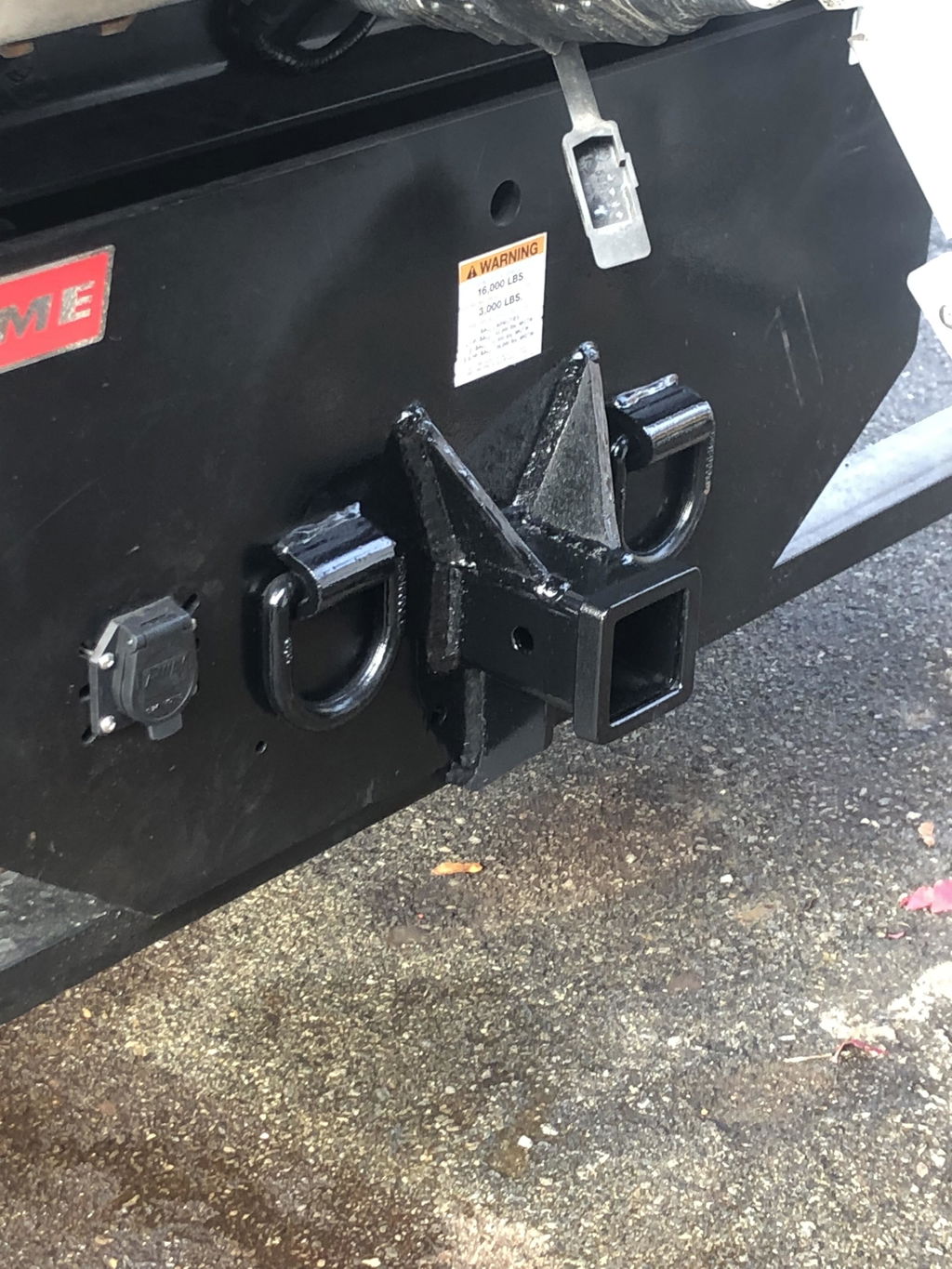

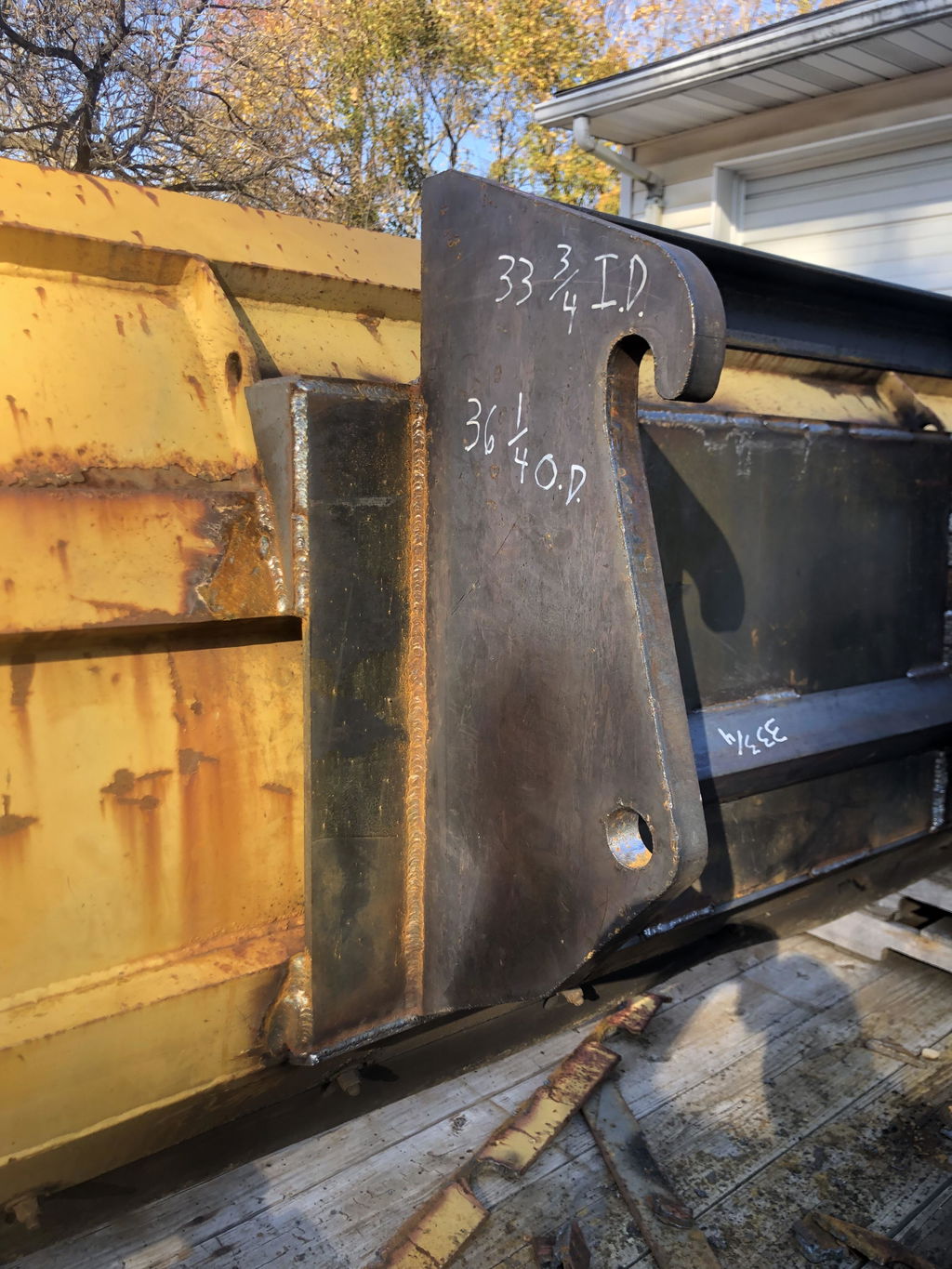

    Larry H.s. review photo Larry H.s. review photo Larry H.s. review photo Larry H.s. review photo
    W
    Wayne M.
    So far so good

    So far so good 👍

    E
    Ephraim G.
    Couple things

    Couple things , Ithought this machine would work with a cnc table, and Iguess the one I needed to buy was the MP version so that kinda sucks. And I had to put on my own air regulator because when I tried to change the air compressor fitting it was loctited so it broke the fitting where it connects to the hose. So that was a pain, BUT when I finally got to try it out it works amazingly !!!! It will easily cut through 3/4 plate no problem!!! Its a real nice and compactmachine once you get it going.i was hoping to use it on my cnc table but this machine wont work. And maybe make it easier to change out compressor fittings incase they use something different.

    J
    Jim S.
    Plugged it in and it worked perfectly No issues

    Plugged it in and it worked perfectly
    No issues. Just waiting for a project to test it out fully.

    A
    Anonymous
    Arc captain 55 pro

    I have the arc captain touch cut 50 and thought that was good. Now that I've used the arc captain 55 non touch I would hate to go back to a touch start unit.

    A
    Amazon C.
    Feels like flimsy construction but works absolutely amazing!

    Wow - this machine is awesome. Seems flimsy though so I hope it’s robust enough to last for awhile. Works absolutely awesome!!!!

    D
    Dan
    Works great for my hobby car stuff.

    Great little light weight plasma cutter! Did some work cutting the bed floor out of a 64 jeep truck. Did have one minor issue where it stopped cutting but Arc captain responded right away with email. They got me up and running right away.

    R
    Rosemary J.S.
    Good Value

    This took some time for me to get used to on how it operates. It works well for my garage use. I do not know on the unit’s longevity yet…. But I’m hoping for the best. I’ve only used it up to 1/4” steel and it cuts well. I’m not sure it will cut the 3/4” as advertised but I’ll never have this need. I’m sure it will. It 1/2” as long as you take your time.

    D
    Donald G.
    Highly recommend

    Awesome product no complaints and works as attended. Recommend 100 percent no issues and cuts everything for the diy shop.

    S
    Softballnutt
    Ease of use!

    So far this cut55 prolux has been great. Used it on 1/8 in with 220v power. Cut like butter. I have never used a plasma cutter before. Even used it on a barrel to cut large holes. Very fast. Cut 1/4 bar stock on 120v but with setting at 30 it tripped breaker turned down and worked great on an 3 inch cut. Liked so much I bought a stick/tig arccaptain.

    J
    Jack
    Perfect for home shop

    Extremely happy with this! I bought it to cut stainless and it cut it like butter! Very nice and affordable.

    G
    Geono
    Awesome product.

    I love this thing. It is compact, easy to hook up and user friendly. I have used it multiple times and have had no problems. I do feel that it struggles cutting 7/8 inch but does cut it. Also, the depth guide that attaches to the end of the torch is subpar. It fits loose and flops around and after a few uses it broke but you can buy an aftermarket one with wheels on it for less than 10 bucks so not that big of deal. All and all great machines.

    A
    Anthony W.W.
    A great addition to my little diy shop!

    The unit arrived well packaged and in perfect condition. Setup took next to no time. I also ordered an extra set of consumables. Although I've never used one before everything went fine. I hooked it up to 220 vac and my compressor. It cut a piece of half inch mild steel plate right away. It did well, although with a little practice it will be great. .

    M
    Mike M.

    Great unit so far.

    T
    Tim H.

    This cutter is great! Cut through ⅝ iron like a hot knife through butter. Highly recommend this unit!

    W
    William D.B.I.

    I've never used a plasma cutter so I was expecting a long learning curve but I literally had it set up and cutting in less than 15 minutes.

    F
    Floyd R.

    I cut a piece of 3/8 steel plate, used a straight edge as a guide. Looks like it was cut with scissors

    D
    Donnie M.

    I’ve only used the plasma cutter on 110 power it cuts up to a 1/4” pretty good so far I’m really pleased with it!

    W
    William W.I.

    Very nice machine good quality.

    s
    stacy s.

    Only used it to try it out so far and it worked great

    K
    Kenneth C.L.J.

    I bought the
    ArcCaptain Cut55 prolux.120/240 volt Plasma Cutter. This was my functionality test, the first cut.
    It did a nice job on 120v and awesome on 240v. I was cutting rusty caked and covered 10mm mild steel, freehand in the dark (I did grind a spot for a good ground). I was supplying it with a 25+ year old oil cooled pancake compressor. I did have to wait for the pressure to build back up on 120v as it cut slower and my compressor is low CFM. ( Low pressure sensor shut unit off) I had no issues cutting at 240v.
    My choice of material, rusty, muddy steel, in low light and adverse conditions, low CFM pancake compressor, was deliberate. I wanted to see how this unit performed in the worst possible scenarios. It exceeded my expectations.

    This small and economical unit performs, as well as or better. Then, a high end unit I use at work. Looking forward to the expanded metal and stainless steel projects I have ahead!.

    r
    roger p.

    Thank you !!! 5stars 👍

    C
    Christoher R.R.

    All of Arccaptain machines are good quality

    D
    Donald J.

    Nice machine, cuts nice.

    R
    Roger F.

    the machine is a good purchase for the price the quality was excellent and it’s a new addition to my other tools i would definitely recommend to anyone interested in buying one
