MIG200 Multi Process MIG Welder Novice/Professional Friendly Welder
mig200 machine synergic panel
great performance welding machine
Multi Process MIG Welder
MIG200 Torch Inside Wire Feeding Mechanism

Soldadora MIG multiproceso ARCCAPTAIN MIG200 Soldadora de aluminio de 200 amperios 110/220 V

$359.99
$359.99 $499.99
Guardar $140.00
Best Multi-Process MIG Welder under $500
Limited Time Fall Savings
$10 OFF
Code: MIG200

  • Estimated Delivery:Sep 23 - Sep 27
The Best MIG Welder for Beginners and Beyond

MIG200 at an Unbeatable Price
Best Multi-Process MIG Welder Under $500

The Most Cost-Effective MIG Welder

Comparable Machines from Other Brands Sell for Over $800

Gas MIG

Flux Core MIG

MMA

Lift TIG

Spool Gun

Spot Welding

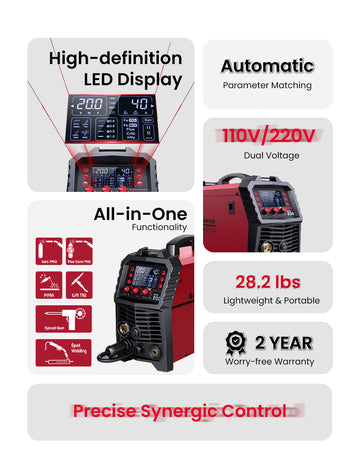

User-friendly Large LED Display

Bridges the Gap from Newbie to Professional

Enables novice welders to quickly master welding techniques in a short time without complicated operations.

Synergic Smart Control

Professional welding made simple - anyone can use it

How It Works

Traditional MIG welders require months of practice. MIG200's Synergic system does all the hard work for you - just select your settings and start welding.

  • 1 Select wire diameter (0.023" - 0.040")
  • 2 Choose material type (Steel, Stainless, Aluminum)
  • 3 Set gas type (Mixed Gas or Pure CO2)
  • 4 That's it! Start welding with perfect settings
Process MIG
Wire 0.035" SF
Material Steel
Gas CO2
Current 120A
Voltage 20.5V

Settings auto-optimized - Ready to weld!

Rigorously Tested to Ensure Durability

Backed by 300+ Safety Tests

CHOSEN BY OVER 100,000 WELDERS AND DIY ENTHUSIASTS

Good arc strike and constant power.

It helps me do some DIY projects very well, and it's so dang versatile.

The setup to be straightforward, and it's definitely a must-have for welding projects!

Highly recommend for DIY enthusiasts!
Specs
El Arccaptain MIG200 integra las funciones de soldador de varilla, soldador MIG, soldador de aluminio y soldador Lift Tig, que en realidad es un soldador multiuso.

Consulte este artículo relacionado: TIG Vs MIG Vs Stick .

Dado su rendimiento y precio asequible, esta soldadora es una soldadora mig realmente excepcional para soldadores principiantes y profesionales.

guía de palo mig200
6 funciones de soldadura de ARCCAPTAIN MIG200

Por qué elige MIG200

ARCCAPTAIN MIG200 es un soldador mig multiproceso de doble voltaje fácil de usar, que es muy adecuado para bricolaje, fabricación, proyectos de reparación, etc. Ya sea que sea un principiante o un soldador profesional, puede usarlo fácilmente. El diseño multiusos lo convierte en una excelente inversión para cualquiera que busque un soldador MIG confiable y eficiente.

Especificación

Voltaje de suministro 110V/220V 50/60Hz
Corriente de salida inferior a 110 V (MIG) 30A-160A
Corriente de salida inferior a 220 V (MIG) 30A-200A
Corriente de salida inferior a 110 V (MMA) 20A-135A
Corriente de salida inferior a 220 V (MMA) 20A-180A
Corriente de salida inferior a 110 V (TIG) 20-135A
Corriente de salida inferior a 220 V (TIG) 20-200A
Ciclo de trabajo nominal 60%
Eficiencia(%) 85
Grado de aislamiento h
Grado de protección IP21S
Peso de la máquina 12,8 kg/28,2 libras
Tamaño de la máquina 20,9"x8,5"x16,1"
Cable aplicable 0,024"/0,030"/0,035"/0,039"
Electrodo aplicable Ø1,6-4,0mm

Instrucciones del panel frontal

  • Adecuado para diferentes tamaños de alambre : alambre sólido de .023”/.030”/.035”, alambre con núcleo fundente de .023”/.030”/.035”, alambre de aluminio de .035”/.045”.
  • Control sinérgico: haga coincidir la corriente recomendada y la velocidad de alimentación del alambre cuando se seleccione automáticamente el diámetro del alambre de soldadura y el material del gas.
  • Cráter adaptativo, ajuste de retroceso de combustión, preflujo/postflujo
  • Fuerza de arco, arranque en caliente, antiadherente : el modo de soldador de varilla tenía fuerza de arco incorporada, arco en caliente y antiadherente, arco de inicio fácil, más confiable y con menos salpicaduras.
  • Estricto control de calidad : todas nuestras máquinas soldadoras pasaron varias pruebas de laboratorio autorizadas en la simulación de entornos extremadamente hostiles antes de salir de nuestra fábrica que cumplen con los altos estándares.
  • Preste atención a su seguridad : VRD, función de protección contra sobrecorriente/sobrevoltaje/sobrecorriente/sobrecarga/sobrecalentamiento.

Consejos:

MIG200 admite antorcha tig estilo WP-17V 35-50 .

Cómo configurar el parámetro adecuado para MIG200

Si necesita soldar aluminio con una pistola de carrete, asegúrese de que la pistola de carrete que compre coincida con nuestra máquina. Puedes leer el artículo para saber más información.

Más detalles sobre MIG200

Técnico

Unidades

Modelo MIG200

Tensión de entrada nominal

V

CA110V±15%

50/60HZ

CA220V±15%

50/60HZ

Potencia de entrada nominal

Kva

4.9

6.9

Corriente de entrada nominal

A

44.2

30,9

Rango de corriente de soldadura (MMA)

A

20～135

20～180

Rango de corriente de soldadura (TIG)

A

20～135

20～200

Rango de tensión de soldadura (MIG)

A

30～160

30～200



V

11~22

11~26

Rango de velocidad de alimentación de alambre

ipm

79～394

79～590

Ciclo de trabajo nominal

%

60

60

Abra el circuito de voltaje

V

U 0 : 64 U r : 15

Eficiencia general

%

85

Clase de recinto

IP

21S

Factor de potencia

cosφ

0,72

Clase de aislamiento



h

Dimensión

en

20,9"x8,5"x16,1"

Peso

kg/libra

12,8 kg/28,2 libras

Electrodo/ cable aplicable

en

1/16"-1/8"
0,023"/0,030"/0,035"

1/16"-5/32"

0,023"/0,030"/

0,035"/0,039"

Shipping Policy

Tiempo de envío

Todos los pedidos se envían dentro de los 10 días hábiles a menos que haya una advertencia fraudulenta o un error en la dirección de envío. Nunca realizamos envíos durante fines de semana o días festivos. Todos los envíos tienen seguimiento en tiempo real y números de seguimiento verificados para que pueda rastrear sus artículos las 24 horas del día, los 7 días de la semana con confirmación de entrega. Los pedidos se envían a través de UPS/USPS/Amazon Logistics. Una vez enviados, los pedidos tardarán entre 2 y 3 días en actualizar el número de seguimiento. Recibirá una confirmación de envío una vez enviado.

No podemos responsabilizarnos por las acciones de los transportistas y no podemos emitir reembolsos por los cargos de envío de paquetes retrasados.

Si tiene alguna pregunta o inquietud sobre su pedido, envíenos un correo electrónico a support@arccaptain.com y nuestro equipo estará encantado de ayudarle, los 7 días de la semana.

Tenga en cuenta : No realizamos envíos a Puerto Rico ni a nivel internacional. No realizamos envíos a direcciones de PO BOX y/o direcciones APO o FPO.

Envío

En ARCCAPTAIN, nuestra misión es proporcionar equipos de soldadura de calidad a precios realmente asequibles para soldadores de todo el mundo. Para ello, trabajamos con fabricantes de todo el mundo y utilizamos una red de distribución global para conseguirle los productos por menos dinero.

Su equipo puede provenir de EE. UU. o Hong Kong, según el equipo adquirido. Su fecha de entrega específica dependerá del país de envío y la dirección de entrega.

¿Cuándo recibiré mi pedido?

La mayoría de los artículos generalmente se envían dentro de 5 a 10 días hábiles.

Recomendamos esperar hasta 3 semanas para su pedido en horas pico, como una oferta o promoción especial. Los plazos de entrega están fuera de nuestro control, pero tenga la seguridad de que solo trabajamos con fabricantes y proveedores de soldadura confiables para brindarle el mejor servicio.

¿Cómo hago el seguimiento de mi pedido?

Su correo electrónico de confirmación de entrega contendrá su número de seguimiento y los detalles del pedido.

Impuestos y otros cargos

Dependiendo del país de entrega, es posible que deba pagar impuestos o cargos adicionales como IVA y/o derechos de importación.

Pedidos retrasados, perdidos, robados o dañados

ARCCAPTAIN no es responsable por paquetes retrasados, perdidos, robados o dañados.

Cualquier pedido enviado y mostrado entregado a través del servicio de mensajería se considerará entregado y no será reembolsado, reenviado ni reemplazado.

Haremos todo lo posible para ayudarle con el seguimiento de su pedido; sin embargo, estas son las reglas:

  • Cualquier pedido enviado y mostrado entregado a través del servicio de mensajería se considerará entregado y no será reembolsado, reenviado ni reemplazado.
  • No podemos responsabilizarnos por las acciones de los transportistas y no podemos emitir reembolsos por los cargos de envío de paquetes retrasados.
  • No podemos garantizar el desempeño de ningún transportista y no podemos aceptar responsabilidad por retrasos del transportista, paquetes entregados a direcciones incorrectas y/o paquetes o productos perdidos, robados o dañados.
  • Si su paquete se entrega a una dirección incorrecta, se pierde, se lo roban o se daña, debe presentar un reclamo directamente al servicio de mensajería.

Términos y condiciones de envío

Todos los pedidos DEBEN enviarse a la dirección de entrega que figura en su pedido. No podemos cambiar la dirección de envío en su transacción a ninguna otra dirección después de la compra. Es su responsabilidad asegurarse de que su información sea precisa al realizar un pedido. Cualquier error en la dirección postal de su parte no es responsabilidad de At ARCCAPTAIN.

Cualquier pedido con alertas de fraude no se enviará hasta que se verifiquen todos los detalles y la información. Sin excepciones. Contamos con un sistema de prevención de fraude para proteger a todas las partes.

Prevención del fraude

ARCCAPTAIN cumple con el nivel 1 de PCI DSS y es 100% seguro para el procesamiento de pagos en línea. Trabajamos diligentemente para proteger la seguridad de nuestros clientes y nuestros activos.

Todos los pedidos quedan a nuestra discreción para ser verificados en busca de actividad fraudulenta en distintos niveles de investigación. Si no podemos verificar su pago a través de la información que ha proporcionado, le comunicaremos lo que necesitamos para seguir adelante con el proceso de pedido. Se puede solicitar información adicional, que incluye, entre otros, una identificación con fotografía vigente, una licencia de belleza profesional, pasaporte o detalles de pago.

Expert-Approved, Trust-Guaranteed!

FAQs

Besides the welder, you'll need appropriate welding wire for your project, a welding helmet, gloves, protective clothing, and potentially a gas cylinder and regulator for MIG welding.

This welder comes with a 2-Year Warranty for peace of mind.

The difference between standard MIG200 gun and the ‘upgraded gun is The thickness of the materials is different, and the upgraded gun can match the 250 amp machine, and the welding advantage is even greater.

You can buy the MIG gun separately.

This welder is versatile and supports multiple wire types, making it suitable for MIG welding with solid wire, flux core welding, and aluminum welding.

The welder is compatible with .023”, .030”, .035” solid wire, .023”, .030”, .035” flux core wire, and .035”/.045” aluminum wire, providing flexibility for various welding applications.

Yes, its Synergic Control and safety features make it user-friendly and suitable for beginners, while its versatility appeals to experienced welders as well.

Synergic Control is an advanced feature that automatically matches the welding current and wire feeding speed with the selected wire diameter and gas type. This simplifies setting up the welder and can lead to improved weld quality, especially beneficial for beginners.

The welder has been subjected to various authoritative laboratory tests in extremely harsh environments, ensuring it meets high standards of quality and reliability.

Given its range of features and strict quality control, this welder is suitable for both DIY and professional applications.

Most items are usually shipped within 5-10 working days. We offer free shipping in the US on orders over $100.

We do recommend allowing up to 3 weeks for your order in peak times, such as a special offer or promotion. Your delivery confirmation email will contain your tracking number and order details.

it is the 220 to 110 adapter

Of course, it is an ideal welding machine for auto repair, especially the spot welding function is very suitable for thin plate welding.

Multi-process MIG/TIG/stick welder praised for excellent performance and value. Customers said it "works flawless" and compares favorably to premium brands. Highly rated for ease of setup, portability, and versatility. Minor concerns about ground cable heating and contact tip sizing. Outstanding customer service noted.

  • Best budget welder I have ever used
  • Impressed me and such a good unit. Welds so good
  • Performs excellent, really solid MIG welds
Welds (positive)Welder (positive)Setup (positive)Price (positive)Quality (positive)
  • 5 stars: 357 (90%)
  • 4 stars: 36 (9%)
  • 3 stars: 5 (1%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
K
Kyle M.
Not to shabby

This is literally the first 5 minute's I've had this setup. I got it today. I Tried to hit duty cycle and it did not. Oddly. BUT! I Have 2 projects for this welder. I will find the limits and report back. Quick background I am Union Boilermaker. I'll have 15 years this year. Certified in all processes tig mig stick stainless carbon and inconel all positions unlimited and restricted. These are my results in five minutes having it. It works, I will post more pictures this weekend when I use it for the projects i have.

Kyle M. review photo Kyle M. review photo Kyle M. review photo Kyle M. review photo Kyle M. review photo
S
Spyle G.
Performs excellent

Performs excellent, really solid MiG welds. However def need an upgraded ground clamp/one better quality.

Spyle G. review photo
E
Enrique C.
Mig200

I was really impressed with this little welder, from its size and weight i thought it had no power compared to my miller or General Electric models. But it brings a punch to mig welding and stick welding. Would recommend to a beginner or a professional who is just trying to use something less bulky and more accessible

Enrique C. review photo
J
James H.
I just opened the box and started welding with it

I just opened the box and started welding with it. So far so good.

James H. review photo
A
Anonymous
See my video

https://youtu.be/WPUqjnCi39Y?si=cYmUFq7_jkqPzEMZ

M
Michael C.
extremely impressed!

Been around welding for a while but have never done it myself. Bought this machine to start learning and after playing with the settings for a few minutes and about 6 coupons later, I was laying some decent welds for the first time/first day ever welding. No issues at all with it.

Michael C. review photo
K
Kevin
Great entry level multi-process welder! Almost perfect

I have been really impressed with the ArcCaptain MIG200 multi-process welder. I bought this welder as an upgrade and replacement for my old Millermatic 140 welder. This ArcCaptain welder has so much more versatility, adjustment, and power compared to the old basic transformer MIG welder I'm coming from. The build quality is excellent, although it may not be as durable as a big name brand, but for DIY hobby use in the garage it will be more than tough enough.

The welder comes with almost everything you need to MIG or stick weld out of the box. The only items you'll need to pick up are your MIG wire, shielding gas (unless you run flux-core wire), a gas regulator, or your stick welding electrodes. The welder comes with extra MIG consumables and uses standard tweco style contact tips readily available. 3 different styles of wire drive rolls are provided; V-groove for solid wire, knurled groove for flux wire, and U-groove for aluminum wire. Unfortunately ArcCaptain appears to have a packaging issue though because even with 7 drive rolls included in the kit none of them have a groove sized for running 0.035" (0.9mm) wire of any type. Hopefully they correct this issue in the future.

This welder welds nicely and creates an easy to control weld bead. I'm a little rusty with my handwork so the inconsistencies in my test welds were the result of my own travel speed issues and not the welder. The Synergistic MIG functionality is really nice and provides a really good starting point for MIG weld settings. The one thing that ArcCaptain completely fails to mention in their user manual though is that when your in Synergistic mode you MUST set the AMPERAGE level appropriate for the material thickness being welded and then the machine will adjust the voltage and wire feed speed accordingly. For any beginner, just follow this rule of thumb and use 1 Amp for ever 0.001" of material thickness (ex. for welding 1/8" thick steel start with the welder set to 125A in synergistic mode and adjust the voltage from there if the weld is too hot/cold for your liking).

My only minor complaints about the welder, aside from the missing 0.035" drive rolls, are that ArcCaptain didn't include a MIG setup chart sticker inside the door cover (which is standard practice on all MIG machines), and that the unit comes wired for 110V input and they provide a 110V to 220V adapter cable. I think this practice of passing 220V through a 110V plug is poor design and may even be a violation of certain electrical safety codes. The better design would've been to have a 220V cable wired to the unit and adapt down to a 110V plug when needed.

Overall this ArcCaptain MIG200 welder is a great value for all of the functionality it provides. It provides many more advanced features typically reserved for welders 2-3X the price of this unit. ArcCaptains support team has also been very helpful and responsive to my emails and the customer support is excellent for an international company. I'd highly recommend this welder to anyone looking for an excellent value multi-process MIG welder.

Kevin review photo Kevin review photo
D
Duval S.
Excellente achat

Excellente achat qualité/prix

Duval S. review photo Duval S. review photo Duval S. review photo
J
James E.
I was a little sceptical at first since I’ve alway been a Lincoln fan but I’ll tell you that I’m

I was a little sceptical at first since I’ve alway been a Lincoln fan but I’ll tell you that I’m not a sceptical anymore! I love the ArcCaptain machine so far and am excited about welding again.
My Lincoln SP-140 was too small
Amp. Thank you!

James E. review photo
F
Francois E.
Really loved my 200 right out of the box! It is a lot more substantial then I anticipated but

Really loved my 200 right out of the box! It is a lot more substantial then I anticipated but still fits on my cart. I really like the pre sets for getting less experienced people going on it and I love the range of freedom it provides for an old time welder like me. Next is the Cut50 for me :)

Francois E. review photo Francois E. review photo
M
Matthew M.
The welder and plasma cuter are fantastic

The welder and plasma cuter are fantastic. However my 1 complaint is with the spool holder on the welder, I think there should be some sort of drag or tension to keep the spools from free spinning and virtually bird nesting.

As consumables go, I think the .035” contact tip is a bit under sized.

Other that that decent welder.

Matthew M. review photo
T
Travis P.
Fantastic Value for a great Porduct!

Got themig 200 and the cut 50 setup took no time at all and ended up using it the next day on the job!

Travis P. review photo
D
Domenick N.N.

I had trouble getting started . My probable was not attaching the Ground to positive . The Negative normally gos to ground . I received information from service showing how it should be set up .I attached the negative to the positive and made a few weld runs . It appears the welder is working fine at this point . As soon as I get my welding tables, I will be able to run some practice welds . So far so good . Service did respond quickly to my request for help .

Domenick N.N. review photo
a
alex l.

Great Welder!! Straight out the box. I would be very interested in trying more of Arccaptain's Equipment

alex l. review photo alex l. review photo
T
Timothy W.

Prompt shipping and great customer service

Timothy W. review photo
G
Gary S.

I was pleasantly surprised by the power this little machine has. I ran three 1/8”7018 rods back to back with no interruption. I got plenty of penetration and the bead looked great. I was using the 220v pigtail hooked to a 30 amp RV plug on my generator. I then ran two 6” welds using .035 flux core. Again I had good results. I’m a millwright by trade so I know a good weld when I see one. This machine will not disappoint.

Gary S. review photo Gary S. review photo Gary S. review photo Gary S. review photo Gary S. review photo
K
Kevin O.

Love the welder will be ordering tig torch and foot pedal soon ty

Kevin O. review photo
R
Richard K.

I read on the packing list that there should have been a brush and hammer included. I didn't recieve those items.

Richard K. review photo
