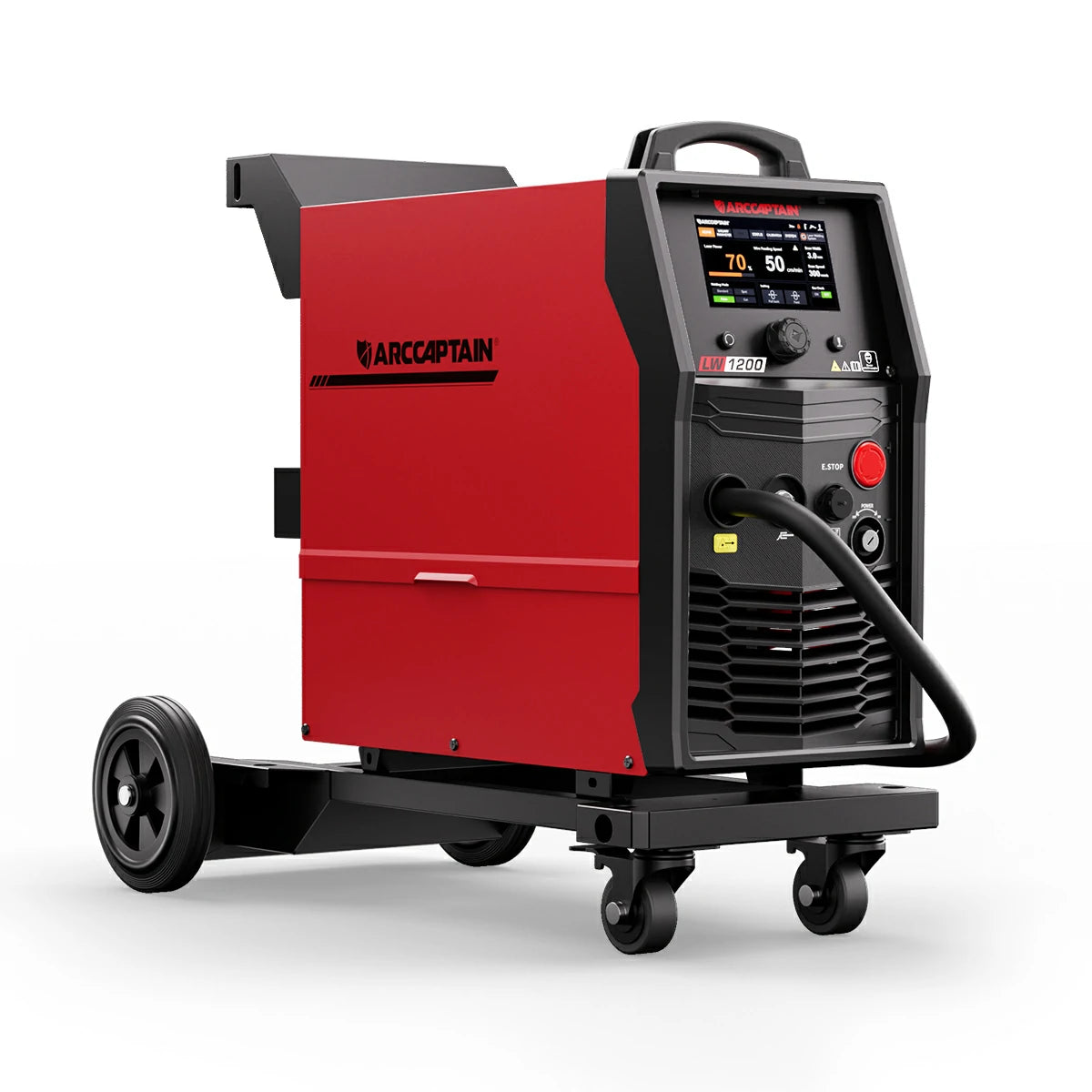

Arccaptain LW1200 Air-Cooled 3 in 1 Fiber Laser Weder
1. 1200W Industrial Output
Industrial-grade laser welding with clean, precise results and minimal heat distortion on a wide range of metals.
2. 3-in-1 Handheld Laser Welder
Weld, clean, and cut with one machine. Save space, reduce costs, and handle more jobs.
3. Air-Cooled Mobile Workstation
No external chiller required. Easy to move, quick to set up, and ready to work anywhere.
4. Industrial-Grade Safety
Emergency stop, grounding protection, safety interlocks, contact-activated laser output, and included laser safety glasses for safer operation.
- LW1200 Laser welder Machine
- Laser Safety Glasses (OD6+)
- ER4043 Aluminum Wire (10 lb)
- Ground Clamp & Cable
- Gas Hose
- Wire Feed Liners
- 5kg Spool Adapter
- Drive Rollers Set
- Contact Tips Set
- Protective Lenses ×10
- Laser Torch Accessory Kit
- Hex Wrenches
- User Manual
Arccaptain LW1200 Air-Cooled 3 in 1 Fiber Laser Weder
Arccaptain LW1200
3-in-1 Fiber Laser Welder
Weld, cut, and clean with one air-cooled workstation. No external chiller required. Simply plug in, set up, and start working in minutes.
Industrial-Grade Welding Performance — SPOT, PULSE, and Continuous
The LW1200 delivers industrial laser welding in a handheld portable machine. Three dedicated modes cover every application — from precision spot repairs to high-speed production runs — on a wider range of metals than any conventional arc process.
Perfect Welds in All Positions and Metals.
1,000+ Built-in Parameters
1,000+ built-in welding parameters for fabrication, automotive repair, and industrial maintenance. Simply select the material and thickness to get started.
Reduce setup time, minimize trial-and-error adjustments, and achieve more consistent welding results.
Welding speed 5–10× faster than TIG
Complete more jobs in less time while reducing labor hours and post-weld cleanup.
| Capability | TIG Welding | MIG Welding | LW1200 Laser |
|---|---|---|---|
| Travel Speed | Slow — 1–3 in/min | Moderate — 6–15 in/min | Up to 5–10× faster than TIG |
| Heat-Affected Zone | Wide | Moderate | Minimal — ultra-narrow HAZ |
| Thin Sheet Distortion | High risk | Moderate risk | Near zero |
| Post-Weld Cleanup | Usually required | Usually required | Minimal to none |
| Setup Time per Job | High — manual tuning | Moderate | Seconds — preset auto-load |
Safety Protection. Emergency stop, grounding protection, safety interlocks, contact-activated laser output, and included laser safety glasses for safer operation.
3-in-1 Fiber Laser Welder — Weld, Cut, and Clean
Air-Cooled Mobile Workstation
This portable laser welding machine combines an integrated air-cooled design with plug-and-play convenience. No external chiller required.
LW1200 Specifications
Statement of Limited Liability
ARCCAPTAIN Welder expressly warrants to all purchasers (“Buyer”) of all new welding and cutting equipment, helmet, and replacement parts (“Goods”) that Goods shall be free from manufacturing defects in materials and workmanship which are discovered within the warranty period, subject to the disclaimers and limitations of the Statement. This warranty is void if the equipment has been subjected to improper installation and testing, improper care, unauthorized repair and modification, or abnormal operations.
Warranty Period
We will assume both the parts replacement and repair expense of correcting defects during the warranty period. All warranty periods start from the date of delivery and are as follows:
Warranty Statement for Welder:
Seller will assume both the parts replacement and repair expense of correcting defects during the warranty period. All warranty periods start from the date of delivery and are as follows:
| MACHINE MODEL | Warranty Time |
| ARC200 | 2 Years |
| ARC160 | 2 Years |
| MIG130 | 2 Years |
| MIG135 | 2 Years |
| MIG145 Pro | 3 Years |
| MIG160 | 2 Years |
| MIG165 | 2 Years |
| MIG165 Pro | 3 Years |
| MIG200 | 2 Years |
| MIG250 | 2 Years |
| MIG200 FIT | 2 Years |
| MIG205MP | 3 Years |
| MIG205DP Pro | 3 Years |
| CUT50 | 2 Years |
| CUT55 LED | 2 Years |
| CUT55 NON-HF | 2 Years |
| CUT55 Pro | 3 Years |
| CUT55 MP | 3 Years |
| MIG205 Pro | 2 Years |
| DC TIG200 | 2 Years |
| AC/DC TIG200P | 3 Years |
| TIG200P | 3 Years |
| TIG205 Pro | 3 Years |
| TIG205P Pro | 3 Years |
| ARC205 Pro | 3 Years |
| ARC165 Pro | 3 Years |
| Used Welding Equipment | 1 Year |
If the items purchased within the scale above become defective due to faulty materials or workmanship within a period of 2 years from the date of purchase, we guarantee to do one of the following, though you may be required to pay shipping costs for the return of the product to us and shipment of the repaired/replaced product to you:
- Replace or repair all defective parts,
- Repair a defective unit
- Replace the unit with a new or reconditioned unit.
Warranty for Welding Helmet
180 days standard warranty
Welding Helmet
Warranty Statement for Weld Parts
90 days standard warranty
- Replacement Parts
- Torch accessories/ consumables /Welding Gauges
- Tungsten
Buyer must contact Seller requesting warranty coverage within thirty (30) days from the date the defect is made known to the Buyer at www.arccaptain.com.
This Limited Warranty is subject to the following conditions:
- Require proof of purchase including order number and place of purchase.
- The item has not been misused, abused, neglected, altered, modified, or repaired by anyone other than the ARCCAPTAIN’s authorized service center.
- Defect or damage to the item has not resulted from the use of accessories or parts that are inappropriate for normal operation of the tool, or that are not designed for use with the item.
- The item has not been subjected to fair wear and tear.
- The item has not been used for trade purposes.
- The item has not been used for rental purposes.
- The item has not sustained damage through foreign objects, substances, or accidents.
Limitation and Disclaimer
Goods are intended for commercial and industrial users who are trained and experienced in the use and maintenance of welding equipment. Buyer's remedies shall be limited exclusively to those provided in this Statement. There are no express warranties other than those contained herein. Seller does not warrant any portion of the Goods not manufactured by Seller or its associates (whether or not specified by Buyer), but Seller shall assign to Buyer upon request all assignable warranties on product of Seller's suppliers related to such Goods. Seller does not warrant that it or the Goods are in compliance with any entity, organization or industry standards, guidelines, or procedures unless specifically contained in a writing signed by Seller.
Warranty Email:support@arccaptain.com
Freight Cost
Buyer is responsible for shipment to and from the Seller’s warehouse, or a service facility authorized by Seller. More detail about return policy.
REFUND POLICY
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.
Please Read The Return Policy Here.
Once we have approved your return request, we will start the refund process.
If your return is accepted, we’ll send you a return shipping label, as well as instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted. You can always contact us for any return question at support@arccaptain.com.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like perishable goods (such as food, flowers, or plants), custom products (such as special orders or personalized items), and personal care goods (such as beauty products). We also do not accept returns for hazardous materials, flammable liquids, or gases. Please get in touch if you have questions or concerns about your specific item. Unfortunately, we cannot accept returns on sale items or gift cards.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
European Union 14 day cooling off period
Notwithstanding the above, if the merchandise is being shipped into the European Union, you have the right to cancel or return your order within 14 days, for any reason and without a justification. As above, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund too.
If more than 15 business days have passed since we’ve approved your return, please contact us at support@arccaptain.com.
Laser Welder | MIG Welder | TIG Welder | |
|---|---|---|---|
Welding Speed | Up to 10× Faster | Fast | Slow |
Weld Appearance | Clean, Spatter-Free | Spatter, Post-Cleaning Required | Clean but Wider Bead |
Heat Distortion | Minimal Distortion | Higher Distortion | Low Distortion |
Thin Metal Performance | Excellent | Moderate | Good |
Productivity | Very High | High | Low |
Overall Efficiency | ★★★★★ | ★★★★☆ | ★★☆☆☆ |
FAQ
-
It supports high-precision, low-distortion welding on a wide range of materials, including Carbon Steel, Stainless Steel, Aluminum & Aluminum Alloy, Brass, Galvanized Steel, Magnesium Alloy, Titanium, and Cast Iron. The effective welding thickness range is 0.3mm to 4mm (0.012" to 0.16").
-
The LW1200 delivers travel speeds up to 5 to 10 times faster than traditional TIG welding. Because of its ultra-low heat input, it minimizes thermal distortion on thin sheets, virtually eliminating post-weld straightening and saving massive fabrication hours.
-
Not at all. The machine features a smart touchscreen pre-programmed with 1000+ verified expert parameter sets for different materials and thicknesses. Beginners can load the optimal settings with a single tap and achieve flawless, certified welds on their first day, significantly reducing reliance on veteran welders.
-
The handheld torch supports three versatile operating modes: SPOT (for precise tacking), PULSE (for strict heat control on ultra-thin sections), and Continuous welding (for high-speed, deep-penetration seams).
-
Absolutely. The LW1200 is engineered to be fully compatible with external automatic wire feeders. This allows for smooth, continuous wire delivery during heavy-duty fabrication tasks where gap bridging is required.
-
Highly mobile. Designed as a self-contained fabrication workstation, it features an ergonomic push handle, heavy-duty industrial casters (with brakes), and a dedicated fiber cable storage rack. You can effortlessly wheel it to any corner of your shop or transport it directly to a job site for immediate plug-and-play operation.
-
Safety is our top priority. The LW-1200 features a multi-tier safety interlock system. The laser will only fire when the torch nozzle is in direct contact with the workpiece (grounded metal). It also features a prominent, front-mounted Emergency Stop (E-STOP) button for instant shutdown, alongside built-in sensors protecting against voltage and temperature fluctuations.
-
Out of the box, the LW-1200 provides three distinct functions controlled by a single handheld torch:
- Laser Welding: High-speed joining of metals from 0.3mm to 4mm.
- Laser Cleaning: Stripping away rust, laser oxides, paint, and oil from metal surfaces.
- Laser Cutting: Executing clean, straight cuts on thin sheet metal.
- Note: Switching functions requires only a quick swap of the torch nozzle and selecting the corresponding mode on the screen.
