Arccaptain iControl CUT65 MP NON-HF CNC Plasma Cutter

Translation missing: en.products.product.price.regular_price $599.99
Translation missing: en.products.product.price.sale_price $599.99 Translation missing: en.products.product.price.regular_price $699.99

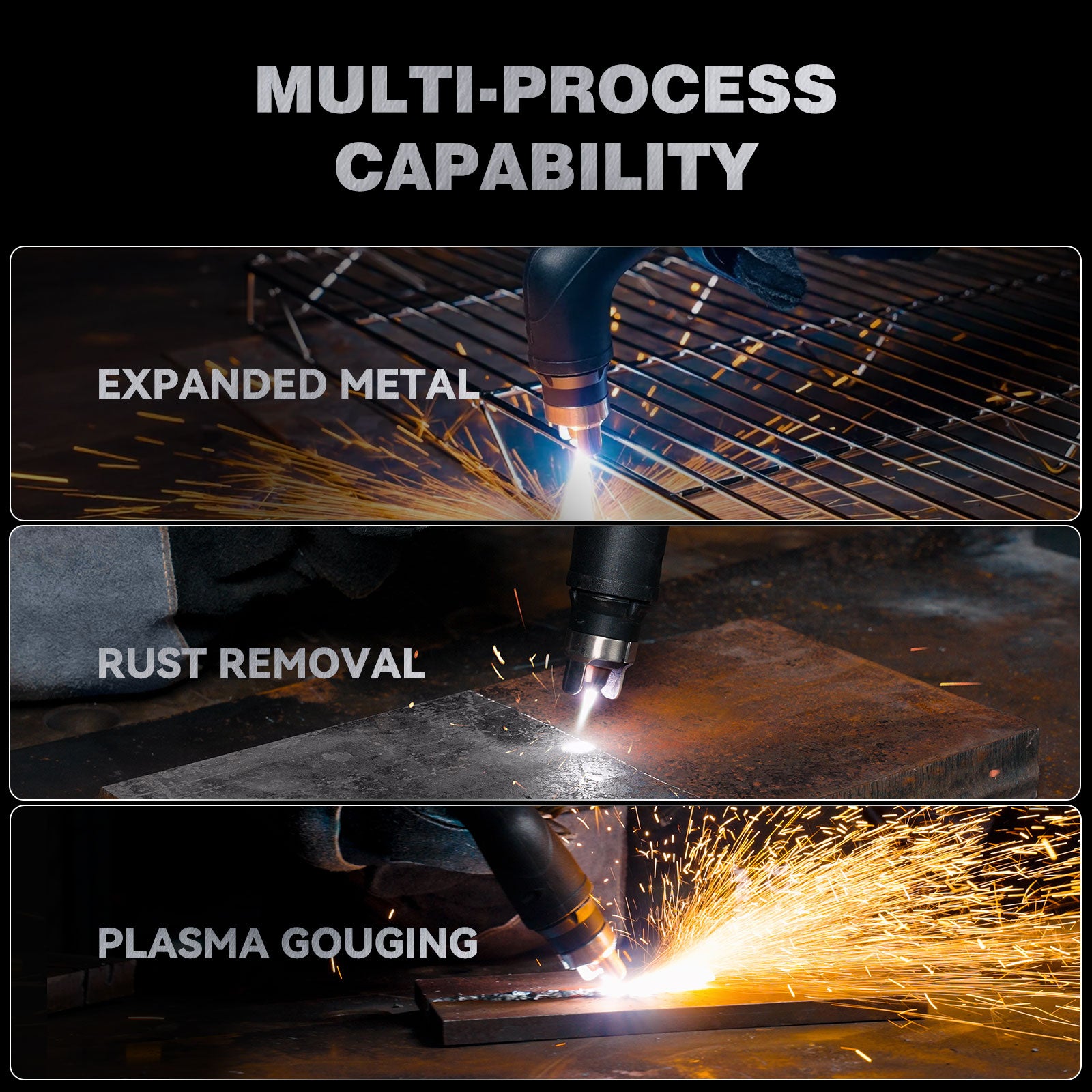

More Ways to Work Metal

Cut, Gouge, Remove Rust, and Handle Expanded Metal with One Versatile Machine.
Maintain a stable arc for smooth, consistent cuts on mesh and grid materials.
Quickly remove rust and surface contaminants without excessive grinding.
Efficiently remove welds, defects, and unwanted material with controlled gouging.

Built for Multiple Applications

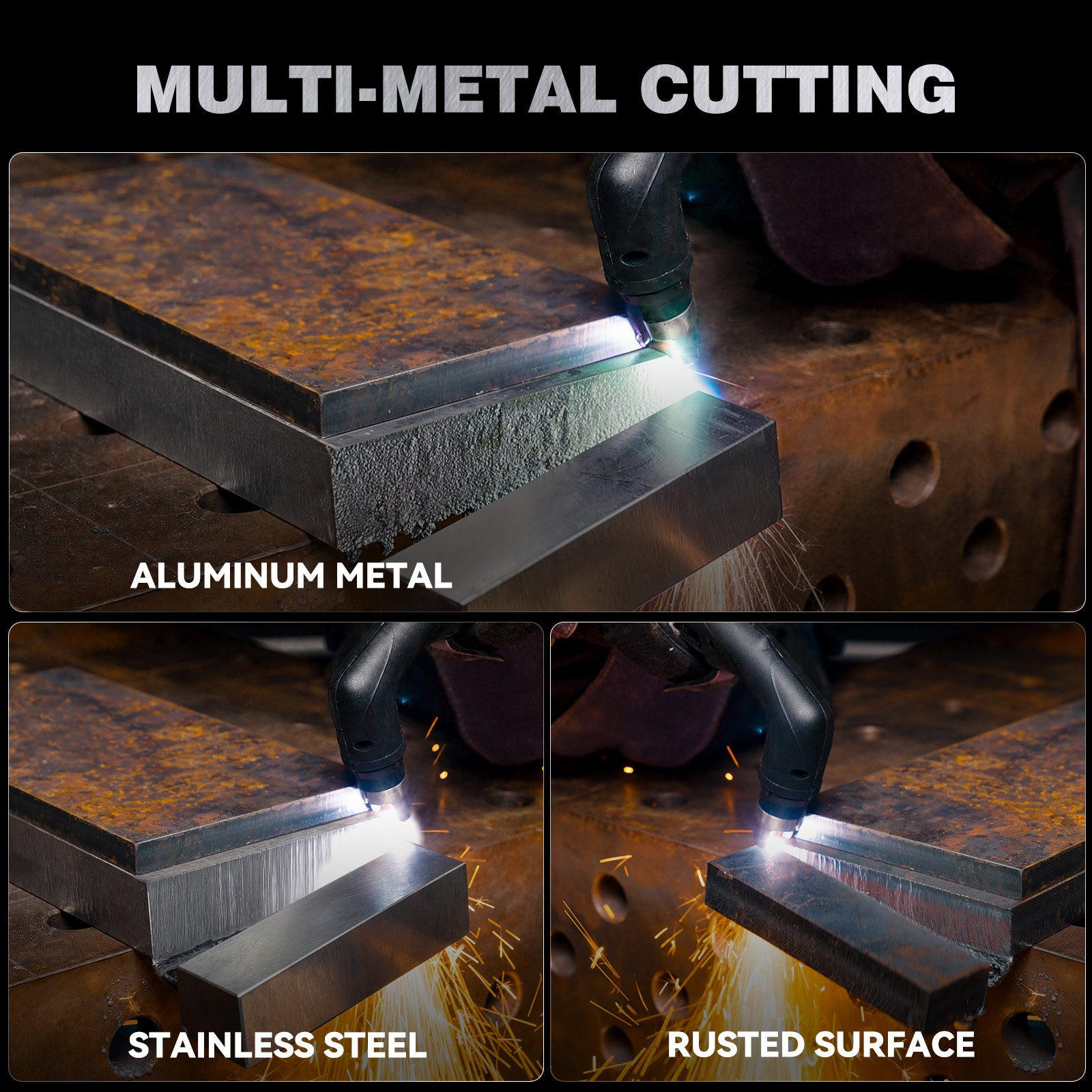

Cuts All Conductive Metals

See Real-World Cutting Performance on Mild Steel, Stainless Steel, Aluminum and More.

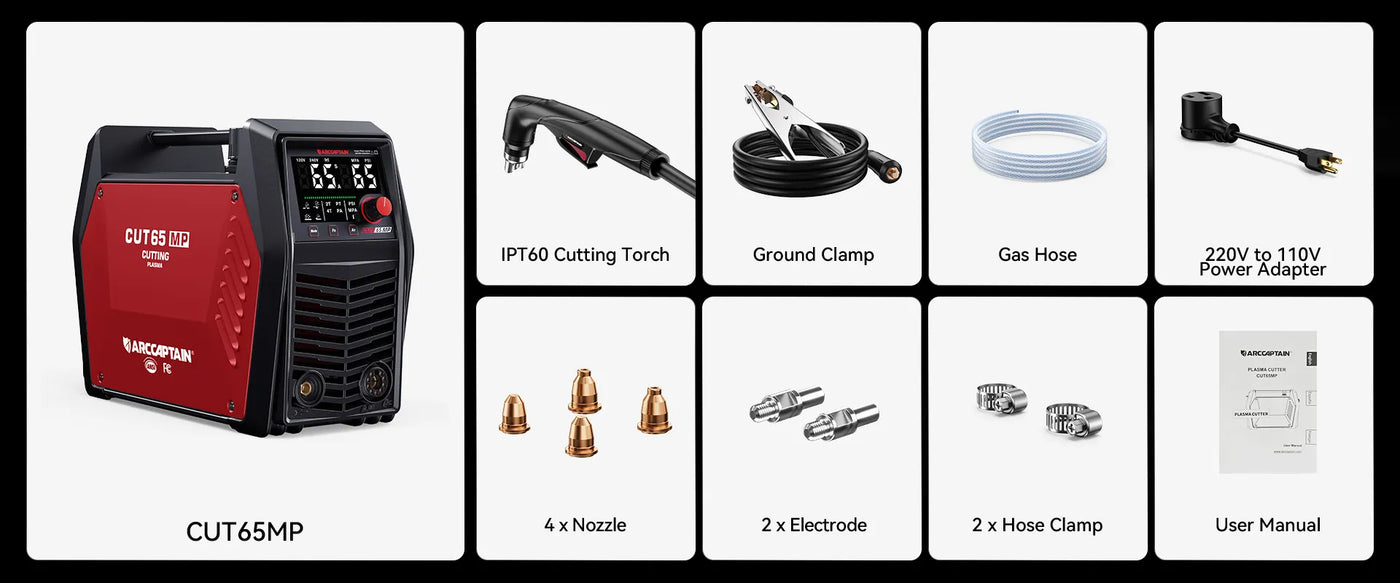

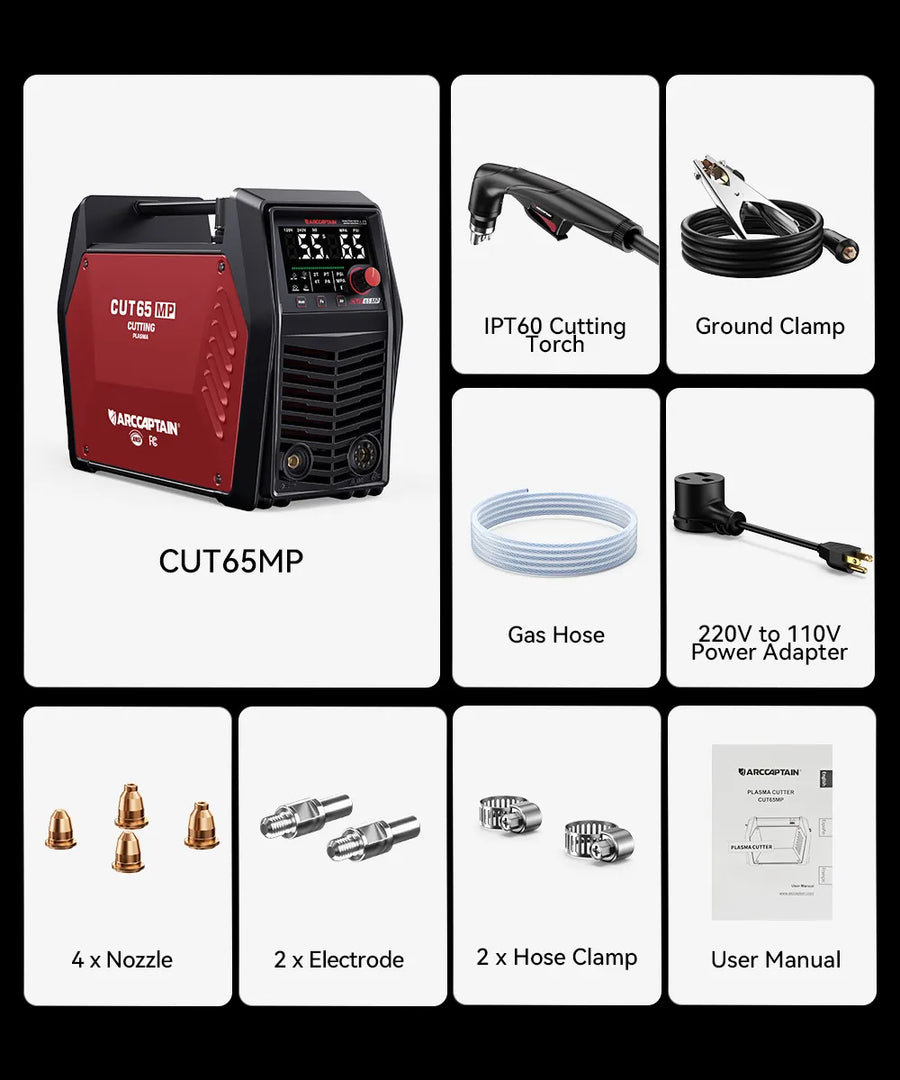

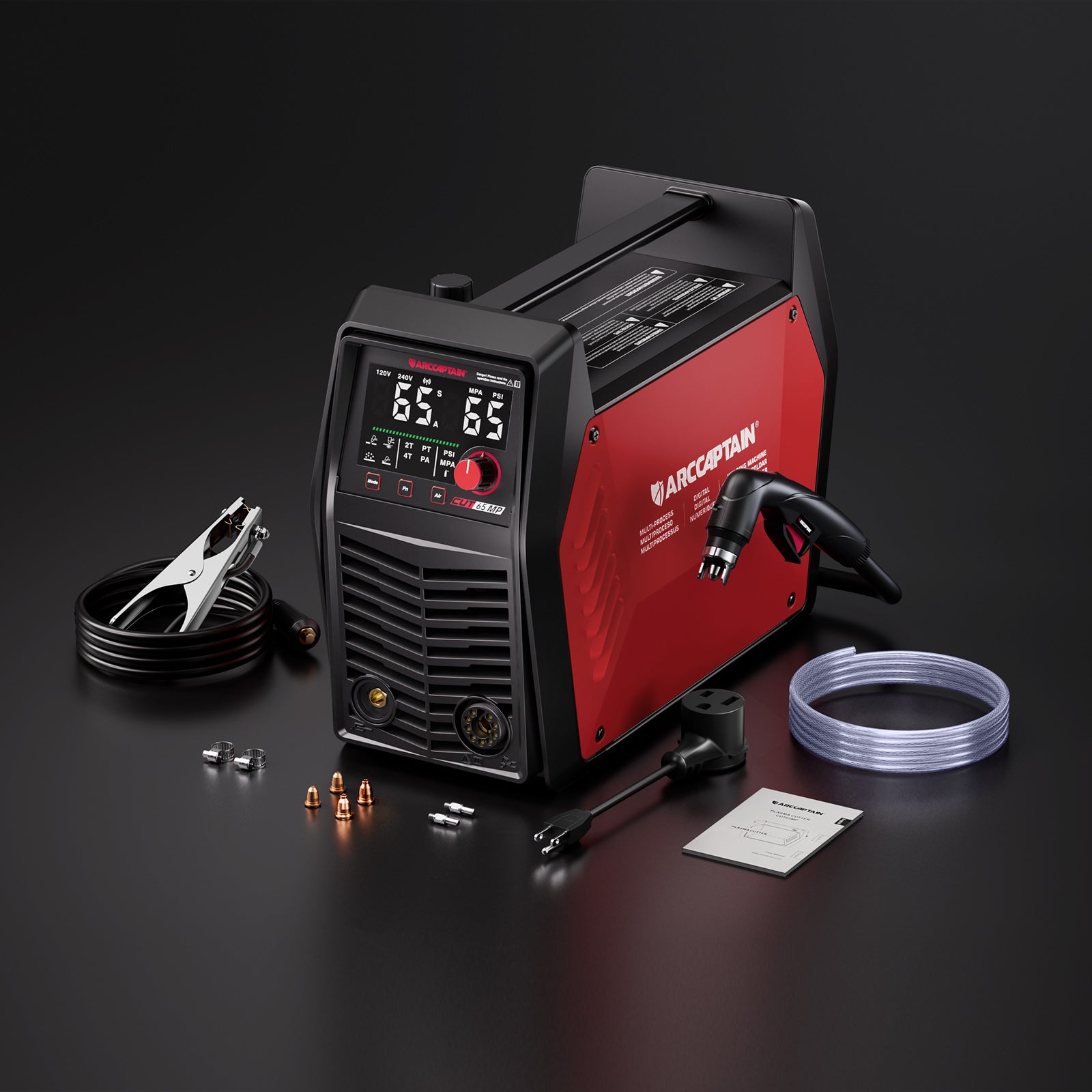

What's Included

Description

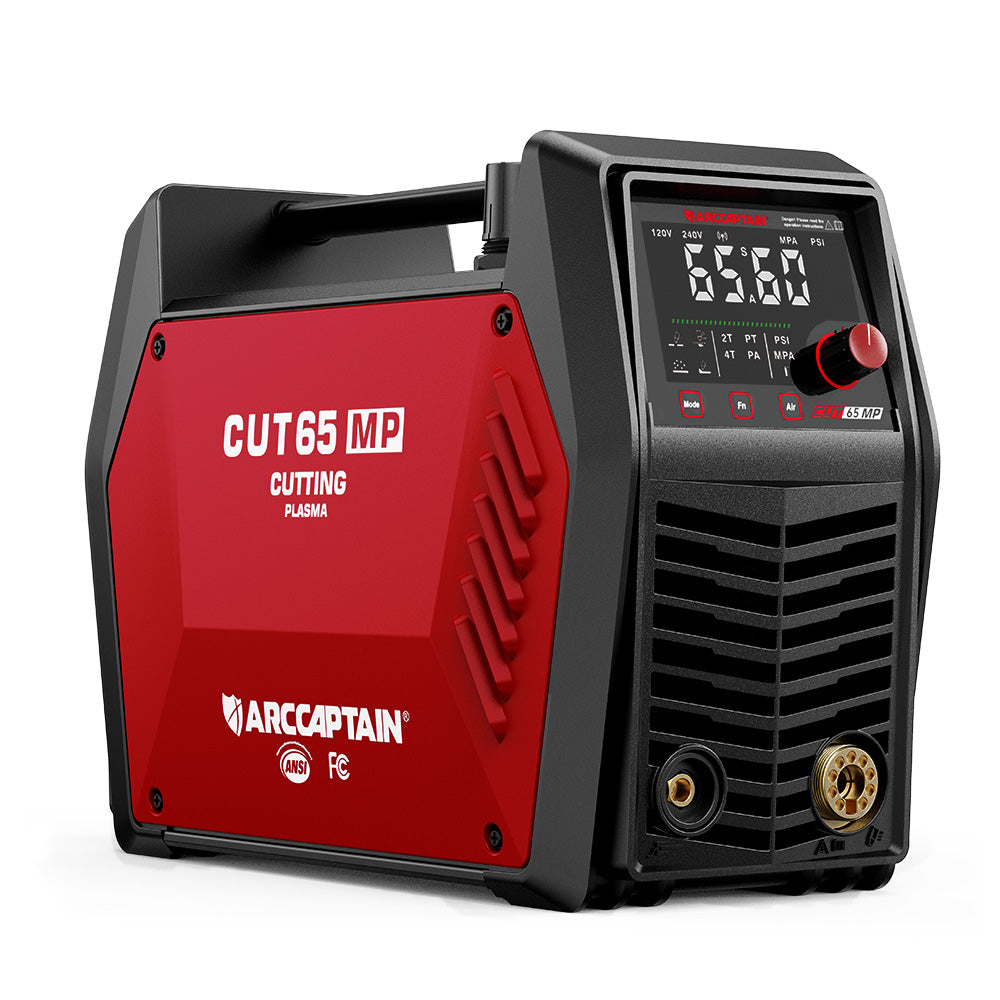

ARCCAPTAIN CUT65MP — Plasma Cutter

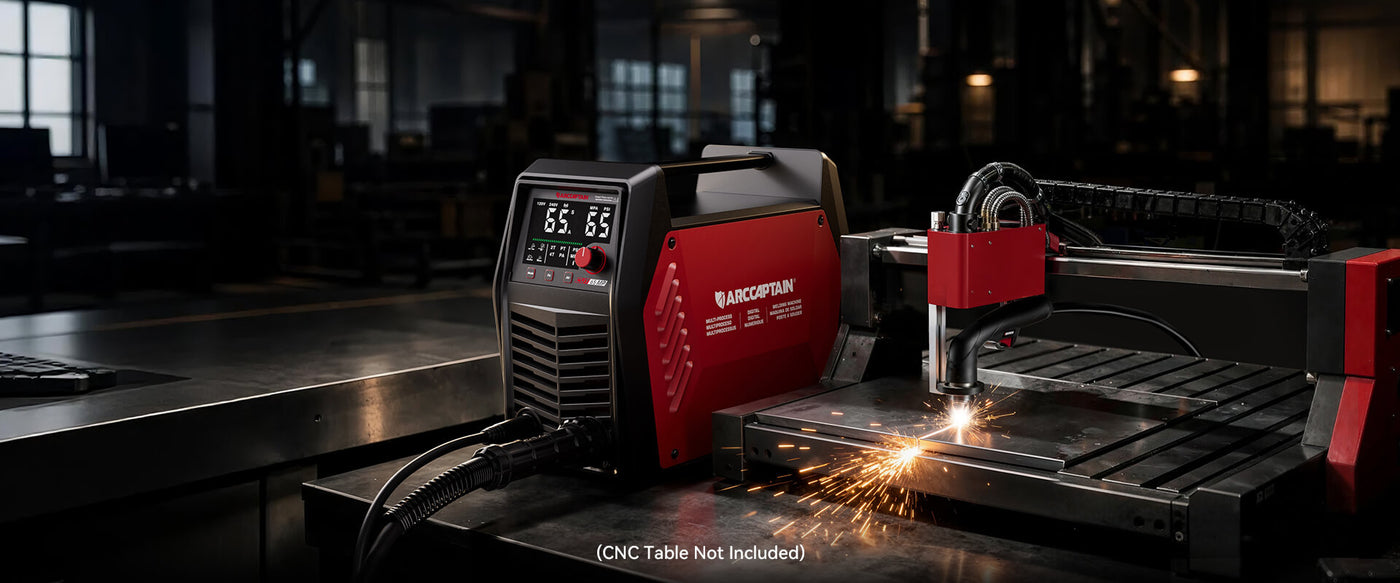

65AMP Plasma Cutter With CNC Interface

Max Clean Cut @ 240V

3/4" / 20mm

Severance up to 1-1/4" / 32mm

Warranty

3Years

Standard outlet or shop power

CNC Platforms Supported

5 systems

PlasmaCam · Torchmate · Langmuir · Mach3 · LinuxCNC

Operating Modes

4 modes

Cut · Grid Cut · Plasma Gouging · Rust Removal

Key Feature 01

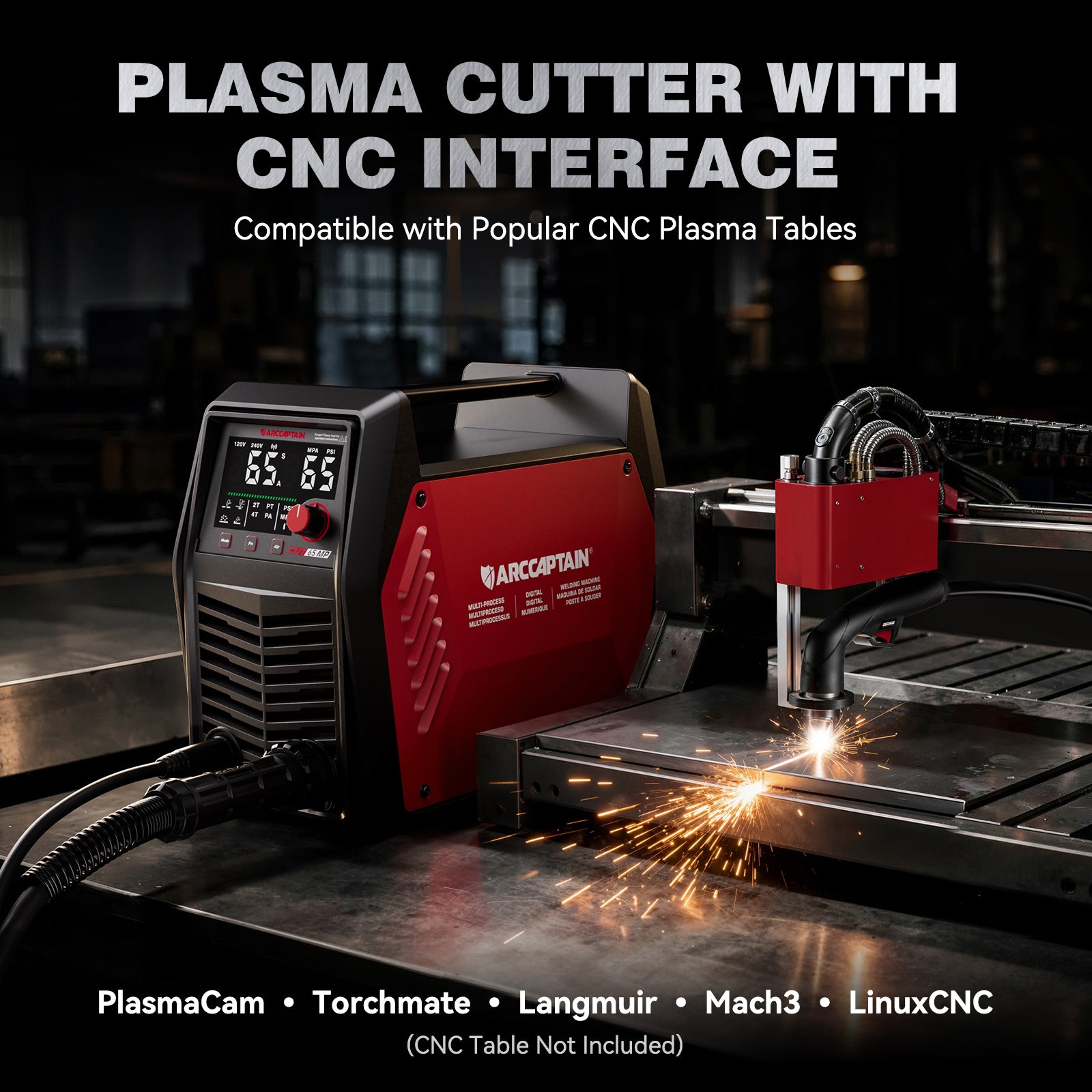

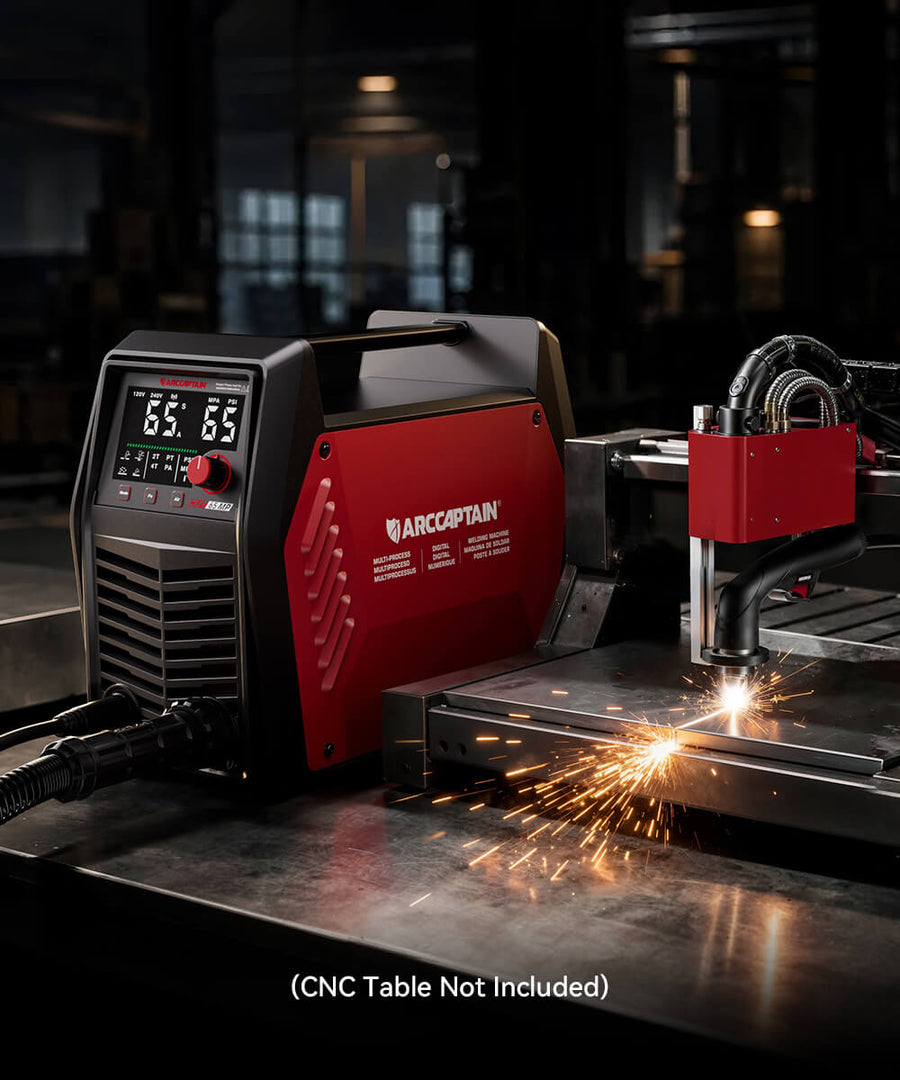

CNC-Ready Right Out of the Box

Other plasma cutters force a choice: buy a hand-torch machine now, then spend more when you automate. The CUT65MP ships with a built-in CNC interface and cable — your upgrade path is already included in the price.

Whether you're cutting custom brackets, metal signs, or structural components by hand today, the CUT65MP keeps your options open. When you're ready to step up to consistent, automated cuts on a CNC plasma table, the machine is already wired for it.

No adapter boxes. No aftermarket modifications. No guessing about compatibility. The CUT65MP uses a standard CNC signal interface and comes with the connection cable. Plug in and cut.

"Buy it for the torch in your hand today — keep it for the CNC table you'll connect to tomorrow."

Confirmed Compatible With

PlasmaCam Torchmate Langmuir Systems Mach3 LinuxCNC

Your Upgrade Path

NOW

Hand-torch cutting

Full manual control — cut signs, brackets, and custom shapes out of the box.

NEXT

Connect a CNC table

When volume grows, connect to any compatible table — the port and cable are already included.

RESULT

Automated, repeatable precision

Consistent cuts at production speed. No re-buy. Your original investment pays off twice.


Key Feature 02

One Machine, Four Modes — Cut, Gouge, Clean and More

Most shops keep separate tools for cutting, surface prep, and gouging. The CUT65MP handles all of it — and solves problems that standard plasma cutters simply can't.

MODE 01

Plasma Cutting

Clean, fast cuts on steel, aluminum, and more.

Cuts mild steel, stainless, aluminum, copper, and other conductive metals. Non-contact pilot arc starts cleanly on painted or rusted surfaces — no gouging, no mess.

Best For

Sheet metal, structural steel, custom parts, signs, and general shop cutting

MODE 02

Grid Cut Mode

Arc keeps dropping on grating and mesh? Not with this mode.

Stabilizes the arc across gaps, holes, and perforations. Standard machines stall and re-strike. Grid Cut Mode keeps cutting straight through without stopping.

Best For

Safety grating, livestock panels, chain-link, expanded metal, salvage work

MODE 03

Plasma Gouging

Back-gouge and bevel prep — no carbon rods needed.

Replaces carbon arc gouging for weld root removal and bevel prep. Less spatter, more control. No extra equipment, no setup change — same machine you cut with.

Best For

Weld root removal, bevel prep, repair work, removing old welds

MODE 04

Rust Removal Mode

Gets into corners where grinders can't reach.

Low-power sustained arc for surface cleaning and pre-weld prep. Reaches tight corners and recessed areas a grinder cannot access. Cleaner surface, stronger weld, fewer rejects.

Best For

Pre-weld cleaning, mill scale removal, farm equipment maintenance, structural repair prep


Key Feature 03

Dual Voltage — Start on 120V, Step Up to 240V When You're Ready

Works on a standard household outlet right out of the box. Switch to 240V in your shop and the CUT65MP opens up to 3/4" clean cut capacity — no hardware change, just a different plug.

Input

240V

Recommended

Clean Cut

3/4" / 20mm

Severance

1-1/4" / 32mm

Input

120V

Clean Cut

3/8" / 10mm

Severance

1/2" / 13mm

Start cutting the same day it arrives — no electrician, no special wiring, just plug into a standard 120V outlet. When your shop is wired for 240V or you add a dedicated circuit, switch plugs and you're at full capacity.

What 3/4" clean cut means in practice: structural tube, flat bar, angle iron, checker plate — the everyday stock most small fab shops and farm operations run through regularly. Not a slow, babied edge. A clean, production-quality cut.

The 1-1/4" severance capacity covers thicker material when you need it — useful for demolition, salvage work, and heavy structural teardown. Two voltage options, one machine, no hardware changes.

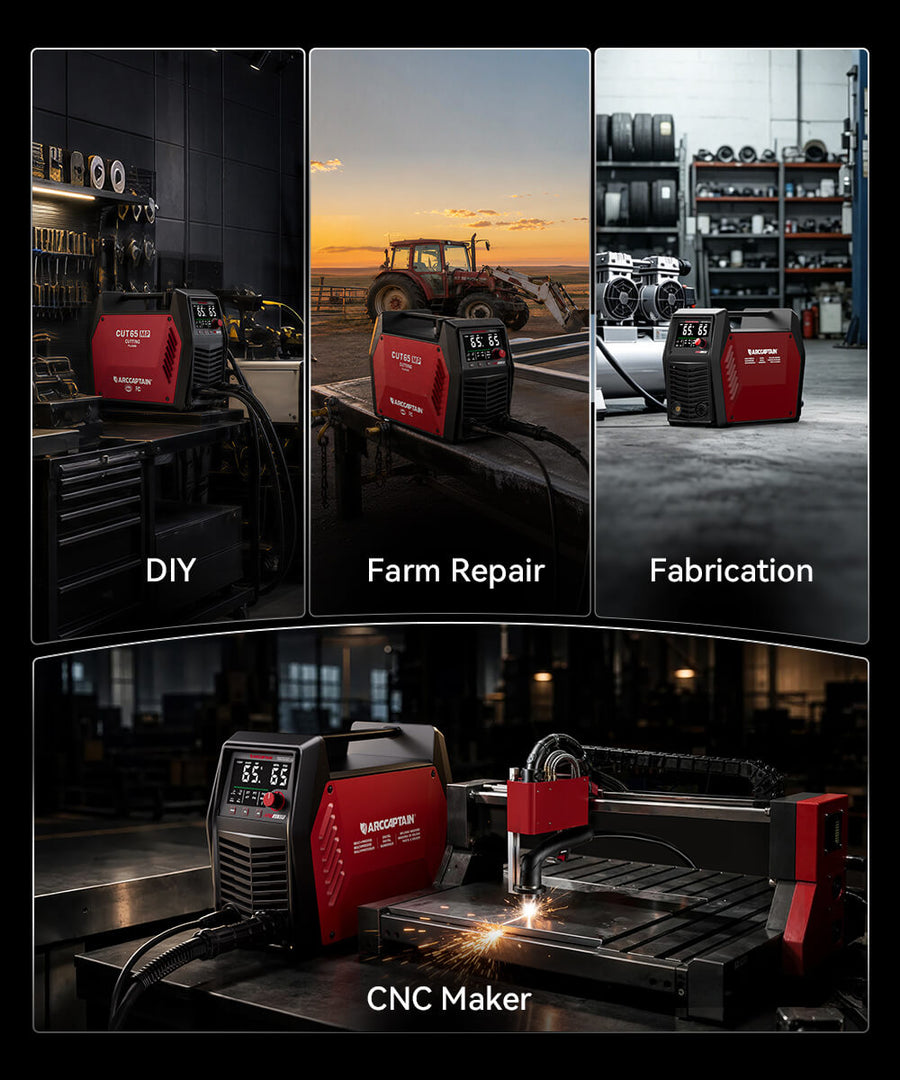

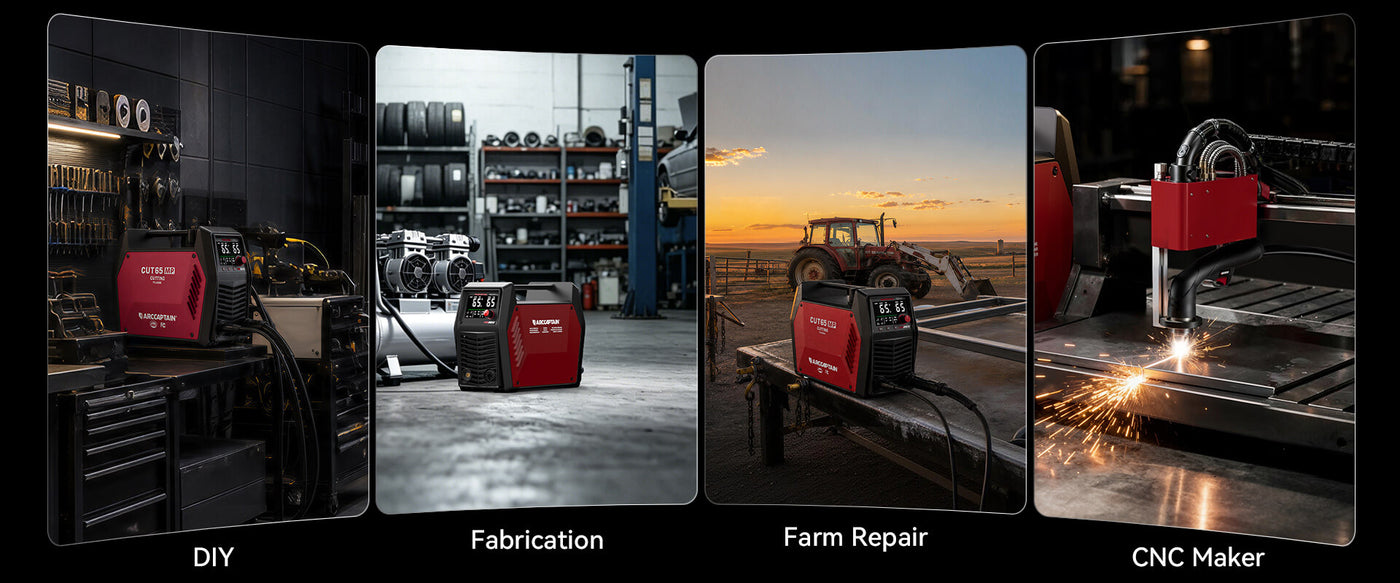

Who It Is For

Four Real-World Scenarios — Which One Sounds Like You

The CUT65MP was built around how working people actually use a plasma cutter — not just how specs look on paper.


DIY & Garage Builder

Your First Serious Plasma Cutter

"I don't want to buy the wrong machine and outgrow it in a year."

Plug it into a 120V outlet and start cutting the same day. When your projects grow and you move to a proper 240V shop setup, the machine grows with you. The CNC interface means no re-buy when you eventually want to add a cutting table.

  • Works on 120V household power right out of the box
  • Large display with clear fault codes — no guessing when something trips
  • CNC-ready interface built in for when you upgrade
  • Four modes without buying four separate tools

Small Fabrication Shop

Production Reliability with Room to Scale

"I need it to run all day and not let me down mid-job."

The smart fan and multi-layer protection system were built for continuous commercial operation — not occasional hobby use. When orders grow and you're ready to automate, plug into your CNC table and go. No new machine, no retraining.

  • Plug-and-play with PlasmaCam, Torchmate, Langmuir, Mach3, LinuxCNC
  • Grid Cut Mode for grating and mesh — no arc interruptions
  • Plasma gouging built in — removes a separate tool from the floor
  • Smart cooling and protection system for all-day run cycles

Farm & Ranch Repair

Fix It Fast — Even When the Metal Is Old and Ugly

"Half the stuff I cut is rusty, bent, or full of holes."

Fencing, gates, cattle guards, and old equipment frames — farm metal is worn, irregular, and corroded. Grid Cut Mode keeps the arc stable across gaps and perforations. Rust Removal Mode preps corroded surfaces before you weld, in spots a grinder can't reach.

  • Grid Cut Mode for livestock panels, chain-link, and perforated stock
  • Rust Removal Mode cleans corroded surfaces without a grinder
  • Built-in air gauge with auto-drain — less to manage in the field
  • 240V capacity for heavy structural repair and thick plate

Small CNC Studio & Maker Shop

The Power Source Your Table Deserves

"I need a plasma source that won't be the bottleneck in my setup."

You have the table — or you're building one. The CUT65MP uses a standard CNC signal interface that ships with the machine, confirmed compatible with the most widely used DIY and production CNC platforms. Clean 3/4" cuts let your table run at its actual capability.

  • CNC cable and port included — no adapter boxes, no signal loss
  • Works with PlasmaCam, Torchmate, Langmuir, Mach3, LinuxCNC
  • 3/4" clean cut at 240V for production-quality output
  • Use handheld between CNC jobs — two workflows, one machine

Built-In Quality

The Details That Matter on a Long Workday

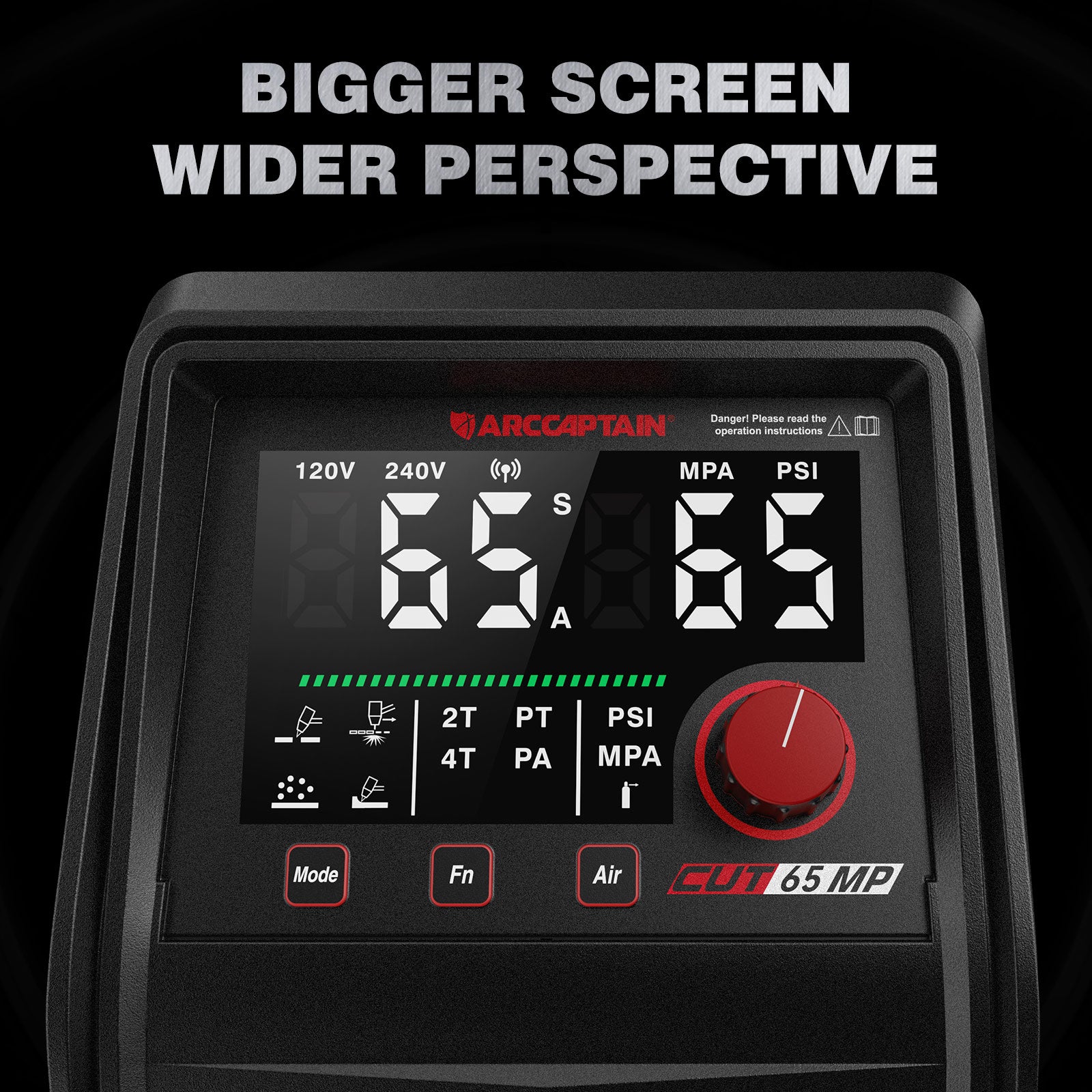

Larger Display and Built-In Air Gauge

A bigger screen means you can read current, voltage, and settings without leaning in or removing your helmet. The air pressure gauge is integrated into the panel with automatic moisture drain — no separate regulator, no extra hose running off the side of the machine.

Smart Cooling Fan — Runs Only When Needed

The fan activates on demand instead of running constantly. The result is noticeably quieter operation, less dust pulled through the internals, and longer component life over time. In a working shop environment, the difference is real — especially on jobs that run for several hours.

Multi-Layer Protection With Fault Codes

Over-heat, over-current, IGBT low-voltage, and input under-voltage protection are all built in. When any protection trips, the panel shows a specific fault code — not just a blinking light — so you know exactly what happened and what to check. Designed for continuous operation without constant supervision.


Specifications

CUT65MP — Complete Specifications

Specification Value
Input Voltage 120V / 240V
Input Frequency 50 / 60 Hz
Max Clean Cut — 240V 3/4" (20mm)
Max Severance Cut — 240V 1-1/4" (32mm)
Max Clean Cut — 120V 3/8" (10mm)
Max Severance Cut — 120V 1/2" (13mm)

Warranty

3 Years
Compatible CNC Systems PlasmaCam, Torchmate, Langmuir Systems, Mach3, LinuxCNC
Operating Modes Plasma Cutting, Grid Cut Mode, Plasma Gouging, Rust Removal
Pilot Arc Non-Contact (Non-HF) — starts on painted, rusty, or coated surfaces
Display Large LED Panel with Fault Code Output
Air Gauge Built-In Panel Gauge with Auto-Drain
Cooling System Demand-Driven Smart Fan
Protection System Over-Heat, Over-Current, IGBT Low-Voltage, Input Under-Voltage
Compatible Materials Mild Steel, Stainless Steel, Aluminum, Copper, and other conductive metals

Dual Voltage

120V / 240V — works on any outlet, no adapter

CNC-Ready

Interface and cable included — 5 platforms confirmed

3/4" Clean Cut

Production-grade cutting capacity at 240V

4 Operating Modes

Cut, Grid Cut, Gouge, Rust Removal — one machine



Specifications

Scroll to view all columns
CUT65 MP Non-hf cnc plasma cutter
Rated Input Power Supply Single-phase AC240V 50/60Hz Single-phase AC120V 50/60Hz
Rated Input Capacity 12 KVA 5.5 KVA
Power Factor 0.7
Rated Output 65A / 106V 35A / 94V
Rated Duty Cycle 60% 60%
No-load Voltage 330V
Output Current Range 20–65A 20–35A
Arc Ignition Mode NON-HF Non-Contact NON-HF Non-Contact
Post-flow Time 3–15s
Gas Pressure Range 0.2–0.5 MPa / 55–75 PSI 0.2–0.5 MPa / 55–75 PSI
Insulation Grade H
Cooling Mode Air Cooling
Enclosure Ingress Protection IP21S
Efficiency 0.85
Maximum Cutting Thickness 1-1/4" 5/8"
Ideal Clean Cut Thickness 3/4" 1/2"
Warranty & Return

Statement of Limited Liability

ARCCAPTAIN Welder expressly warrants to all purchasers (“Buyer”) of all new welding and cutting equipment, helmet, and replacement parts (“Goods”) that Goods shall be free from manufacturing defects in materials and workmanship which are discovered within the warranty period, subject to the disclaimers and limitations of the Statement. This warranty is void if the equipment has been subjected to improper installation and testing, improper care, unauthorized repair and modification, or abnormal operations.

Warranty Period

We will assume both the parts replacement and repair expense of correcting defects during the warranty period. All warranty periods start from the date of delivery and are as follows:

Warranty Statement for Welder:

Seller will assume both the parts replacement and repair expense of correcting defects during the warranty period. All warranty periods start from the date of delivery and are as follows:

The Arccaptain Machine Warranty

MACHINE MODEL Warranty Time
ARC200 2 Years
ARC160 2 Years
MIG130 2 Years
MIG135 2 Years
MIG145 Pro 3 Years
MIG160 2 Years
MIG165 2 Years
MIG165 Pro 3 Years
MIG200 2 Years
MIG250 2 Years
MIG200 FIT 2 Years
MIG205MP 3 Years
MIG205DP Pro 3 Years
CUT50 2 Years
CUT55 LED 2 Years
CUT55 NON-HF 2 Years
CUT55 Pro 3 Years
CUT55 MP 3 Years
MIG205 Pro 2 Years
DC TIG200 2 Years
AC/DC TIG200P 3 Years
TIG200P 3 Years
TIG205 Pro 3 Years
TIG205P Pro 3 Years
ARC205 Pro 3 Years
ARC165 Pro 3 Years
Used Welding Equipment 1 Year

If the items purchased within the scale above become defective due to faulty materials or workmanship within a period of 2 years from the date of purchase, we guarantee to do one of the following, though you may be required to pay shipping costs for the return of the product to us and shipment of the repaired/replaced product to you:

  • Replace or repair all defective parts,
  • Repair a defective unit
  • Replace the unit with a new or reconditioned unit.

Warranty for Welding Helmet

180 days standard warranty

Welding Helmet

Warranty Statement for Weld Parts

90 days standard warranty

  • Replacement Parts
  • Torch accessories/ consumables /Welding Gauges
  • Tungsten

Buyer must contact Seller requesting warranty coverage within thirty (30) days from the date the defect is made known to the Buyer at www.arccaptain.com.

This Limited Warranty is subject to the following conditions:

  • Require proof of purchase including order number and place of purchase.
  • The item has not been misused, abused, neglected, altered, modified, or repaired by anyone other than the ARCCAPTAIN’s authorized service center.
  • Defect or damage to the item has not resulted from the use of accessories or parts that are inappropriate for normal operation of the tool, or that are not designed for use with the item.
  • The item has not been subjected to fair wear and tear.
  • The item has not been used for trade purposes.
  • The item has not been used for rental purposes.
  • The item has not sustained damage through foreign objects, substances, or accidents.

Limitation and Disclaimer

Goods are intended for commercial and industrial users who are trained and experienced in the use and maintenance of welding equipment. Buyer's remedies shall be limited exclusively to those provided in this Statement. There are no express warranties other than those contained herein. Seller does not warrant any portion of the Goods not manufactured by Seller or its associates (whether or not specified by Buyer), but Seller shall assign to Buyer upon request all assignable warranties on product of Seller's suppliers related to such Goods. Seller does not warrant that it or the Goods are in compliance with any entity, organization or industry standards, guidelines, or procedures unless specifically contained in a writing signed by Seller.

Warranty Email:support@arccaptain.com

Freight Cost

Buyer is responsible for shipment to and from the Seller’s warehouse, or a service facility authorized by Seller. More detail about return policy.

REFUND POLICY

To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.

Please Read The Return Policy Here.

Once we have approved your return request, we will start the refund process.

If your return is accepted, we’ll send you a return shipping label, as well as instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted. You can always contact us for any return question at support@arccaptain.com.

Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.

Exceptions / non-returnable items
Certain types of items cannot be returned, like perishable goods (such as food, flowers, or plants), custom products (such as special orders or personalized items), and personal care goods (such as beauty products). We also do not accept returns for hazardous materials, flammable liquids, or gases. Please get in touch if you have questions or concerns about your specific item. Unfortunately, we cannot accept returns on sale items or gift cards.

Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.

European Union 14 day cooling off period
Notwithstanding the above, if the merchandise is being shipped into the European Union, you have the right to cancel or return your order within 14 days, for any reason and without a justification. As above, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.

Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund too.
If more than 15 business days have passed since we’ve approved your return, please contact us at support@arccaptain.com.

FAQ

  • The CUT65MP supports single-phase AC120V 50/60Hz and AC240V 50/60Hz dual voltage, compatible with major U.S. power standards. The machine automatically adapts to the connected power source, making it suitable for outdoor job sites, workshop installations, and mobile maintenance applications.

  • The output current range varies with input voltage:

    • 120V mode: 20–35A
    • 240V mode: 20–60A
  • The CUT65MP can cut a variety of metals, including carbon steel, stainless steel, copper, cast iron, and aluminum.
    120V mode: Normal cutting up to 12mm, maximum 15mm
    240V mode: Normal cutting up to 20mm, maximum 32mm

    For thicker plates, it is recommended to use 50–60 psi air pressure and reduce cutting speed to improve cutting quality.

  • Gas pressure range: 0.2–0.5 Mpa (29–72 psi).
    Recommended operating pressure for standard cutting, gouging, or rust removal: 0.4 Mpa (57.5 psi). Fine adjustment within the range can be made depending on material thickness and working mode.

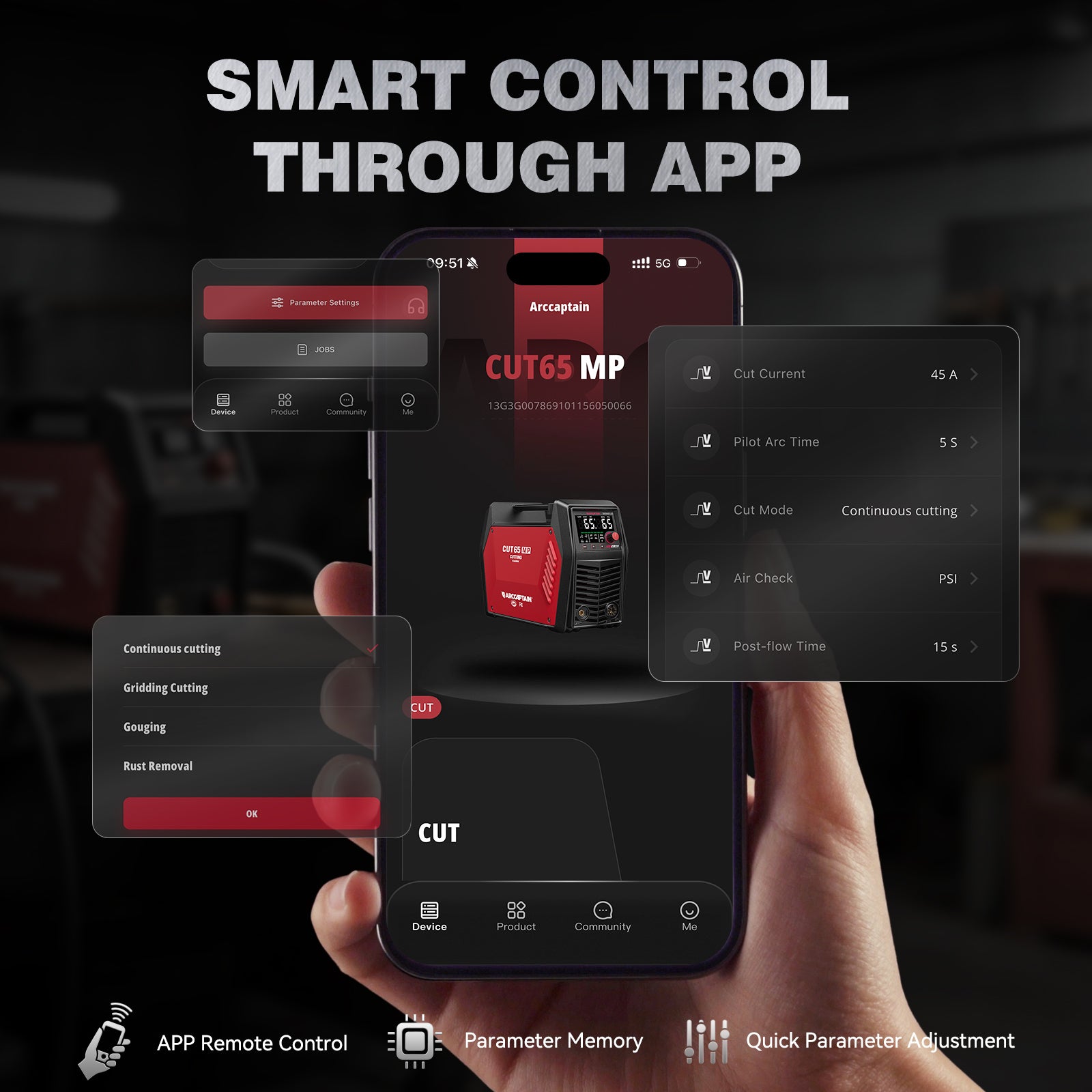

  • Both models share identical core specifications and features, including gouging, arc maintenance rust removal, grid cutting, and Bluetooth APP control.

    The main difference: CUT65MP comes standard with a CNC interface, enabling connection to automatic CNC cutting tables for both handheld and machine use. This makes it ideal for users who plan to start with manual operation and upgrade to automated production in the future.

  • The CNC interface allows direct connection to an automatic plasma cutting table for CAD-based automated cutting. It is ideal for batch production, complex shapes, and standardized parts processing.

    Even if you currently use the machine manually, the CNC interface provides “future-proof expansion”—you can connect to a CNC system later without buying a new machine. CNC cutting also offers higher precision and stability for mesh or perforated materials compared to manual operation.

  • Yes, the CUT65MP can cut mesh, grating, patterned plates, and perforated materials. These open-structure materials can cause unstable plasma flow, so proper parameter adjustment is important:

    1. Enable arc maintenance mode to maintain non-contact arc start.
    2. Set output current to 30–40A, air pressure to 0.4 Mpa, and slightly reduce cutting speed.
    3. Keep the torch 3–5mm above the material. Leveraging arc maintenance stability prevents arc interruptions and sparks, improving cutting precision.
  • The CUT65MP uses a Non-HF (non-high-frequency) arc-start mode, which generates no electromagnetic interference and is compatible with CNC cutting systems. This provides more stable arc starting on rusted or grid plates, protecting both the equipment and consumable parts while improving operational safety and efficiency.

  • The post-flow function continues gas flow after cutting to clean the cut seam and prevent material oxidation. The post-flow duration automatically adapts to the output current—no manual adjustment is needed. Recommended durations:

    • 20–34A: 5 seconds
    • 35–45A: 8 seconds
    • 46–55A: 10 seconds
      This effectively protects the consumable nozzle and improves cutting quality.
