When you’re working with sheet metal, getting the k factor calculation right is pretty crucial if you want accurate bends and parts that actually fit. The k factor tells you where the neutral axis sits in the metal’s thickness during bending.
Why does that matter? Because knowing this lets you predict how much your metal will stretch or compress, so your finished piece matches your design instead of leaving you scratching your head.
In sheet metal bending, K-factor calculation plays a key role. It's the ratio of how far the neutral axis shifts to the total metal thickness. This value is used to compute bend allowance and bend deduction, which are vital for laying out flat patterns accurately. K-factor helps predict how much the material will stretch or compress as it bends, ensuring your fabricated parts fit just right.
Once you learn how to calculate k factor, your fabrications just get better. Whether you’re making car parts, aircraft bits, or even roofing for your house, it’s a small step that keeps costly errors at bay.

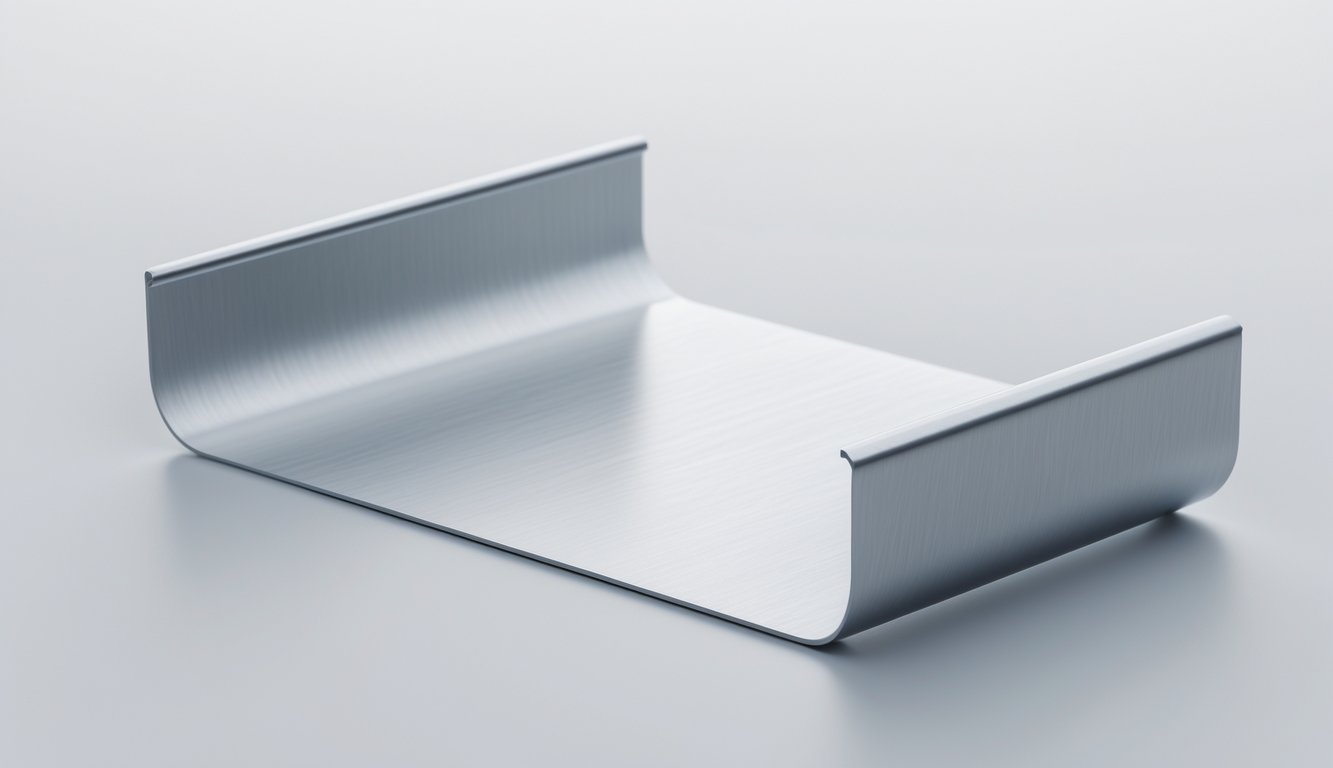

What Is K‑Factor Calculation?
Image source: www.adhmt.com
K-factor calculation helps you figure out how a metal sheet will behave when you bend it. It’s about finding the position of the neutral axis inside the material, compared to its full thickness.
This value affects how much your metal stretches, and that’s how you predict what the final shape will be after you bend it.
If you know the K-factor, you can nail the correct flat length before bending. That saves you from cutting mistakes and wasted material.
K‑Factor = Neutral Axis Offset ÷ Material Thickness
The K-factor is just a ratio. It shows where the neutral axis sits inside the sheet.
The neutral axis is an imaginary line in the metal that doesn’t change length when you bend the sheet.
To get the K-factor, divide the distance from the inner surface of the sheet to the neutral axis by the sheet’s total thickness.
Formula:
| K-factor | = | Distance to Neutral Axis (t) | ÷ | Material Thickness (T) |
The neutral axis moves around depending on how you bend the metal and how thick it is. Different materials and bending methods can shift this value, so your K-factor isn’t always the same.
Why It Matters in Bend Allowance and Flat‑Pattern Length
The K-factor is a big deal when you’re trying to find the right flat length before you bend your metal. Flat-pattern length is just the length you need before bending so your final part isn’t off.
Bend allowance depends on the K-factor because that’s what tells you how much the metal stretches during a bend. If you get the K-factor wrong, your parts might end up too long or too short.
With the right K-factor and material thickness, you can predict bend allowance accurately. That means your designs fit together, and you waste less material.
Choosing the right material is essential for any project. Learn more in our article, Different Types of Metal Used in Welding.
Bend Allowance & Flat Layout: How K‑Factor Helps
The K‑factor is vital for calculating bend allowance—the arc length of metal along the neutral axis during a bend—and planning accurate flat patterns for your sheet metal parts. Using the K‑factor in the standard formula:
Formula: K = (BA / (π·θ/180) – Ri) ÷ T
Here’s how you do it:
K = (BA / (π·θ/180) – Ri) ÷ T
- BA: bend allowance, the arc length on the neutral axis
- θ: bend angle in degrees
- Ri: inside bend radius
- T: sheet thickness
First, convert your bend angle θ from degrees to radians using π·θ/180. Then, take the bend allowance (BA), divide it by the angle in radians, and subtract the inside radius (Ri).
Divide all that by the thickness (T), and you’ve got your K-Factor. This tells you how much the neutral axis moves during bending, which changes your flat pattern.
Once you know BA, you can sum flange lengths and account for bends to determine the flat blank size needed.
Heat transfer matters when working with metal. See which metals perform best in Top Heat Conductive Metals: Properties, Uses & Comparison.
Why K‑Factor Matters in Layouts
-
Compensates stretch/compression: The neutral axis shifts based on K, directly affecting how much material must be added or subtracted for accurate layouts.
-
Flat pattern accuracy: Without correct K values, parts can end up too long or short—messing up fit and requiring rework. The K‑factor ensures better layout and reduced scrap.
- Bend deduction & setback planning: Using bend allowance with K‑factor helps compute bend deduction and outside setback, which are used to convert mold-line dimensions into correct flat part layout.
Some metals stand up to rust better than others. Discover your best options in 7 Types of Corrosion-Resistant Metal That Don't Rust.
Common K‑Factor Values & Ranges
When you’re bending sheet metal, using the right K-factor helps you predict how your metal will behave. The values mostly depend on your bend type and the material.
Knowing the typical ranges and having a few go-to tables can really speed things up and help you avoid headaches.
Typical Range 0.3–0.5 Based on Bend Method and Material
Most of the time, K-factors for sheet metal bending land between 0.3 and 0.5. The exact number depends on your bend method, thickness, and the material’s properties.
If you’re making a tight bend with a small radius, you’ll probably use a lower K-factor, closer to 0.3. That’s because the neutral axis sits nearer the inside bend.
Softer bends with a bigger radius push the K-factor closer to 0.5. Materials like stainless or aluminum can nudge this number up or down a bit. For regular steel, a lot of folks just start with 0.44 and tweak from there.
Rule‑Of‑Thumb Tables for Air‑Bend, Bottom‑Bend, Coining
If you want quick answers, these tables are a lifesaver:
|
Bend Type |
Typical K-Factor Range |
Notes |
|
Air-Bend |
0.30 – 0.45 |
Most common; bend radius varies |
|
Bottom-Bend |
0.40 – 0.50 |
Tighter control, less springback |
|
Coining |
0.45 – 0.50 |
High pressure, very little springback |
Air-bending is super common. There’s a gap between the die and punch, so your bend isn’t as tight. Bottom-bending presses the metal into the die for more precise angles. Coining just crushes the metal with lots of force, so the bend is almost perfectly formed.
Adjust the K-factor based on your process, and always double-check your bends. These tables get you close without needing to do a bunch of math every time.
Material properties can make a big difference in your results. Find out which metals are the softest in What is the Weakest Metal? Strength, Softness & Uses.
Why K‑Factor Matters in Layouts
Compensates stretch/compression: The neutral axis shifts based on K, directly affecting how much material must be added or subtracted for accurate layouts.
Flat pattern accuracy: Without correct K values, parts can end up too long or short—messing up fit and requiring rework. The K‑factor ensures better layout and reduced scrap.
Bend deduction & setback planning: Using bend allowance with K‑factor helps compute bend deduction and outside setback, which are used to convert mold-line dimensions into correct flat part layout.
Precision and efficiency start with great tools. Check out our metal fabrication tools collection to upgrade your workshop.
How K‑Factor Helps in Bend Allowance & Deduction
If you’re working with metal bends, understanding the K-factor is a must. It tells you how metal stretches or compresses when you bend it.
This directly affects your bend allowance and bend deduction. Both are key for figuring out the flat length you start with before bending.
Bend Allowance Formula: BA = (π/180)θ(R + K·T)
Bend allowance (BA) tells you how much length the metal eats up in the bend area. Here’s the formula:
BA = (π / 180) × θ × (R + K × T)
- θ is the bend angle in degrees
- R is the inside radius of the bend
- T is the material thickness
- K is the K-factor, which shows where the neutral axis sits inside the bend
The K-factor shifts the neutral axis. That’s the spot in the metal where nothing stretches or compresses during the bend.
If you pick the wrong K-factor, your flat length will be off. That means your finished part might turn out too long or too short—never fun.
Using K to Calculate Flat Pattern Length and Bend Deduction
Your flat pattern length is just the total straight length of metal before you bend it. Add the bend allowance to the straight sections and you’ve got it.
The K-factor tells you how much the metal actually stretches in the bend, so it’s crucial for accuracy.
Bend deduction is the difference between the sum of your straight leg lengths and the flat length. You use the K-factor here, too.
Get the K-factor right and your bend deduction will line up, which helps you waste less material and get a better fit.
Honestly, using tables or software to pick the K-factor for your material and bend radius just makes life easier.
Long-lasting results depend on understanding your material’s limits. Get practical tips in What is Metal Fatigue? Causes, Forms, and Prevention.
Final Thoughts
K factor calculation helps you predict how metal will behave during bending by determining the ratio between the neutral axis position and sheet thickness. This directly impacts bend allowance and flat pattern size, with typical values ranging from 0.3 to 0.5, depending on material and bending method
For accuracy, use formulas or test strips, then adjust your CAD or setup as needed. Getting the K factor right means less waste and better-fitting parts.
Want to learn more? Read our guide, How Many Watts Does a MIG Welder Use for Optimal Performance?, and check out our welding machines & welding gear.
Frequently Asked Questions
How to calculate K-factor traffic?
The K-factor for traffic basically measures how many new users each existing user brings in through referrals. It’s a handy number for tracking growth.
Here’s how you figure it out:
- Average invitations sent per user
- Conversion rate of those invitations
Let’s say each user invites 5 friends and 20% sign up. Your K-factor is 5 × 0.2 = 1.
If your K-factor is above 1, your user base grows fast. Below 1, growth slows down.
Tracking this helps you tweak your referral programs or marketing to boost user acquisition.
How to calculate K-factor virality?
Virality K-factor shows how content spreads through sharing. It’s a lot like the traffic K-factor, but it focuses on content like videos or posts.
Here’s the formula:
- Average shares per user
- Average views or engagements per share
Multiply those, and you’ve got your virality K-factor. If it’s above 1, your content’s going viral.
Analytics tools on social media or websites help you track this. It’s a great way to see how well your content is doing and where you can improve.
How do you calculate the equivalent K-factor?
The equivalent K-factor links the neutral axis position in metal bending to the material thickness. Here’s the formula:
K = (t × x) / t
Where:
- t is material thickness
- x is the neutral axis distance from the inner bend surface
This usually falls between 0.25 and 0.5, depending on your material and thickness.
Calculate it right, and you’ll have precise bend allowance and deduction. That means fewer mistakes in fabrication.
Testing samples or using software makes it easier to dial in the K-factor for your specific metal and bend.
How many gpm is a 5.6 K-factor sprinkler?
The K-factor for sprinklers shows you the flow rate in gallons per minute (gpm) based on the pressure.
You can use this formula to figure out the flow:
Q = K × √P
Here’s what the letters mean:
- Q is the flow rate in gpm
- K is the sprinkler's K-factor (so, 5.6 in this case)
- P is the pressure in psi
Let’s try an example. If you have 30 psi of pressure:
Q = 5.6 × √30 ≈ 5.6 × 5.48 = 30.7 gpm
