Optimizing Aluminum MIG Welding with the Arccaptain MIG205MP: Setup & Tips

Aluminum welding has always been a challenge for many welders. Compared to steel, aluminum is softer, heats up more quickly, and aluminum wire often causes feeding issues such as bird-nesting, wire jams, or poor push performance. Fortunately, the Arccaptain MIG205MP welder, with its Pulse MIG function and optimized hardware setup, helps solve these common problems and enables welders to achieve high-quality welds on 1/8-inch aluminum.

In this guide, we’ll walk you through the proper setup of the Arccaptain MIG205MP and how to configure the right wire and torch components to significantly improve aluminum MIG welding stability and ease of use.

Why Choose the Arccaptain MIG205MP

The Arccaptain MIG205MP is an all-in-one, multi-process machine that combines several welding and cutting functions in a single unit:

• MIG Welding (including Aluminum MIG)

• Flux Core MIG Welding

• Stick Welding

• TIG Welding (scratch start & pulse TIG)

• Pulse MIG

• Plasma Cutting

Its standout feature is the Pulse MIG function. During aluminum welding, the pulse alternates between high and low voltage. This provides the penetration benefits of high voltage while allowing the material to cool during the low-voltage cycle, which helps prevent burn-through. This makes the MIG205MP an ideal choice for aluminum applications.

Recommended Wire Selection

When welding aluminum, wire type and diameter play a crucial role in feedability and weld quality.

• Wire Type: 5356 Aluminum Wire

  • Harder than 4043 wire, making it easier to push through the liner.

  • Reduces feeding problems and works well with a standard MIG gun.

• Wire Diameter: 3/64 inch (0.045 inch)

  • Larger diameter feeds better than 0.035 inch.

  • 0.035-inch aluminum wire almost always requires a spool gun, while 0.045-inch can feed smoothly through a regular MIG gun.

  • Provides stable feeding even during long welds on 1/8-inch aluminum.

Summary: A harder 5356 wire combined with a larger 0.045-inch diameter is the best solution for minimizing aluminum wire feeding issues.

Torch Components & Installation

To achieve smooth feeding, a few adjustments to the MIG gun setup are necessary:

• Drive Roll: Install a 0.045 Arccaptain drive roll.

• Wire Liner: Use an Arccaptain graphene liner instead of a steel liner.

• Installation Tips:

  • Make sure the liner seats tightly against the drive roll.

  • Remove the standard steel liner (by taking out the small retaining clip).

This configuration reduces friction, allowing aluminum wire to feed smoothly through a standard MIG gun—making welding much more comfortable without relying on a heavy spool gun.

Machine Settings & Parameters

For best results with aluminum MIG welding on the Arccaptain MIG205MP, follow these steps:

1. Mode Selection

   • MIG → Aluminum MIG → Pulse MIG

   • Set to 2T mode (hold the trigger to weld).

2. Wire Size

   • Set to 0.045 inch to match the wire diameter.

3. Shielding Gas

   • Use pure argon.

   • Preflow: 0.2 seconds

   • Postflow: 2 seconds

     • Adjustable postflow is especially important in aluminum welding to protect both the weld and the wire tip from oxidation.

4. Wire Feed Test

   • Use the “Send” function to test smooth wire feeding before welding.

Advantages of Pulse MIG

Compared to traditional MIG welding, the Arccaptain MIG205MP’s pulse function offers several benefits for aluminum welding:

• Better Heat Control: Reduces overheating and burn-through.

• Improved Weld Appearance: Smoother bead formation with less spatter.

• Ideal for Thin Aluminum: Balances penetration and cooling on 1/8-inch material.

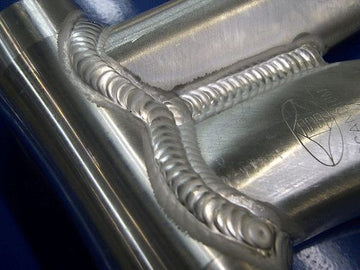

• More Aesthetic Welds: Easier to achieve the “stacked-dime” appearance.

Conclusion

In aluminum MIG welding, wire feeding issues and overheating are often the biggest challenges. By combining the right machine settings and accessories, you can significantly improve both weld quality and operator comfort:

• Use the Pulse MIG function on the Arccaptain MIG205MP.

• Choose 5356 aluminum wire in 0.045-inch diameter.

• Install a graphene liner and 0.045 drive roll.

• Set proper preflow and postflow times.

These optimizations not only eliminate common aluminum feeding problems but also improve comfort and weld consistency. For both DIY enthusiasts and professional welders, the Arccaptain MIG205MP is more than just a multi-process welder—it’s a reliable partner that makes aluminum MIG welding easier, smoother, and more efficient.
