Arccaptain ARC250 250A Synergic Stick Welder with Lift TIG

250A | Stick and Lift TIG | SYN Control
Translation missing: es.products.product.price.regular_price $239.99 USD
Translation missing: es.products.product.price.sale_price $239.99 USD Translation missing: es.products.product.price.regular_price $289.99 USD
Guardar 17%
250A high-performance synergic stick welder with stable arc control for precise and efficient welding
payment icon
  • Estimated Delivery:Apr 10 - Apr 14

    • Free Fast Shipping On orders over $100
    • Experience peace of mind with our trusted logistics services.

Arccaptain ARC250 250A Synergic Stick Welder with Lift TIG

Translation missing: es.products.product.price.regular_price $239.99 USD
Translation missing: es.products.product.price.sale_price $239.99 USD Translation missing: es.products.product.price.regular_price $289.99 USD
Description

2026 Upgraded — ARC250

250 Amps
Synergic Control

Stick Welder Built for the Real World

The Arccaptain ARC250 is a 250-amp dual-process stick welder with synergic current-voltage matching, a large 3.2" LED display, and IGBT inverter technology — in an 11.5 lbs machine you can carry anywhere. Whether you're just starting out or running production welds, the ARC250 handles it without compromise.

250A
MMA Output
220A
Lift TIG Output
11.5 lbs
Machine Weight
2-in-1
MMA + Lift TIG
Core Technology

Synergic Control — One Setting Does the Work


Most stick welders put the math on you. The ARC250 does it for you — or gets out of your way entirely.

For Beginners
Select Your Rod Diameter — Everything Else Is Set

Tell the ARC250A what rod diameter you're running and the synergic control system automatically calculates and sets the correct current and voltage. No guesswork, no burned rods, no porosity from running the wrong amperage. You focus on your hand position and travel speed — the machine handles the parameters.

For Experienced Welders
Full Manual Override — Adjust Every Parameter

Experienced welders who know exactly what they want get complete control. MMA current 20–250A, Hot Start 0–60A, Arc Force 0–100A — all independently adjustable. Dial in a soft arc for thin sheet metal or an aggressive arc for structural plate. The display shows your live settings at a glance without lifting your helmet.

Advanced MCU + IGBT Inverter
The ARC250A runs on a built-in advanced MCU control system paired with IGBT inverter technology. The result is precise digital control over the arc throughout the entire weld — consistent arc stability, reduced spatter, and smooth bead formation from start to finish.
What Makes It Different

Five Reasons the ARC250 Works Harder Than Its Price


01
Large 3.2" LED Display — Read It With Your Helmet On

The 3.2-inch LED panel shows your current, voltage, and active settings at full visibility even in bright shop lighting. No squinting, no leaning in, no removing your helmet mid-weld. When you're adjusting parameters between passes, the display confirms your settings instantly and clearly — a detail that matters more the longer you're welding.

02
Hot Start & Arc Force — No Sticking, Smooth Arc Every Time

Hot Start (0–60A) delivers a momentary current surge at arc initiation to prevent the electrode from sticking to the base metal — the most frustrating failure point in stick welding. Arc Force (0–100A) dynamically boosts current when the arc length shortens, preventing the rod from drowning in the puddle. Together, they give you a consistent, stable arc from the first strike to the last inch of the rod.

03
Automatic Anti-Stick Protection

When an electrode sticks to the workpiece, the ARC250A automatically cuts output current to release the rod without damaging the machine or creating a safety hazard. No manual intervention, no overheating, no blown fuses. Pull the rod free, restrike, and keep going. This feature alone saves significant time and frustration on longer welding sessions.

04
Lift TIG Built In — One Machine, Two Processes

Switch to Lift TIG mode for cleaner, lower-spatter welds on stainless steel and thinner materials where stick can be overkill. Lift TIG output runs 20–220A. The TIG torch is sold separately, but once connected you have a capable second process available on the same machine — no second power unit, no extra footprint in the shop. Perfect for fabricators who need to switch between rough structural work and cleaner finish welds.

05
11.5 lbs — Take It to the Work, Not the Other Way Around

At 11.5 pounds with a handle and included shoulder strap, the ARC250A goes wherever the job is. Farm repairs, outdoor maintenance, job site fab work, garage projects — a welder this light means no excuses and no setup delays. The package also includes 10 welding rods, a wire brush, a 10 ft electrode holder, and a 10 ft ground clamp, so you're ready to weld immediately out of the box.

Electrode Compatibility

Welding Rod Guide


The ARC250 is tested and optimized for the four most common welding rods used by American fabricators and maintenance welders.

Rod Type Best For Arc Type Position ARC250A
E6010 Pipe, structural, dirty or rusty steel Deep penetrating, fast-freeze All positions Optimized
E6011 AC or DC, outdoor, all-position on rusty or coated steel Moderate penetration, flexible All positions Optimized
E6013 Sheet metal, light fabrication, beginners Soft arc, easy slag removal Flat, horizontal Optimized
E7018 Structural steel, low-hydrogen, code work Smooth, low spatter, strong bead All positions Optimized
Material Compatibility
The ARC250A handles mild steel, stainless steel, and other weldable metals in MMA mode. In Lift TIG mode (torch sold separately), it adds capability on stainless and thinner stock where stick welding produces too much heat input.
Where It Works

Built for Every Place You Actually Weld


01
Farm & Ranch Repair

Equipment breaks in the field, not in the shop. The ARC250A's 250-amp output handles heavy implement steel and structural repairs, while its light weight means you carry it to the equipment rather than trailering equipment to a shop.

02
Home Garage & DIY Fabrication

Gates, brackets, trailers, garden tools, vehicle repairs — the synergic mode makes it beginner-accessible while the full parameter range satisfies welders who've been running stick for years. Ready to weld right out of the box.

03
Job Site & Outdoor Work

Stick welding is the go-to for outdoor work because it handles wind, surface contamination, and rusty steel better than MIG or TIG. The ARC250A adds Hot Start and Arc Force on top of the fundamentals, making field welding more consistent.

04
Light Manufacturing & Production

The MCU control system and IGBT inverter maintain stable arc characteristics across repeated welds — critical when you're running the same joint over and over. Consistent results, repeatable settings, minimal setup time between pieces.

Technical Specifications

Full Spec Sheet


MMA Current Range
20–250A
Adjustable in 1A increments
Lift TIG Current Range
20–220A
TIG torch sold separately
Hot Start
0–60A
Adjustable arc initiation boost
Arc Force
0–100A
Dynamic arc stability control
Plate Thickness
1/16" to 5/8"
Selectable as guidance parameter
Display
3.2" LED
Visible with helmet on
Machine Weight
11.5 lbs
With shoulder strap included
Inverter Technology
IGBT
Advanced MCU digital control
Process
MMA + Lift TIG
2-in-1, switchable
Protection
Full Suite
Over-current, over-voltage, overload, over-heat
Certifications
FCC / ANSI
Tested pre-shipment
Warranty
2 Years
Register at arccaptain.com
How It Stacks Up

ARC250A vs a Basic Stick Welder


Feature Standard Stick Welder ARC250
Synergic auto current-voltage matching
Large LED display — readable with helmet on
Adjustable Hot Start ✓ 0–60A
Adjustable Arc Force ✓ 0–100A
Automatic anti-stick protection
Lift TIG mode built in ✓ 20–220A
IGBT inverter with MCU digital control Varies ✓ Standard
Ready to weld out of the box Varies ✓ Rods + leads included

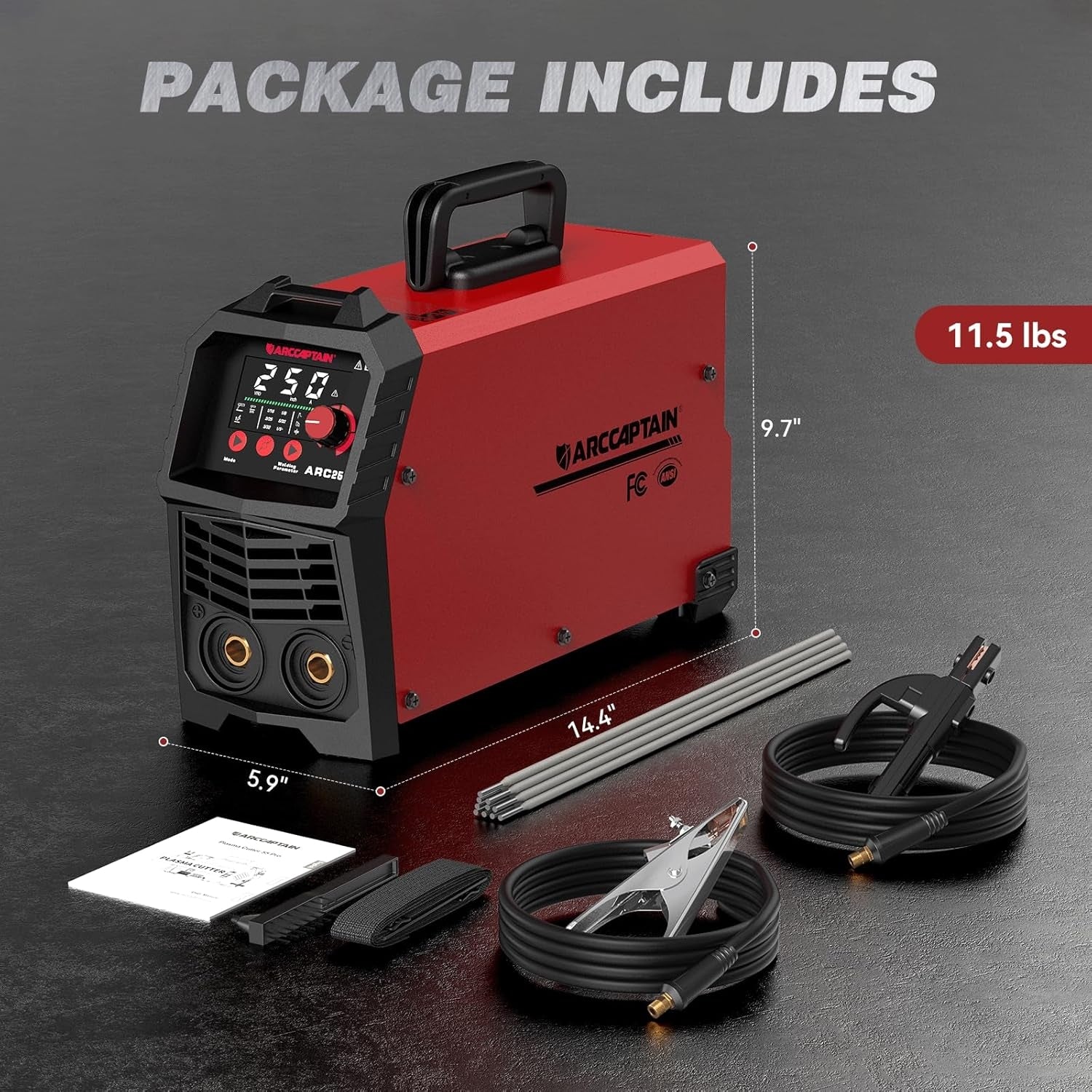

Package Contents

What Ships With the ARC250


Everything you need to start welding is in the box. No separate accessory orders required.

Unit
ARC250
Stick welder with LED display
Electrode Holder
10 ft
Stinger lead included
Ground Clamp
10 ft
Work lead cable
E6013 Welding Rods
10 pcs
Ready to use immediately
Wire Brush
1 pc
Slag removal tool
Shoulder Strap
1 pc
For portable carry
Lift TIG Note
Lift TIG mode is built into the ARC250A but requires a separate TIG torch (not included). No additional control box or power unit is needed — connect a compatible TIG torch to the machine and switch modes on the panel.
Quality & Reliability

Tested Before It Ships


Every ARC250 passes Arccaptain's pre-shipment test protocol. You receive a machine that has already been verified — not one you're testing yourself.

FCC
Certified
ANSI
Certified
2 Yr
Warranty
4x
Protection Systems
  • Over-current protection — shuts down output if current exceeds safe operating limits
  • Over-voltage protection — guards internal components against input voltage spikes
  • Overload protection — prevents sustained operation beyond the machine's rated capacity
  • Over-heat protection — thermal cutout with automatic cooling fan prevents heat damage
Power-On Sequence
Wait for the screen to go off and the fan to stop before powering on. This ensures the machine initializes correctly and protection circuits reset properly between welding sessions.
ArcCaptain ARC250 — 2026 Upgraded

250 Amps of Stick Welding That Goes Where You Go

Synergic control for beginners. Full manual override for pros. Hot Start, Arc Force, anti-stick, and Lift TIG in one 11.5 lbs machine ready to weld out of the box.

2-Year Warranty
FCC / ANSI Certified
250A
MMA Output
Specifications
Technical Specifications
Scroll horizontally to see all columns
Parameter Units ARC250A
Rated input voltage V AC230V ±15%, 50/60Hz
Rated input power kVA 12.6
Welding current range (MMA) A 20–250
Welding voltage range (MMA) V 20.8–28
Welding current range (TIG) A 20–220
Welding voltage range (TIG) V 10.8–18
Rated duty cycle % 60%
No-load voltage V 78
Overall efficiency % 85%
Protection grade IP21S
Power factor COSφ = 0.7
Insulation grade H
Standard UL60974-1
Dimensions (L×W×H) in 14.9 × 5.7 × 9.7
Dimensions (L×W×H) mm 380 × 146 × 248
Net weight lb / kg 11.5 lb / 5.23 kg
Applicable electrode diameter in / mm 1/16"–1/5"+ / 1.6–6.0 mm
Stick Welding Parameters — Electrode Selection Guide
Scroll horizontally to see all columns
Base Metal Rod Type Metal Thickness Electrode Dia Amperage Range
Carbon Steel / Stainless Steel E6013 / E7018 / E6011 1.6 mm (1/16 in) 1.6 mm (1/16 in) 20–60 A
Carbon Steel / Stainless Steel E6013 / E7018 / E6011 2.0 mm (5/64 in) 2.0 mm (5/64 in) 40–80 A
Carbon Steel / Stainless Steel E6013 / E7018 / E6011 2.4 mm (3/32 in) 2.4 mm (3/32 in) 60–90 A
Carbon Steel / Stainless Steel E6013 / E7018 / E6011 3.2 mm (1/8 in) 3.2 mm (1/8 in) 90–140 A
Carbon Steel / Stainless Steel E6013 / E7018 / E6011 4.0 mm (5/32 in) 4.0 mm (5/32 in) 140–180 A
Carbon Steel / Stainless Steel E6013 / E7018 / E6011 5.0 mm+ (3/16 in+) 5.0 mm+ (3/16 in+) 180–250 A
Warranty & Return

Declaración de responsabilidad limitada

ARCCAPTAIN Welder garantiza expresamente a todos los compradores ("Comprador") de todos los equipos nuevos de soldadura y corte, casco y piezas de repuesto ("Bienes") que los Productos estarán libres de defectos de fabricación en materiales y mano de obra que se descubran dentro del período de garantía. sujeto a las exenciones de responsabilidad y limitaciones de la Declaración. Esta garantía queda anulada si el equipo ha sido sometido a instalación y pruebas inadecuadas, cuidado inadecuado, reparación y modificación no autorizadas u operaciones anormales.

Período de garantía

Asumiremos tanto el reemplazo de piezas como los gastos de reparación para corregir defectos durante el período de garantía. Todos los períodos de garantía comienzan a partir de la fecha de entrega y son los siguientes:

Declaración de garantía para soldador:

El Vendedor asumirá tanto el reemplazo de piezas como los gastos de reparación para corregir los defectos durante el período de garantía.  Todos los períodos de garantía comienzan a partir de la fecha de entrega y son los siguientes:

La garantía de la máquina Arccaptain

MODELO DE MÁQUINA Tiempo de garantia
ARCO200 2 años
ARCO160 2 años
MIG130 2 años
MIG200 2 años
CORTAR50 2 años
CC TIG200 2 años
TIG200P CA/CC 5 años

    Si los artículos comprados dentro de la escala anterior se vuelven defectuosos debido a materiales o mano de obra defectuosos dentro de un período de 2 años a partir de la fecha de compra, garantizamos realizar una de las siguientes acciones, aunque es posible que deba pagar los costos de envío por la devolución de el producto a nosotros y el envío del producto reparado/reemplazado a usted:

    • Reemplace o repare todas las piezas defectuosas,
    • Reparar una unidad defectuosa
    • Reemplace la unidad con una unidad nueva o reacondicionada.

    Garantía para casco de soldadura

    Garantía estándar de 180 días

    Casco de soldadura

    Declaración de garantía para piezas soldadas

    Garantía estándar de 90 días

    • Piezas de repuesto
    • Accesorios de antorcha/consumibles/medidores de soldadura
    • Tungsteno

    El Comprador debe comunicarse con el Vendedor solicitando cobertura de garantía dentro de los treinta (30) días a partir de la fecha en que el Comprador tuvo conocimiento del defecto en www.arccaptain.com.

    Esta Garantía Limitada está sujeta a las siguientes condiciones:

    • Requerir comprobante de compra que incluya el número de pedido y el lugar de compra.
    • El artículo no ha sido mal utilizado, abusado, descuidado, alterado, modificado o reparado por nadie que no sea el centro de servicio autorizado de ARCCAPTAIN.
    • El defecto o daño al artículo no ha resultado del uso de accesorios o piezas que sean inapropiadas para el funcionamiento normal de la herramienta, o que no estén diseñadas para usarse con el artículo.
    • El artículo no ha sido sometido a desgaste normal.
    • El artículo no se ha utilizado con fines comerciales.
    • El artículo no se ha utilizado con fines de alquiler.
    • El artículo no ha sufrido daños por objetos extraños, sustancias o accidentes.

    Limitación y descargo de responsabilidad

    Los productos están destinados a usuarios comerciales e industriales que estén capacitados y tengan experiencia en el uso y mantenimiento de equipos de soldadura. Los recursos del Comprador se limitarán exclusivamente a los previstos en esta Declaración. No existen garantías expresas distintas a las aquí contenidas. El Vendedor no garantiza ninguna parte de los Bienes no fabricados por el Vendedor o sus asociados (ya sean especificados o no por el Comprador), pero el Vendedor cederá al Comprador, previa solicitud, todas las garantías asignables sobre los productos de los proveedores del Vendedor relacionados con dichos Bienes. El Vendedor no garantiza que él o los Bienes cumplan con los estándares, pautas o procedimientos de cualquier entidad, organización o industria, a menos que estén específicamente contenidos en un escrito firmado por el Vendedor.

    Correo electrónico de garantía: support@arccaptain.com

    Costo del flete

    El Comprador es responsable del envío hacia y desde el almacén del Vendedor o un centro de servicio autorizado por el Vendedor. Más detalles sobre la política de devoluciones .

    POLITICA DE REEMBOLSO

    Para ser elegible para una devolución, su artículo debe estar en las mismas condiciones en que lo recibió, sin usar o sin usar, con etiquetas y en su embalaje original. También necesitarás el recibo o comprobante de compra.

    Lea la política de devoluciones aquí.

    Una vez que hayamos aprobado su solicitud de devolución, comenzaremos el proceso de reembolso.

    Si se acepta su devolución, le enviaremos una etiqueta de envío de devolución, así como instrucciones sobre cómo y dónde enviar su paquete. No se aceptarán los artículos que nos devuelvan sin solicitar primero una devolución. Siempre puede contactarnos para cualquier pregunta sobre devolución en soporte@arccaptain.com .

    Daños y problemas
    Inspeccione su pedido al recibirlo y contáctenos de inmediato si el artículo está defectuoso, dañado o si recibe el artículo incorrecto, para que podamos evaluar el problema y solucionarlo.

    Excepciones / artículos no retornables
    Ciertos tipos de artículos no se pueden devolver, como productos perecederos (como alimentos, flores o plantas), productos personalizados (como pedidos especiales o artículos personalizados) y artículos de cuidado personal (como productos de belleza). Tampoco aceptamos devoluciones de materiales peligrosos, líquidos o gases inflamables. Póngase en contacto con nosotros si tiene preguntas o inquietudes sobre su artículo específico. Desafortunadamente, no podemos aceptar devoluciones de artículos en oferta o tarjetas de regalo.

    Intercambios
    La forma más rápida de asegurarse de obtener lo que desea es devolver el artículo que tiene y, una vez aceptada la devolución, realizar una compra por separado para el artículo nuevo.

    Unión Europea Período de reflexión de 14 días
    Sin perjuicio de lo anterior, si la mercancía se envía a la Unión Europea, tienes derecho a cancelar o devolver tu pedido en un plazo de 14 días, por cualquier motivo y sin justificación. Como se indicó anteriormente, su artículo debe estar en las mismas condiciones en que lo recibió, sin usar o sin usar, con etiquetas y en su embalaje original. También necesitarás el recibo o comprobante de compra.

    Reembolsos
    Le notificaremos una vez que hayamos recibido e inspeccionado su devolución y le informaremos si el reembolso fue aprobado o no. Si se aprueba, se le reembolsará automáticamente en su método de pago original dentro de los 10 días hábiles. Recuerde que su banco o compañía de tarjeta de crédito puede tardar algún tiempo en procesar y publicar el reembolso también.
    Si han pasado más de 15 días hábiles desde que aprobamos su devolución, contáctenos en support@arccaptain.com .

    FAQ

    It can weld carbon steel, stainless steel, copper, cast iron, and nickel alloys, with a working thickness of 2–16mm (1/12”–5/8”).

    Yes. It runs on 230V single-phase power, suitable for most home garages and workshops.

    Yes. It features adjustable Arc Force and Hot Start, providing fast, stable arc ignition with minimal sticking, even for beginners.

    The machine delivers up to 250A output with a 60% duty cycle, suitable for both light and heavy-duty welding tasks.

    Compatible with: E6013/E7018/E6011/E6010 stick welding rods.

    Yes. It weighs only 11.5 lbs, and comes with a carry handle and shoulder strap, making it easy to transport.

    1 x MMA Welder Unit
    1 x 200A Electrode Holder (10 ft)
    1 x 300A Ground Clamp (10 ft)
    1 x Shoulder Carry Strap
    1 x Chipping Hammer with Wire Brush
    10 x E6013 3.2mm Welding Rods
