Uphill vs Downhill Welding

Dec 26, 2023

Uphill vs Downhill Welding - Pros and Cons

Choosing between uphill and downhill welding can make a big difference in your projects. These two methods are like the paths in welding: each has its own strengths and challenges.

In this article, we simplify the uphill vs downhill welding debate. You'll discover the key differences, when to use each technique, and how they impact the quality of your welds. Whether you're a beginner or a seasoned welder, understanding these styles is crucial for achieving the best results in your welding work.

What is an Uphill Welding?

Uphill welding is a welding technique where the welder welds against gravity. This technique is also known as vertical up welding and is commonly used in welding thicker metals. In this section, we will discuss the advantages of uphill welding and the techniques used to perform it.

What Are the Benefits of Uphill Welding?

One of the significant advantages of uphill welding is that it provides better penetration.

Better Penetration in Uphill Welding Aspects

In uphill welding, the method of "better penetration" involves two key aspects:

  1. Heat and Melted Metal Directed Deep into the Joint

    • When welding uphill, the welder can effectively focus the heat and molten metal more deeply into the joint being welded.
    • The technique allows for a more precise and targeted application of heat and melted metal.
  2. Results in Stronger Welds with Fewer Defects

    • Because the heat and molten metal are directed more deeply, the weld penetrates further into the materials being joined.
    • This deep penetration creates a stronger bond between the materials.
    • It also significantly reduces the likelihood of common welding issues, such as gaps or incomplete fusion, where the metal doesn't fully join together.
    • A deeper, more thorough weld means a more durable and reliable connection.

Less Heat Needed in Uphill Welding

The concept of "less heat needed" in uphill welding revolves around three main points:

  1. Gravity's Role in Uphill Welding

    • In uphill welding, gravity plays a beneficial role.
    • As the welder works upward, gravity naturally helps in pulling the molten metal upwards into the weld.
    • This unique interaction with gravity is different from other welding positions where the welder might struggle against gravity.
  2. Easier Heat Management

    • Due to gravity's assistance in moving the molten metal, the welder can use less heat.
    • The welder has more control over the molten pool, making it easier to manage and manipulate.
    • This control is crucial for creating a consistent and quality weld without using excessive heat.
  3. Reduced Risk of Overheating and Distortion

    • Using less heat means there's a smaller risk of the metal overheating.
    • Overheating can lead to various issues, such as warping or distortion of the metal.
    • By maintaining a lower temperature, the integrity and shape of the metal are better preserved.

In essence, uphill welding's requirement for less heat, thanks to gravity's assistance, leads to easier heat management and a reduced risk of overheating the metal. This helps maintain the metal's shape and structural integrity, ensuring a high-quality weld.

Stick Welding Uphill Technique

To perform uphill welding, the welder must use the correct technique. One technique used in uphill welding is stick welding, where the welder uses a stick electrode to create the weld. The welder moves the electrode in a weaving motion to create a wider bead and ensure proper penetration.

Another technique used in uphill welding is the use of a backing bar. A backing bar is a piece of metal that is placed behind the weld joint to support the molten metal and prevent it from falling through. The backing bar also helps to ensure proper penetration and reduces the risk of weld defects.

In conclusion, uphill welding is a useful technique for welding thicker metals and providing better penetration. By using the correct technique and equipment, welders can create strong and reliable welds that are less likely to fail.

What is Downhill Welding?

Downhill welding is a welding technique where you weld in the direction of gravity, allowing the weld pool to flow downhill. This method is often used when welding thinner metals, as it requires less heat input and results in a flatter weld bead.

Advantages of Downhill Welding

Downhill welding offers distinct benefits, particularly when working with thinner materials. It's faster and more efficient, making it ideal for projects where time is a critical factor. This method also provides less penetration, which is suitable for thin metals as it reduces the risk of burning through the material. Additionally, downhill welding is often easier to learn, making it a great choice for beginners. Here's a quick glance at its advantages:

Advantage Description Example Use Cases
Speed Welds are completed faster. Large-scale industrial projects
Efficiency Less heat and energy are used. Thin metal sheets, automotive
Suitable Penetration Ideal for thin materials without excessive penetration. Pipes, sheet metal
Beginner-Friendly Easier to master than other techniques. DIY projects, beginner welders

In essence, downhill welding is a go-to option for quick, efficient, and effective welding of thinner materials, offering an approachable learning curve for those new to welding.

Techniques for Downhill Welding

To perform downhill welding, you need to start at the top of the weld joint and work your way down. This is known as the downhill progression. When welding vertical down, you should move the electrode in a straight line, keeping a consistent speed and angle.

When welding thinner metals, it is important to use the right welding parameters. This includes adjusting the amperage and voltage to ensure that the heat input is just right. You should also use a smaller electrode diameter to achieve a more precise weld bead.

In conclusion, downhill welding is a useful technique for welding thinner metals quickly and efficiently. By using the right welding techniques and parameters, you can achieve a flatter weld bead with less distortion, saving you time and money.

How Welding Works and What You Need to Know

When it comes to welding, the process involves joining two or more pieces of metal together through fusion. This is achieved by creating a weld pool, which is a molten metal area that forms between the pieces being joined. A welder then adds a filler material, which melts and mixes with the base metal to create a solid joint.

The quality of a weld depends on a variety of factors, including the skill of the welder, the type of welding process used, and the conditions under which the welding takes place. Welding can be done in a variety of positions, including flat, horizontal, vertical, and overhead.

Different Welding Types and Their Uses

Welding Type Best For Position
MIG General use, easy to learn All positions
TIG Precise and strong welds All positions
Stick Outdoors or tough spots Uphill, Downhill

There are several different types of welding processes, each with its advantages and disadvantages. Some of the most common types include MIG (Metal Inert Gas) welding, TIG (Tungsten Inert Gas) welding, and stick welding.

Regardless of the type of welding being done, it is important to ensure that the weld pool is properly formed and that the filler material is added at the correct rate. This requires a steady hand and a deep understanding of the welding process.

In addition to the technical aspects of welding, it is also important to consider factors such as safety and environmental impact. Welding can produce harmful fumes and sparks, so proper ventilation and protective gear are essential. Additionally, the materials being welded may have specific handling and disposal requirements.

Overall, welding is a complex and nuanced process that requires skill, knowledge, and attention to detail. Whether you are a professional welder or just starting, it is important to approach each welding job with care and precision to ensure a strong and reliable joint.

Downhill vs Uphill Welding: Which Technique is Better?

When comparing downhill and uphill welding, it's important to understand that each technique has its own set of advantages and ideal applications. The choice between the two depends on various factors like the type of material, thickness, and desired strength of the weld. Let's break down each technique:

Downhill Welding

  1. Faster Welding Speed:

    • Downhill welding is typically faster than uphill welding. This can be advantageous in projects where speed is a priority.
  2. Lower Penetration:

    • This method generally results in less penetration than uphill welding. While this might be suitable for thinner materials, it may not be ideal for structures requiring high strength.
  3. Easier for Beginners:

    • Many find downhill welding easier to learn and execute, making it a good starting point for beginners.
  4. Specific Applications:

    • It's often used for thin materials and in situations where weld appearance is more important than its strength.

Uphill Welding

  1. Better Penetration:

    • Uphill welding provides deeper penetration, making the weld stronger. This is crucial for thick materials and high-stress applications.
  2. Stronger Welds:

    • The technique generally results in stronger, more durable welds due to better fusion of the material.
  3. Heat Control:

    • It offers better control over heat input, reducing the risk of overheating and warping the material.
  4. Skill Requirement:

    • Uphill welding can be more challenging and may require more skill and practice.

Which Technique is Better?

  • Material Thickness and Type:

    • For thinner materials or where appearance is key, downhill welding might be preferred. For thicker, more structurally demanding tasks, uphill welding is better.
  • Desired Strength of Weld:

    • If strength and durability are paramount, especially in load-bearing structures, uphill welding is the go-to choice.
  • Skill Level of the Welder:

    • Beginners might find downhill welding more manageable, while experienced welders may opt for uphill for a stronger weld.
  • Project Requirements:

    • The specific requirements of the project, such as speed, strength, and appearance, will greatly influence the choice.

In conclusion, neither technique is universally "better" than the other. The choice between downhill and uphill welding depends on the specific requirements of the welding project, the materials involved, and the skill level of the welder.

When to Use Vertical Welding?

Vertical welding is a specialized technique best suited for certain scenarios where the position of the weld is vertical. This method is often used when working with walls, sides of structures, or in tight spaces where other welding positions are not feasible. Its key applications include:

  • Structural Welding: Ideal for building frameworks, especially in construction where vertical beams and supports are involved.
  • Pipeline Construction: Essential for welding vertical sections of pipelines, especially in oil and gas industries.
  • Shipbuilding and Repair: Used for welding vertical hulls or bulkheads in ships.
  • Storage Tanks: Crucial for welding the vertical seams of large storage tanks and silos.

In summary, vertical welding is the go-to method in situations where the workpiece is positioned vertically and requires a strong, durable weld. It's particularly essential in construction, pipeline installation, shipbuilding, and storage tank fabrication, where vertical joins are common.


Flat and Horizontal Welding

Flat welding is a welding position where the weld is performed on a flat surface. This welding position is designated as PF, and is commonly used for welding plates and other flat surfaces. Flat welding is relatively easy compared to other welding positions, as the welder can maintain a consistent travel speed and angle of the welding torch.

Horizontal welding is a welding position where the weld is performed on a horizontal surface. This welding position is designated as 2G or 2F, depending on the welding process used. Horizontal welding is commonly used for welding plates and other flat surfaces that are oriented horizontally.

In both horizontal and flat welding positions, the welder must maintain a consistent travel speed and maintain the correct angle of the welding torch. The welder must also ensure that the weld pool is not too large, to prevent the weld from becoming unstable.

When welding in the flat position, fillet welds and groove welds are commonly used. Fillet welds are used to join two pieces of metal at a right angle, while groove welds are used to join two pieces of metal along the edge of a joint.

Welding Equipment and Materials

Selecting the appropriate equipment and materials is vital for ensuring a strong and durable weld. This decision is especially important when considering the differences between uphill and downhill welding techniques. Here are essential factors to keep in mind when choosing your welding gear and materials:

1. Choosing the Right Welding Rods

The type of welding rods you use will depend on the material you are welding. For example, if you are welding mild steel, you would typically use E6010 or E7018 rods. For stainless steel, you would use E308L rods. For cast iron, you would use E7018-1 rods.

It's also important to consider the diameter of the welding rod. Thicker rods can handle higher amperage, while thinner rods are better suited for low-amperage welding.

2. Understanding Welding Machines

Different welding machines are designed for different types of welding. The three most common types of welding machines are MIG (GMAW), Stick (SMAW), and TIG (GTAW).

MIG welding machines are ideal for welding thin materials, such as sheet metal, and are commonly used in automotive and fabrication industries. Stick welding machines are versatile and can be used for welding a variety of materials, including copper, stainless steel, and cast iron. TIG welding machines are best for precision welding and are commonly used in aerospace and medical industries.

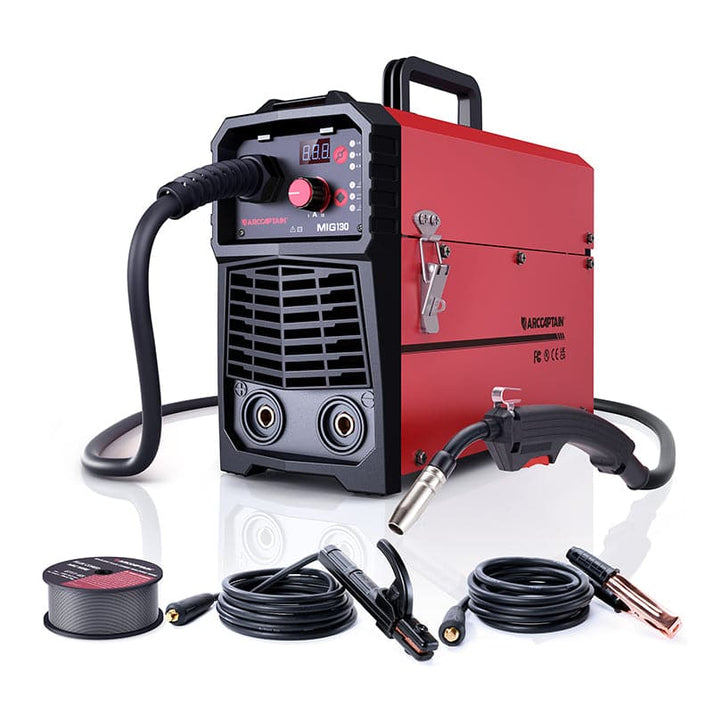

Why Choose ArcCaptain MIG Welder?

When selecting a welding machine, it's important to consider factors such as amperage, duty cycle, and input voltage. It's also important to select a machine that is compatible with the welding rods and materials you will be using.

Uphill Vs Downhill welding - ARCCAPTAIN MIG200 Multi Process MIG Welder

Core Strength: Synergic Function

  • Every MIG Welder by Arccaptain is equipped with our flagship synergic function.
  • Continuous innovation in digital welding technology is our commitment.

Synergic Technology Explained

  • Automatic adjustment of welding parameters to match the material type.
  • Ensures consistent, high-quality welds across varying material thicknesses and types.

Efficiency and Simplicity

  • User-friendly: Simplifies the welding process, minimizing manual parameter adjustments.
  • Our rich experience is embedded in the optimal parameter settings of the Synergic function.

User-Friendly Design

  • Intuitive controls, ideal for both beginners and experienced welders.
  • Compact and lightweight for easy transportation and versatility in various environments.

Ideal for All Welders

  • Perfect for both novice welders and DIY enthusiasts.
  • A tool designed for precision, efficiency, and superior welding performance.

Affordability Meets Quality

  • High-quality, efficient welding solutions at an affordable price.
  • No compromise on precision or durability despite the cost-effectiveness.
  • Ideal for any welding project without straining your budget.

Arccaptain's Commitment

  • Quality and affordability in one package.
  • Elevate your welding experience without breaking the bank.

By carefully selecting your welding equipment and materials, you can ensure a successful weld that meets your needs and requirements.

Welding Safety and Best Practices

Welding can be a dangerous job, and safety should always be your top priority. Here are some safety precautions you should follow to minimize the risk of injury:

  • Always wear protective gear, including ArcCaptain' Heat-Resistant Welding Gloves, a welding helmet, and a flame-resistant jacket.
  • Make sure your work area is well-ventilated to prevent inhaling dangerous fumes.
  • Keep a fire extinguisher nearby in case of an emergency.
  • Never weld on a surface that is wet or near flammable materials.
  • Be aware of your surroundings and keep others at a safe distance.

Mastering Welding Techniques

Whether you're a beginner or an experienced welder, mastering welding techniques is essential to producing high-quality welds. Here are some basic techniques to keep in mind:

  • Choose the method of welding that is best suited for the job at hand. MIG welding is a popular method of choice for beginners, while TIG welding is often preferred for more complex projects.
  • Practice proper technique, including maintaining the correct distance between the electrode and the workpiece, and using the right amount of heat to avoid overheating the metal.
  • Take your time and be patient. Welding is a skill that takes time to master, so don't rush the process.
  • Always clean your workpiece thoroughly before welding to ensure proper adhesion.

By following these safety precautions and mastering basic welding techniques, you can ensure that your welding projects are completed safely and with high-quality results.

Advanced Welding Considerations

When it comes to welding, many factors need to be considered to ensure a successful weld. In addition to the basic techniques of uphill and downhill welding, there are several advanced considerations that you should be aware of.

1. Welding Different Metals and Thicknesses

One of the most important considerations when welding is the type of metal and its thickness. Different metals have different properties and require different welding techniques. For example, welding thin metals requires a different approach than welding thicker metals. When welding thin metals, it is important to use a low heat input to prevent warping and distortion. Thicker metals, on the other hand, require higher heat input to ensure a strong weld.

Another important consideration is to preheat. Preheating the metal before welding can help reduce the risk of cracking and improve the quality of the weld. The preheat temperature will depend on the type and thickness of the metal being welded.

2. Adapting to Complex Welding Positions

Welding is not always a simple process, and sometimes you will need to adapt to complex welding positions. For example, vertical position welding requires a different technique than horizontal welding. When welding in a vertical position, it is important to use a slower wire speed and higher voltage to ensure a strong weld.

Pipe welding and welding thin wall tubing also require special techniques. When welding pipes, it is important to maintain a consistent gap between the pipes to ensure a strong weld. Welding thin wall tubing requires a delicate touch and a low heat input to prevent warping and distortion.

In conclusion, advanced welding considerations are important to ensure a successful weld. By taking into account factors such as metal thickness, preheat, and welding position, you can improve the quality of your welds and ensure they are strong and durable.

Industry Applications and Variations

When it comes to welding, different industries require different techniques and variations. Uphill and downhill welding both have their own unique applications in various industries. Let's take a closer look at some of the industry applications and variations of uphill and downhill welding.

Pipe and Structural Welding

In pipe welding, uphill welding is generally preferred because it produces a stronger weld with better penetration. This is because the weld pool is pushed uphill against gravity, allowing for better fusion between the base metal and the filler metal. On the other hand, downhill welding is typically used for structural welding, where speed and efficiency are more important than strength. Downhill welding allows for faster travel speeds and smoother welds but can result in weaker welds with less penetration.

Automotive and Aerospace Applications

In the automotive industry, uphill welding is commonly used for welding exhaust systems and other high-temperature applications. This is because uphill welding produces a stronger, more durable weld that is better able to withstand high temperatures. Downhill welding, on the other hand, is typically used for body panel welding, where speed and efficiency are more important than strength.

In the aerospace industry, both uphill and downhill welding techniques are used depending on the specific application. Uphill welding is often used for welding critical components such as engine parts, while downhill welding is used for non-critical components such as brackets and supports.

In conclusion, the choice between uphill vs. downhill welding ultimately depends on the specific application and industry. It is important to understand the advantages and disadvantages of each technique to choose the best welding method for your particular project.

Frequently Asked Questions

Is welding uphill or downhill better?

The choice between uphill and downhill welding depends on the specific requirements of the project. Uphill welding is often preferred for thicker materials where stronger penetration is needed, while downhill welding is faster and more suitable for thinner materials.

Why do pipeliners weld downhill?

Pipeliners often weld downhill because it's a faster method that suits the typically thinner walls of pipelines. Downhill welding allows for quicker progress along the pipeline, which is essential in large-scale projects where efficiency and speed are key priorities.

What is uphill and downhill welding position?

Uphill welding refers to welding in a vertical position where you weld from the bottom up, often used for thicker materials. Downhill welding is the opposite, where you weld from the top down, typically preferred for thinner materials and faster welding speeds.

Is 6013 uphill or downhill?

The 6013 electrode can be used for both uphill and downhill welding. It's versatile and known for its easy handling, making it suitable for a variety of positions and applications.
