C25 MIG gas, a blend of 75% argon and 25% carbon dioxide, is the industry standard for MIG welding mild steel.
This precise mixture combines the arc stability of argon with the penetration power of CO2, producing welds that are both strong and visually clean.
Whether you are welding automotive frames, fabricating structural steel, or tackling DIY repairs, C25 MIG gas delivers consistent results across a wide range of applications.
Want to achieve better weld quality and minimize post-weld cleanup? Read on to discover how C25 MIG gas works, why it’s preferred, and how to set it up for optimal welding performance.
What Is C25 MIG Gas and Why It Matters
C25 MIG gas refers to a shielding gas mixture containing 75% argon and 25% carbon dioxide. The designation “C25” simply points to the CO2 content in the blend.
Shielding gases play a crucial role in MIG welding by protecting the molten weld pool from atmospheric contamination, which can cause porosity, weak welds, and oxidation.
The 75/25 ratio strikes a balance. Argon provides a stable arc and smooth weld appearance, while CO2 increases heat input and penetration.
This blend has become the default choice for welding mild and low-alloy steels because it offers an ideal combination of arc control, minimal spatter, and weld strength.
Engineers and welders choose C25 MIG gas when their goal is to produce high-quality welds with good mechanical properties and minimal cleanup.
📌 For a deeper look at MIG welding fundamentals, browse this guide: What is a MIG Welder?
The Science Behind C25 MIG Gas: Arc Stability and Weld Quality
The effectiveness of C25 MIG gas comes from the unique properties of its components:
- Argon (75%): An inert gas, argon stabilizes the welding arc, reduces spatter, and produces a flatter, more attractive weld bead. Its low ionization potential makes arc starting easy and keeps the arc steady.
- Carbon Dioxide (25%): While CO2 is active and less expensive, it increases heat and penetration, enabling the weld to fuse deeper into the steel. However, pure CO2 can cause excessive spatter and rougher welds.
By blending these gases, C25 provides a controlled arc with enough heat for strong welds and minimal spatter. The result is a weld that requires less grinding and finishing, saving both time and effort.
📌 If you’re interested in the role of shielding gases in MIG welding, check out: What Gas is Used for MIG Welding?
C25 MIG Gas vs. Other Shielding Gas Mixtures
Selecting the right shielding gas affects weld quality, productivity, and cost. Here’s how C25 compares to other common options:
- C25 (75% Argon/25% CO2): Ideal for mild steel. Offers a balance between arc stability, penetration, and low spatter.
- C10 (90% Argon/10% CO2): Produces a softer arc with less penetration and even lower spatter. Useful for thin materials or out-of-position welding.
- 100% CO2: Delivers the deepest penetration and is the most economical, but causes high spatter and rougher welds.
- 100% Argon: Necessary for welding non-ferrous metals like aluminum, but not suitable for steel due to shallow penetration and lack of cleaning action.
C25 is widely preferred in general fabrication, automotive, and repair shops because it is versatile and produces reliable results.
📌 For a technical comparison of welding processes, don’t forget to read: MIG vs MAG Welding
Best Applications for C25 MIG Gas
C25 MIG gas is tailored for welding carbon and low-alloy steels. Its properties make it suitable for:
- Structural steel fabrication
- Automotive repairs and bodywork
- Metal furniture and fixtures
- General maintenance and repair
While C25 can be used for some stainless steel applications, it is not recommended for aluminum or other non-ferrous metals. For those materials, pure argon or specialized gas blends are required.
📌 Discover more about matching shielding gases to metal types in this resource: What Gas is Used for MIG Welding?
Setting Up and Using C25 MIG Gas: Step-By-Step
Proper setup is essential to maximize the benefits of C25 MIG gas. Here’s a step-by-step guide:
- Secure the Cylinder: Place the C25 cylinder upright and fasten it to prevent tipping.

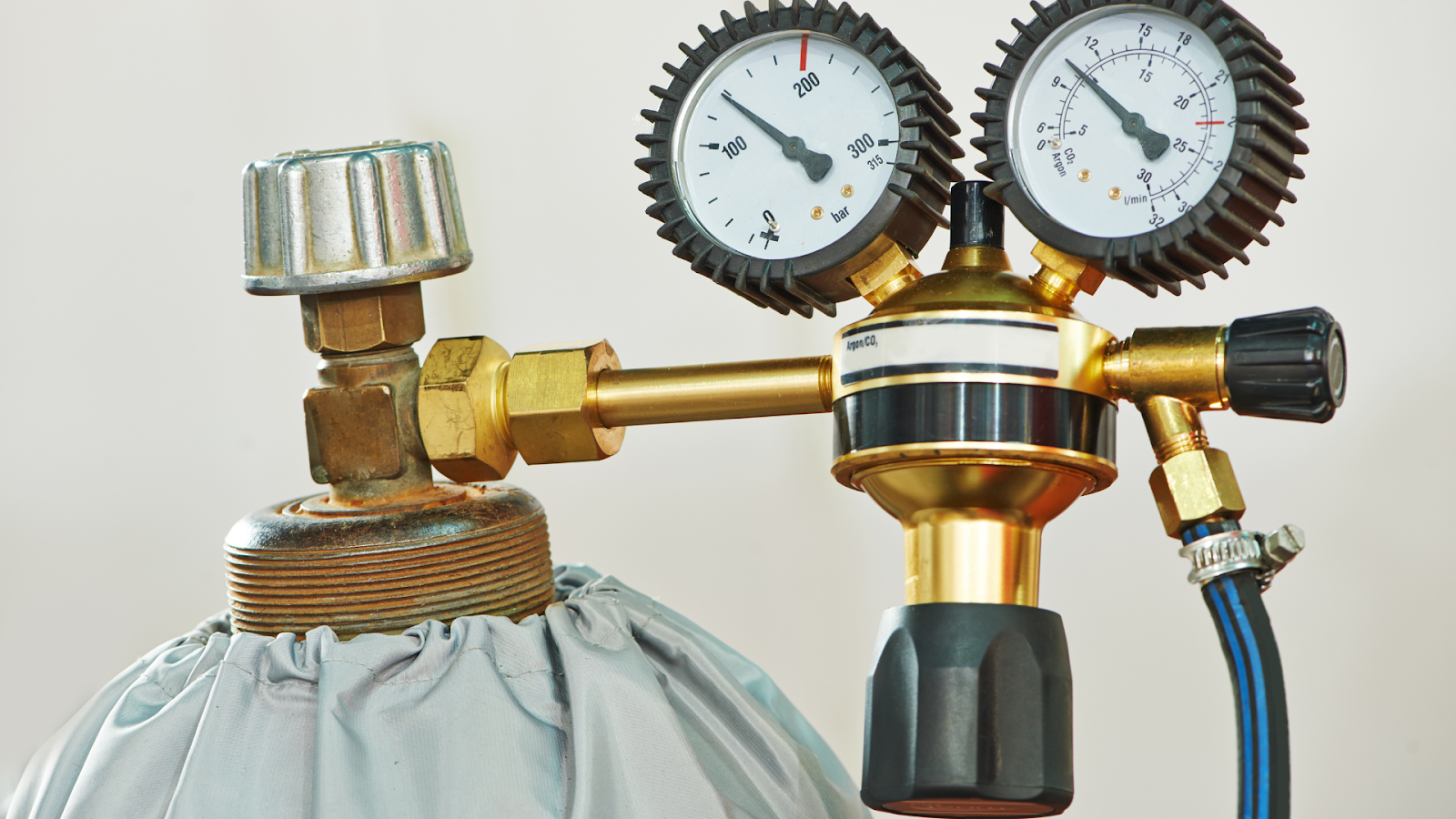

- Attach the Regulator: Connect the regulator and check all fittings for leaks using soapy water.
- Set the Flow Rate: Adjust the regulator to deliver 20–25 cubic feet per hour (CFH), depending on your welding environment and material thickness.
- Purge the Line: Briefly open the gas valve to remove air from the hose before starting.
- Begin Welding: Maintain a consistent nozzle distance (typically 3/8" to 1/2") from the workpiece to ensure adequate shielding.
Keep your nozzle and diffuser clean to prevent spatter buildup, which can disrupt gas flow and compromise weld quality.
Troubleshooting C25 MIG Gas Welding Challenges
Even with optimal gas blend and setup, issues can arise:
- Porosity: Caused by inadequate shielding. Check for leaks, increase flow rate, or shield your work from drafts.
- Excessive Spatter: May result from high voltage, improper wire feed speed, or insufficient gas coverage. Adjust your settings and clean the nozzle regularly.
- Weak or Dirty Welds: Clean the base metal thoroughly before welding and verify that your gas is flowing correctly.
Addressing these issues promptly ensures strong, clean, and reliable welds with C25 MIG gas.
Maximizing C25 MIG Gas Performance: Expert Recommendations
To unlock the full potential of C25 MIG gas, consider these best practices:
- Optimize Gas Flow: Use only as much gas as needed. Excessive flow can cause turbulence and draw in air.
- Maintain Equipment: Regularly inspect hoses, regulators, and nozzles for leaks or blockages.
- Store Cylinders Safely: Keep gas cylinders upright, secured, and away from heat sources.
- Practice Consistent Technique: Maintain steady travel speed and proper torch angle for uniform welds.
By following these steps, you will achieve high-quality welds while conserving gas and reducing costs.
Conclusion
C25 MIG gas remains the top choice for welding mild steel thanks to its balanced arc characteristics, strong penetration, and minimal spatter.
It is a versatile solution for fabrication, automotive repair, and general maintenance, offering both professionals and hobbyists reliable, clean results.
For more helpful guides and tips about MIG welding, check out the resources available at Arccaptain.
Ready to take your welding projects to the next level? Shop Arccaptain welding machines to find equipment that matches your needs and delivers consistent, high-quality welds.
Affordable MIG Welding Machines
Frequently Asked Questions About C25 MIG Gas
What is C25 welding gas?
C25 welding gas is a mixture of 75% argon and 25% carbon dioxide. It serves as a shielding gas in MIG welding, protecting the weld pool from air and improving weld quality. This blend is especially effective for mild steel welding.
What C25 setting for MIG welding?
A typical C25 gas flow setting is 20 to 25 cubic feet per hour (CFH). The exact setting may vary based on your welding environment, material thickness, and torch type. Always check for proper gas coverage and adjust as needed.
Can you MIG weld aluminum with 75 argon 25 CO2?
C25 gas is not recommended for aluminum welding. The presence of CO2 can cause poor weld appearance and weak joints in aluminum. For best results, use 100% argon when MIG welding aluminum.
Is MIG spray 75/25 gas?
Yes, the 75/25 (C25) gas blend can be used for spray transfer in MIG welding, provided the voltage and amperage are set high enough. Spray transfer produces a smooth, consistent weld bead and is best suited for thicker steel sections.
