Tungsten Electrode Color Chart Guide for Welders

TIG welding is all about precision, and the tungsten electrode you choose makes a big difference. Each color on a tungsten electrode stands for a different type of tungsten.

Knowing what they mean helps you get better welds, whether you’re working on steel, aluminum, or something else.

If you want to pick the right tungsten every time, avoid common mistakes, and get the most out of your TIG welder, understanding the tungsten electrode color chart is essential.

Read on to discover how the color chart works, what each color means, and how to use this knowledge for cleaner, stronger welds.

What Is a Tungsten Electrode and Why Does It Matter?

Tungsten electrodes are the heart of TIG welding. They’re tough metal rods that carry the electrical current and create the arc that melts your metal.

Tungsten is special because it can handle a ton of heat without melting away, so you get a steady arc and smooth welds.

But not all tungsten rods are the same. They come in different types, each with a unique blend of metals (or “alloys”) inside. That’s where the tungsten electrode color chart comes in handy.

The chart helps you match the right electrode to your welding job so you get the best results every time.

Why Do Tungsten Electrodes Have Different Colors?

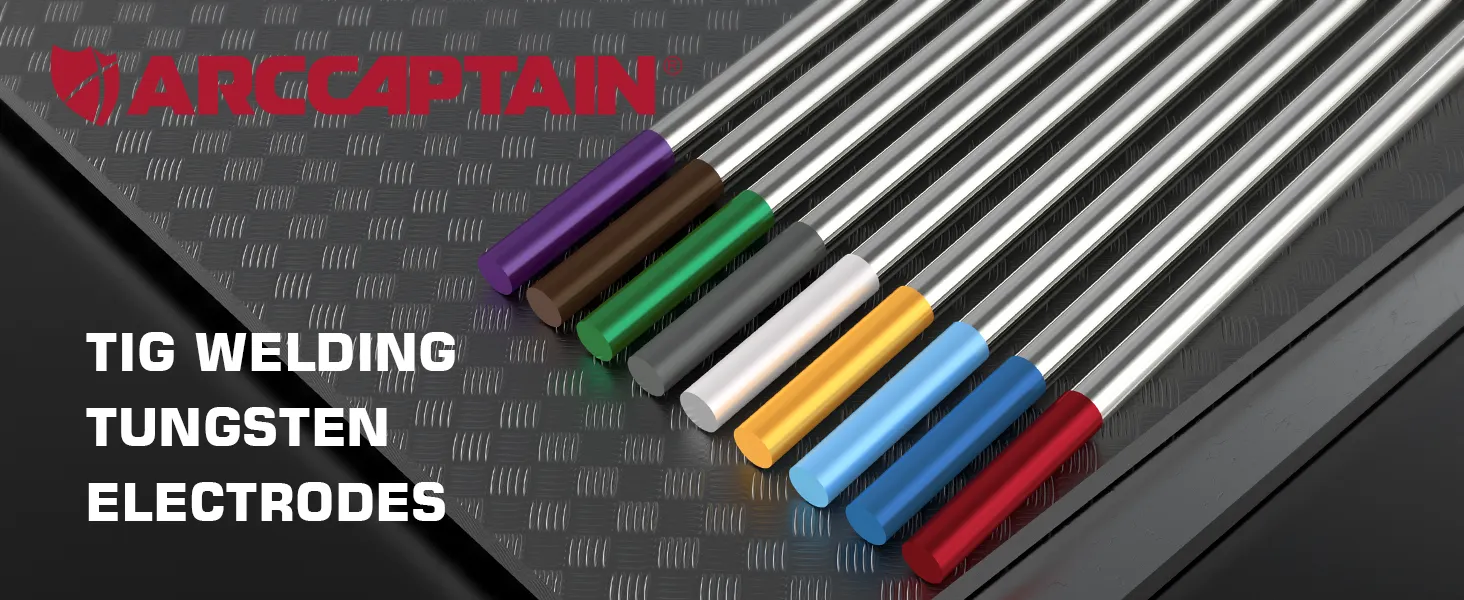

If you’ve ever looked at a box of tungsten electrodes, you’ve probably noticed the colored tips. These colors are more than just decoration; they’re a code. Each color tells you what’s inside the electrode and what it’s best used for.

The color code is a quick way for welders to grab the right tungsten without guessing. It also helps you avoid mistakes, like using the wrong tungsten on aluminum or steel, which can lead to weak welds or a messy arc.

Using the right color makes your welding safer, easier, and more efficient.

Tungsten Electrode Color Chart Explained

Here’s a handy chart to help you see what each color means, what’s inside, and when to use it. (Colors follow AWS A5.12 US standards; see notes for international or older variants.)

📌 Not sure where to start? Check out this beginner’s guide to choosing tungsten electrodes for more details.

How the Tungsten Electrode Color Chart Works: Step by Step

Knowing how to use the tungsten electrode color chart can help you get better welds and avoid common mistakes. Let’s break it down.

The Process

1. Know Your Metal: Are you welding steel, aluminum, stainless, or something else?
2. Pick Your Current: Will you use AC or DC?
3. Match the Color: Use the chart above to pick the right electrode for your job.
4. Check the Size: Make sure your tungsten fits your torch and matches your project.

Tips for Getting It Right

• Remember: Green for aluminum, red for steel. This is easy to remember.
• Blue and gold are great all-around choices if you want something versatile.
• Keep your electrodes organized by color to avoid mix-ups.

You May Shop

📌 Want to shape your tungsten like a pro? Don’t forget to browse this guide on how to shape tungsten electrodes.

Choosing the Right Tungsten Electrode for Your Welding Project

Picking the right tungsten isn’t just about color. It’s also about your metal, its thickness, and the current you’re using.

What to Think About

• Material: Are you welding steel, stainless, aluminum, or something else?
• Thickness: Thicker metal needs a tougher, bigger electrode.
• Current: AC for aluminum, DC for steel and stainless.

Quick-Reference Table: Which Color for Which Metal?

Note: Gray is the current AWS standard color for ceriated tungsten in the US. Orange may be seen in older stock or in European markets.

Purple (rare earth blend) is not an AWS standard, but is a popular multi-purpose tungsten in the US and is compatible with both AC and DC welding.

📌 Still have questions about TIG welding? Check out these helpful TIG welding tips to boost your skills.

Tips for Storing and Handling Tungsten Electrodes

To get the best results, you need to keep your tungsten clean and organized.

• Store by Color: Use labeled tubes, boxes, or containers to keep colors separate.
• Avoid Contamination: Always handle electrodes with clean gloves or pliers.
• Keep Them Dry: Store in a dry spot to prevent rust or dirt.
• Mark Used Ends: If you’ve used one end, mark it so you always use the fresh end first.

Troubleshooting Common Tungsten Electrode Problems

Even with the chart, things can go wrong. Here’s how to spot and fix the most common issues.

Contamination

• What You’ll See: Dirty arc, black spots, or a “fuzzy” tip.
• How to Fix: Grind your tungsten on a dedicated wheel and don’t touch it with bare hands.

Tip Wear

• What You’ll See: Rounded or split tips, uneven arc.
• How to Fix: Reshape your tungsten regularly and use the right grinding method.

Poor Arc Starts

• What You’ll See: Hard to start or the arc “jumps.”
• How to Fix: Make sure you’re using the right color for your current and the electrode isn’t too worn down.

Wrong Electrode for the Metal

• What You’ll See: Unstable arc, lots of spatter, or weak welds.
• How to Fix: Double-check the tungsten electrode color chart and switch to the correct type.

📌 Want to see which tungsten works best for TIG welding aluminum? Check out this detailed guide for more info.

Final Thoughts

The tungsten electrode color chart is your shortcut to better welds. By matching the right color to your project, you’ll get cleaner arcs, stronger welds, and fewer surprises along the way.

Keep this chart handy, stay organized, and don’t be afraid to try different types as you build your skills.

For more helpful welding guides and tips, be sure to check out Arccaptain. And if you’re looking to upgrade your equipment or stock up on tungsten electrodes, don’t forget to shop Arccaptain welding machines and accessories.

They’re designed to help you weld with confidence and precision!

You May Also Like

Frequently Asked Questions About the Tungsten Electrode Color Chart

What are different colors of tungsten for?

The different colors on the tungsten electrode color chart show which metals are mixed into the tungsten. Each color is designed for a specific welding job, like green for aluminum or red for steel, so you can easily pick the right one for your project.

What is the difference between blue and grey tungsten?

Blue tungsten (lanthanated) is known for its versatility and long life. Gray tungsten (ceriated) is great for low-amp or thin metal work. Both work for AC and DC welding, but blue is often chosen for its stable arc and all-around performance.

What is the color code for tungsten metal?

The color code for pure tungsten metal is green. Pure tungsten is mostly used for AC welding, especially on aluminum and magnesium. Other colors like red, blue, or gold show that the tungsten has been mixed with different metals for special jobs.

What color tungsten for TIG welding mild steel?

For TIG welding mild steel, red (thoriated), blue (lanthanated), or gold (lanthanated) tungsten electrodes are the most popular choices. These work best with DC current and give you a strong, stable arc for clean welds.
