The roll forming process is a continuous method where a long metal strip, usually from a coil, passes through a sequence of rollers that gradually bend it into the desired cross-sectional profile.
Because it’s a cold forming technique, the metal is shaped at or near room temperature. This process excels at producing long parts with uniform shapes and tight tolerances at high production volumes.
Roll forming pops up everywhere: construction, automotive, even renewable energy. It’s cost-effective and keeps waste low.
Instead of heavy stamping or cutting, roll forming bends metal slowly and steadily. This keeps the metal strong and reduces mistakes.
What Is Roll Forming Process?
Roll forming shapes metal by bending it step by step through rollers. You get long, consistent metal parts with specific profiles. This method cranks out parts quickly and accurately. No wonder so many industries rely on it.
Define Roll Forming: Cold Continuous Bending of Strip Into Profiles
Roll forming works at room temperature. You feed a flat metal strip through several roller stations, and each one bends it just a bit more.
The metal’s thickness barely changes. You can use steel, aluminum, or copper, and the system keeps shapes uniform with no breaks or welds.
It’s perfect for making straight or gently curved profiles—think wall studs, roofing panels, or car frames.
Why Use It: High Volume, Tight Tolerances, Low Waste
Need a lot of identical metal parts? Roll forming’s your friend. The process runs nonstop, so you get big quantities in less time.
You get tight control over dimensions. Since rollers bend the metal gradually, you avoid cracks and defects.
There’s barely any waste—most of the metal strip gets used, so you save on material costs.
Choosing the right material makes all the difference. Explore your options in our article, Different Types of Metal Used in Welding.
Steps in Roll Forming Process
The roll forming process shapes metal strip through several steps. You start with coil loading, then straighten the strip, and move it through rollers for shaping.
You can add punching or embossing along the way. At the end, you straighten the strip again and cut it to the size you want.
Coil Loading and Strip Straightening for Feed Prep
You load a coil of sheet metal onto a decoiler. This feeds the strip into the machine, and coil sizes range from about 1 to 30 inches wide.
First, you need to straighten the strip. Metal arrives coiled and usually has bends, so a straightener with rollers flattens it out before forming.
Alignment matters here. If feeding’s off-center, you risk defects or damaging the machine.
Progressive Forming Rolls Shape Strip Step by Step

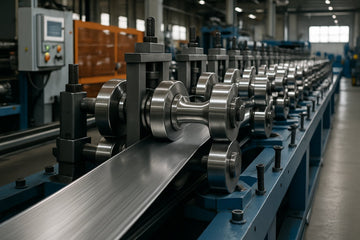

After straightening, the strip goes through forming rollers. These are set up in stations, each making small bends or shapes.
You might see up to 20 or more sets of rolls. Gradual shaping prevents cracks and keeps the metal from warping.
Rollers get positioned based on your desired profile. You can form channels, angles, or custom patterns over long stretches of metal.
Add-Ons: Punching, Embossing, Notching During Forming
Roll forming isn’t just about bending. You can add punching, embossing, or notching right on the line.
Special tools or stations punch holes, make raised textures, or trim edges as the strip moves through.
For example:
- Punching makes holes for bolts or wires.
- Embossing adds texture or strength.
- Notching shapes corners or edges for fitting.
These extras boost the part’s usefulness and save you assembly time later.
Final Straightening and Cutoff to Desired Length
After all shaping, you may need to straighten the strip again. Last rollers fix any twists or bows.
Then, you cut the metal to the right length with a shear or flying cutoff blade. This happens without stopping the line, so things stay quick.
Cutoff machines match the roll forming speed. You get clean, accurate cuts every time, and parts are ready for their next step.
Durability starts with the right metal. Discover top choices in 7 Types of Corrosion-Resistant Metal That Don't Rust.
Materials Used in Roll Forming
Picking the right material affects strength, durability, and cost. Steel and aluminum are favorites, but you can roll form some plastics and composites too.
Steel, Aluminum, Copper, Stainless and More Metals
Steel is the go-to for roll forming, especially low-carbon steel coils. It’s strong, flexible, and fits right in for construction or car parts.
Galvanized steel is big, too, thanks to its rust-fighting zinc coating.
Aluminum is lighter than steel and shrugs off corrosion. It’s great for aerospace or vehicles where you need strength without extra weight.
Copper’s not as common, but its electrical conductivity and corrosion resistance make it perfect for wiring or trims.
Stainless steel resists rust and stays tough. You’ll want it for harsh environments or when a clean look matters. It’s hard, though, so machines need to be spot-on to avoid damage.
Some Non-Metal Strips (Plastic, Composite) Also Formable
You can roll form certain plastics and composites. Thermoplastics get bent into shapes without cracking—handy for chemical resistance or lighter parts.
Composites mix fibers and resins for high strength and low weight. These are popping up more in cars and buildings to cut weight and boost performance.
Machines need to adjust for these materials. You might need different rollers or speeds, but it opens up new design ideas.
Bringing different metals together requires special techniques. Get practical advice in How to Weld Dissimilar Metals - Tips and Techniques.
Advantages & Limitations
Roll forming brings speed, consistency, and lets you add extra features in-line. But it’s not perfect—tooling costs are high, and it only makes sense for big batches.
Pros: Speed, Consistency, Integrated Secondary Ops
Roll forming churns out parts fast. Continuous rollers mean you go from raw metal to finished part in no time, which is awesome for big orders.
You get repeatable, uniform shapes. Gradual bending through many rollers keeps errors and scrap low.
Adding punching, bending, or laser cutting is easy. You can fit these steps before or after forming, so your workflow stays smooth.
Cons: Tooling Cost, Only Efficient at High Volumes
Tooling costs can sting. Custom roller sets for your design take time and money, especially for complex shapes.
That’s why roll forming works best for large runs. Small batches? The setup just isn’t worth it—other methods might be cheaper and quicker.
And if your project calls for odd shapes or really thick metal, you may need a different process.
The right equipment makes every project easier. Check out our metal welders collection for quality tools and gear.
Real-World Applications
Roll forming makes tons of metal parts you see every day. It shapes metal into strong, uniform pieces that fit specific jobs.
Products Like Roofing, Automotive Beams, Racking, Frames
Roofing panels? Roll formed. They’re light, tough, and last for ages. Gutters, too—they handle rainwater without fuss.
Car beams and frames? Roll forming delivers strength without piling on weight. That means safer cars and better gas mileage.
Door frames and storage racks? Yep, roll forming keeps them sturdy and consistent. Those shelves holding your heavy stuff? Probably roll formed, too.
Common in Automotive, Construction, Solar, Appliance Industries
The car industry relies on roll forming for precise, high-strength parts. Long beams and complex profiles are the norm here.
Construction uses roll formed roof panels, gutters, and frames because they’re easy to make and install. Plus, they fight rust, which is huge for buildings.
Solar panel frames need to be tough and weatherproof—roll forming handles that. These frames keep panels in place for years.
Appliances like ovens and fridges have roll formed metal parts inside. Consistency and precision mean everything fits and works right.
Working with various thicknesses? Find helpful tips in How to Stick Weld Different Thickness Metals - A Guide.
Design & Tooling Basics
Design and tooling matter a ton in roll forming. Careful planning ensures each roll stand shapes the metal right and cuts down on waste.
Good design lets you make complex profiles more easily and with better accuracy. It’s worth taking the time to get it right.
“Flower Pattern” Layout for Roll Stands Design
The “flower pattern” layout pops up a lot in roll forming. It’s all about arranging roll stands so the rollers bend the metal a little at a time.
This gentle sequence eases stress on the strip and keeps the material from getting damaged. You design the flower pattern by thinking about each roller’s shape and how it touches the metal.
The layout lets you control thickness and helps you dodge headaches like wrinkling or cracking. Each stand’s rollers pitch in together, making small changes instead of forcing sharp bends all at once.
CAD/CAM Used to Simulate and Optimize Roll Tooling
You can turn to CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software to plan and test your roll tooling before you build anything. The simulation shows how your rollers shape the metal and flags issues like misalignment or too much stress.
CAD/CAM lets you tweak roller shapes and positions quickly, so you save time and avoid wasting material. You can try out different layouts and pick what works best for accuracy and durability.
Plus, these tools help you and your toolmakers stay on the same page. The software spits out precise tool paths and machine programs, making sure your tooling’s ready for production.
Final Thoughts
Roll forming gradually bends metal through rollers to produce long, uniform shapes while maintaining strength and finish at room temperature. This process offers high speed, minimal waste, excellent repeatability, and can add features like punching or embossing in-line.
It’s ideal for high-volume production of items such as roofing panels and channels, though it requires upfront tooling and is best for longer runs.
When you need precision, speed, and consistency, roll forming delivers. Interested in optimizing your process? Also, read our article, Tube Laser Cutting: Process, Benefits, and Applications, for more tips and insights.
Frequently Asked Questions
What is the roll forming theory?
Roll forming works by feeding a long strip of metal through a series of rollers that slowly shape it into the profile you want. The process relies on plastic deformation, so the metal bends and holds its new shape without cracking.
Each roller station makes a small change, letting the metal take shape gradually. Since roll forming is continuous, you get a smooth, steady cross-section over long lengths.
This is perfect for products like roofing panels, automotive parts, or frames when you need uniform shapes.
What is the difference between roll forming and stamping?
Roll forming and stamping both shape metal, but they’re pretty different. Roll forming bends metal bit by bit as it moves through rollers, so it’s great for long, consistent profiles.
On the other hand, stamping uses dies and presses to cut or shape metal sheets in quick bursts. It’s good for detailed shapes but not for long, continuous parts.
So, you’ll probably pick roll forming for straight or gently curved shapes, and stamping for complex features on flat or short pieces.
How is it made roll forming?
If you want to make something with roll forming, you start with a metal coil or strip. Feed that strip into the machine, and it passes through several roller sets.
Each roller pair bends the metal a little closer to the final shape. The rollers are designed for your part, so the finished profile matches what you need.
Some roll forming lines even let you add holes, notches, or markings as you go, saving time later. The process runs automatically, making it fast and efficient for big batches of the same shape.
Thickness and metal type change depending on what you’re making, but steel and aluminum are pretty common.
What are the disadvantages of rolling process?
Roll forming's pretty efficient, but let's be honest, it comes with a few headaches.
- It handles long, uniform shapes really well, but when you need sharp bends or something wildly complex, it just can't keep up.
- Getting everything set up—like designing the rollers and dies—takes a lot of time and can get expensive fast.
- There's a limit on metal thickness. If you try to form really thick or super hard metals, you might end up damaging the equipment or getting poor results.
- This process runs continuously, so if you want lots of different shapes or only a handful of parts, it's not exactly flexible.
